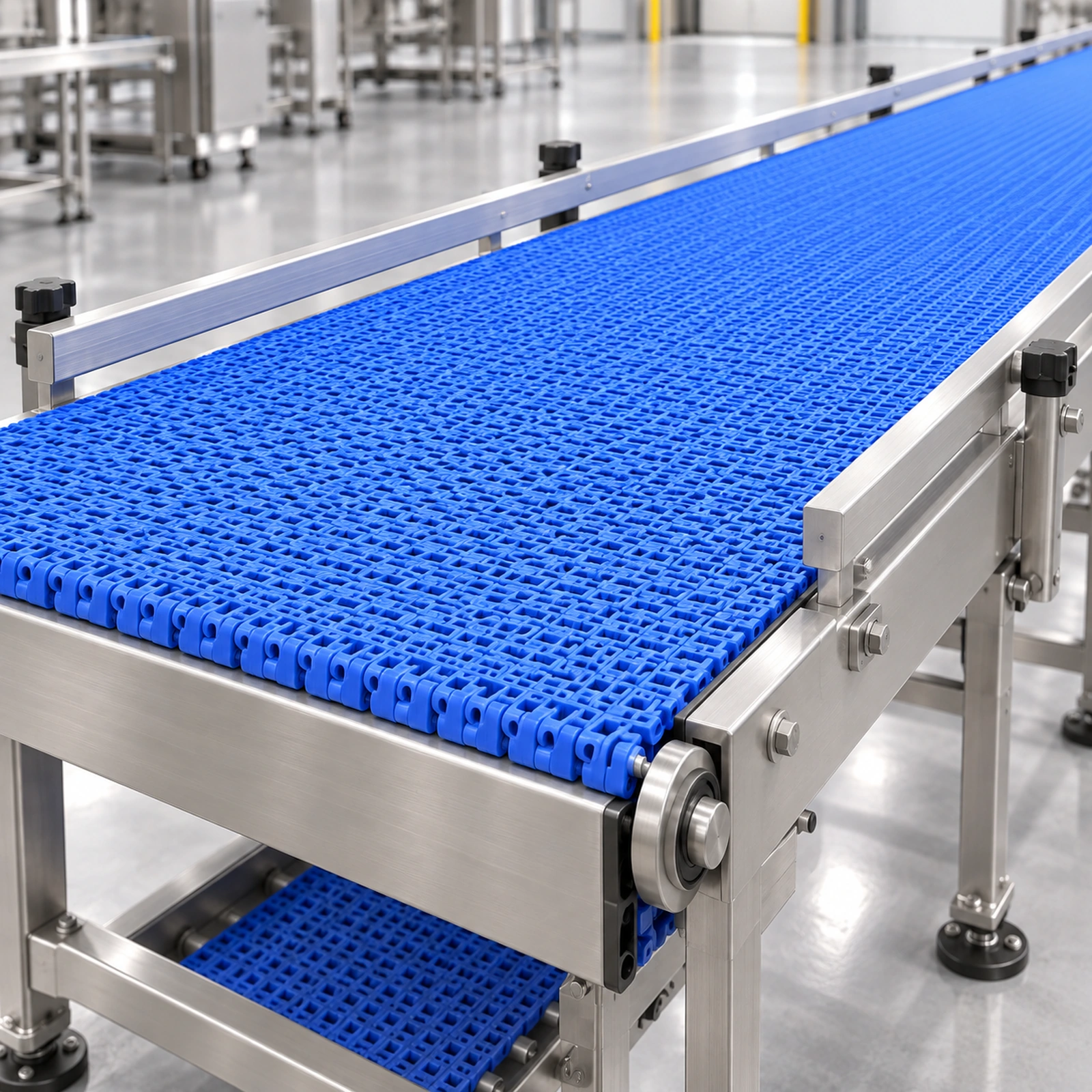

Straight Running Modular Belts


CSTRANS supplies straight running modular belts across nine listed pitch classes, with flat, open, ball-top and flighted surfaces for different product behavior. Selected belt families also have standard molded sprockets or matching raised-rib transfer plates. These choices help equipment teams align product support, drive engagement and the next handoff along a straight conveyor route.

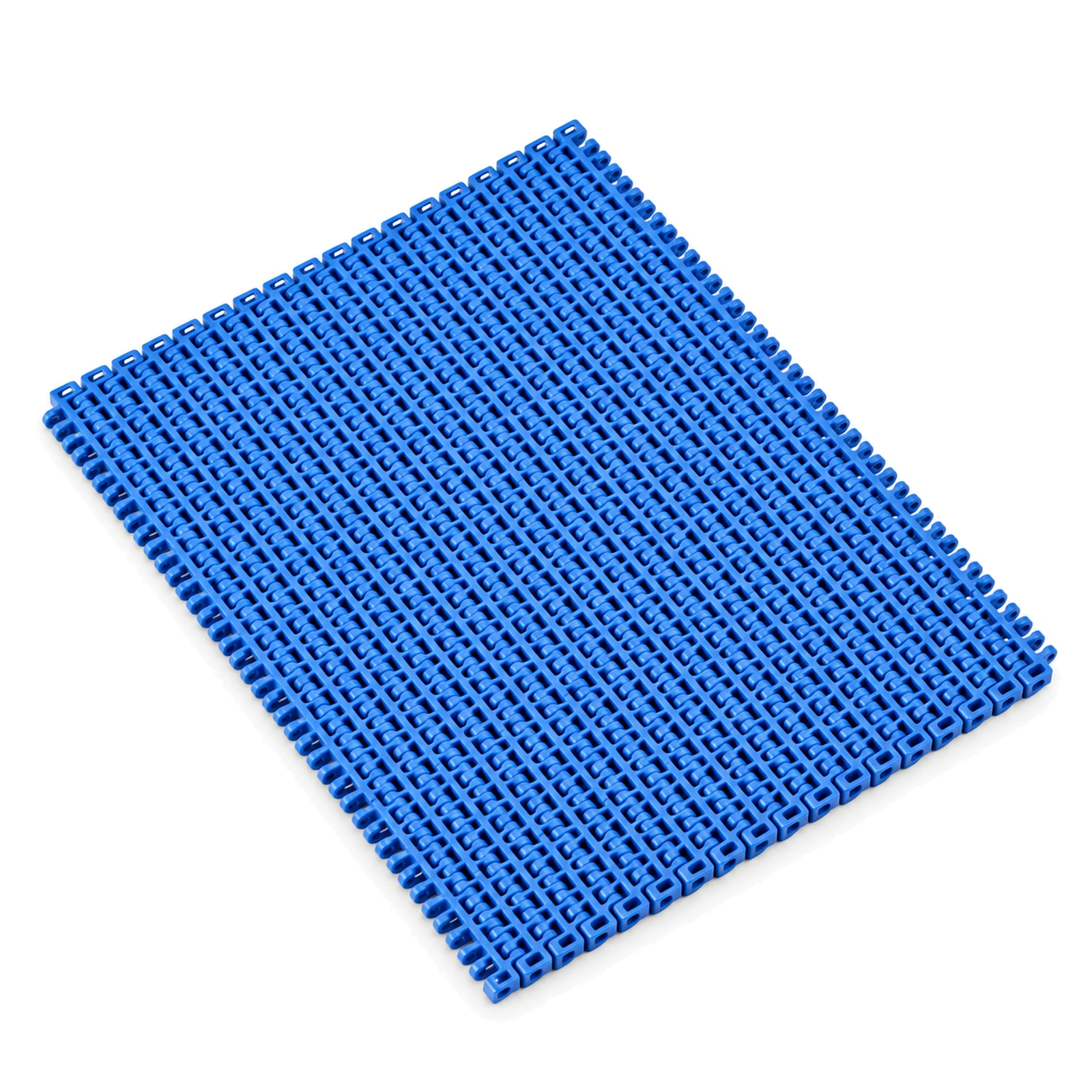

Straight Running Modular Belts Models

1270 Flush Grid

1271 Flush Grid

1272 Flat Top

1273 Flat Top

1274A Flat Top

1274B Flush Grid

1275

1500A Flat Top

1500C Rubber Top

1500D Transfer Plate

1520A Flat Top

1520B Flush Grid

1901A Flat Top

1901B Flush Grid

1901C Raised Top

1901D Flight

1901F Textured Top

1902 Flat Top

2540A Flush Grid

2540C Raised Rib

2540D Flighted

2541 Flat Top

2541A Flat Top

2542A

2542B

2542C

2542E Narrow Chain

2545

2546

2548

2720A Flat Top

2720B Flush Grid

2720C Raised Rib

2720D Flight

2720E Transfer Belt

2720F Rubber Top

2720-R Narrow Vacuum Flush Grid

3811 Flush Grid

5080 Roller Top

5081A Flat Top

5081B Flush Grid

5081D With Side Guards

5082A Flat Top

5082B Flush Grid

5082C Open-Hole

5082D Flight

5082V Vacuum Top

5083 Raised Rib

5083D Directional Roller Top

5083W Ball Top

5086 Flush Grid

5711 Flush Grid

5712 Ribbed

5713 Open-Grid
Transfer support
Pitch and Product Support at the Transfer
The straight-running range covers discrete pitches from 12.7 to 57.15 mm. Its 12.7 mm 1270–1275 family is used for small items; the shorter module step gives those products a finer support pattern as they approach an infeed or discharge. Larger pitch families include 2720 at 27.2 mm and 5082 at 50.8 mm, each with its own surface forms. Pitch changes the support pattern where one conveyor section meets another and identifies the belt family needed for a replacement.
Contact surface
Choose the Contact Surface for the Job
Within the 2720 family, CSTRANS offers flat-top 2720A, flush-grid 2720B, raised-rib 2720C and flighted 2720D. The 5082 family includes flat, grid, perforated and flighted forms; a 5082 flight-and-sidewall configuration serves inclined runs. Its listed flight and sidewall heights are 25, 50, 76 and 100 mm, with flight spacing specified in whole-pitch multiples. Flat tops support a product base, while openings allow liquid or air through. Flights and sidewalls help hold position on a rise; ball-top 5080 and 25410 forms reduce sliding contact in case conveying.
Drive handoff

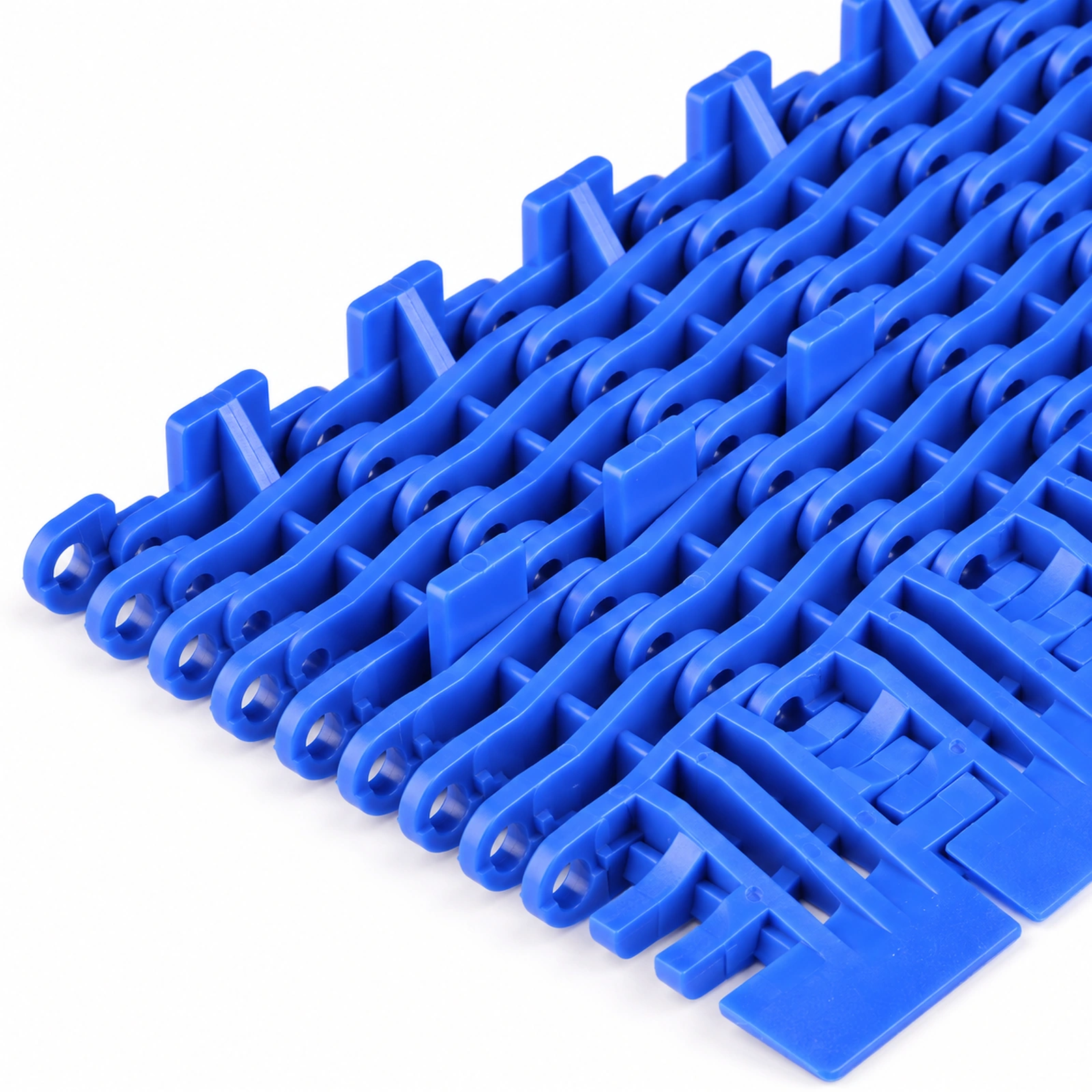

Carry Motion Through the Drive and Handoff
CSTRANS lists standard injection-molded sprockets for 1520, 2720, 5712 and 5713 belts. The raised-rib 2720, 5083, 5712 and 5713 versions also have matching transfer plates at discharge. These are separate model-specific interfaces: a sprocket engages the belt at the shaft, while a raised-rib plate gives a product a supported route toward the receiving surface. Tooth count, bore, keyway, belt width and plate placement need to suit the actual equipment so a correct surface choice still works within the line.

Application / Line Context
At an infeed, small products need enough base contact to settle onto the belt; a short-pitch family can help where support spacing matters. Through a wet or ventilated process, a grid or perforated surface permits flow through the belt but offers less bearing area to a narrow product base than a closed top. A ball-top section can ease relative movement where cases collect. On a rising straight run, flights and sidewalls help keep products from shifting back. At discharge, the belt turns away around its sprockets while the product must reach the next machine; the raised-rib plate, product footprint and transfer height all influence that handoff.
