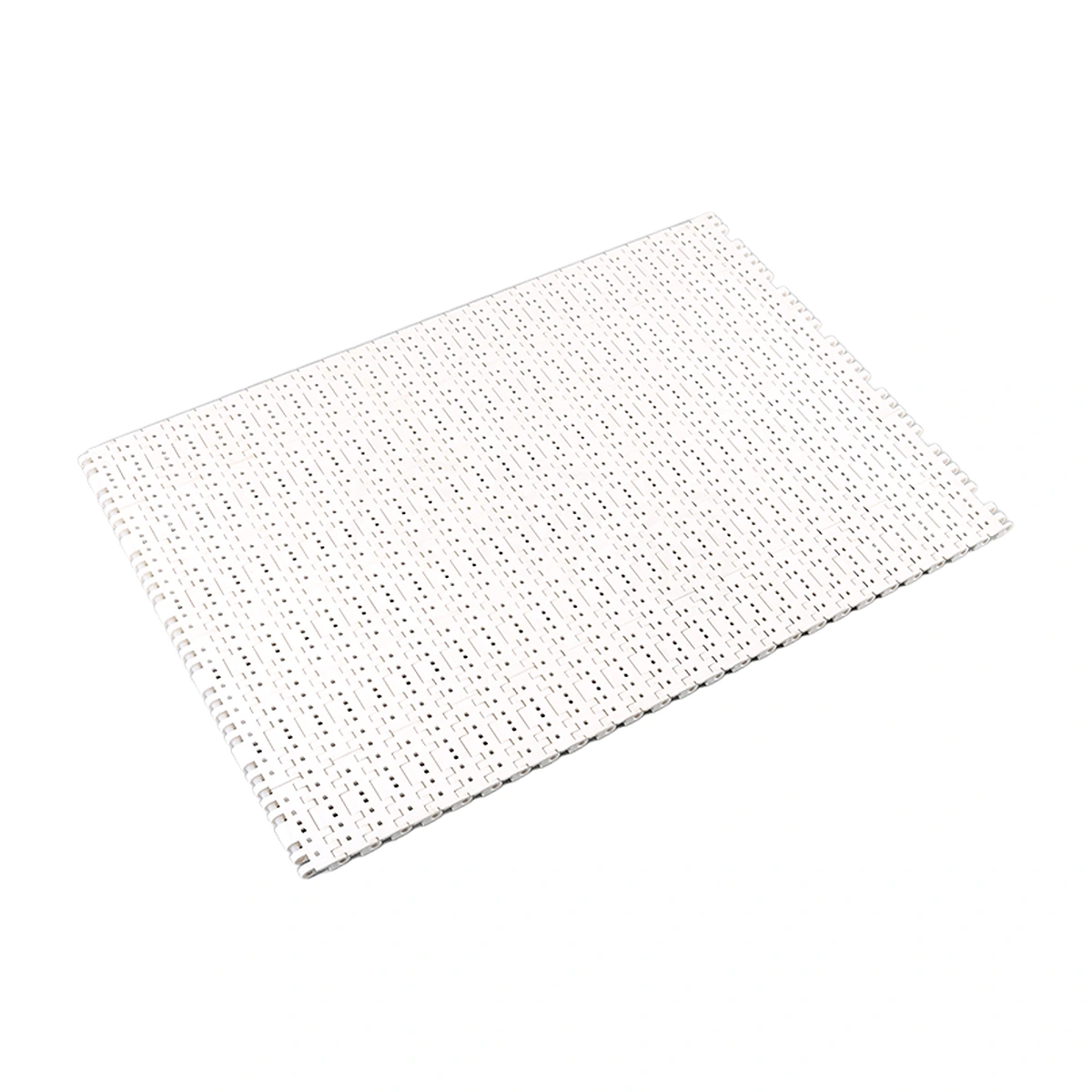

2541A Flat Top Modular Belt
CSTRANS supplies the 2541A flat top modular belt with a closed carrying surface and 6 mm connecting pins. Its nominal widths follow 76.2 mm steps.
- Surface
- Flat top, 0% open area
- Pin Diameter
- 6 mm
- Nominal Width Step
- 76.2 mm / 3 in
Order the Width With Drive Positioning in Mind
Select the assembled width before ordering; cutting the belt narrower is not recommended because of sprocket positioning.
Choose the Width Before the Drive Layout

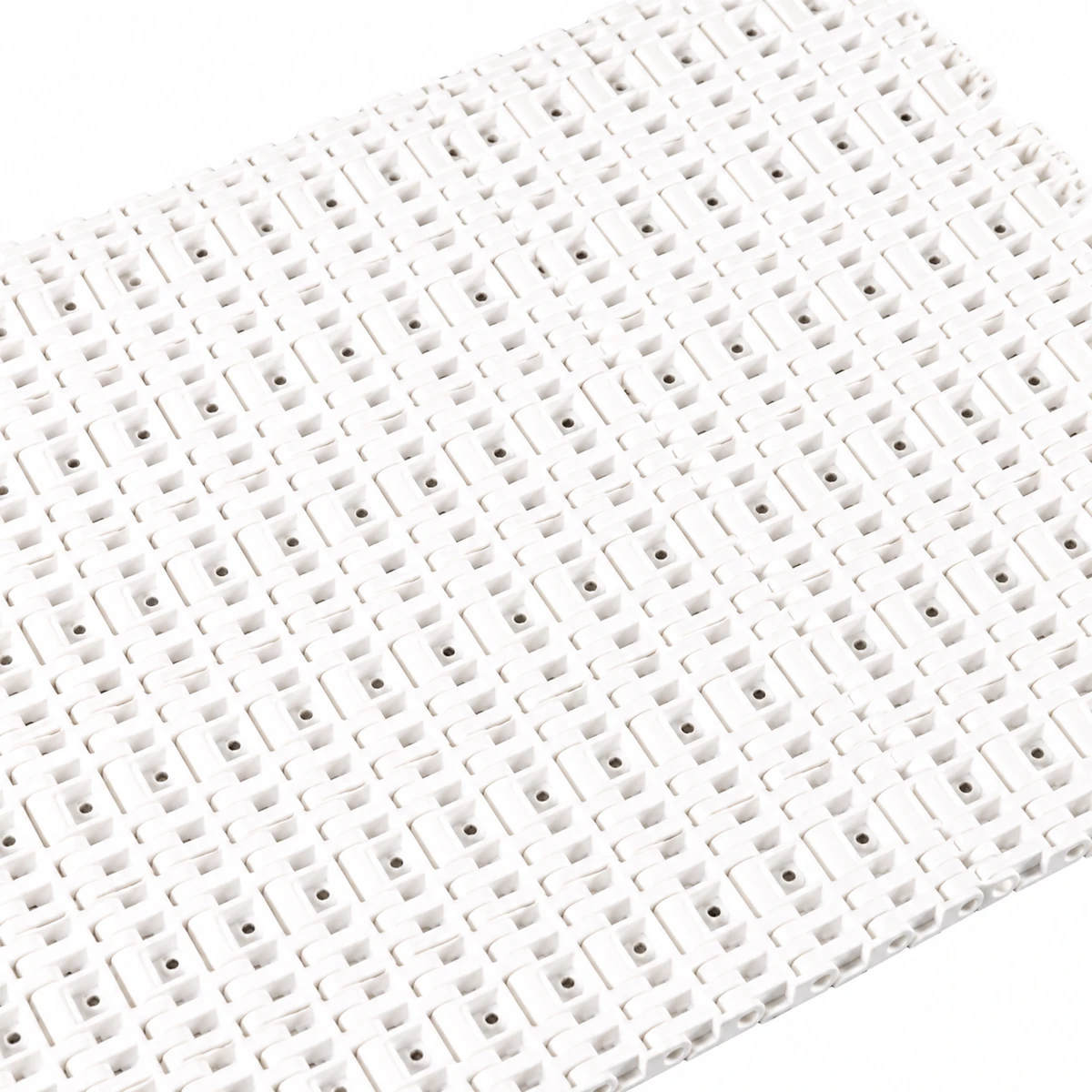

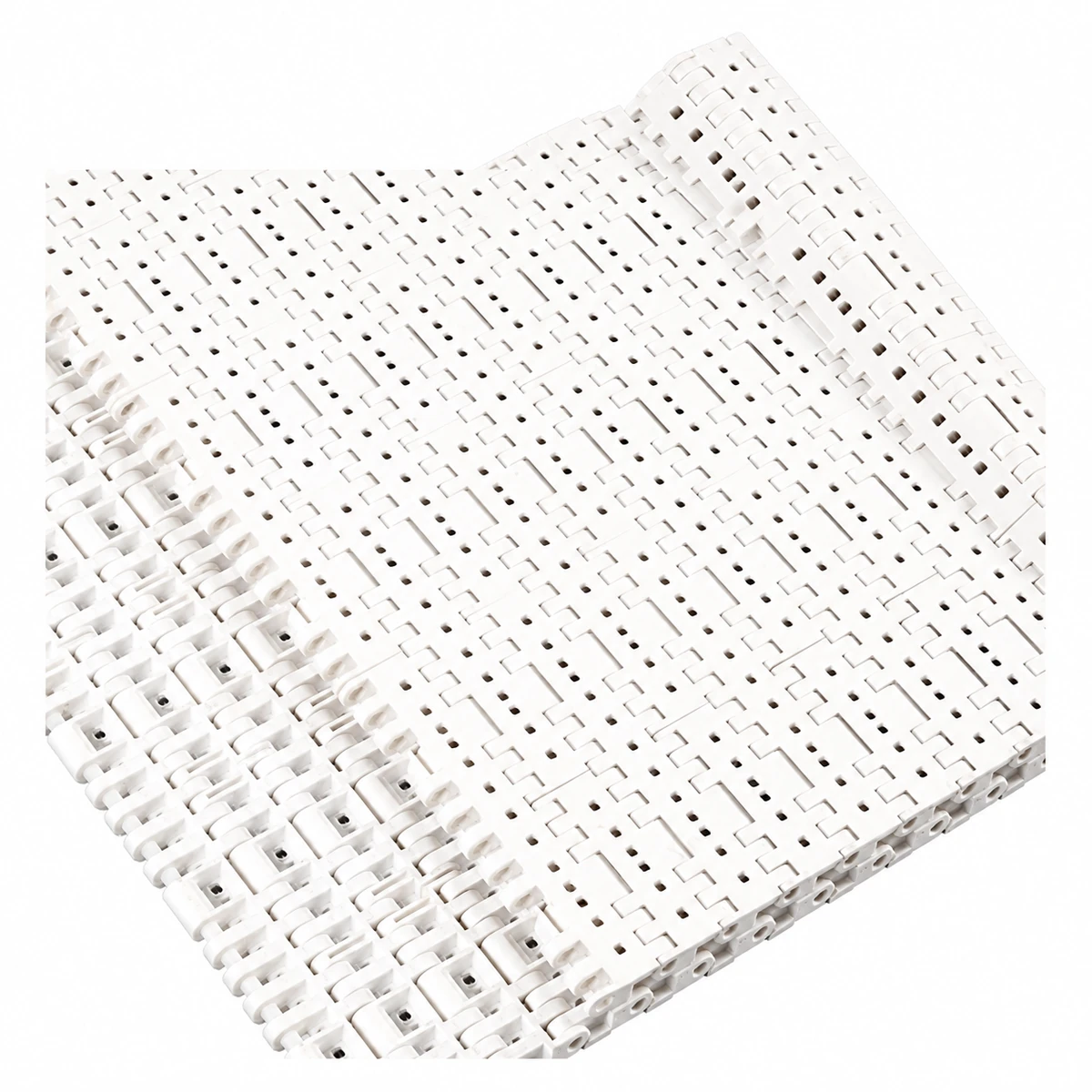

The 2541A closed face supports the product across linked plastic module rows. The 6 mm pin construction and module underside need to match the drive engagement of the selected assembly.
Standard nominal widths progress in 76.2 mm increments. Choose the required width with the sprocket positions established. Cutting a finished belt narrower can affect that positioning, so agree the assembly dimension rather than planning an on-site trim.

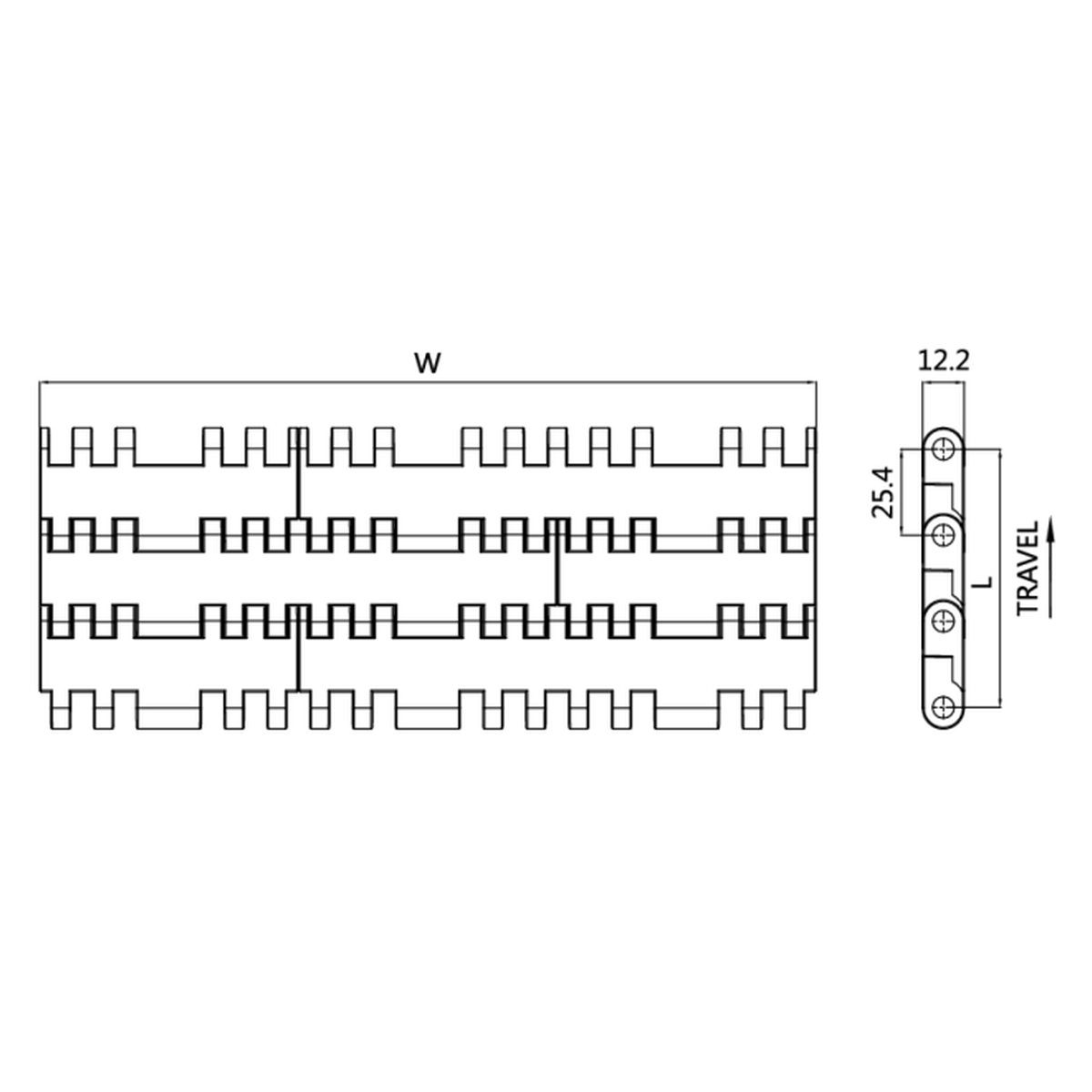

Specifications
| Parameter | Specification |
|---|---|
| Model / profile | Specification: 2541A / flat top |
| Belt materials | Specification: POM / PP |
| Pin materials | Specification: POM / PP / PA6 |
| Pin diameter | Specification: 6 mm / 0.236 in |
| Open area | Specification: 0% |
| Nominal widths | Specification: 76.2 / 152.4 / 228.6 / 304.8 / 381 / 457.2 / 533.4 / 609.6 / 685.8 / 762 mm |
| Backflex radius | Specification: 25 mm / 0.984 in |
| Belt mass | Specification: 12 kg/m² / 2.458 lb/ft² |
| POM temperature range | Specification: −30 to 90 °C / −22 to 194 °F |
| PP temperature range | Specification: +1 to 90 °C / 33.8 to 194 °F |
| Cut-to-width processing | Specification: Not recommended because of sprocket positioning |
Confirm the finished width after material shrinkage and the chosen belt-and-pin combination.
Align the Belt and Sprockets Across the Shaft
Provide the sprocket reference and positions across the carrying width. Check the module underside and pin joints against the installed arrangement.
Review the 25 mm backflex radius on the return. At the product transfer, check the end support and receiving height separately from the return bends.
Support Products Across a Closed Carrying Lane
The flat face can support packages or containers on a straight conveyor. Select the lane width for the product arrangement, including any side-by-side loading.
Where a guide or stop holds a product, review sliding contact with the chosen material. The drive positions beneath the lane also need to stay aligned with the module construction throughout the required carrying width.
Specify a 2541A Assembly Width
Send nominal and finished width, assembled length and quantity with the sprocket layout. Include the product-loading pattern and operating temperature for a configuration review.
