Beam Support Bracket
CSTRANS supplies beam support bracket families for flexible-chain conveyor frames. Bow-shaped supports serve the 63, 83, 103 and 140 chain families in different sizes; L-shaped supports serve the 145, 175 and 295 beam series. These brackets locate the chain-carrying beam on the fixed frame, so support form and installation position affect the running path through a straight, bend or end-unit connection.
Chain family
Fit bow-shaped supports to the chain family

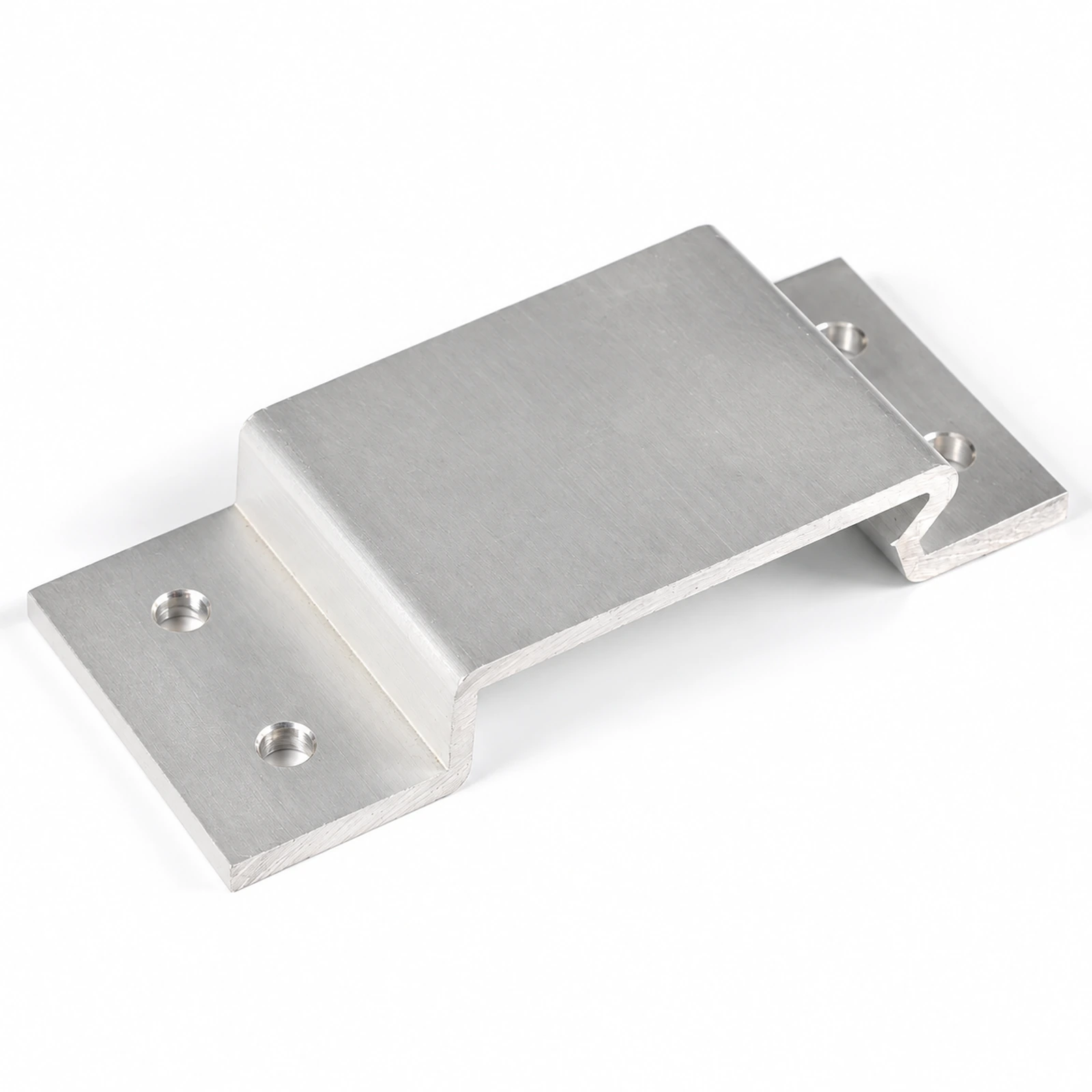

The bow-shaped bracket is not one undifferentiated size. CSTRANS identifies separate sizes for 63, 83, 103 and 140 flexible-chain families. The bracket's shape connects the beam to its structural support while keeping the chain path at the intended elevation. At a replacement joint, using the right family matters because the adjoining beam and wear strip must meet the supported section without an offset. The series name is therefore a fit reference, not just a label on a spare part.
Support form
Use L-shaped support on the larger beam series
CSTRANS also provides L-shaped beam supports for its 145, 175 and 295 beam series. These are separate from the bow-shaped supports used with the smaller chain families. Their role is to hold the larger beam arrangement relative to the frame and leave a defined route for the chain and its guides above. The difference matters where a line expands to a wider conveying path or a replacement bracket is ordered for a larger beam section.
Beam position
Protect the beam's installed position

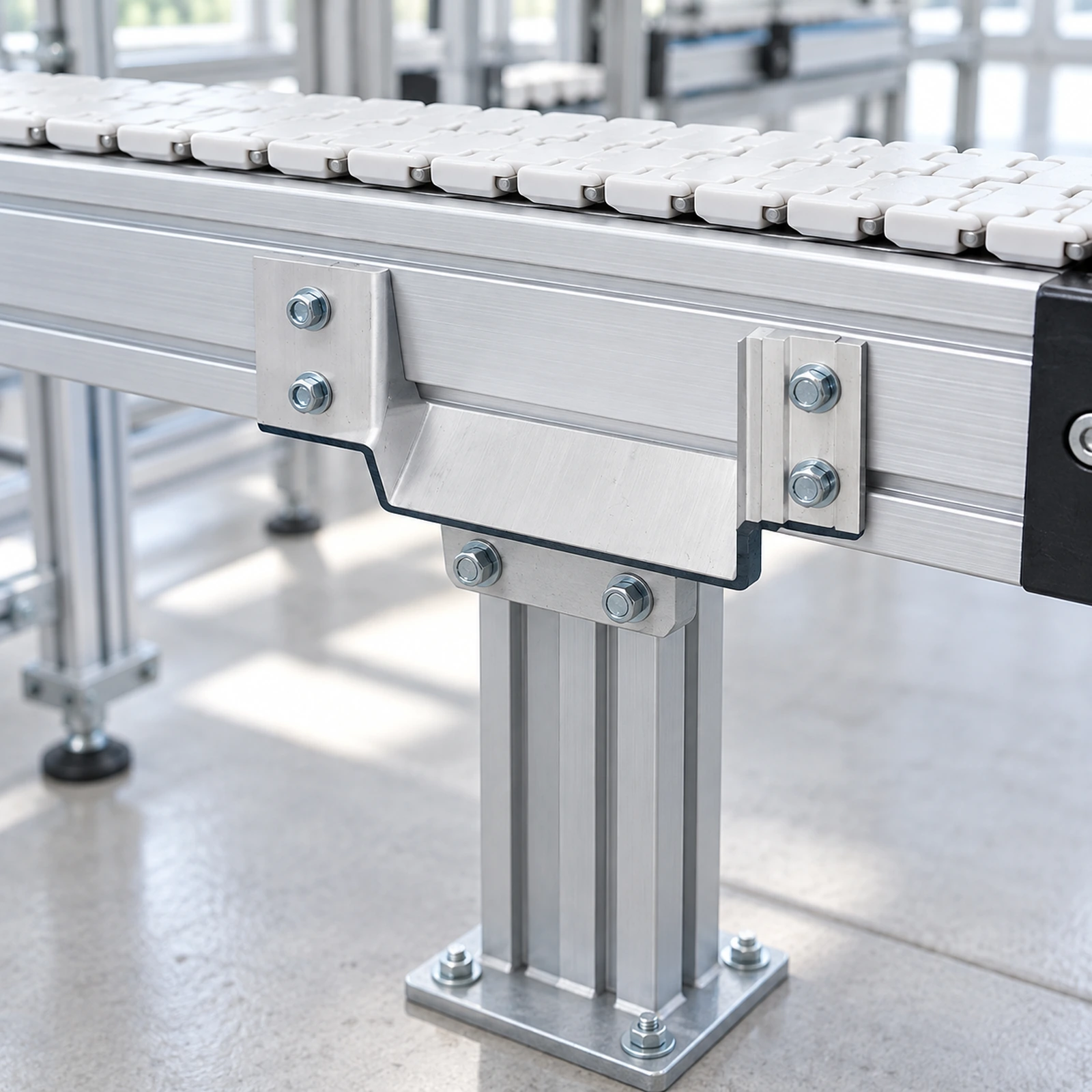

A bracket fixes the relationship between conveyor beam and support frame. Along a straight run, that determines the height of the chain's carrying surface; near a bend, it affects how two beam sections meet. At the drive end, support position also affects how the beam approaches the head unit. CSTRANS can match the bracket form to the beam family and neighboring connection components so that the chain's route remains aligned across the installation.
Application / Line Context
Consider a flexible-chain conveyor leaving a bend and handing products to another machine. The chain passes from curved to straight beam support, with the wear strip maintaining contact below it. A misplaced bracket can change the straight beam's height at that joint, creating a step in the chain path and altering where side guides meet the product. Farther downstream, the same height shift can appear at the discharge gap. On a wider beam arrangement, an L-shaped support belongs to the larger beam family; substituting a bow-shaped part by appearance alone leaves the mounting geometry unresolved. Correct support placement links frame construction to product flow, although the final spacing and load must be set for the actual installation.
