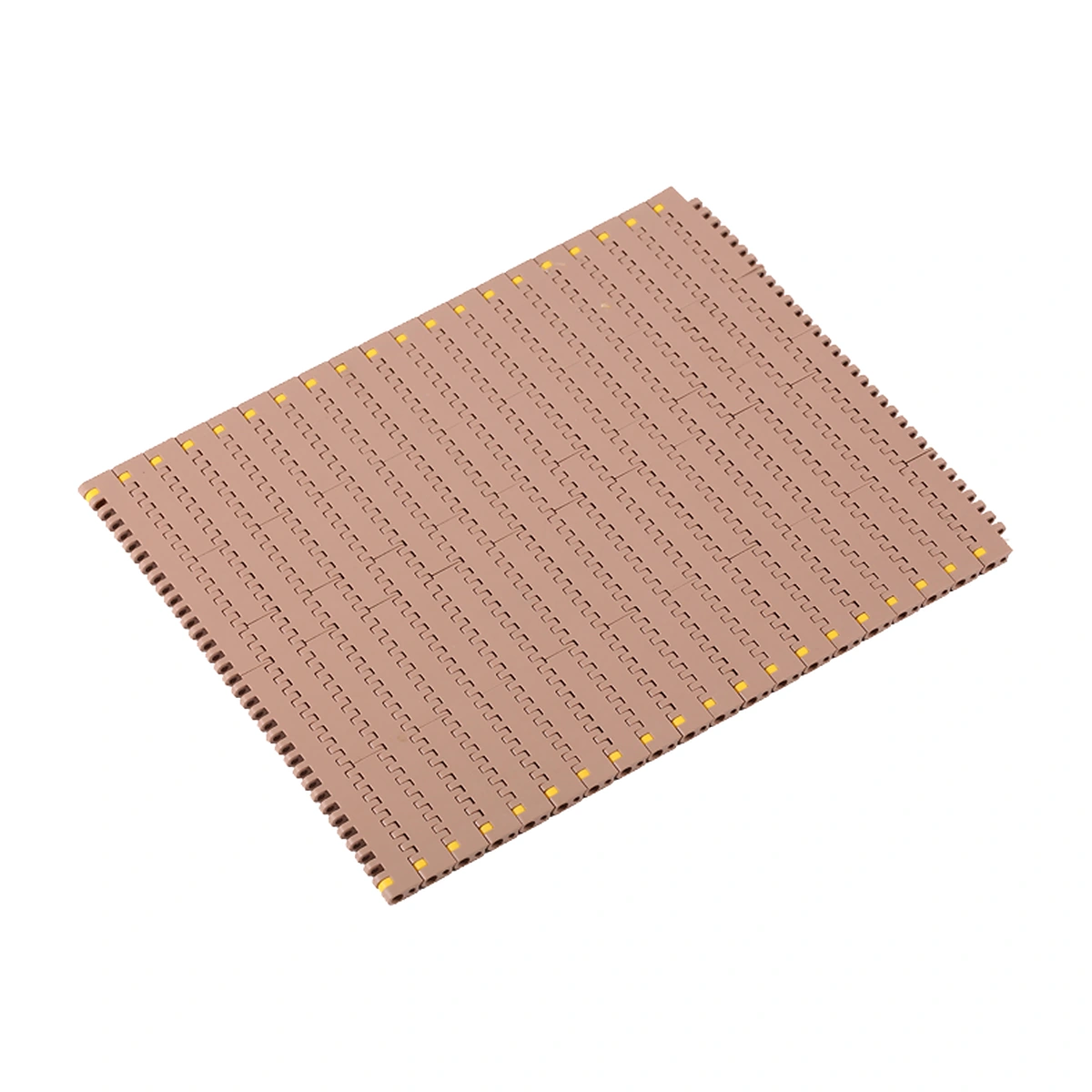

1902 Flat Top Modular Belt
CSTRANS supplies the 1902 flat top modular belt with a closed carrying face. Standard nominal widths progress in 304.8 mm steps, with POM or PP modules and selected connecting pins.
- Surface
- Flat top, 0% open area
- Width Step
- 304.8 mm / 12 in
- Belt Mass
- 13.5 kg/m²
Include Belt Mass in Drive Review
The assembled belt adds moving mass before the conveyed product is loaded.

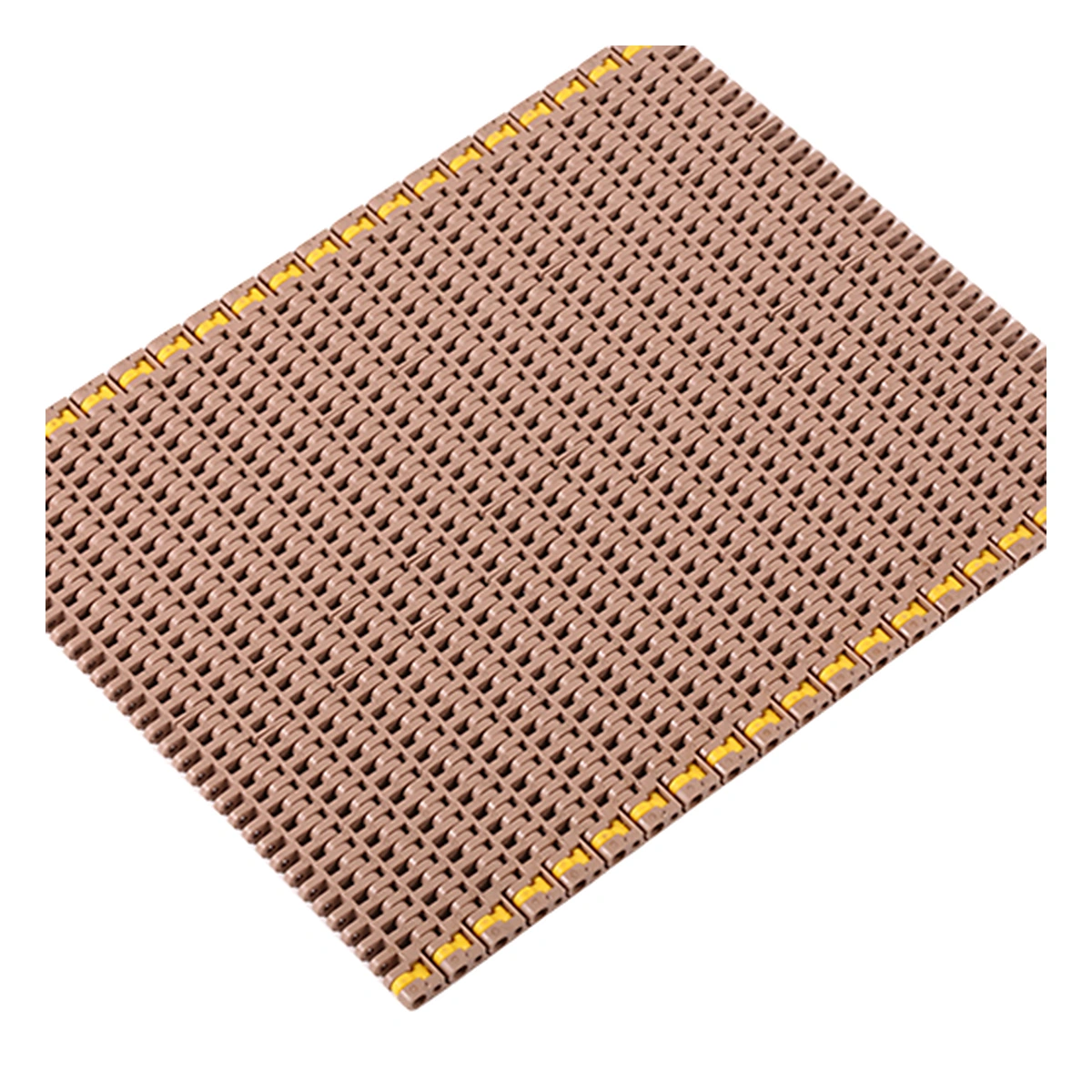

Closed Carrying Width in Larger Standard Steps
The 1902 belt assembles flat-top rows into a closed product-supporting surface. Its nominal standard width step is 304.8 mm. That step is useful when laying out a broad carrying lane and checking available frame space.
The 13.5 kg/m² belt mass affects the total moving load. Review it with assembled belt length and width, product load and operating speed when checking the drive duty. The closed face does not establish the permissible conveyed load.

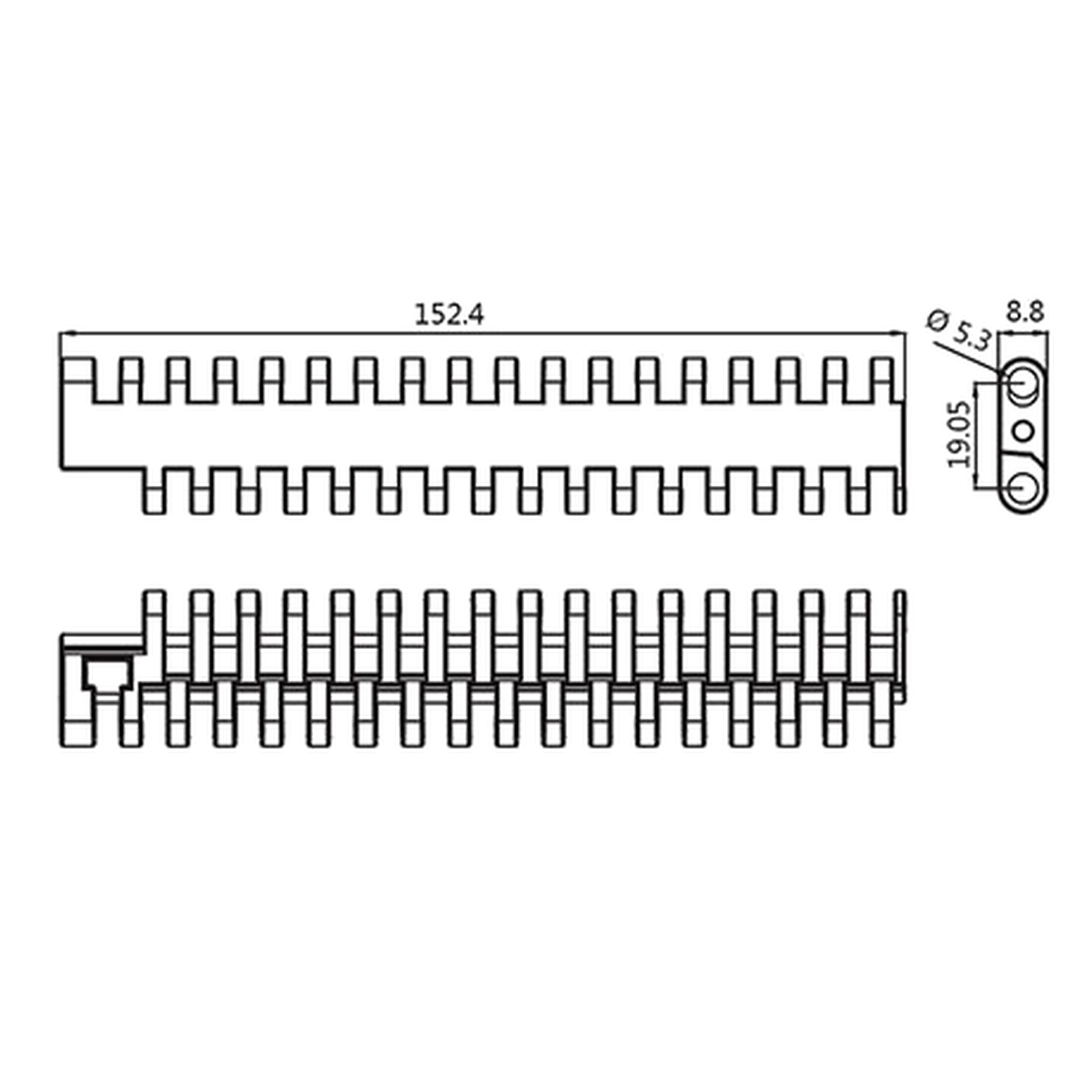

Specifications
| Parameter | Specification |
|---|---|
| Model / surface | Specification: 1902 / flat top |
| Belt materials | Specification: POM / PP |
| Pin materials | Specification: POM / PP / PA6 |
| Pin diameter | Specification: 5 mm / 0.197 in |
| Open area | Specification: 0% |
| Nominal standard widths | Specification: 304.8 / 609.6 / 914.4 / 1219.2 mm |
| Standard nominal width | Specification: W = 304.8 × N mm |
| Backflex radius | Specification: 25 mm / 0.984 in |
| Belt mass | Specification: 13.5 kg/m² / 2.765 lb/ft² |
| POM temperature range | Specification: −30 to 90 °C / −22 to 194 °F |
| PP temperature range | Specification: +1 to 90 °C / 33.8 to 194 °F |
N is a positive integer. Confirm the finished assembled width after shrinkage.
Review Support Across the Full Width

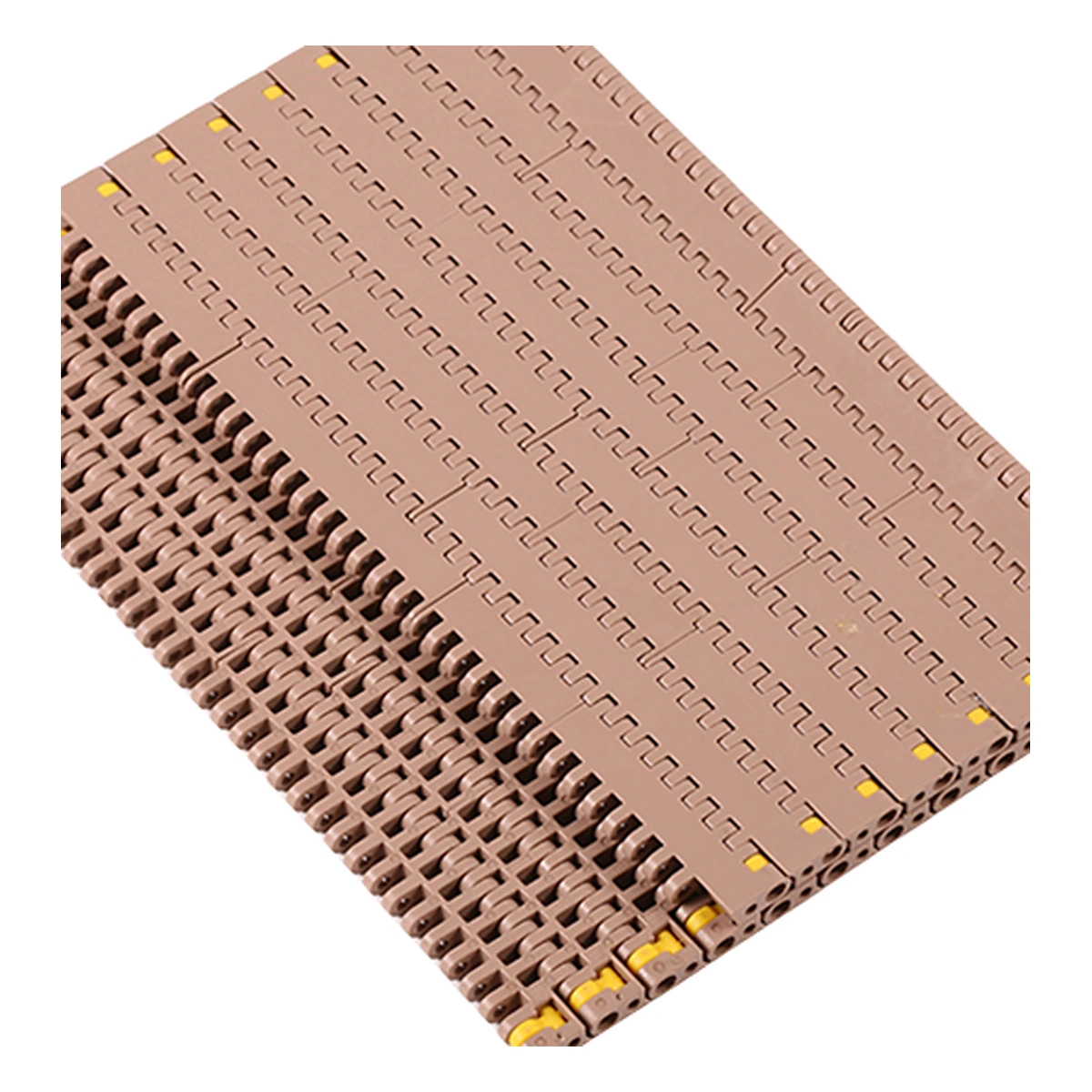

Show the carrying support positions and sprocket locations across the shaft. Compare the underside of the replacement with the installed drive geometry.
Check backward bends against the 25 mm radius. At discharge, review how the product footprint crosses onto the receiving surface; a broad belt can still carry a short product that needs a close handoff.
Support Products Across a Broad Carrying Lane
The closed face can support packages or trays moving across a straight conveyor section. Width selection should reflect the product arrangement, including multiple items carried side by side.
The support bed must carry the loaded belt across that width. Where products accumulate unevenly, assess the actual loading pattern as well as total mass. A wide surface alone does not define the support or drive capacity.
Plan Your 1902 Belt Width
Send the required width, assembled length and quantity with the product loading pattern. Include support positions, sprocket layout and speed for a drive-and-fit review.
