1520A Flat Top Modular Belt

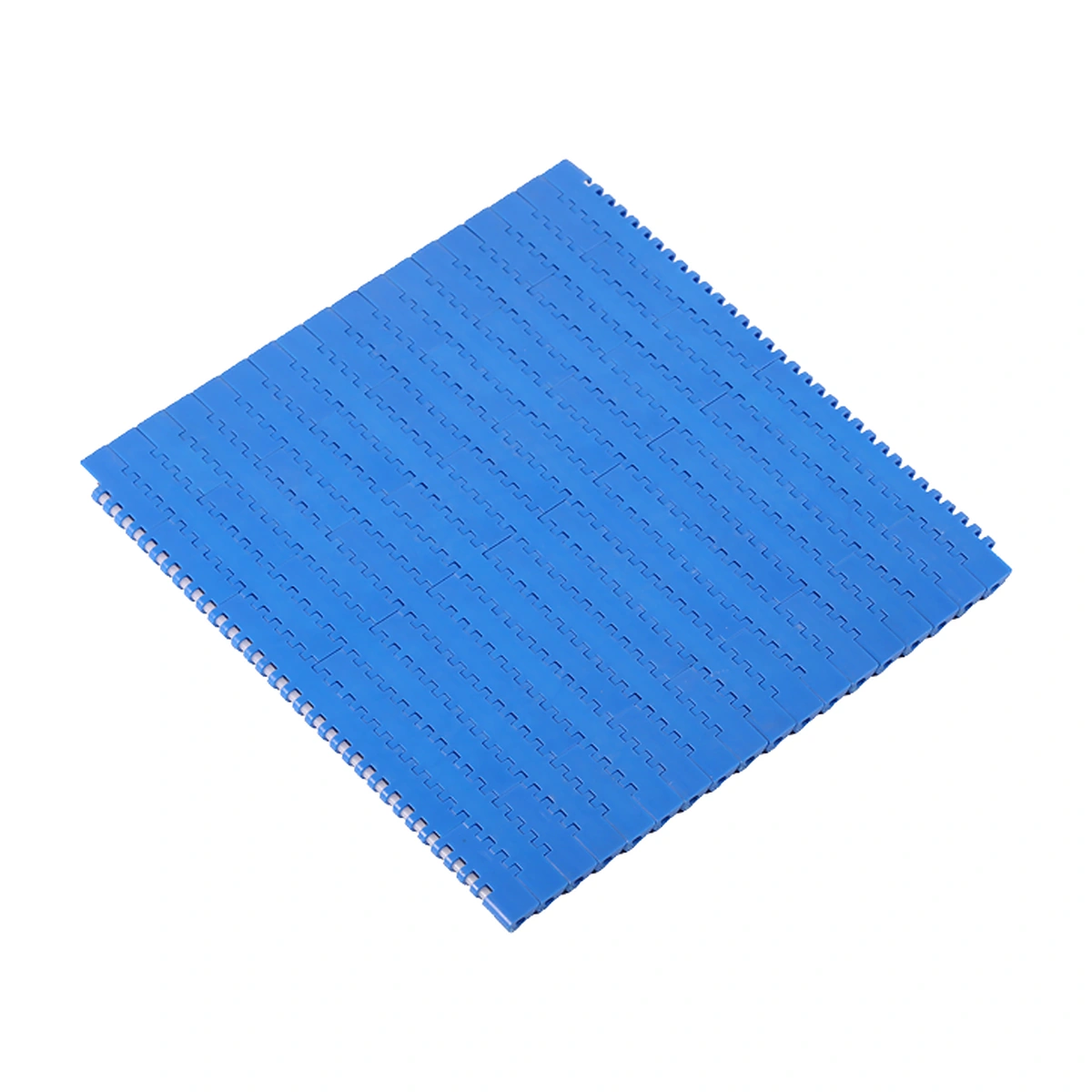

The CSTRANS 1520A flat top modular belt provides a closed plastic carrying face for straight conveying. Connected rows support products along the run and articulate around the conveyor ends.
- Open Area
- 0%
- Pin Diameter
- 5 mm
- Belt Mass
- 6.2 kg/m²
Separate Carrying Width From Frame Clearance
Agree the finished width where side guides or a close-fitting frame restrict the belt.
Matching Sprocket
Choose the tooth count and shaft opening for your conveyor.
Matching Sprocket
Choose the tooth count and shaft opening for your conveyor.

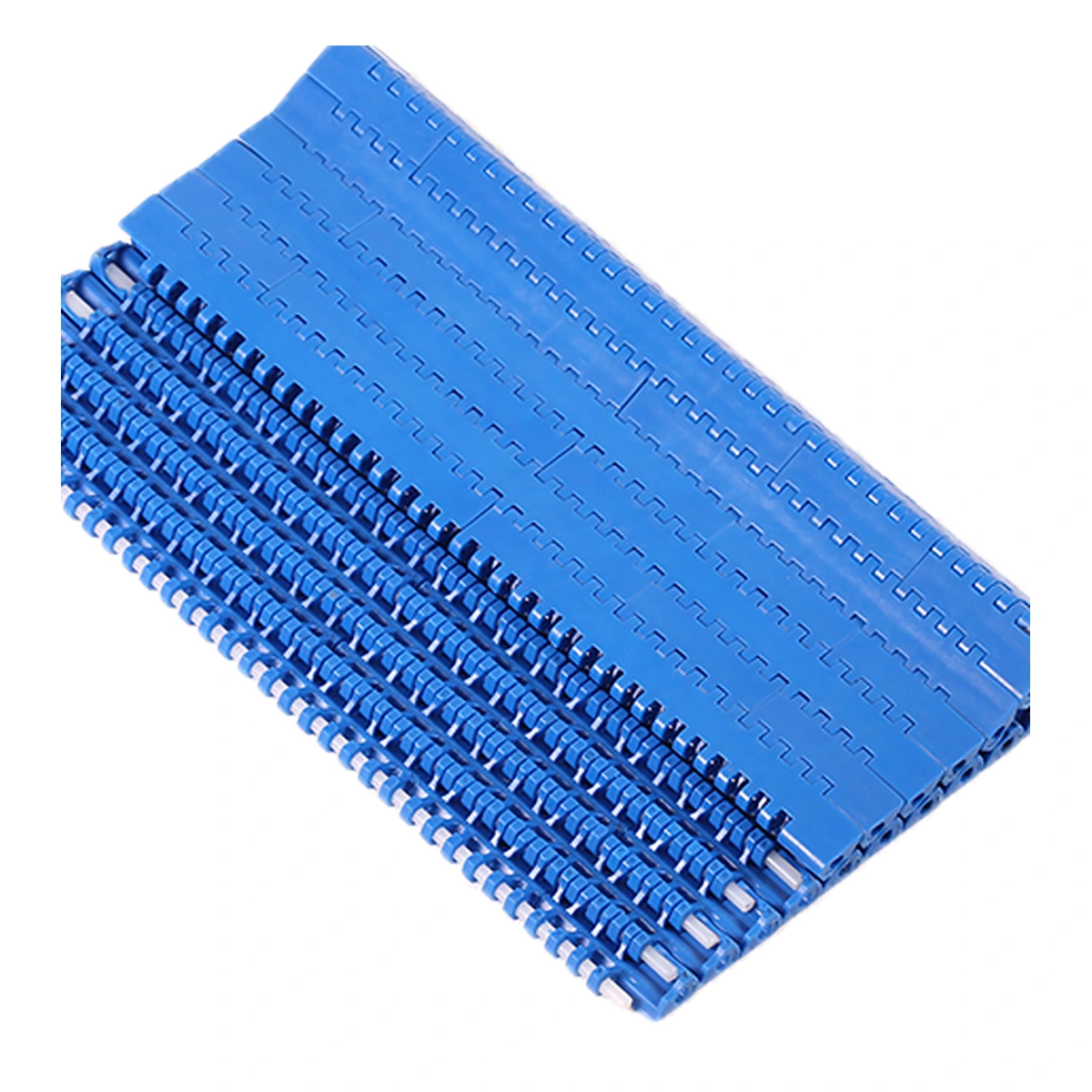

Closed Support With Closely Spaced Rows
The 1520A carrying face supports the product across linked flat-top modules. The closed face is useful when the base has small contact areas that need support between successive rows.
The belt is available in POM or PP with separately selected connecting pins. Its 8 mm backflex radius is relevant to backward bends beneath the conveyor. The return path and product transfer need separate checks, because they bend and support the belt differently.
Specifications
| Parameter | Specification |
|---|---|
| Model / surface | Specification: 1520A / flat top |
| Belt materials | Specification: POM / PP |
| Pin materials | Specification: POM / PP / PA6 |
| Pin diameter | Specification: 5 mm / 0.197 in |
| Open area | Specification: 0% |
| Backflex radius | Specification: 8 mm / 0.315 in |
| Belt mass | Specification: 6.2 kg/m² / 1.270 lb/ft² |
| POM temperature range | Specification: −30 to 90 °C / −22 to 194 °F |
| PP temperature range | Specification: +1 to 90 °C / 33.8 to 194 °F |

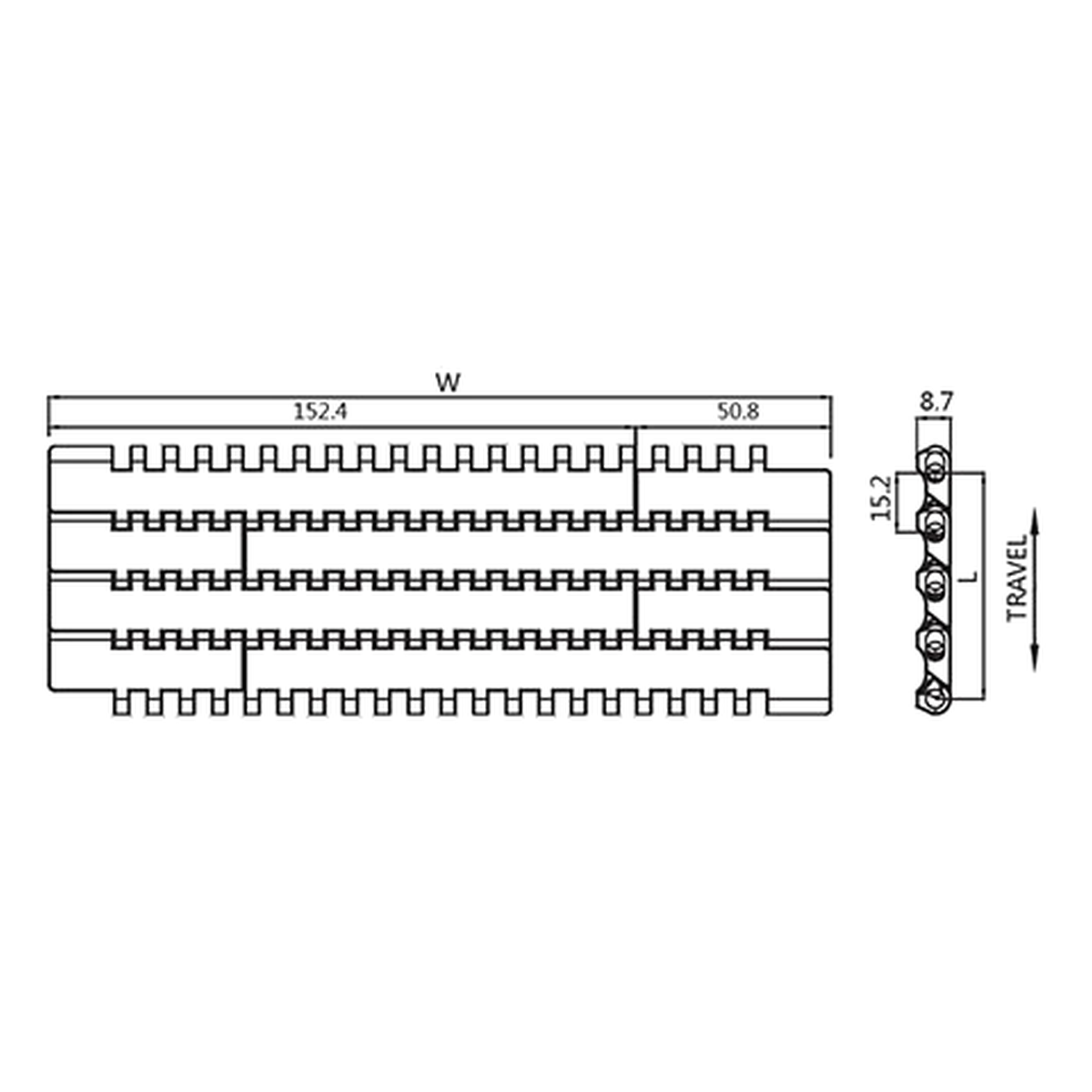

Use the module arrangement drawing to agree the assembled carrying width and allow for material shrinkage.

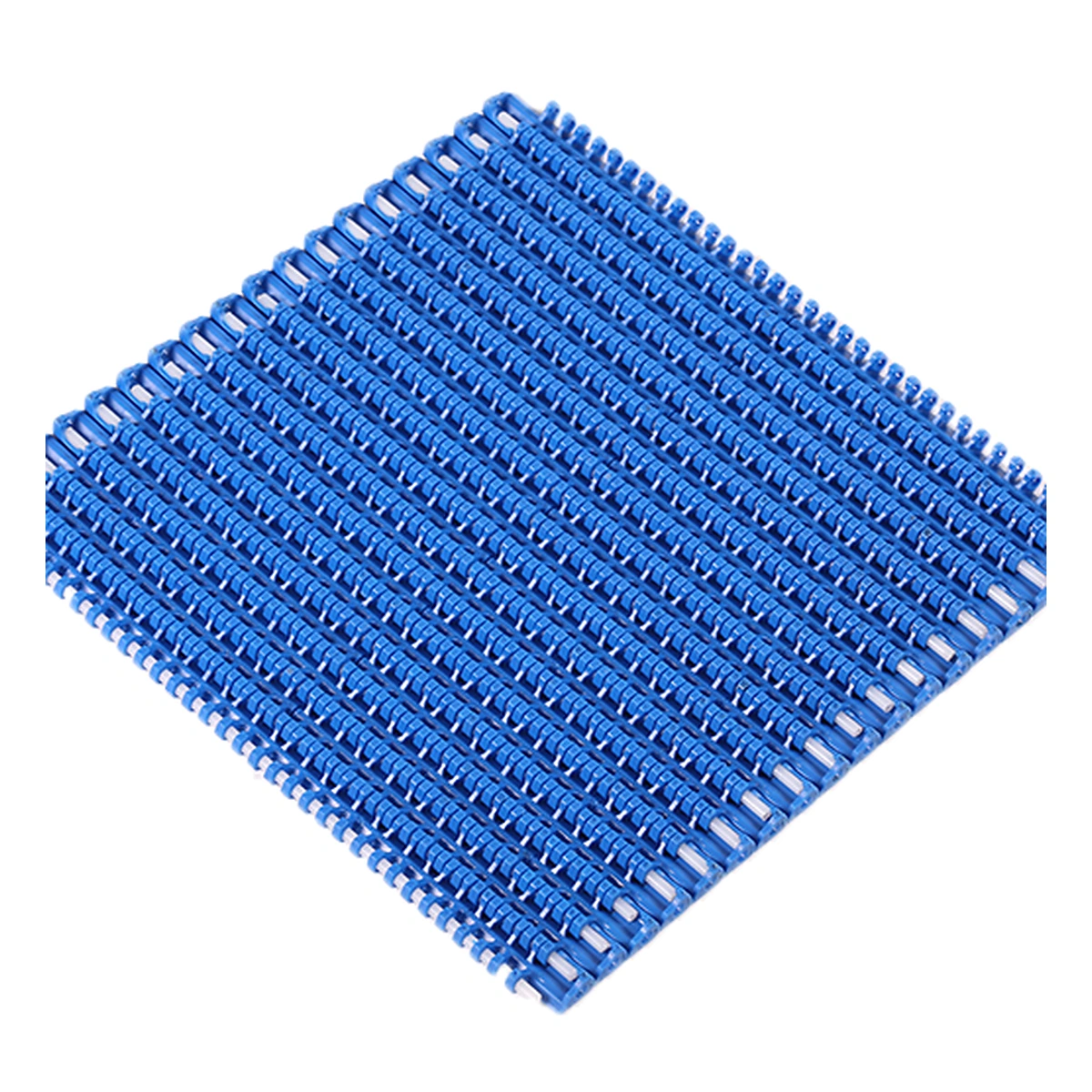

Compare the Module Arrangement With the Conveyor
Check the finished belt width between the guides and compare the underside with the installed sprockets. Show the conveyor end support rather than relying on a top-view width alone.
Where a small product leaves the belt, inspect its last supported contact point and the height of the receiving conveyor. Check the return bends against the 8 mm backflex requirement.
Carry Small-Based Items Between Stations
A closed modular surface can support containers or packages whose feet need a broad contact face. The rows move beneath the product while maintaining support along the straight carrying run.
Loading and discharge introduce gaps that the closed face cannot remove. For short products, compare the contact footprint with the space between conveyors. For taller products, also assess the height step that could tilt the base during transfer.
Define Your 1520A Carrying Section
Send the required finished width, assembled length and quantity with an existing belt sample reference or photographs. Include product-base dimensions, conveyor end details and process temperature.
