2542B Plastic Modular Belt

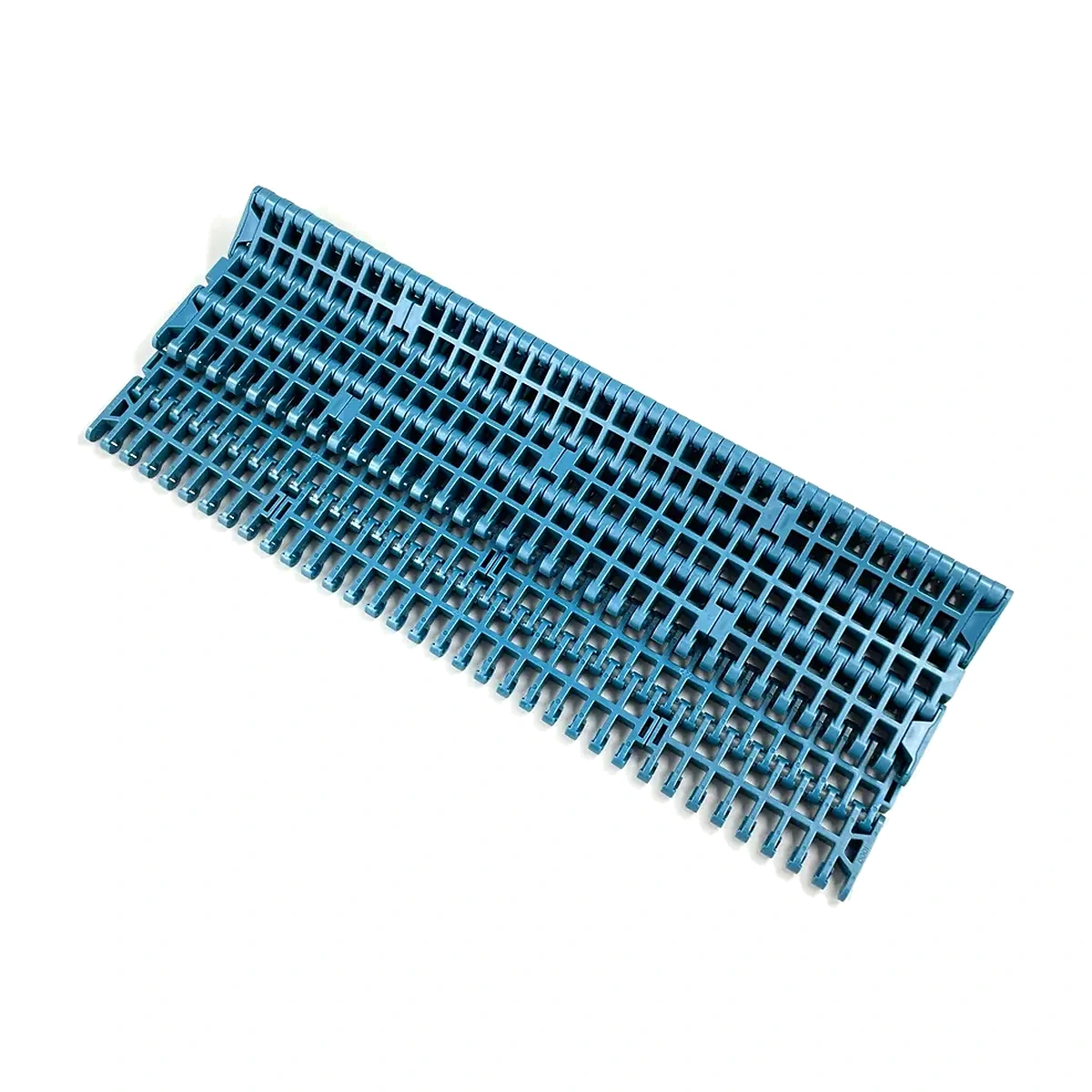

The CSTRANS 2542B plastic modular belt has a flush-grid carrying face with 40% open area. Its connected modules support products while leaving passages beneath them for air or liquid.
- Surface
- Flush grid
- Open Area
- 40%
- Backflex Radius
- 25 mm
Compare the Base With the Open Grid
Broad bottoms and narrow feet contact the grid differently. Check the smallest supporting area of the actual product.
Flow Through a 40% Open Carrying Face

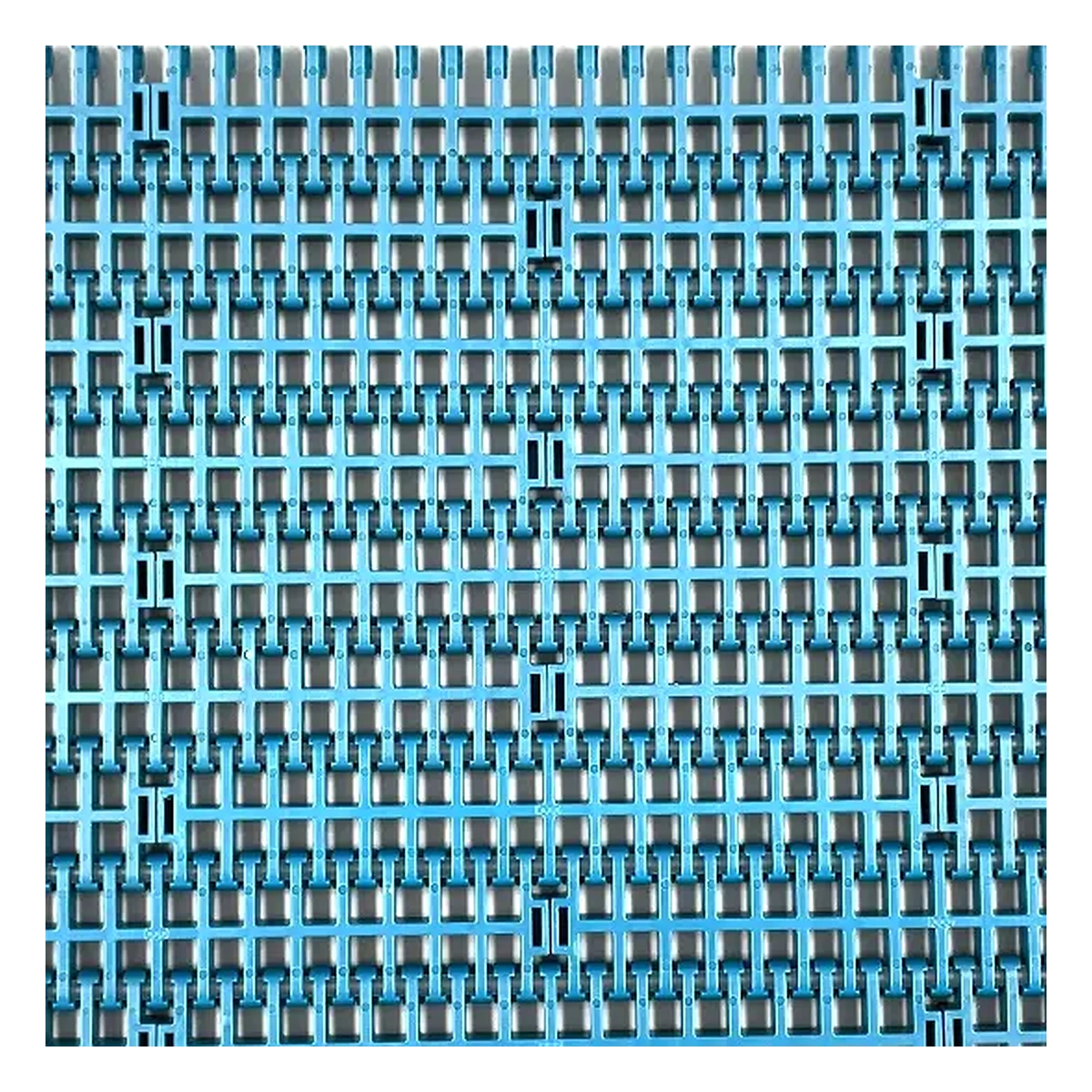

The 2542B grid leaves space for liquid and air beneath a supported product. The remaining ribs carry the base. Check the contact footprint to establish how that support is distributed.

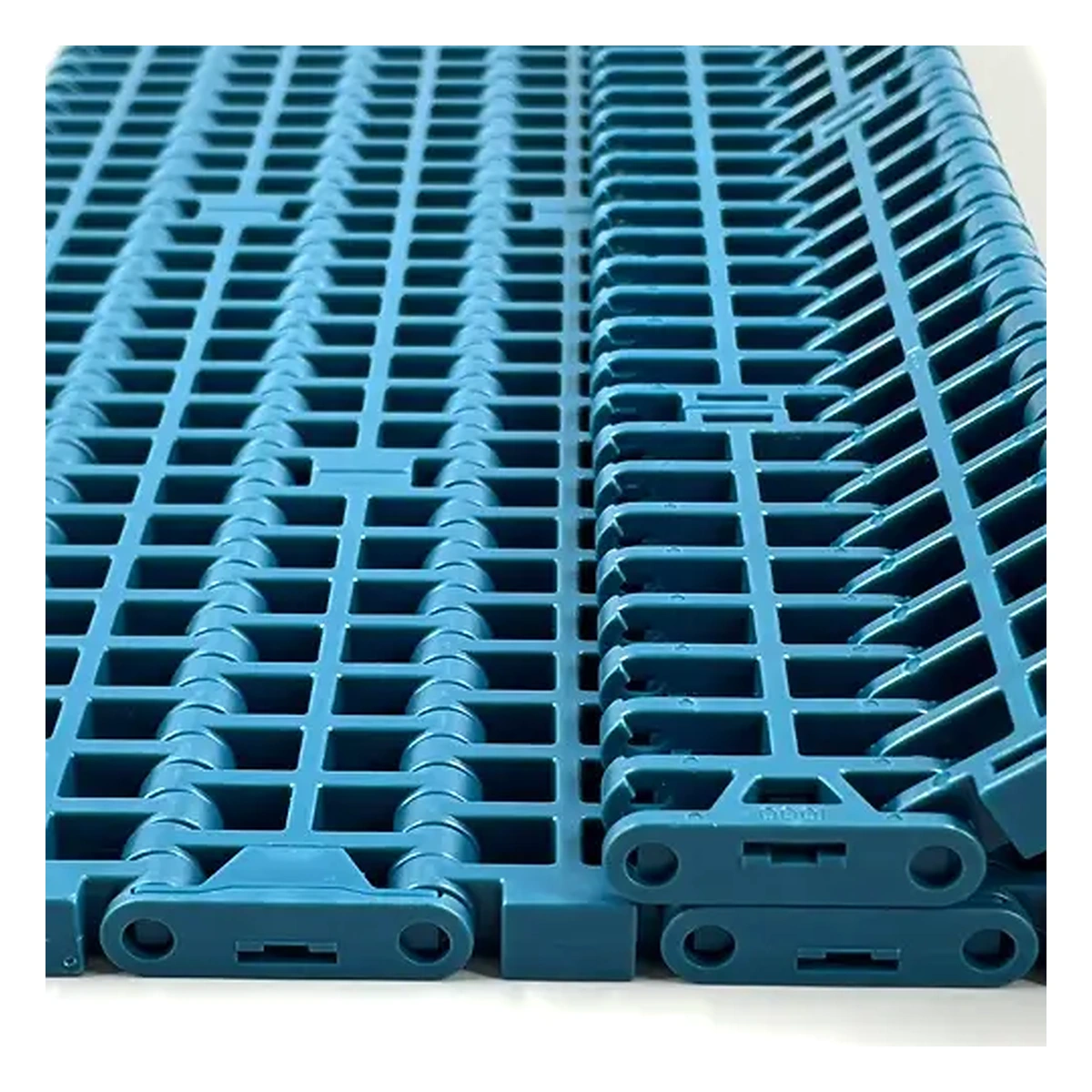

The open surface differs from a closed flat top even within the same belt family. Product feet, loose pieces and the support strips beneath the belt all affect the application. The selected POM or PP modules and pins also need review for the process temperature.
Specifications
| Parameter | Specification |
|---|---|
| Model / surface | Specification: 2542B / flush grid |
| Belt materials | Specification: POM / PP |
| Pin materials | Specification: POM / PP / PA6 |
| Pin diameter | Specification: 5 mm / 0.197 in |
| Open area | Specification: 40% |

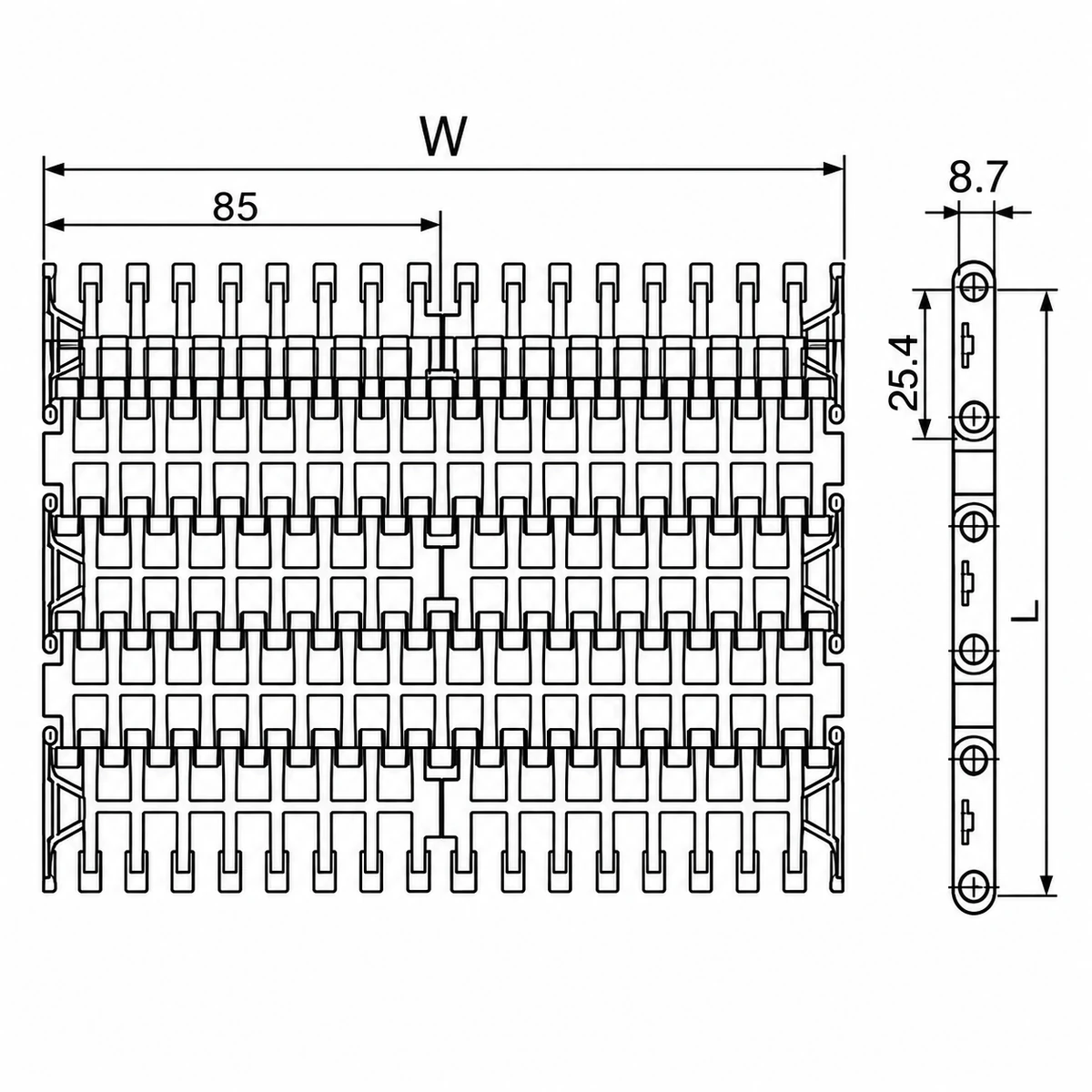

| Nominal width options | Specification: 85 / 170 / 255 / 340 / 425 / 510 / 595 / 680 / 850 mm |
| Nominal width step | Specification: 85 mm |
| Standard nominal width | Specification: W = 85 × N mm |
| Nonstandard nominal width | Specification: W = 85 × N + 10 × n mm |
| Backflex radius | Specification: 25 mm / 0.984 in |
| Belt mass | Specification: 6 kg/m² / 1.229 lb/ft² |
| POM temperature range | Specification: −30 to 90 °C / −22 to 194 °F |
| PP temperature range | Specification: +1 to 90 °C / 33.8 to 194 °F |
N is a positive integer; n is a nonnegative integer. Agree finished width after material shrinkage.
Leave a Clear Flow Path Beneath the Grid
Check support-strip positions against the module underside. Where drainage is required, the conveyor bed must let liquid pass beyond the grid.
Compare the installed sprockets with the module joints and check the 25 mm return backflex radius. At discharge, review the support gap using the smallest product base.
Carry Products Through Drainage or Airflow
The 40% open face can be considered for a straight process section where liquid leaves the product area or air must reach beneath it. The product and support bed determine how much of that path remains exposed.
Small loose pieces can pass through the grid. A tray may retain those pieces while still allowing a flow path, but its bottom must suit the supporting ribs. Check loading and transfer with the actual tray.
Review Your 2542B Grid Requirements
Send width, assembled length and quantity with the product or tray-base dimensions. Add the intended flow process, support-bed layout and operating temperature.
