2720E Modular Transfer Belt

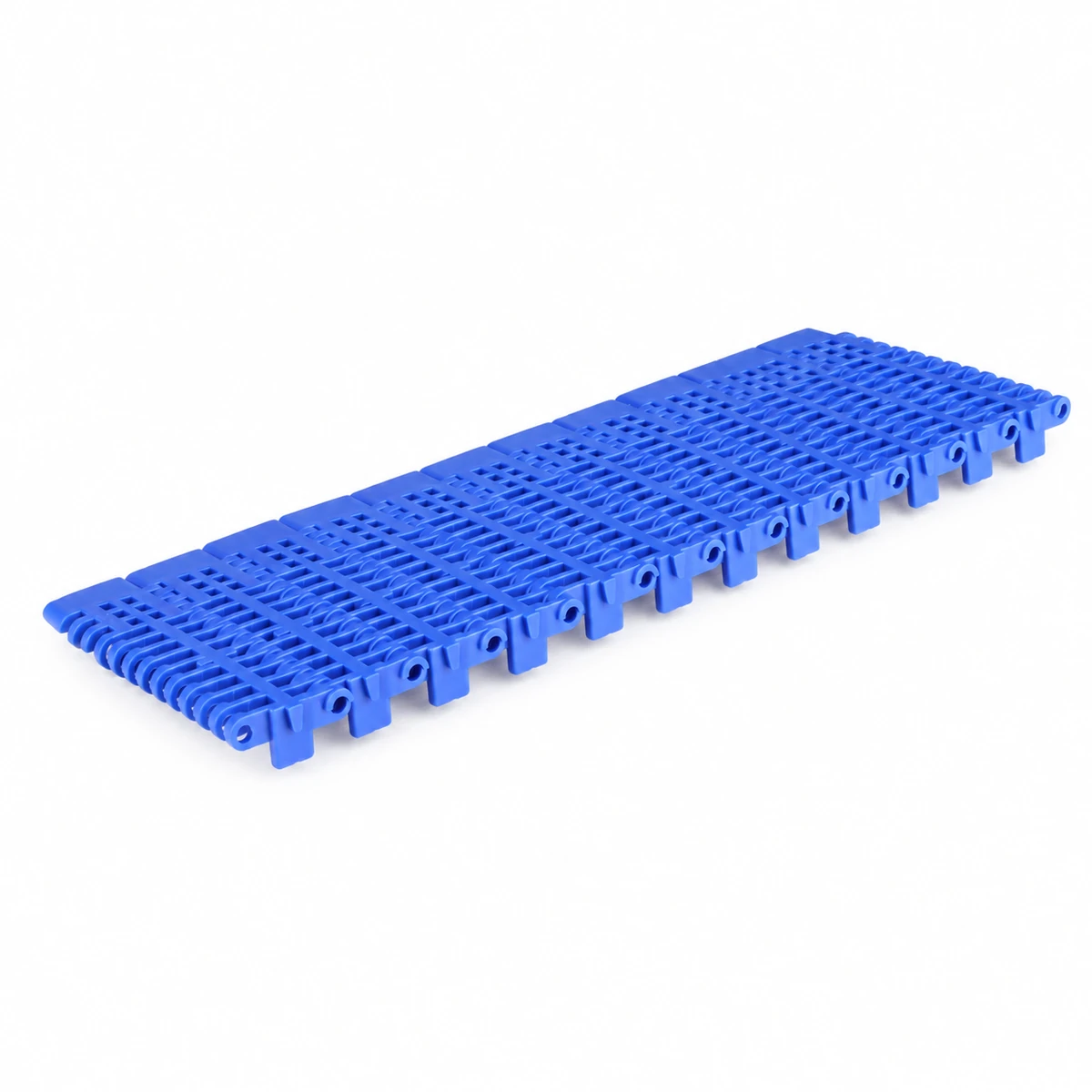

2720E uses a shaped, open-grid module for conveyor transfer arrangements. The projecting profile needs to be matched to the adjoining support so products can move across the handoff.
- Type
- Transfer profile
- Open Area
- 38%
- Belt Mass
- 6 kg/m² / 1.229 lb/ft²
Design the Receiving Support Around the Profile
Check where the product loses contact with the belt and first touches the receiving surface. Those two positions determine the unsupported handoff.

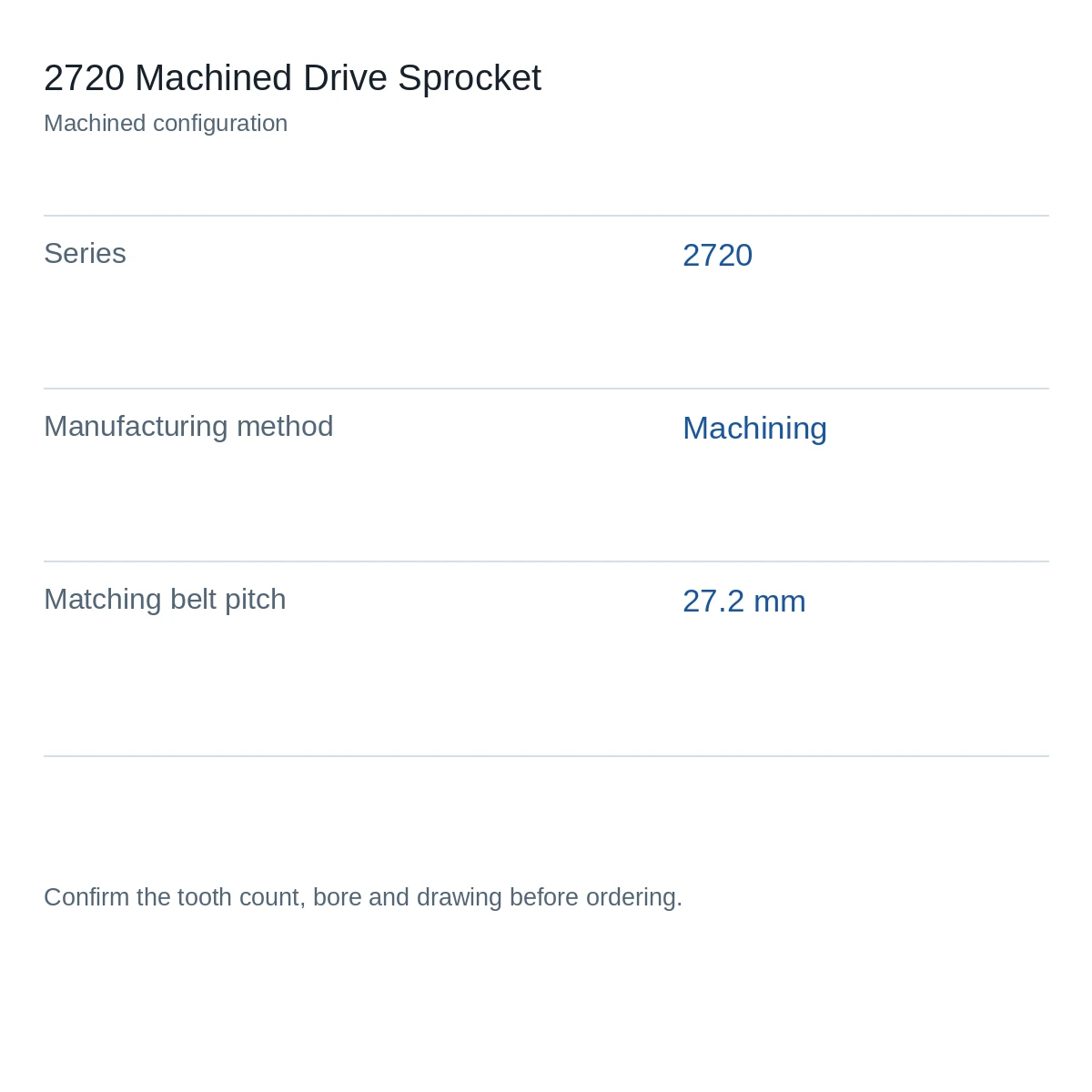

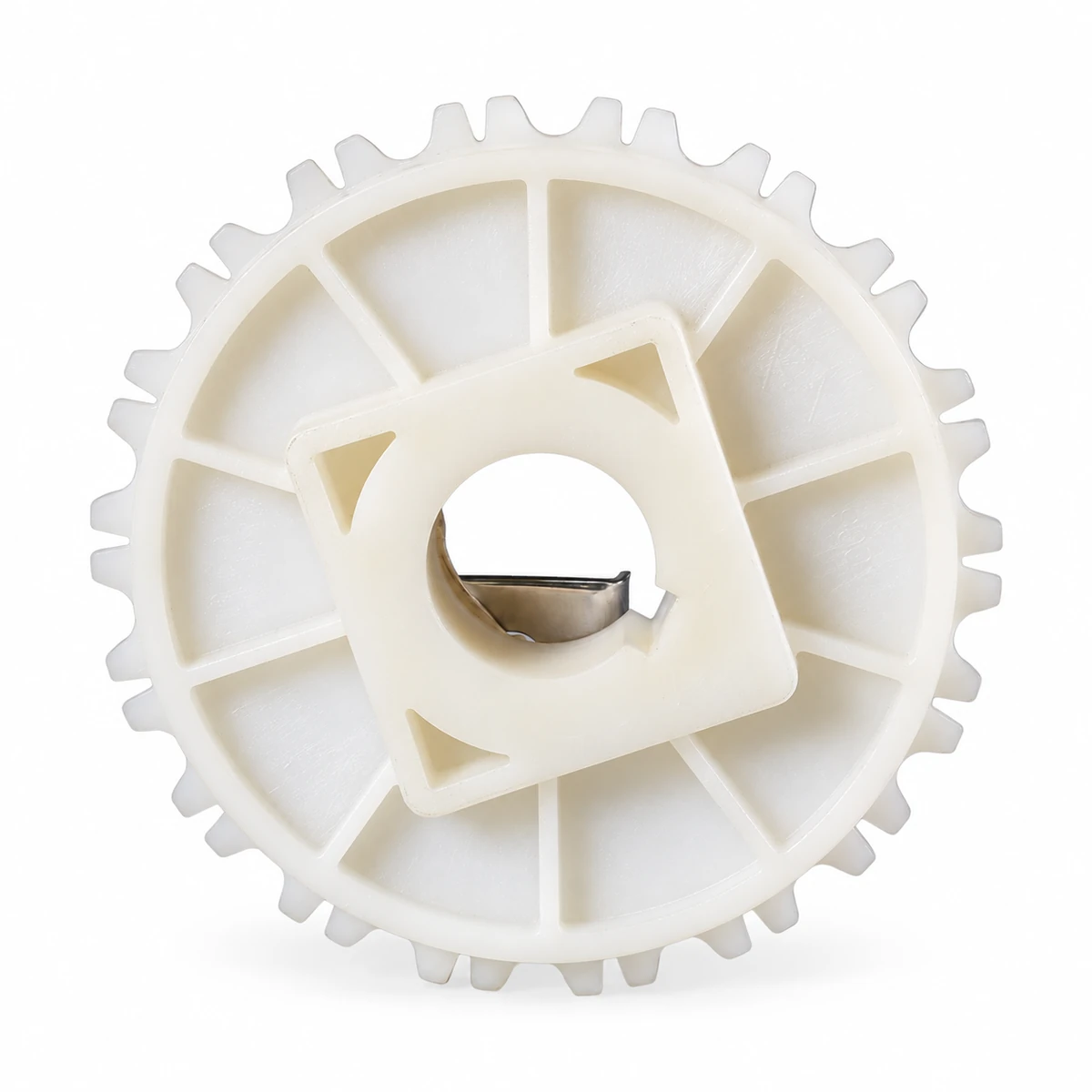

Matching Sprocket
Choose the tooth count and shaft opening for your conveyor.
Matching Sprocket
Choose the tooth count and shaft opening for your conveyor.
Shape the Belt Around the Transfer

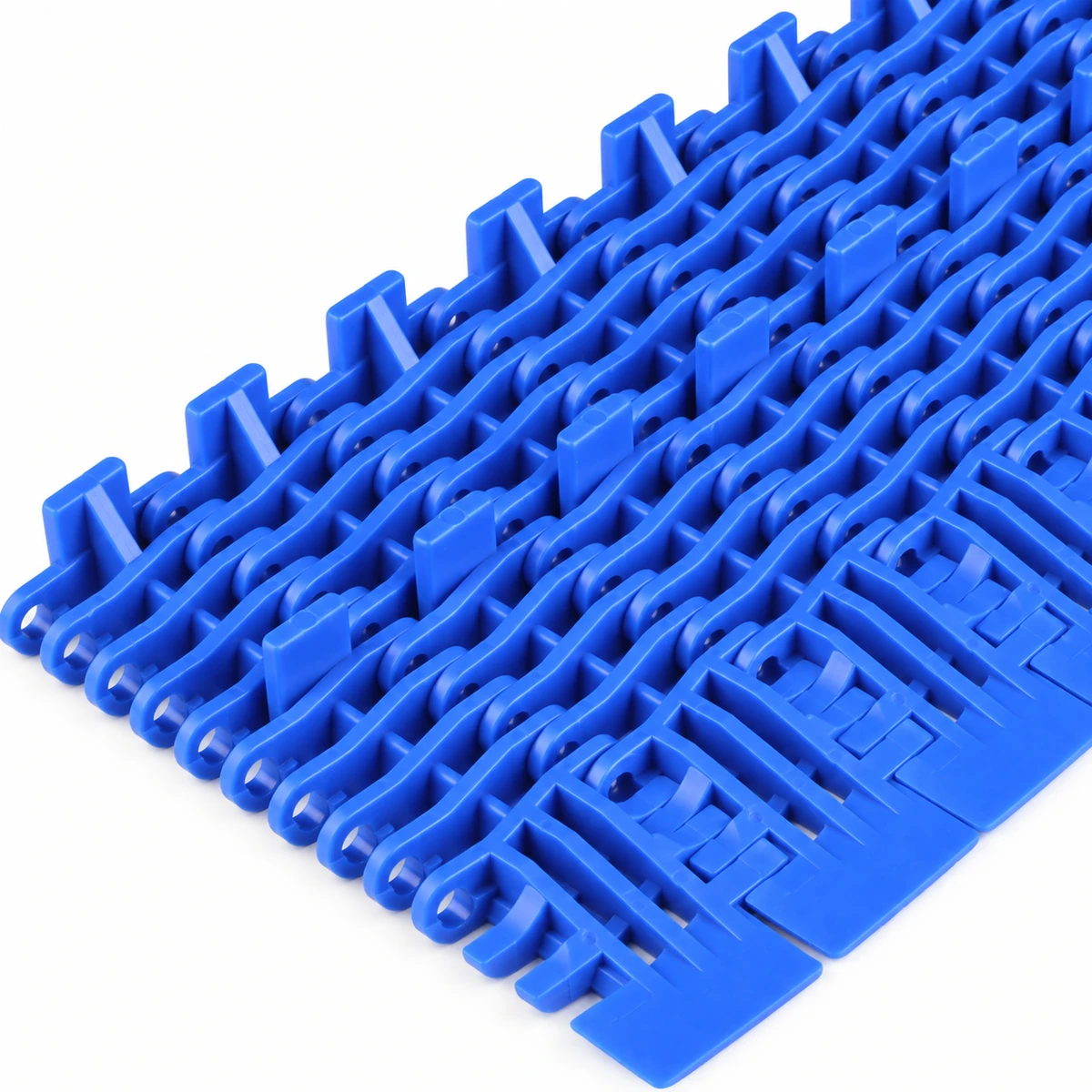

2720E combines grid openings with a transfer-specific module outline. Product support changes as the item approaches the shaped edge. The adjoining plate or conveyor must take over that support at the correct height and position.

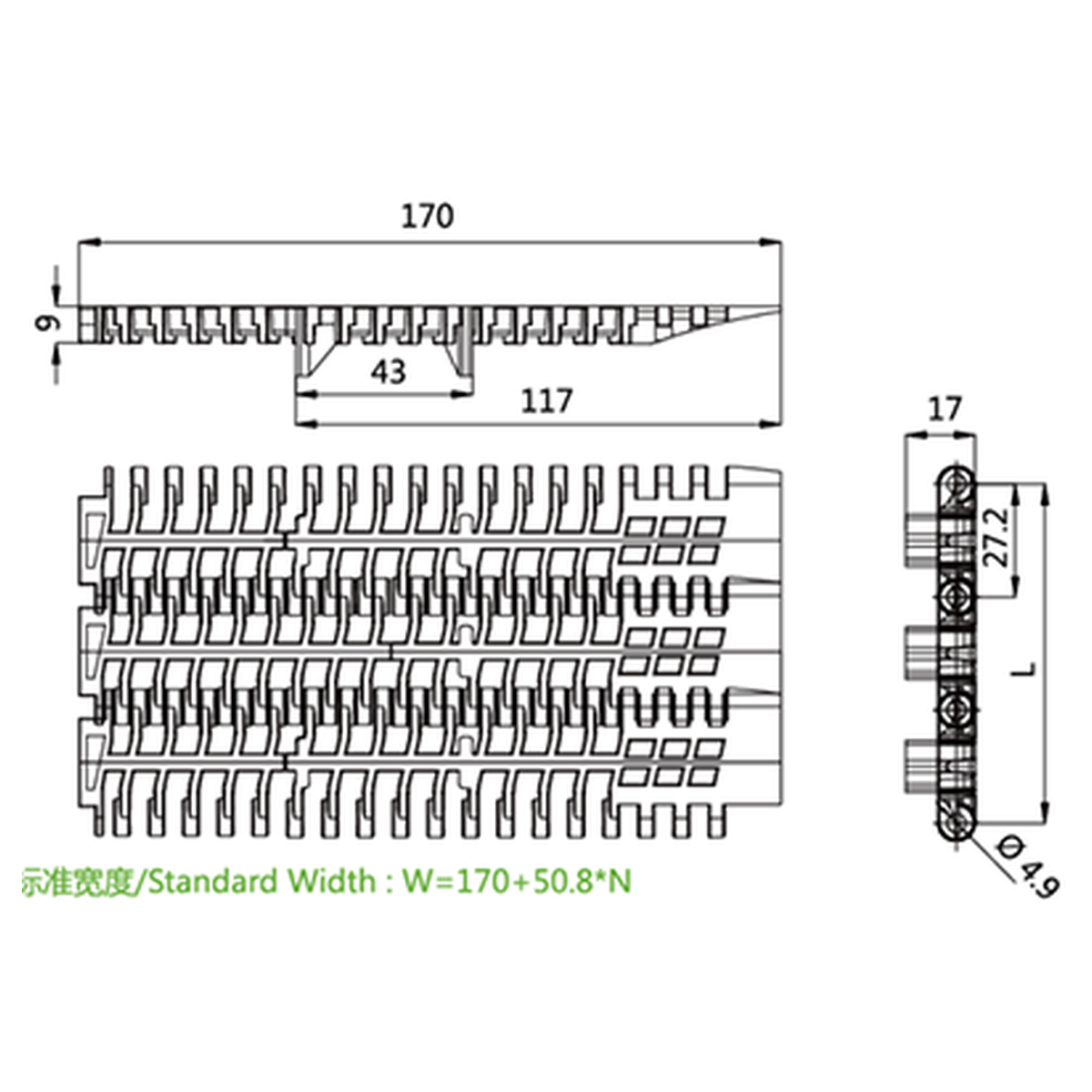

Its nominal width sequence starts at 170 mm and differs from the ordinary 152.4 mm-based 2720 layouts. Use the transfer drawing and finished carrying width when planning a replacement. Shared family naming alone does not establish an identical discharge interface.
Specifications
| Parameter | Specification |
|---|---|
| Model | Specification: 2720E |
| Pitch | Specification: 27.2 mm / 1.071 in |
| Belt materials | Specification: POM / PP |
| Pin materials | Specification: POM / PP / PA6 |
| Pin diameter | Specification: 4.6 mm / 0.181 in |
| Open area | Specification: 38% |
| Nominal widths | Specification: 170, 220.8, 322.4, 373.2, 474.8, 525.6, 627.2, 678, 779.6, 830.4 mm |
| Standard-width formula | Specification: W (mm) = 170 + 50.8 × N |
| Nonstandard-width formula | Specification: W (mm) = 170 + 8.466 × N |
| Backflex radius | Specification: 50 mm / 1.969 in |
| Belt mass | Specification: 6 kg/m² / 1.229 lb/ft² |
| POM temperature range | Specification: −30 to 90 °C / −22 to 194 °F |
| PP temperature range | Specification: 1 to 90 °C / 33.8 to 194 °F |
N is an integer assembly increment. Confirm the finished width and selected module arrangement against the transfer layout.
Check Clearance Through the Moving Handoff
Compare the full transfer outline with the receiving support. Allow clearance for the moving extensions throughout articulation, including at the belt edges.
Product-base length and orientation determine how much of the handoff it bridges. Check the smallest item and any projecting feet. Keep the 50 mm backflex requirement separate from the shaped transfer-end dimensions.
Pass Support From Belt to Receiving Surface

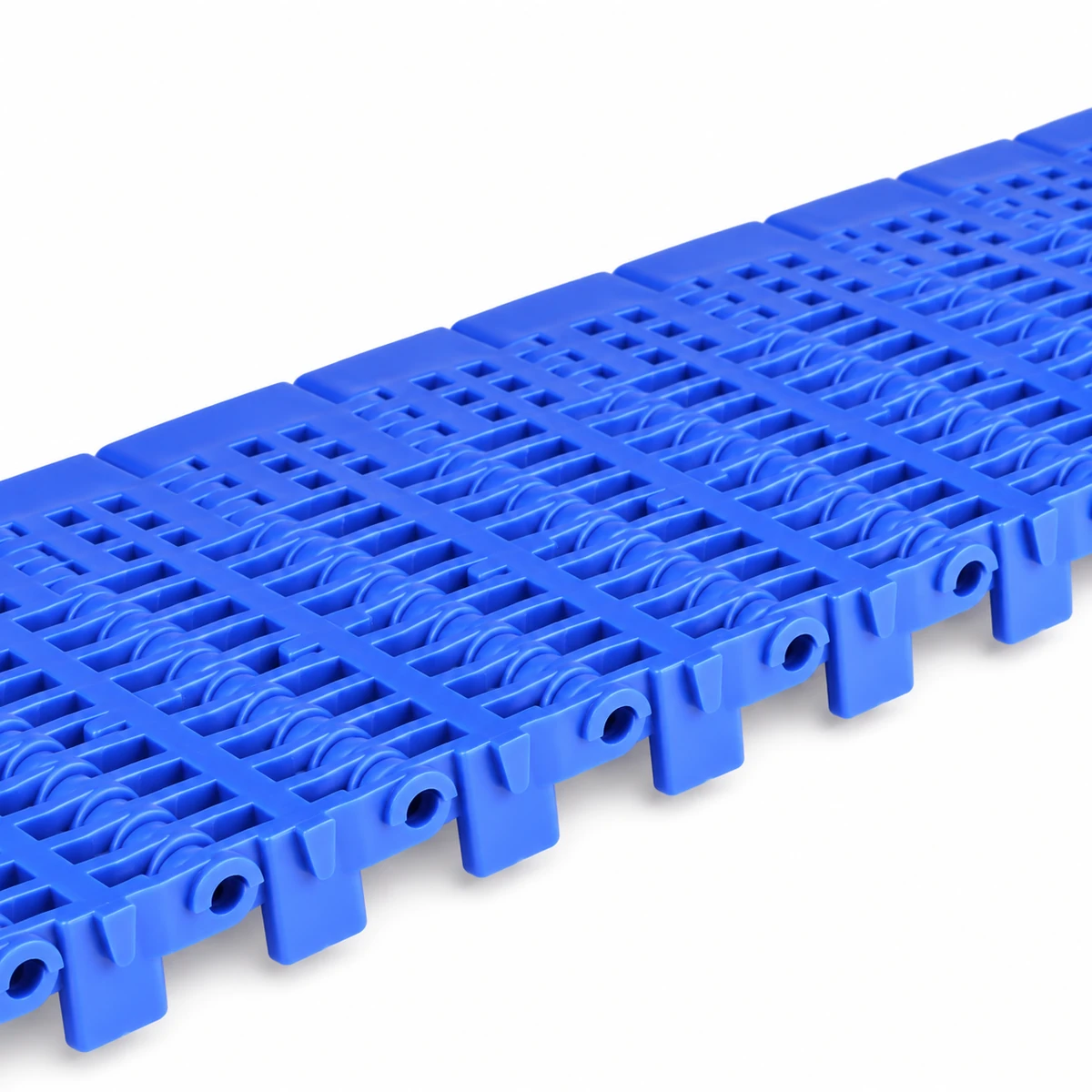

A transfer section brings two carrying surfaces close enough for the product to cross between them. With 2720E, the module outline becomes part of that transition. A receiving surface that is too high can catch a leading edge; one too low can let the product dip.
The open grid also permits drainage during travel. Support placement beneath the transfer must leave the moving profile clear while carrying the product load near the handoff.
Review Your 2720E Transfer
Send the required width, belt length and quantity with a side and plan view of the receiving conveyor. Include the smallest product-base dimensions and an existing module photograph if replacing a belt.
