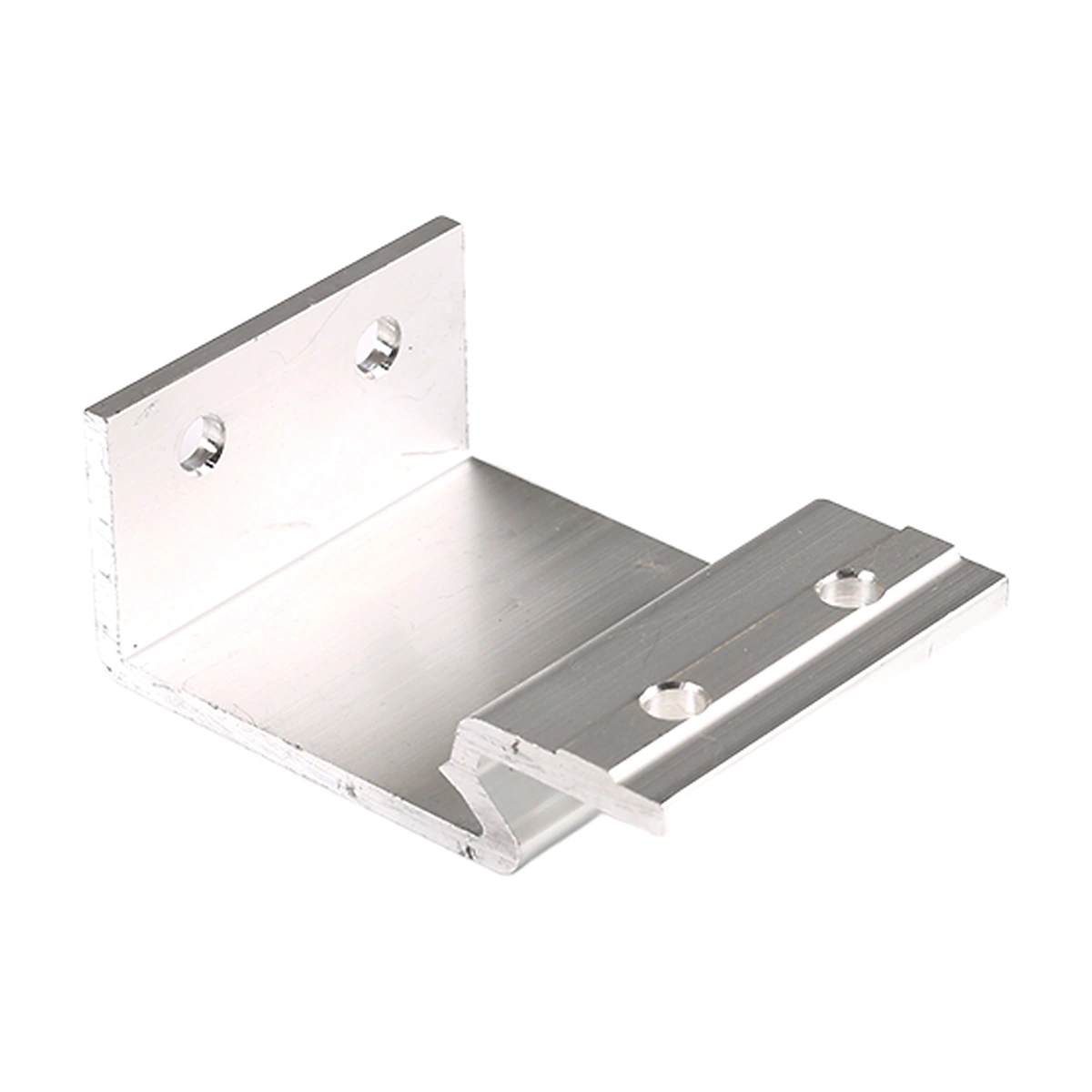

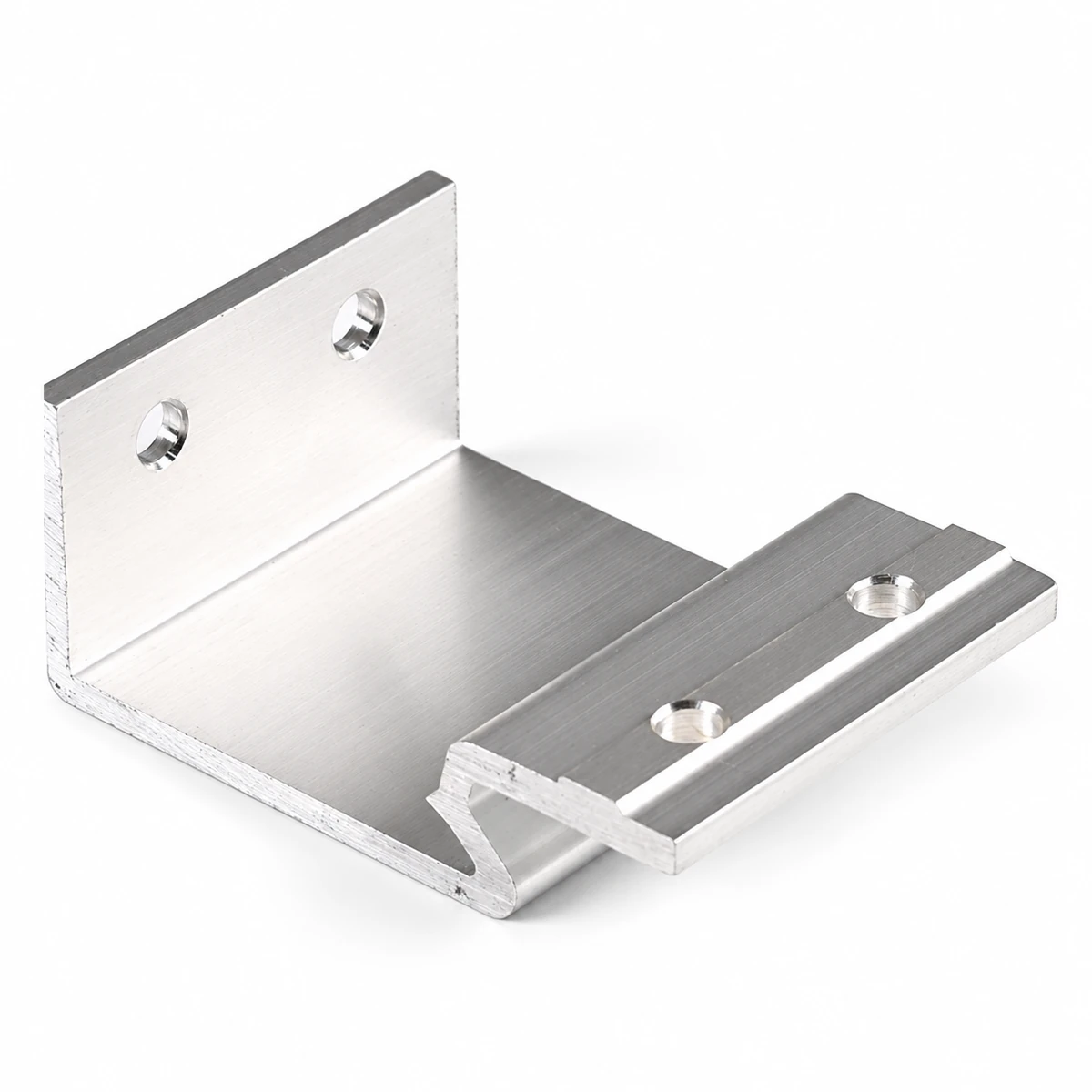

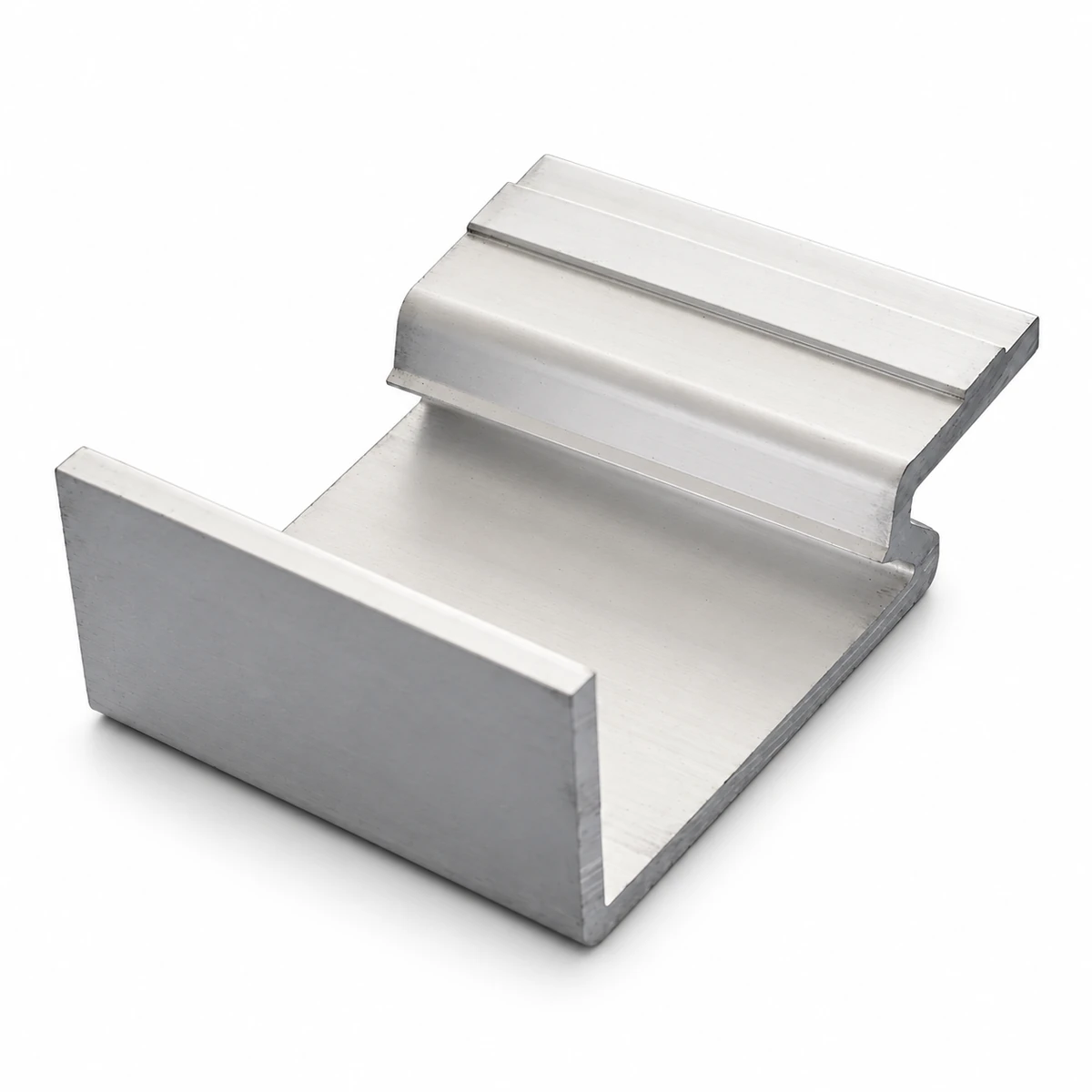

145/175/295 L-Shaped Conveyor Beam Support
L-shaped conveyor beam supports connect 145, 175 and 295 series assemblies to the support structure. Each selection needs to match the beam connection and the supporting upright.
- Series
- 145 / 175 / 295
- Shape
- L-shaped
- Role
- Beam support
Confirm the support variant from the actual beam and frame. The series designation is not a hole-spacing or load specification.
Carry the Beam Through an Angled Support
The L-shaped form links the beam attachment to the supporting structure on a different plane. Its orientation determines where the beam sits relative to the upright and where the fixing hardware can be reached.
The company pairs this support form with the 145/175/295 families. Compare the actual attachment arrangement for the chosen assembly. Wider beams and different member positions can change the required support geometry.
Specifications
| Parameter | Specification |
|---|---|
| Applicable families | Specification: 145 / 175 / 295 |
| Support form | Specification: L-shaped |
| Connection | Specification: Conveyor beam to support structure |
Dimensions & Fit
Show the beam attachment points and the upright section together. Identify the inside/outside orientation of the support and the required conveyor height.
Check fixing access below the beam and clearance around the return path. Confirm the support dimensions and loading for the layout before setting the frame spacing.
Locate a Wider Beam on Its Frame
The support transfers the beam reaction into the frame. Its position beneath a wider assembly affects both the load path and the space available for the returning chain.
At a beam joint, keep the support arrangement clear of connecting hardware. The joint and bracket need to fit together without moving the carrying surface away from its intended level.
Discuss an L-Shaped Support
Send the 145/175/295 family reference, beam and upright sections, and a support-layout sketch. Include quantity and intended loading.
