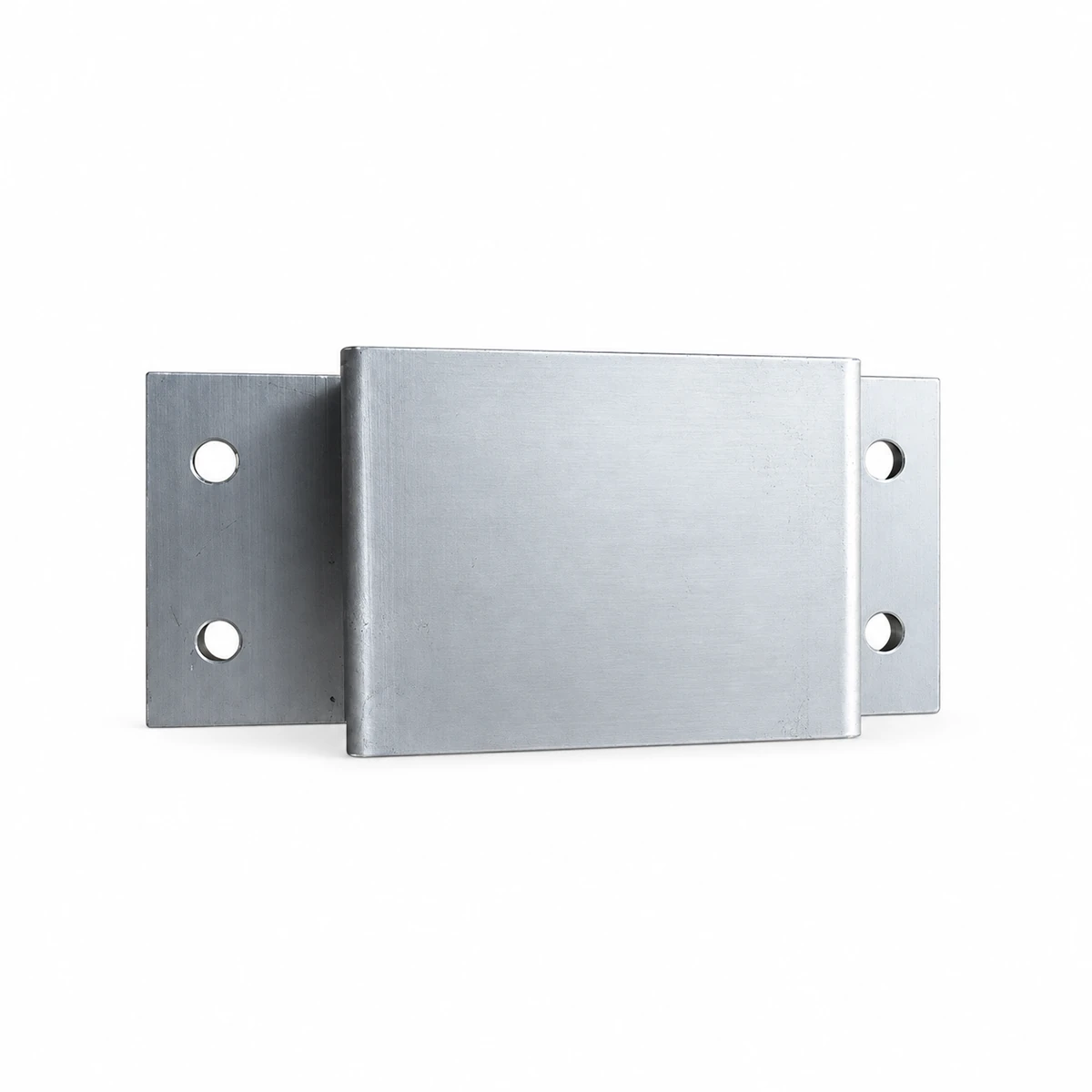

63/83/103/140 Bow-Shaped Conveyor Beam Support
Bow-shaped conveyor beam supports connect 63/83/103/140 family beams to the frame. The support shape and dimensions vary with the selected assembly.
- Families
- 63 / 83 / 103 / 140
- Shape
- Bow-shaped
- Selection
- Beam and upright sections
Use the actual support drawing and beam section together. The supplied drawings are separate configurations and should not be merged.
Support the Beam Around Its Section

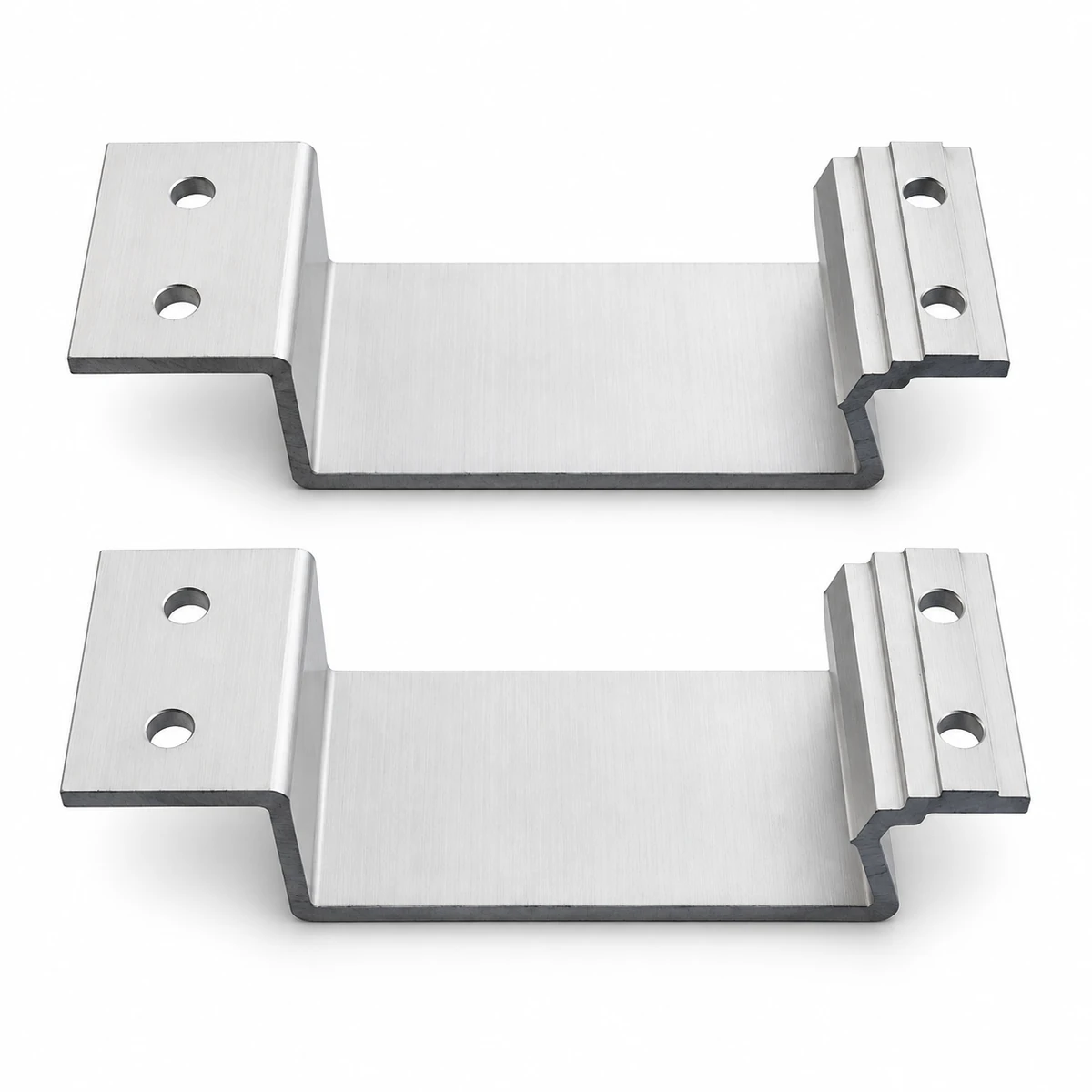

The bow form wraps around the connection region between the conveyor beam and its support. It locates the beam relative to the upright while leaving the required chain path clear.
The company identifies different support dimensions for the 63/83/103/140 families. Compare the actual configuration before ordering. The two drawings show different profiles and cannot establish one universal support size.
Specifications
| Parameter | Specification |
|---|---|
| Supported families | Specification: 63 / 83 / 103 / 140 |
| Form | Specification: Bow-shaped |
| Variant selection | Specification: By actual beam/support configuration |
Dimensions & Fit
Compare the beam cradle and upright contact region on the matching drawing. Check the fixing positions and the clearance to the lower chain path.
Show the required beam elevation and support orientation. Keep the two drawing variants separate when discussing dimensions and fastening parts.
Maintain Beam Position Above the Upright
The bow support holds the conveyor section at its frame connection. Consistent support positioning helps the adjoining beam sections remain on the same carrying level.
At curves or end modules, inspect the space around the lower path and adjoining hardware. The bracket must sit within the support envelope without obstructing the chain circuit.
Discuss a Bow-Shaped Support
Send the chain family, beam and upright end views, and the required support configuration. Include quantity and an installed photograph.
