Type B Adjustable Conveyor Guide Rail Bracket 107

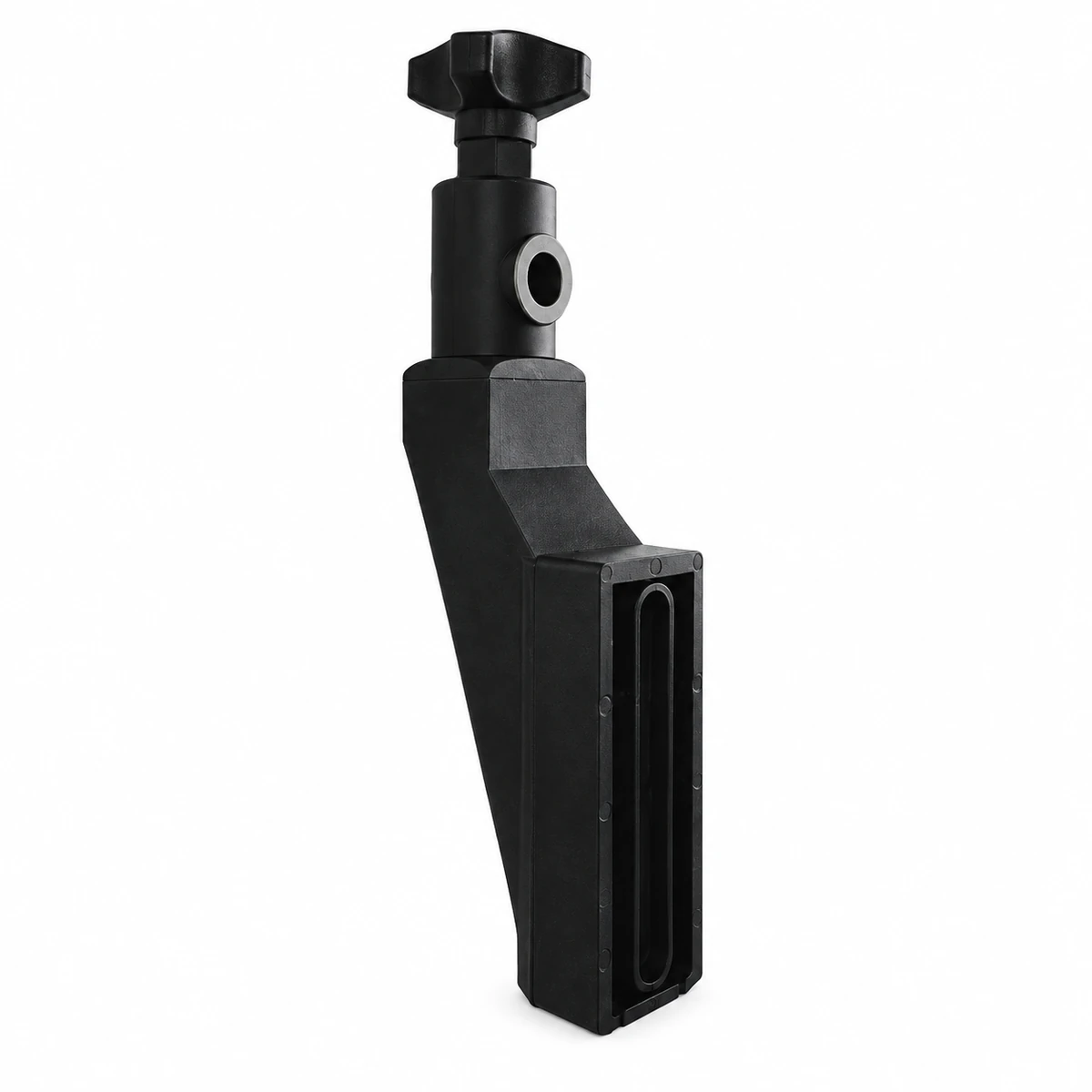

The 107 Type B adjustable conveyor guide rail bracket uses a long swivel head to position the rod connection above its slotted body. Its listed materials are reinforced polyamide and copper.
- Code
- 107
- Head
- Long swivel
- Mounting
- Slotted body
Check the longer head against the required rod elevation and nearby guards. Extra head height changes the available mounting envelope.
Raise the Rod Connection Above the Base

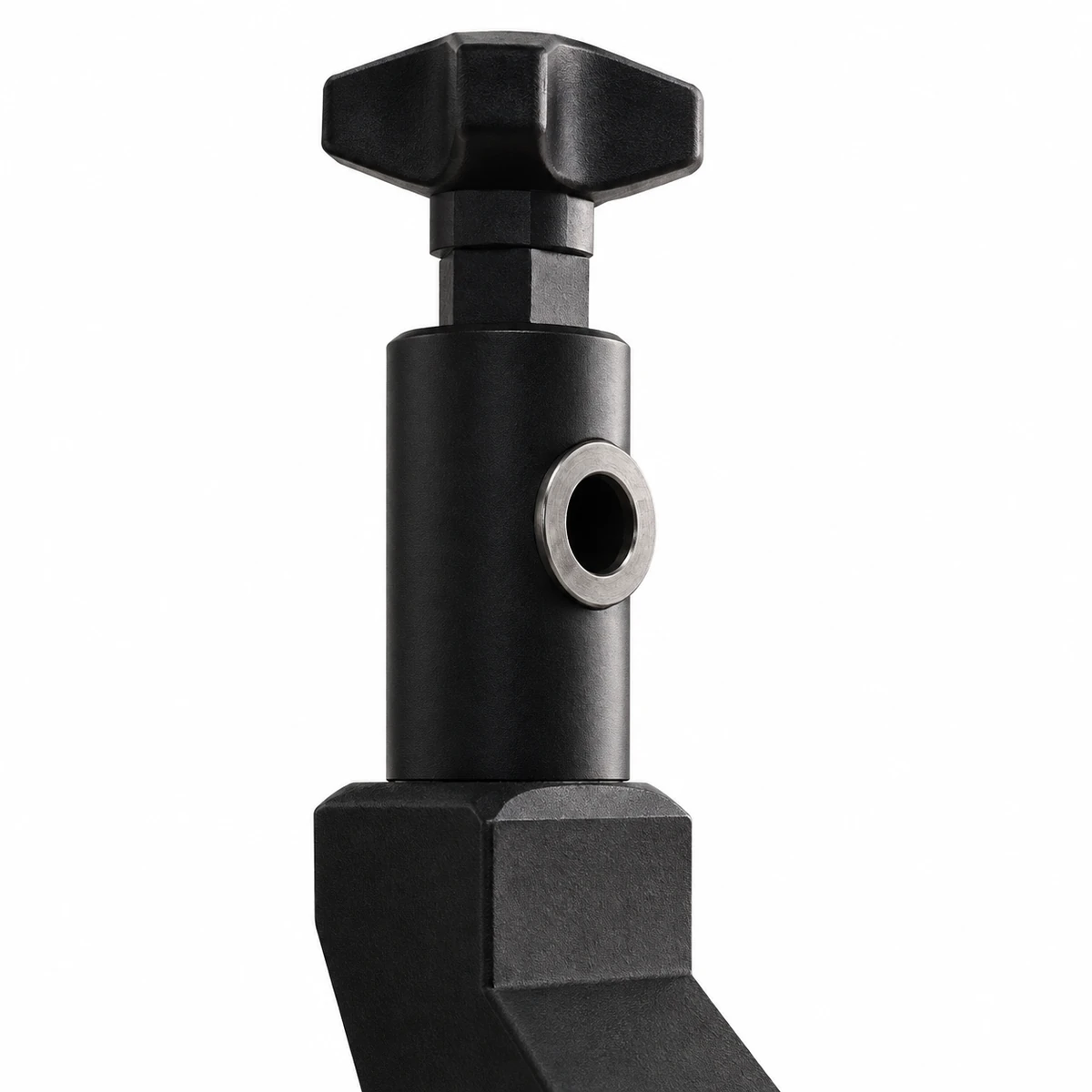

The 107 extends the head above the bracket body. Its swivel connection lets the guide-support rod direction be set before locking. The slotted lower body locates the bracket on the conveyor frame.
The longer head provides a different rod position from the short-head Type A. Compare that position with the intended guide height and the space above the frame. The head must remain accessible when the guide sits close to the product lane.
Specifications
| Parameter | Specification |
|---|---|
| Code | Specification: 107 |
| Type | Specification: B long-head swivel bracket |
| Listed materials | Specification: Reinforced polyamide + copper |
Dimensions & Fit

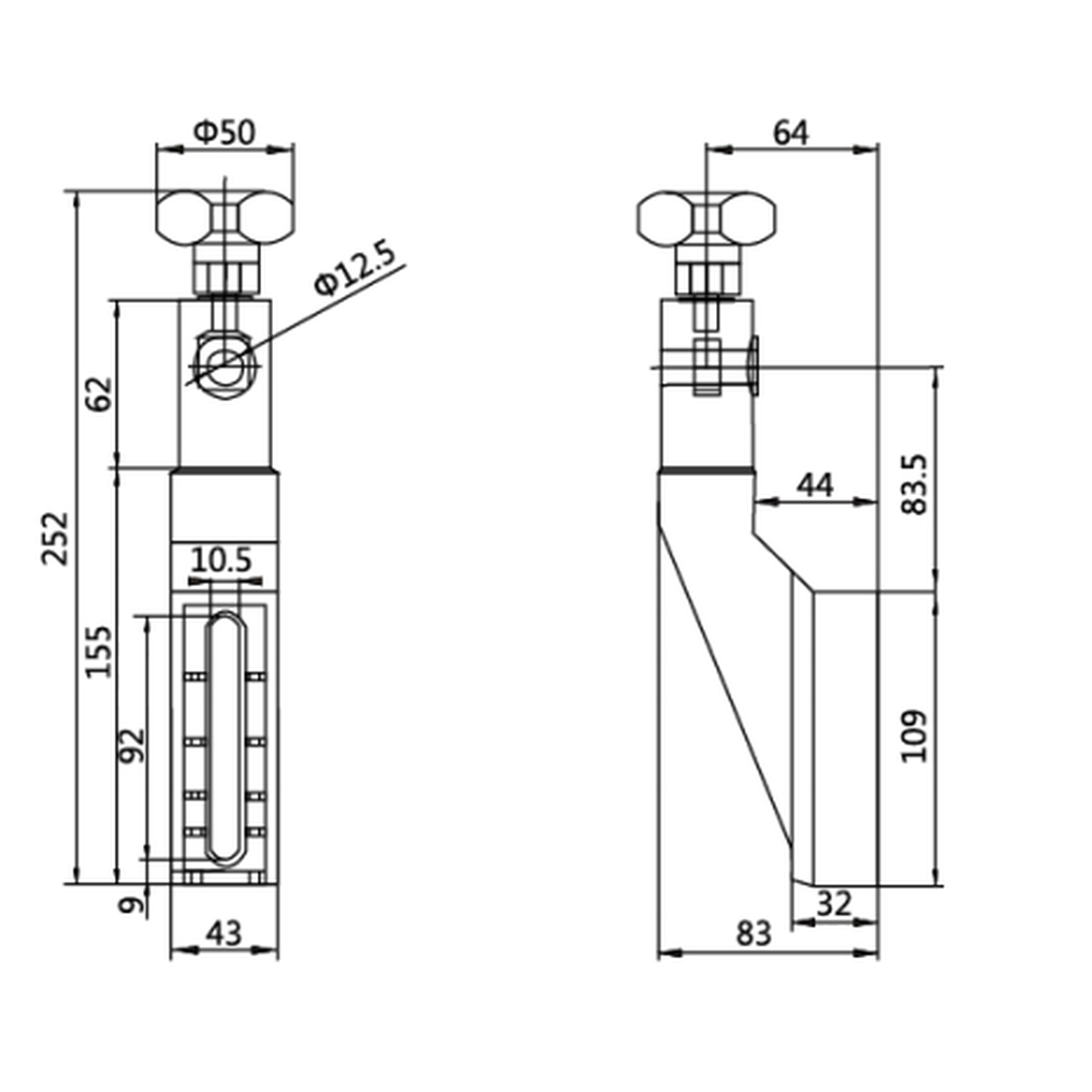

Measure the required height of the rod centre and show the available frame mounting points. Compare the complete bracket envelope with adjacent equipment.
Check rod engagement at the full operating reach. Allow space around the head for locking and around the mounting slot for setting the base position.
Support a Higher Guide Position
Some product formats need side guidance higher above the carrying surface. The long-head arrangement changes where the support rod leaves the bracket, which can help establish the required guide position within the assembly.
Check the relationship between rail reach and the raised head. Product side pressure acts through this support, so the complete bracket and rod arrangement needs assessment for the operating conditions.
Request a 107 Bracket Quote
Send the required rod elevation, reach and frame attachment details. Include quantity and a photograph showing clearance above the bracket.
