916 Two-Row Lane Divider Roller Side Guide
The 916 two-row lane divider roller side guide places two stacked roller rows between adjacent lanes. Its green roller assembly uses UHMW-PE and stainless steel construction.
- Code
- 916
- Roller Arrangement
- Two-row divider
- Length
- 1000 mm / 39.37 in
Check contact at both row heights. A contoured product may meet one row first and leave the other clear.
Give the Lane Boundary Two Contact Levels
The 916 extends the divider contact region over two roller rows. Products moving alongside the divider can meet the rollers at different heights as their side profiles change. The upper and lower members hold the assembly between the two lanes.
Both rows need to sit within the useful sidewall region of the conveyed product. Set the divider from actual pack geometry, including the loaded shape of a flexible or tapered container. The available lane widths should be checked after the complete divider assembly is positioned.
Specifications
| Parameter | Specification |
|---|---|
| Code | Specification: 916 |
| Type | Specification: Two-row lane divider |
| Listed materials | Specification: UHMW-PE + stainless steel |
| Colour | Specification: Green |
| Section length | Specification: 1000 mm / 39.37 in |

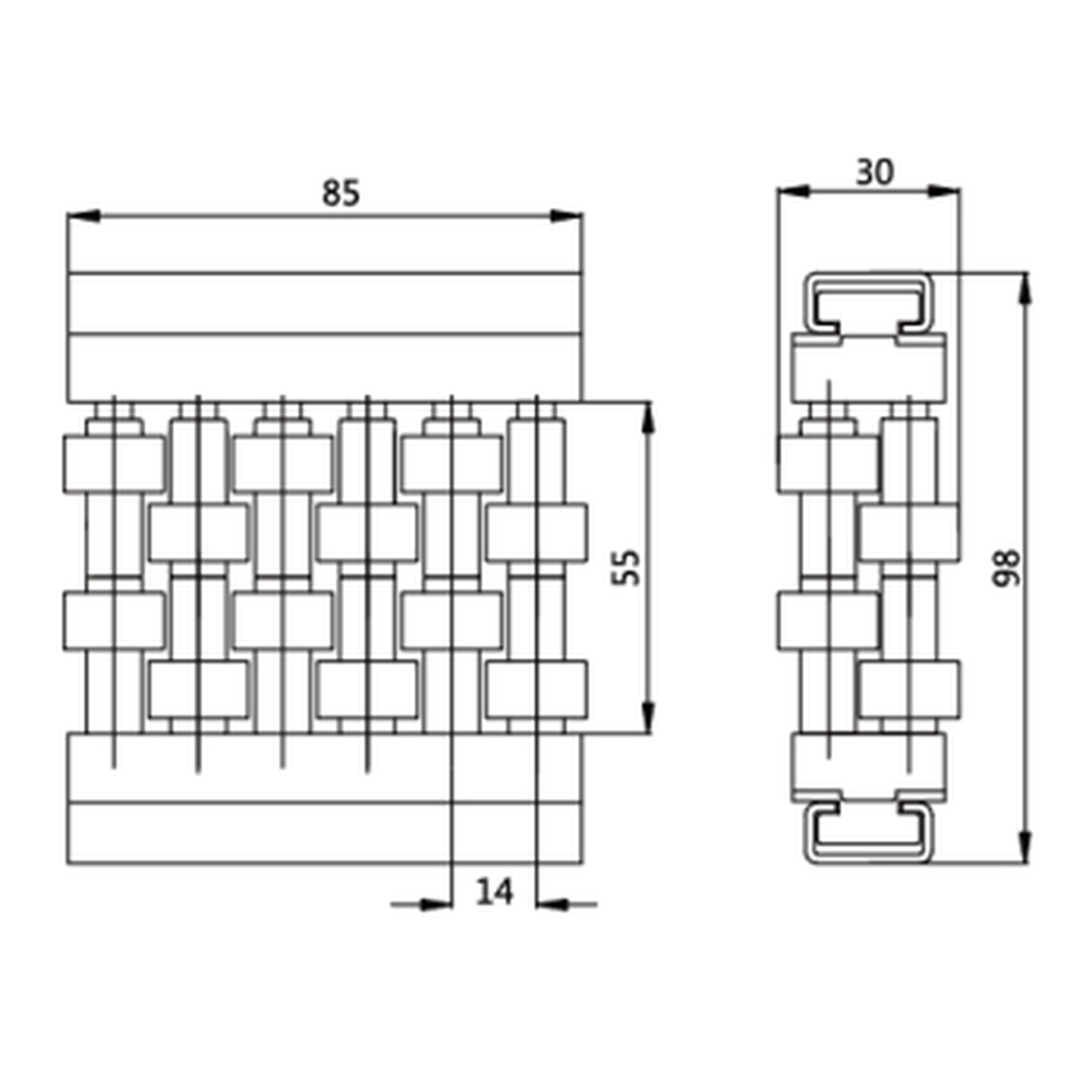

Dimensions & Fit
Compare the top and bottom fixing positions with the available mounting structure. Check that the structure supports the divider without projecting into either product path.
At the entry, leave a gradual path onto the roller face. At joints, keep both roller rows aligned; a step in either row can steer a pack as it crosses between sections.
Keep Parallel Queues Apart
Two contact levels can be useful where adjacent queues need a divider over more than one part of the pack wall. The base remains supported by the conveyor, while the rollers form the boundary between streams.
Where different pack formats share the line, check the lower and upper row contacts separately. Changing lane width without checking contact height can leave a narrow neck or sloping shoulder against the frame.
Request a 916 Divider Quote
Send both lane widths, product profiles and the planned divider height. Add required length, fixing details and quantity for CSTRANS to review.
