908 Round-Cap Conveyor Side Guide Rail
The 908 round-cap conveyor side guide rail combines a rounded UHMW-PE contact profile with a stainless steel carrier. Its 3 m length provides a continuous guide surface along the product path.
- Code
- 908
- Construction
- UHMW-PE + stainless steel
- Length
- 3 m / 9.84 ft
The rounded cap determines where the product meets the rail. Match its installed height and carrier section to the existing guide assembly.
A Rounded Surface Along the Guide Line

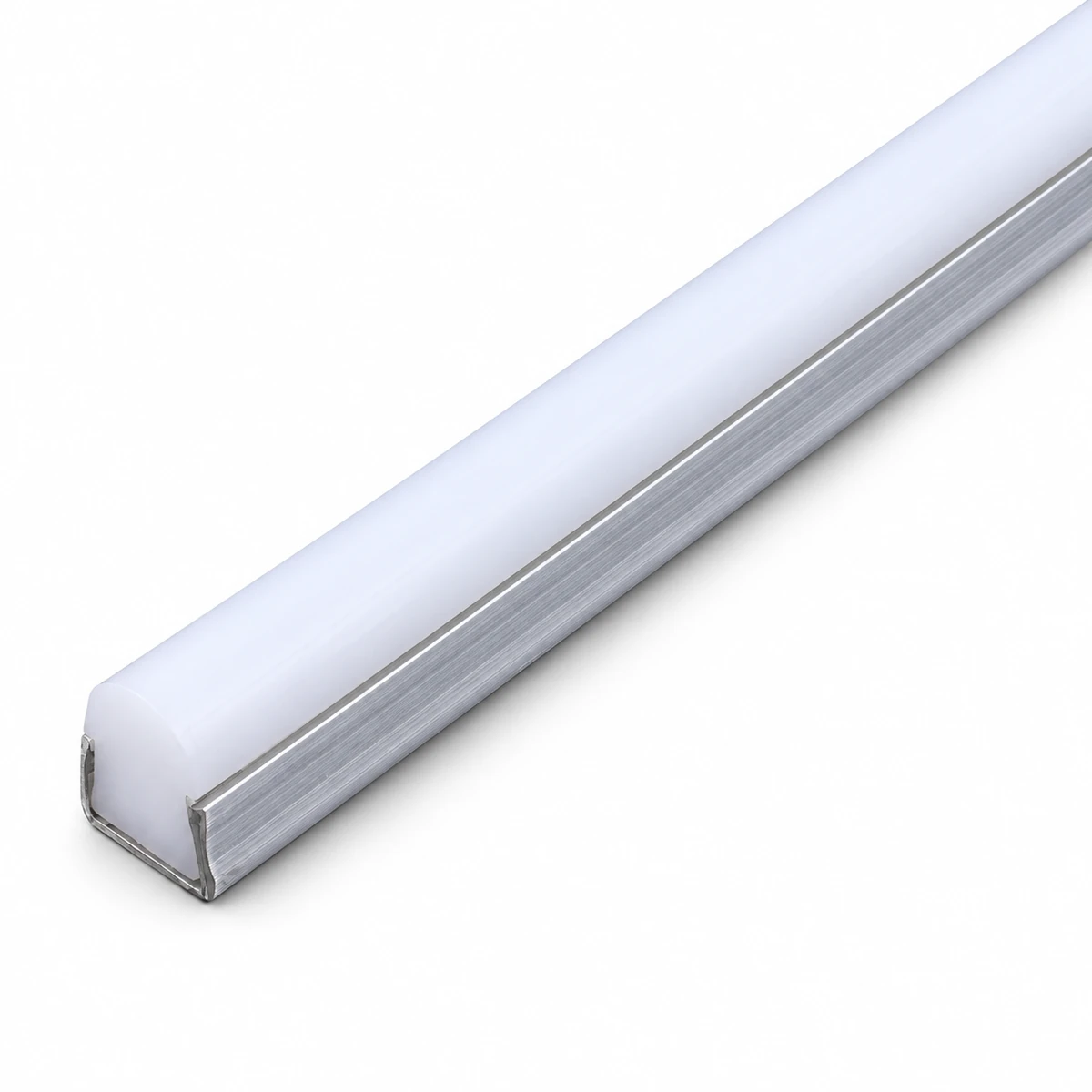

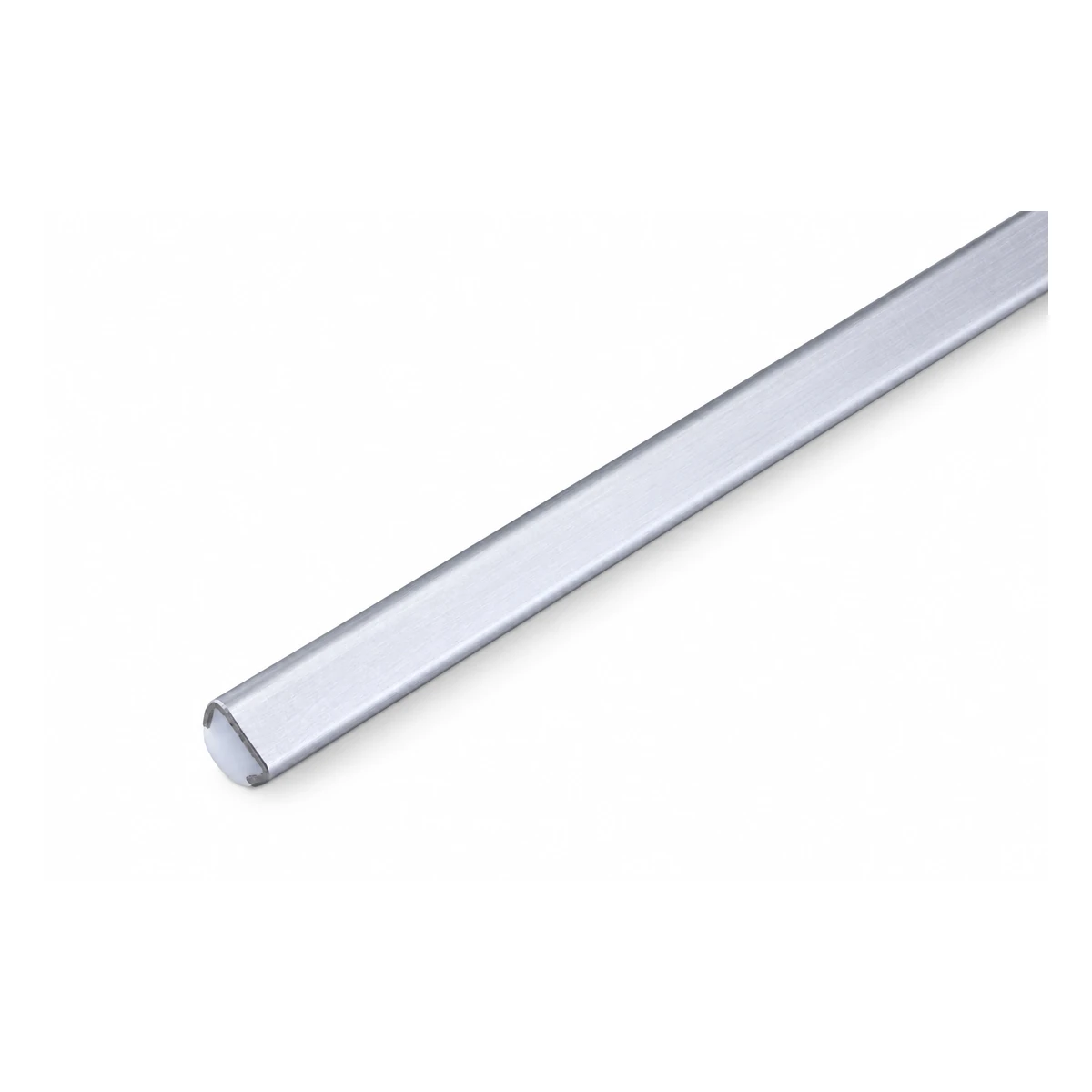

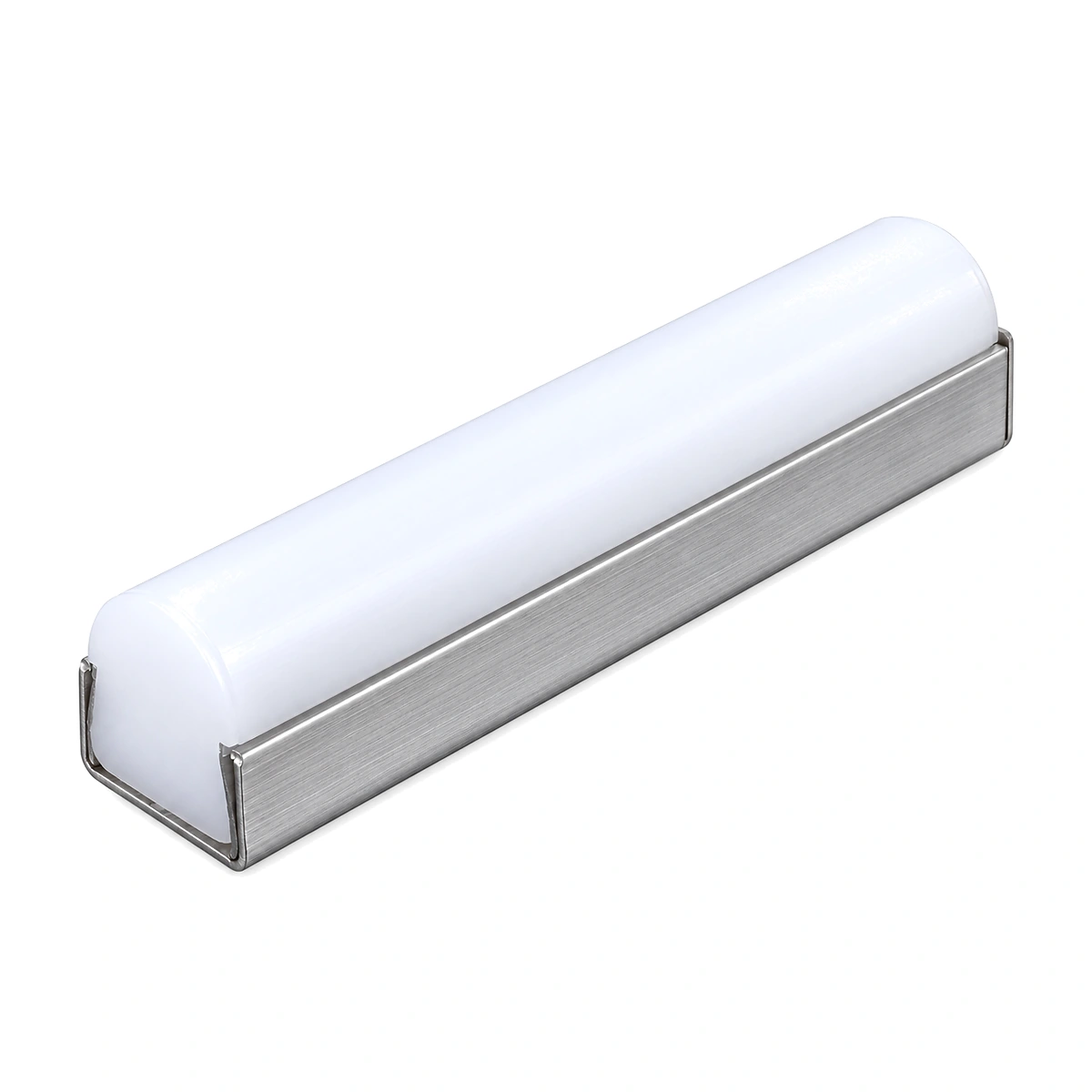

The rounded cap presents a curved contact face to the product wall. Its UHMW-PE profile sits within a stainless steel carrier, which locates the cap along the conveyor.
A curved face contacts a different region of the product from a broad flat strip. Guide height therefore matters on tapered bottles, necked containers or packs with a projecting rim. Check where contact occurs before copying the position of an old rail with a different profile.
Specifications
| Parameter | Specification |
|---|---|
| Code | Specification: 908 |
| Contact profile | Specification: Round cap |
| Materials | Specification: UHMW-PE + stainless steel |
| Length | Specification: 3 m / 9.84 ft |

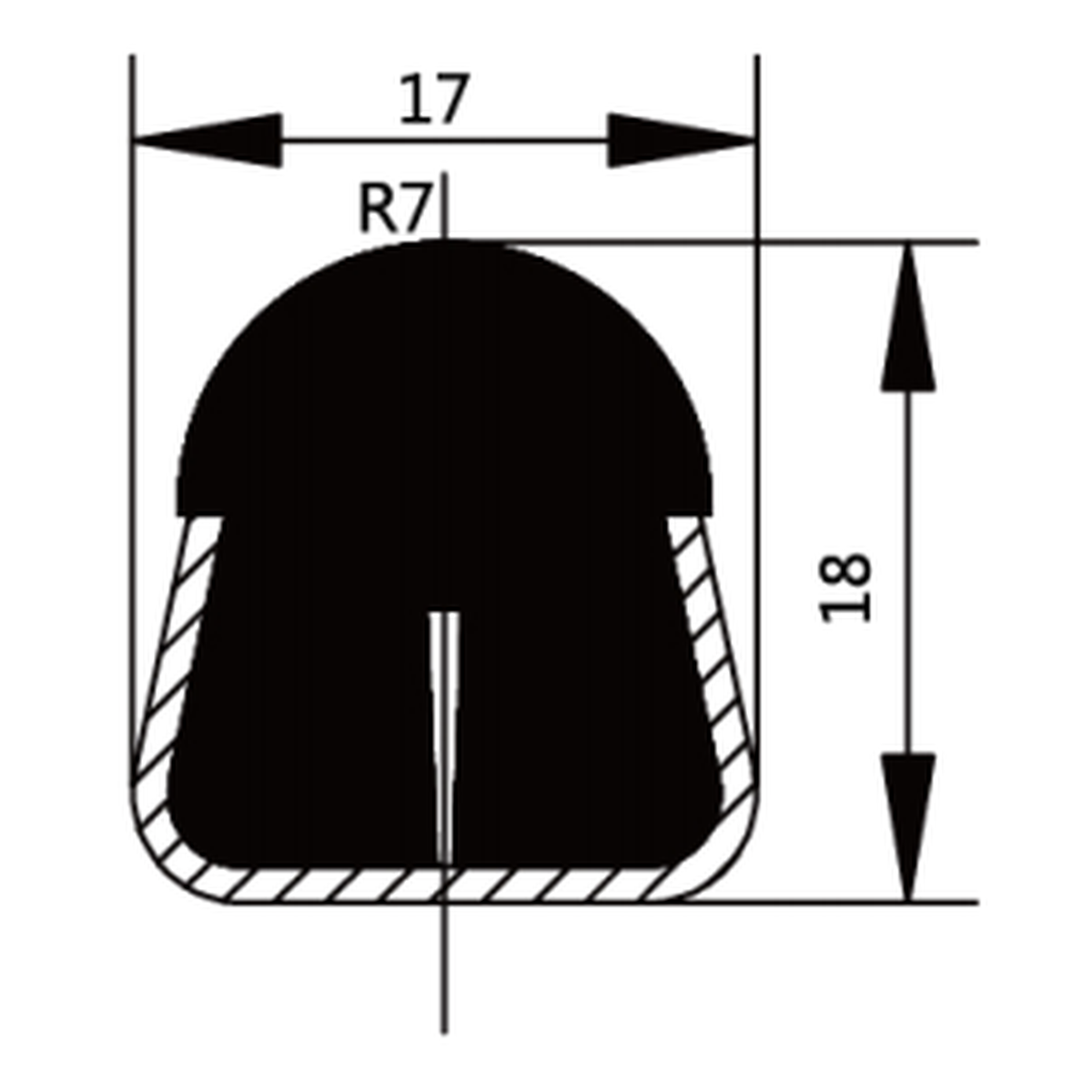

Dimensions & Fit
Compare the cap outline and the carrier opening with the mating hardware. Show the installed orientation as well as an end view; the same profile can present a different contact line when rotated.
Align the plastic faces at rail joints and check end clearance beside transfers. Keep the carrier and fasteners behind the intended product-contact surface.
Establish a Continuous Lane Boundary
A round-cap rail can form a continuous side boundary where products travel with sliding contact. Position it against a stable part of the wall and leave the required lane clearance for the widest product.
At a machine entrance, check that the cap follows the incoming product path. The approach and joint alignment determine whether the product meets the rounded face or an exposed rail end.
Request a 908 Rail Quote
Send the carrier cross-section, installed rail height and required section lengths. Include quantity and an existing rail photograph for CSTRANS to compare.
