140 Machined Flexible Chain Sprocket

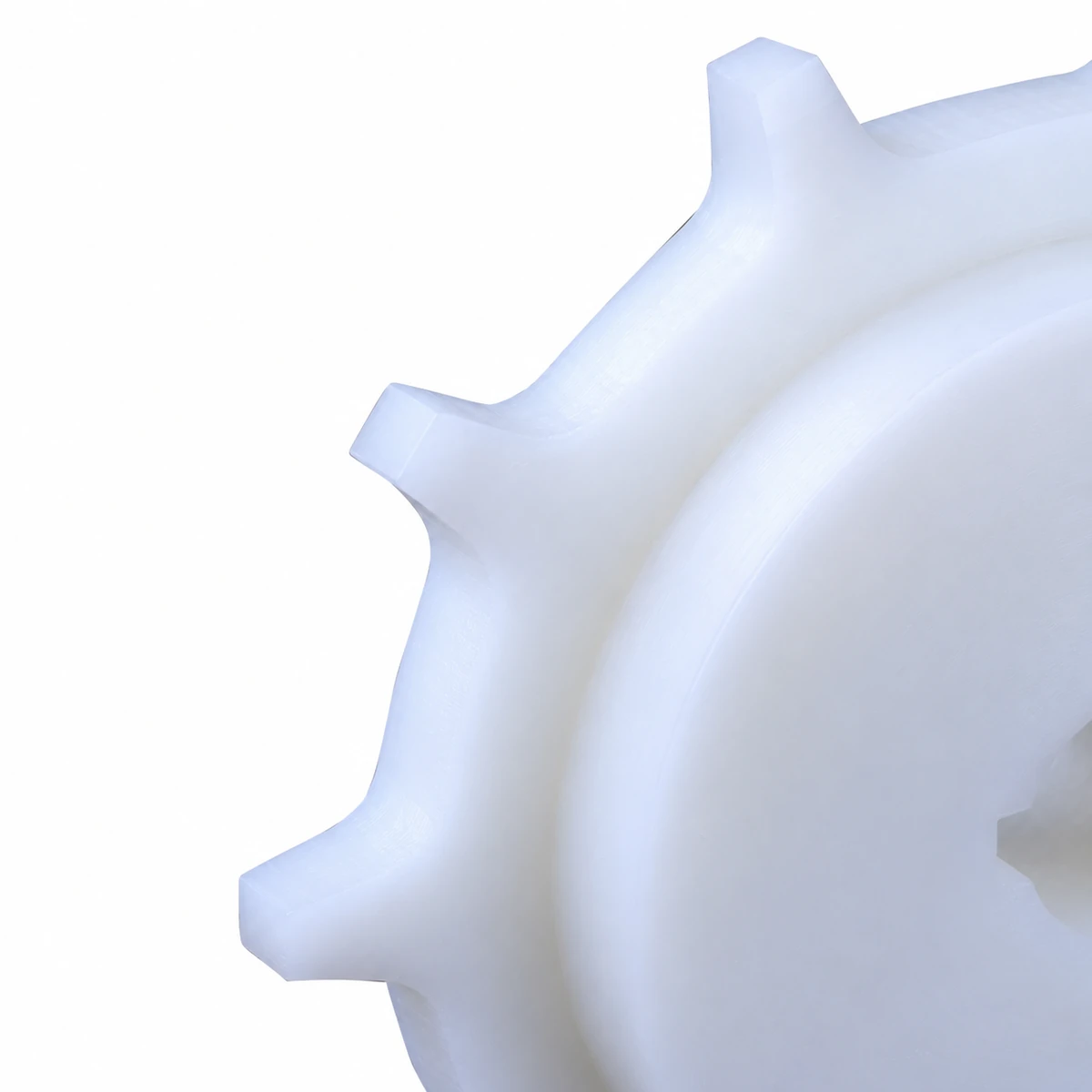

The 140 machined sprocket range offers three tooth counts for a flexible-chain drive. PA and PP are listed material options, with round or square bores to match the specified shaft.
- Tooth Counts
- 9 / 11 / 13
- Bore Range
- 25–30 mm
- Materials
- PA / PP
Confirm the exact chain link before selecting the wheel. A 140-family name does not establish pitch or tooth-profile compatibility.
Select Tooth Count Within the Available End Space
The 9-, 11- and 13-tooth options have different pitch and outside diameters. Increasing tooth count changes the chain path around the drive end, so the surrounding housing and support transitions must be checked with the selected wheel.
The bore joins the sprocket to the drive shaft. Its size and shape need to match the shaft drawing. Material selection should also reflect operating conditions; the PA and PP options do not by themselves establish the same temperature or load capability.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Machined Sprocket Material Options | Value: PA / PP | |
| Bore Shape Options | Value: Round / square |
Sprocket Sizes
| Item | Number of Teeth | Bore (mm) | Pitch Diameter (mm) | Outside Diameter (mm) | Manufacturing Process |
|---|---|---|---|---|---|
| 1-140-T9 | Number of Teeth: 9 | Bore (mm): 25–30 | Pitch Diameter (mm): 111.4 | Outside Diameter (mm): 115 | Manufacturing Process: Machined |
| 1-140-T11 | Number of Teeth: 11 | Bore (mm): 25–30 | Pitch Diameter (mm): 135.2 | Outside Diameter (mm): 138 | Manufacturing Process: Machined |
| 1-140-T13 | Number of Teeth: 13 | Bore (mm): 25–30 | Pitch Diameter (mm): 159.2 | Outside Diameter (mm): 166 | Manufacturing Process: Machined |
Dimensions & Fit
Compare the chain's engagement profile with the wheel drawing, then choose tooth count. Check outside diameter against the housing and the chain's approach to the wear strips.

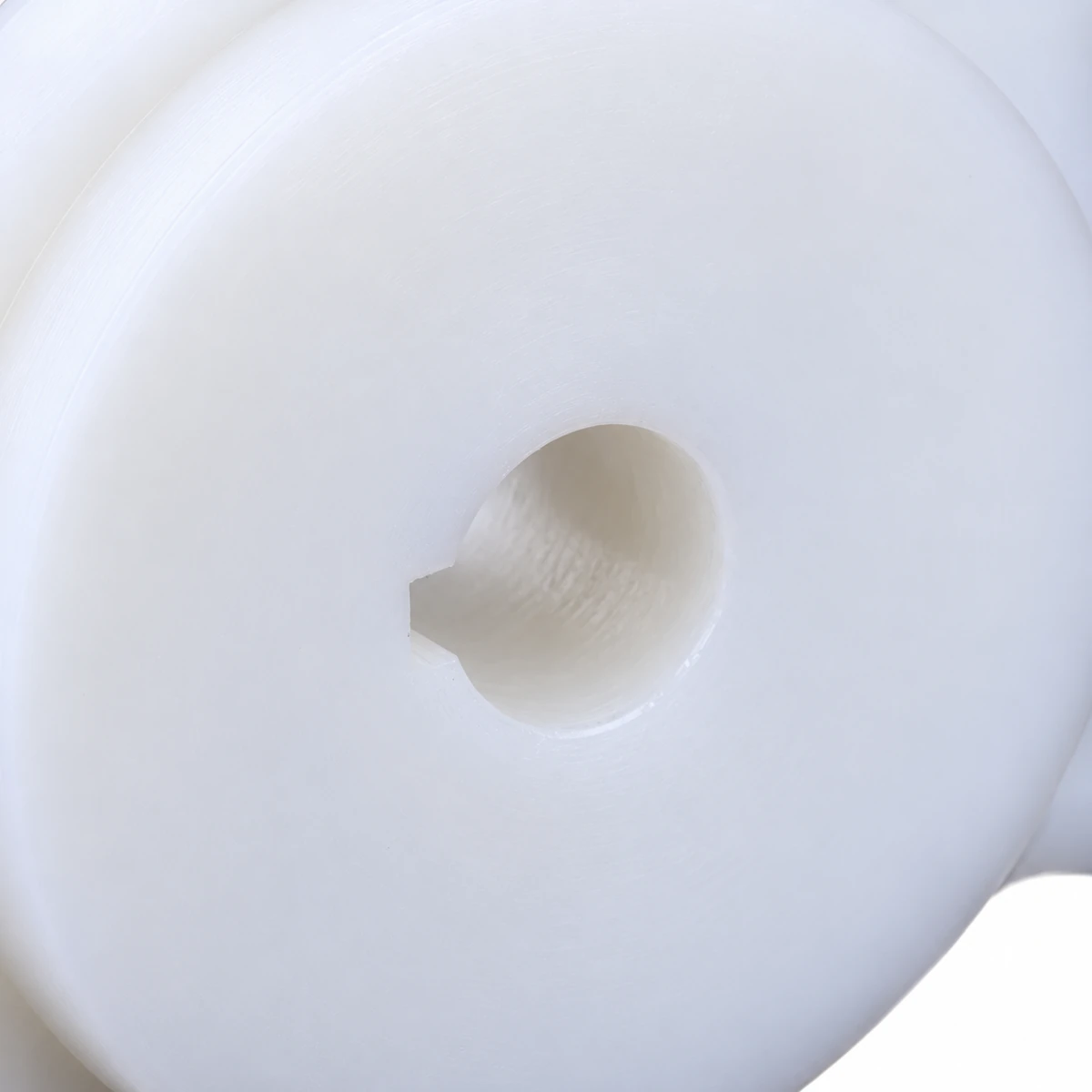

Specify the 25–30 mm bore requirement and round or square form. For a keyed bore, supply the keyway and shaft details. Hub and axial-position dimensions must come from the ordered drawing.
Drive the Flexible Chain at the Conveyor End
The sprocket transmits shaft rotation into movement of the linked chain. At entry and exit, the chain must transition between the toothed wheel and the supported beam path.
When changing tooth count during a repair, review the changed end envelope and chain approach. A larger wheel can occupy space previously used by guards or transfer hardware even when the sprocket bore remains the same.
Request a 140 Sprocket Quote
Specify tooth count, PA or PP requirement, bore form and quantity. Send the actual chain reference with the shaft drawing and available drive-end space.
