85 Half Conveyor Beam
The 85 half conveyor beam is an aluminium-alloy profile used in horizontal and vertical bend assemblies. It also joins an 85 main beam through beam spacers to form a wider beam arrangement.
- Series
- 85 half beam
- Material
- Aluminium alloy
- Joining part
- Beam spacer

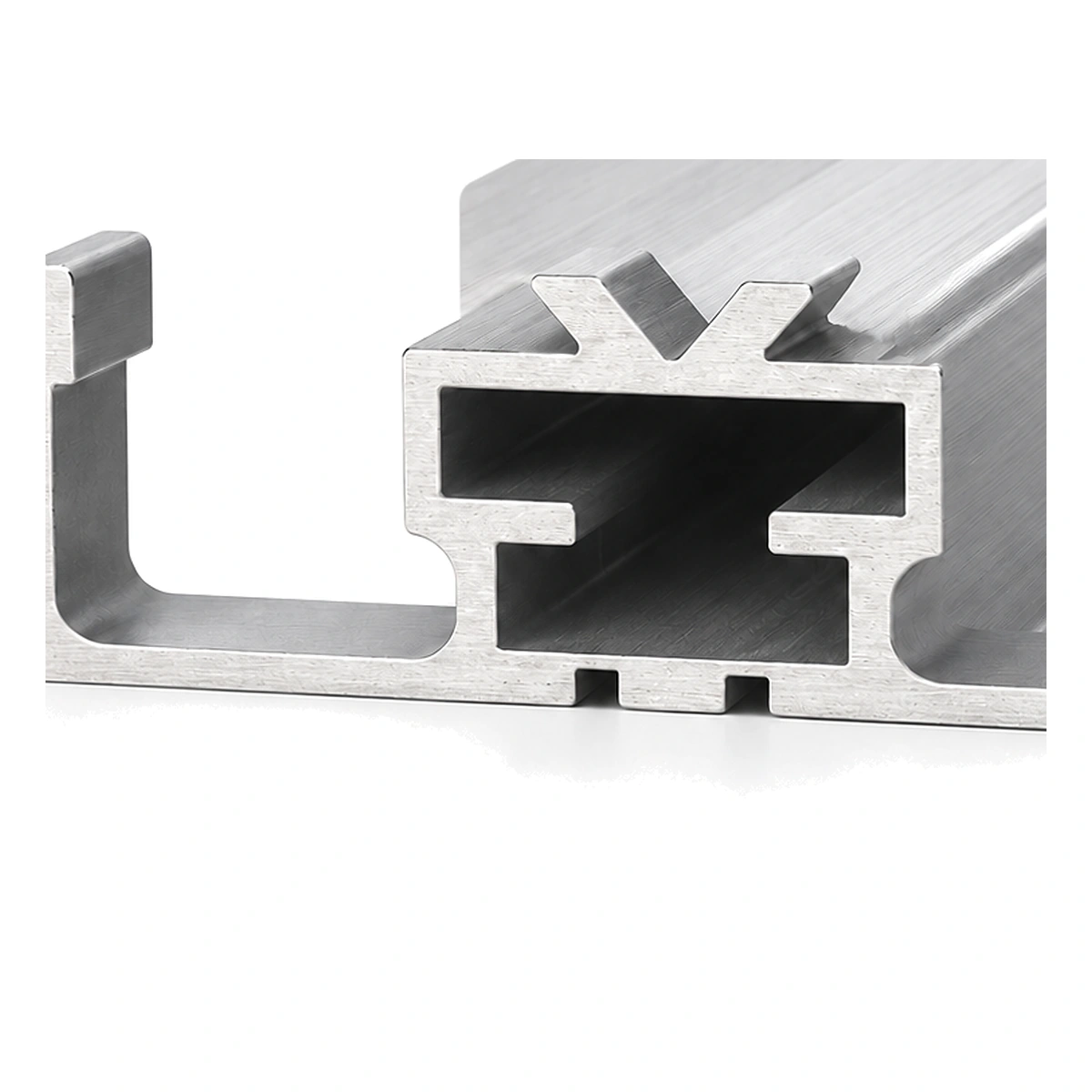

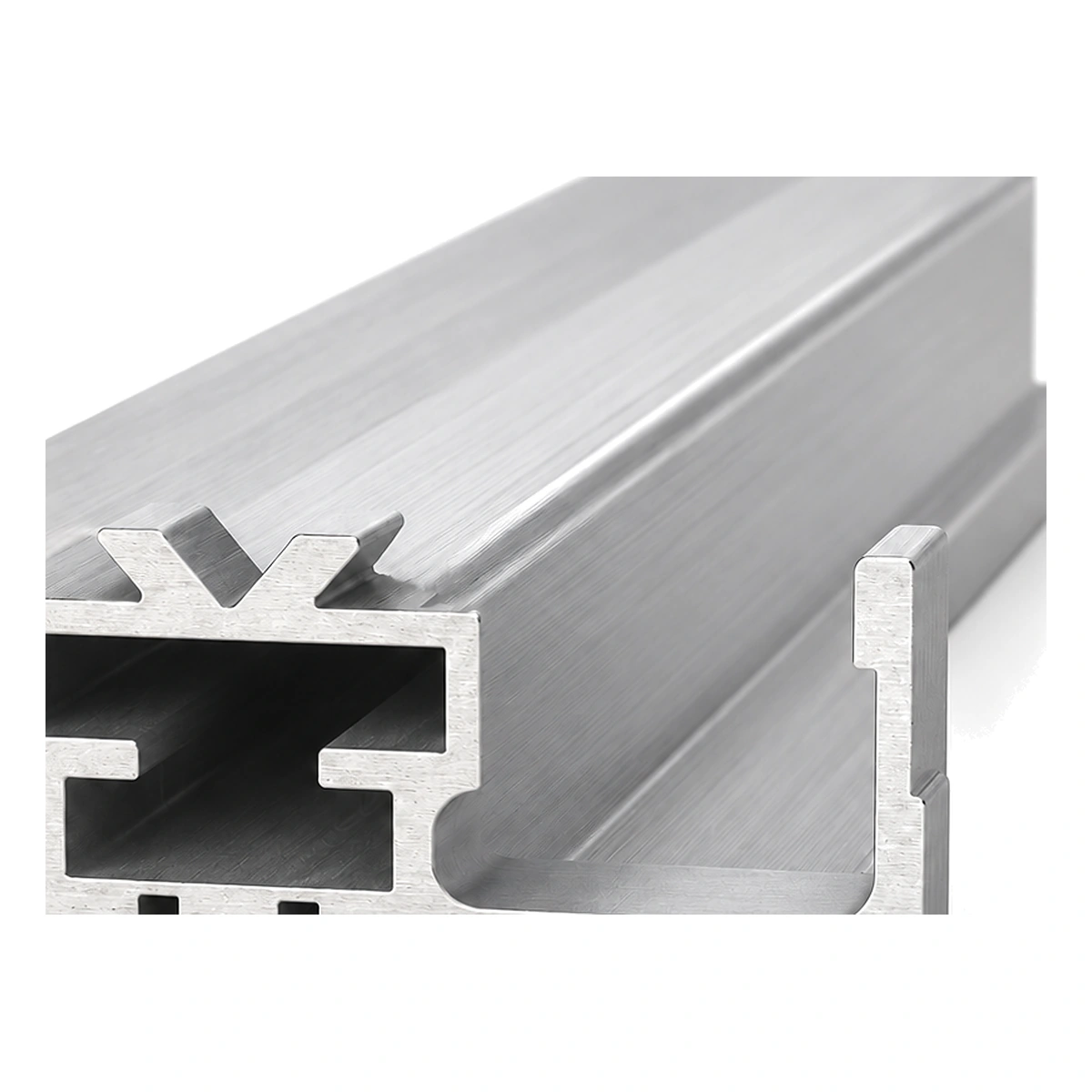

Match the actual half-beam section before specifying the spacer length. The available section drawings represent separate variants.
Build the Curved or Assembled Beam Path
The half beam forms part of the support structure used for horizontal and vertical curves. In a wider straight assembly, beam spacers join it to the 85 main beam and establish the separation between the members.

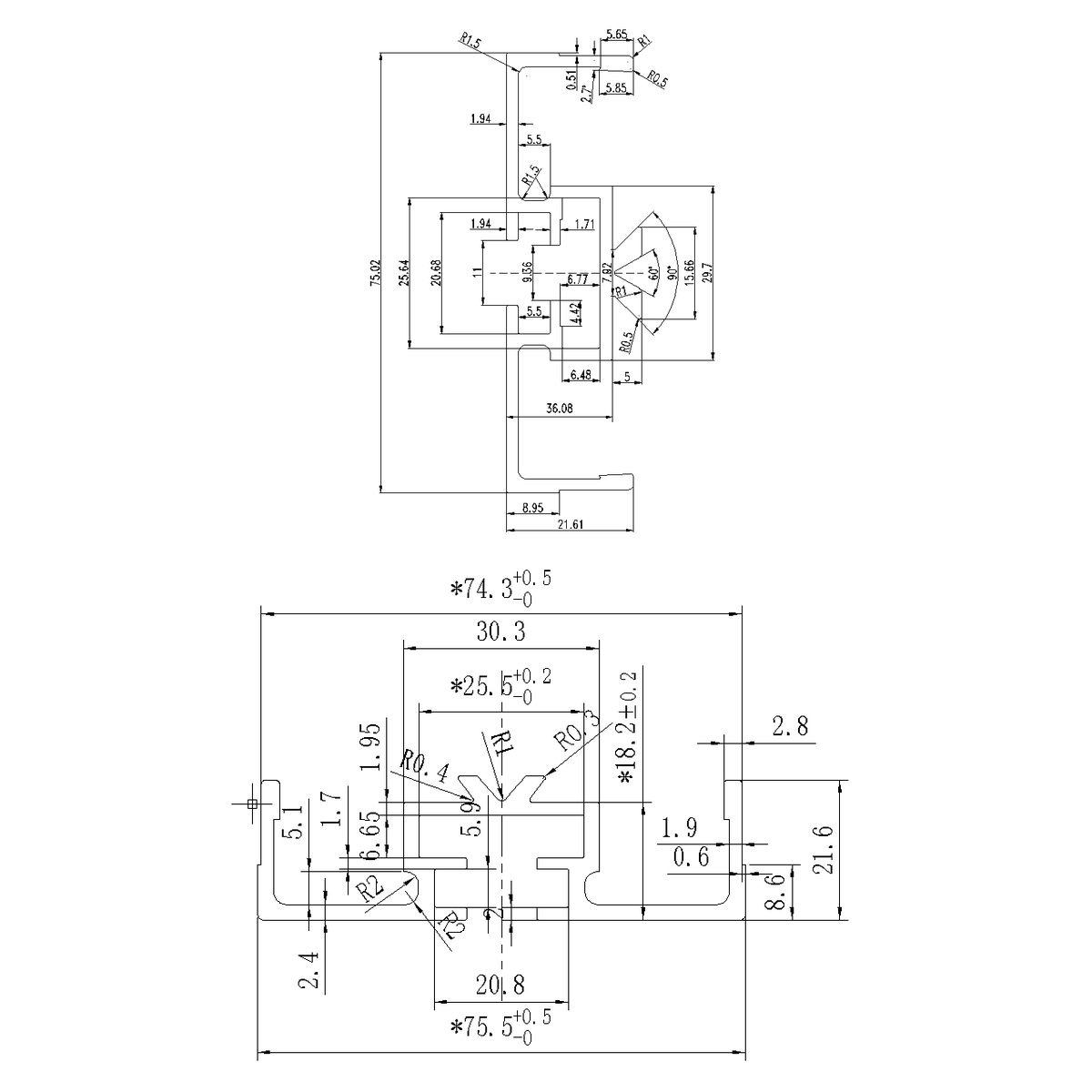

Its section must suit the mating connections and chain support. The two supplied section drawings differ in outline and callouts. Treat them as separate matching references and identify the required variant before defining the assembled geometry.
Specifications
| Parameter | Specification |
|---|---|
| Component | Specification: 85-series half beam |
| Material | Specification: Aluminium alloy |
| Uses | Specification: Horizontal and vertical bends; assembled wider beams |
| Main-beam pairing | Specification: 85 main beam |
| Joining component | Specification: Conveyor beam spacer |
Dimensions & Fit
Compare the required section against each drawing separately. Check the seating features used by the connectors and the position of the chain-supporting surfaces.
For an assembled wider beam, confirm the distance between the members and the corresponding spacer. For a curve, provide the plan or elevation and identify the straight connection ends.
Keep Support Aligned Through a Change in Route
A half-beam section can form the curved members that carry a flexible-chain path through a horizontal or vertical direction change. The required bend geometry determines how those members meet the straight beam.
In a wider assembly, the beam spacers hold the main and half beams apart. Check their positions so the carrying support and return clearance remain consistent across the module.
Discuss an 85 Half Beam
Send the required section variant, straight or curved layout and beam-spacer details. Include lengths and quantity for CSTRANS to review.
