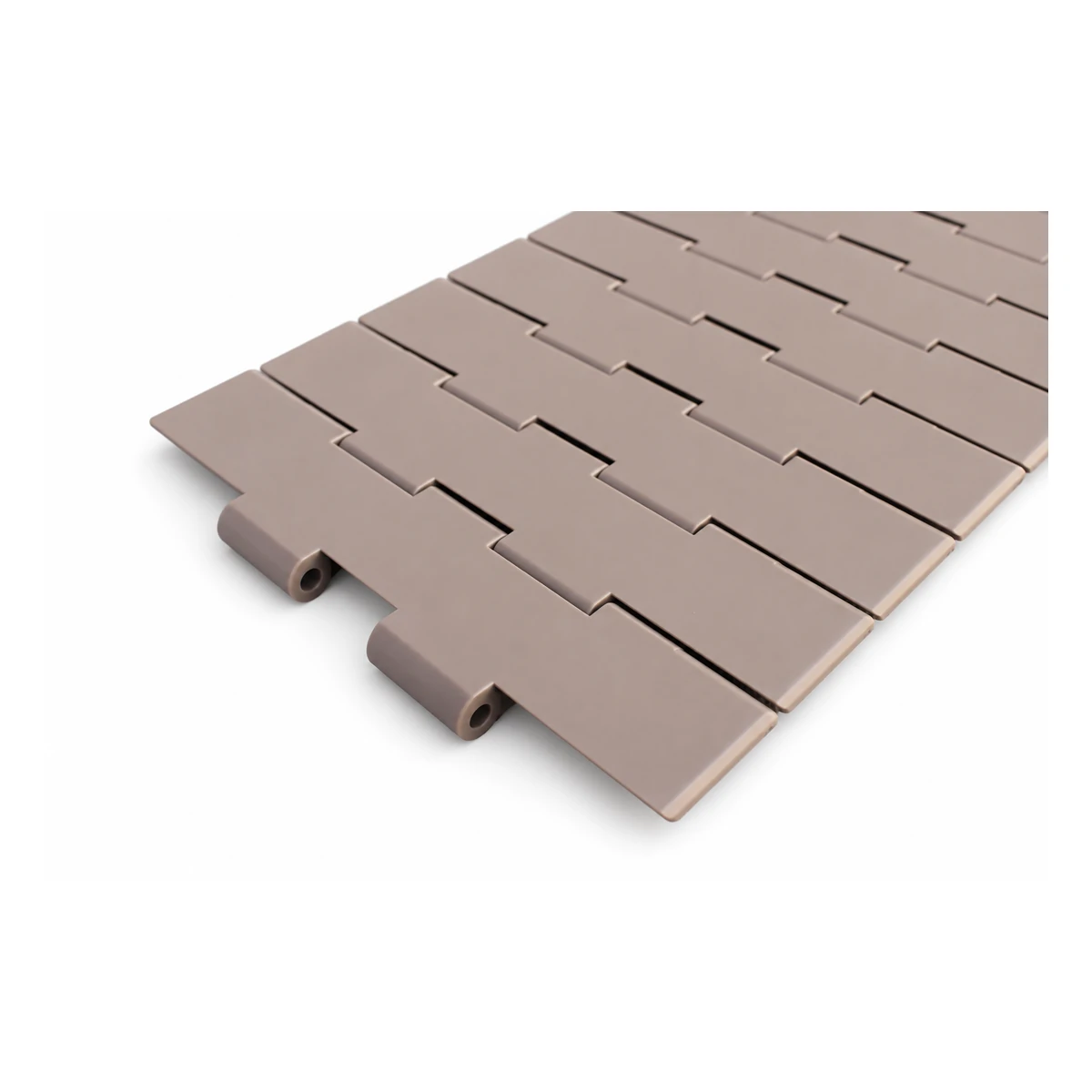

821 Double Hinge Table Top Chain
The 821 uses a double-hinge arrangement beneath broad POM top plates. It carries products along straight lanes in three listed widths from 190.5 to 304.8 mm.
- Construction
- Double hinge
- Pitch
- 38.1 mm / 1.5 in
- Plate Widths
- 190.5 / 254 / 304.8 mm
Check support beneath the full plate width. The double-hinge underside must match the running track and drive arrangement.

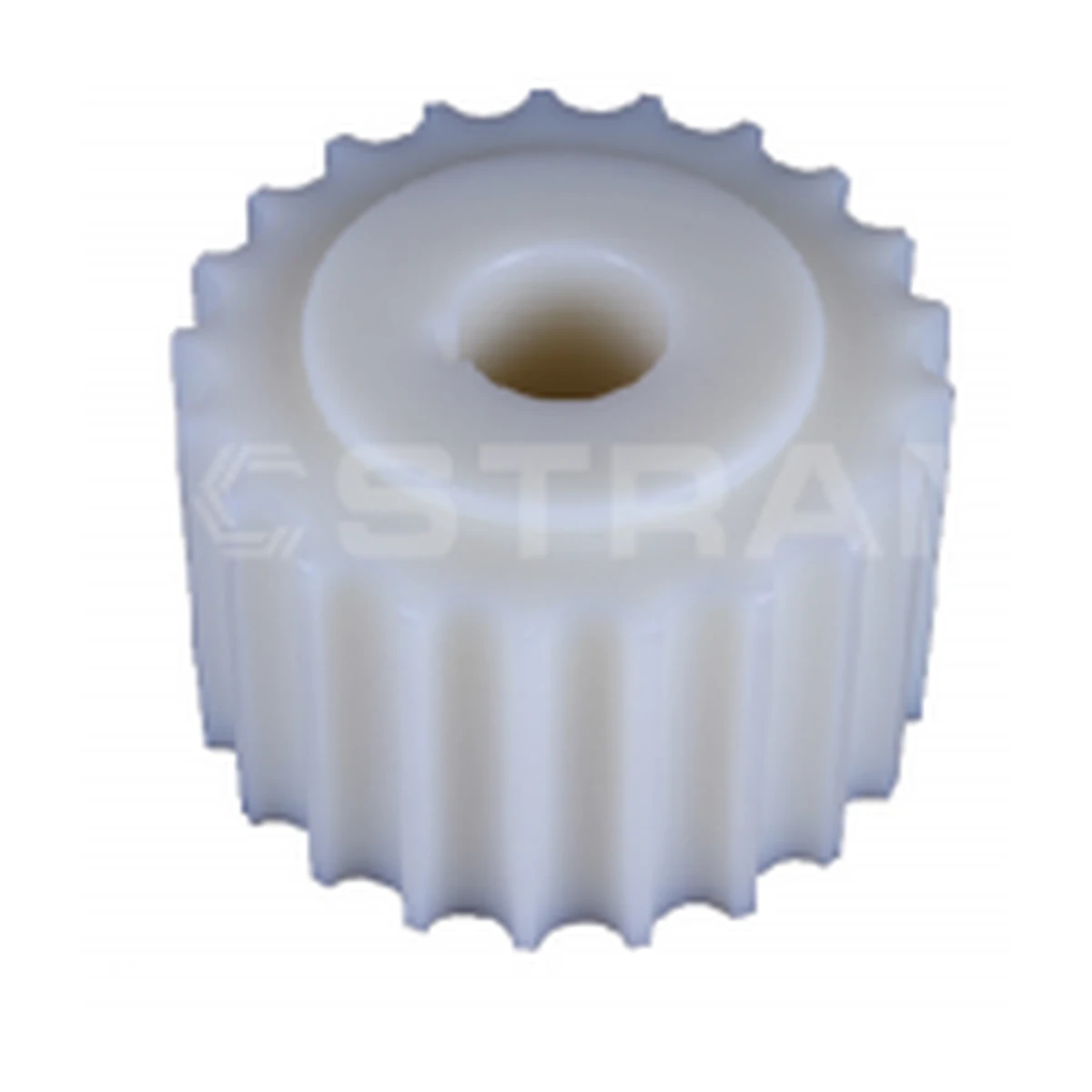

Matching Sprocket
For 821-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 821-series chains. Confirm the tooth count and shaft opening.
Carry a Broad Base on a Straight Chain

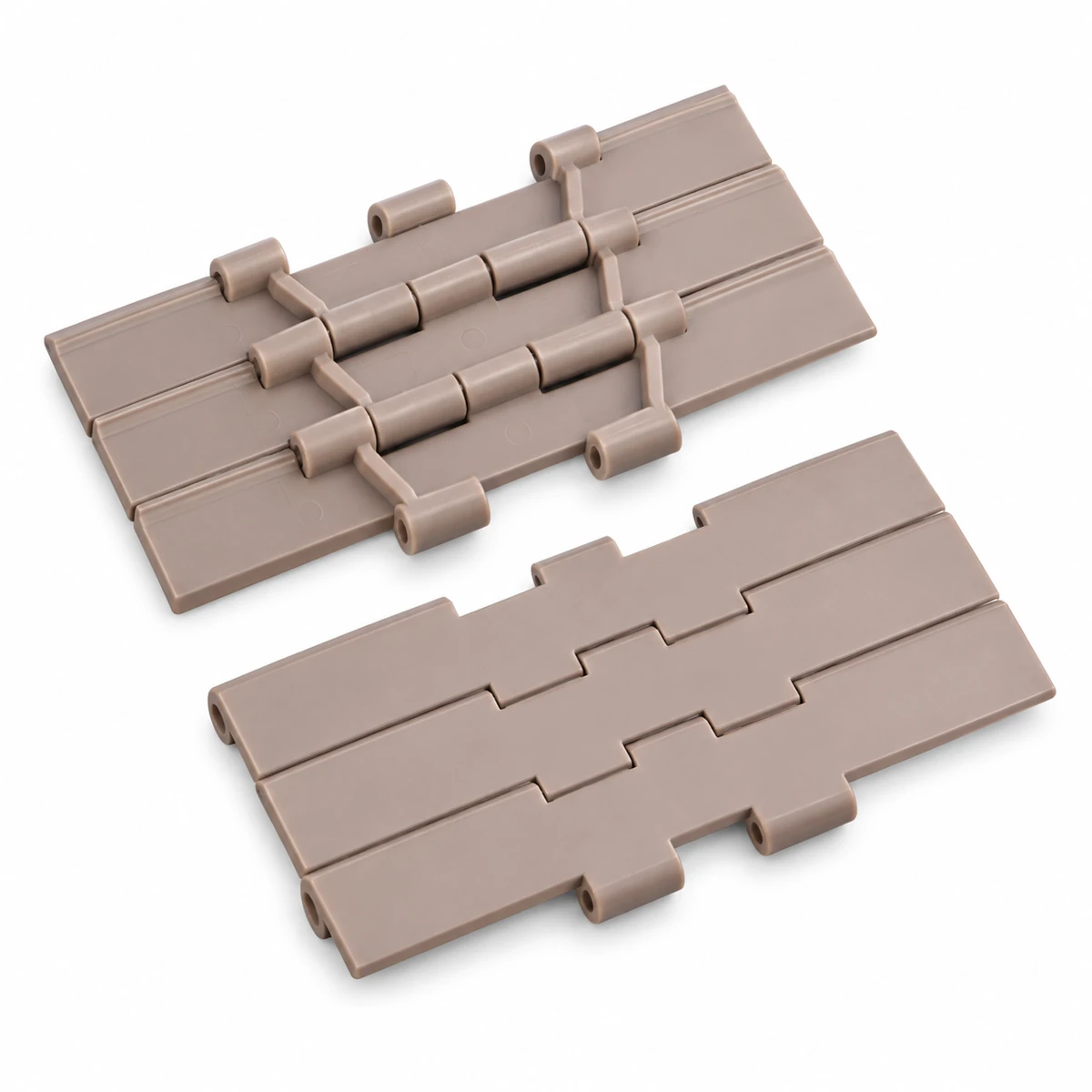

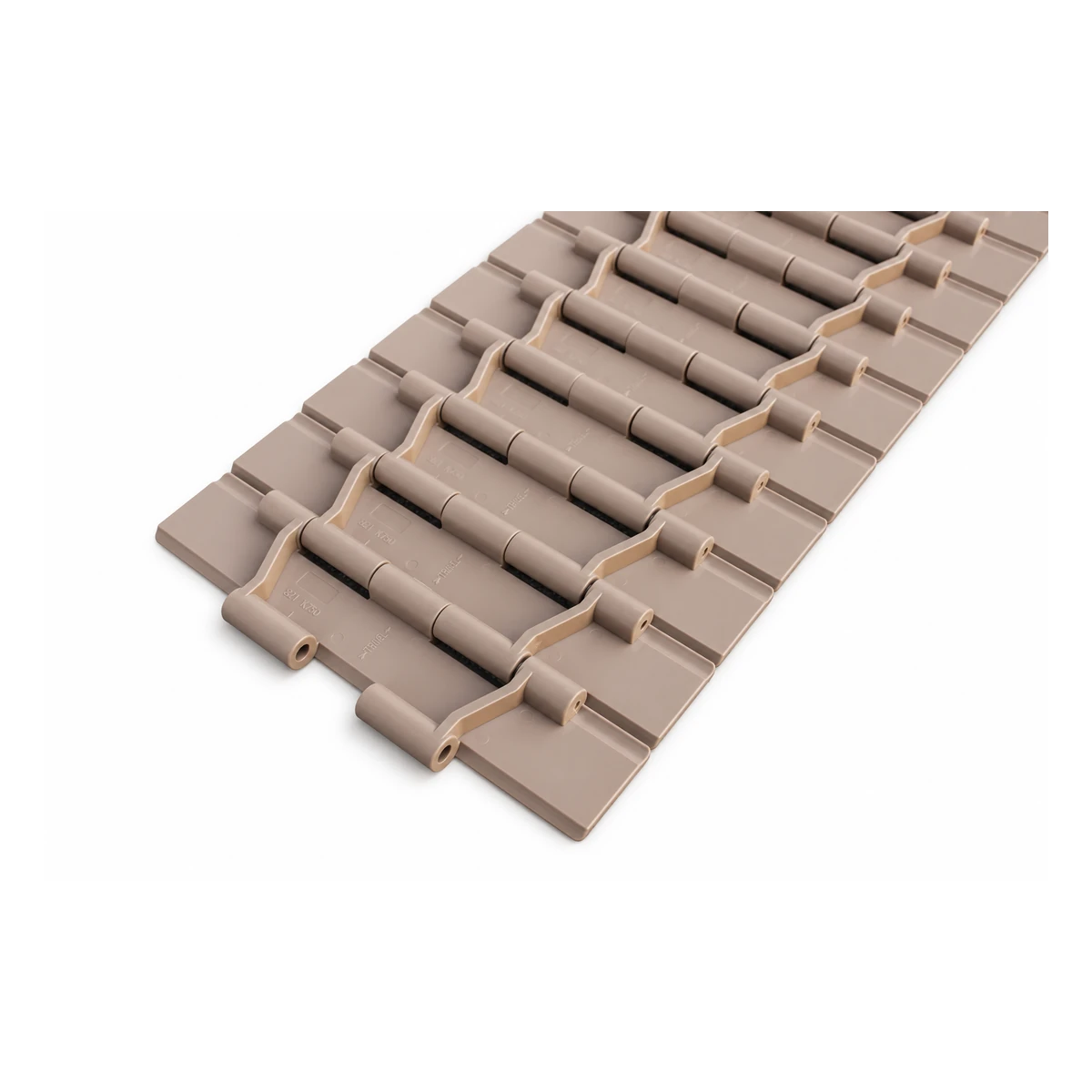

The 821 combines a wide carrying plate with two hinge positions across the underside. That construction makes the support and drive layout part of the width choice. Compare the underside section directly when replacing an existing wide top chain.
The three widths share a listed 2,680 N working-load reference at 21 °C. Their masses differ. A larger plate adds carrying area and moving chain mass, so increasing width does not establish a higher permissible payload.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Plate Material | Value: POM | |
| Pin Material | Value: Stainless steel | |
| Pitch | Value: 38.1 mm | Converted Value: 1.5 in |
| Maximum Conveying Distance | Value: 12 m | Converted Value: 39.3701 ft |
| Maximum Speed — Lubricated | Value: 90 m/min | Converted Value: 295.2756 ft/min |
| Maximum Speed — Dry | Value: 60 m/min | Converted Value: 196.8504 ft/min |
| Working Load at 21°C | Value: 2680 N | Converted Value: 602.488 lbf |
| Backflex Radius | Value: 50 mm | Converted Value: 1.9685 in |
Chain Sizes
| Chain Type | Plate Width (mm) | Plate Width (in) | Weight (kg/m) |
|---|---|---|---|
| 821-K750 | Plate Width (mm): 190.5 | Plate Width (in): 7.50 | Weight (kg/m): 2.5 |
| 821-K1000 | Plate Width (mm): 254.0 | Plate Width (in): 10.00 | Weight (kg/m): 2.8 |
| 821-K1200 | Plate Width (mm): 304.8 | Plate Width (in): 12.00 | Weight (kg/m): 3.25 |

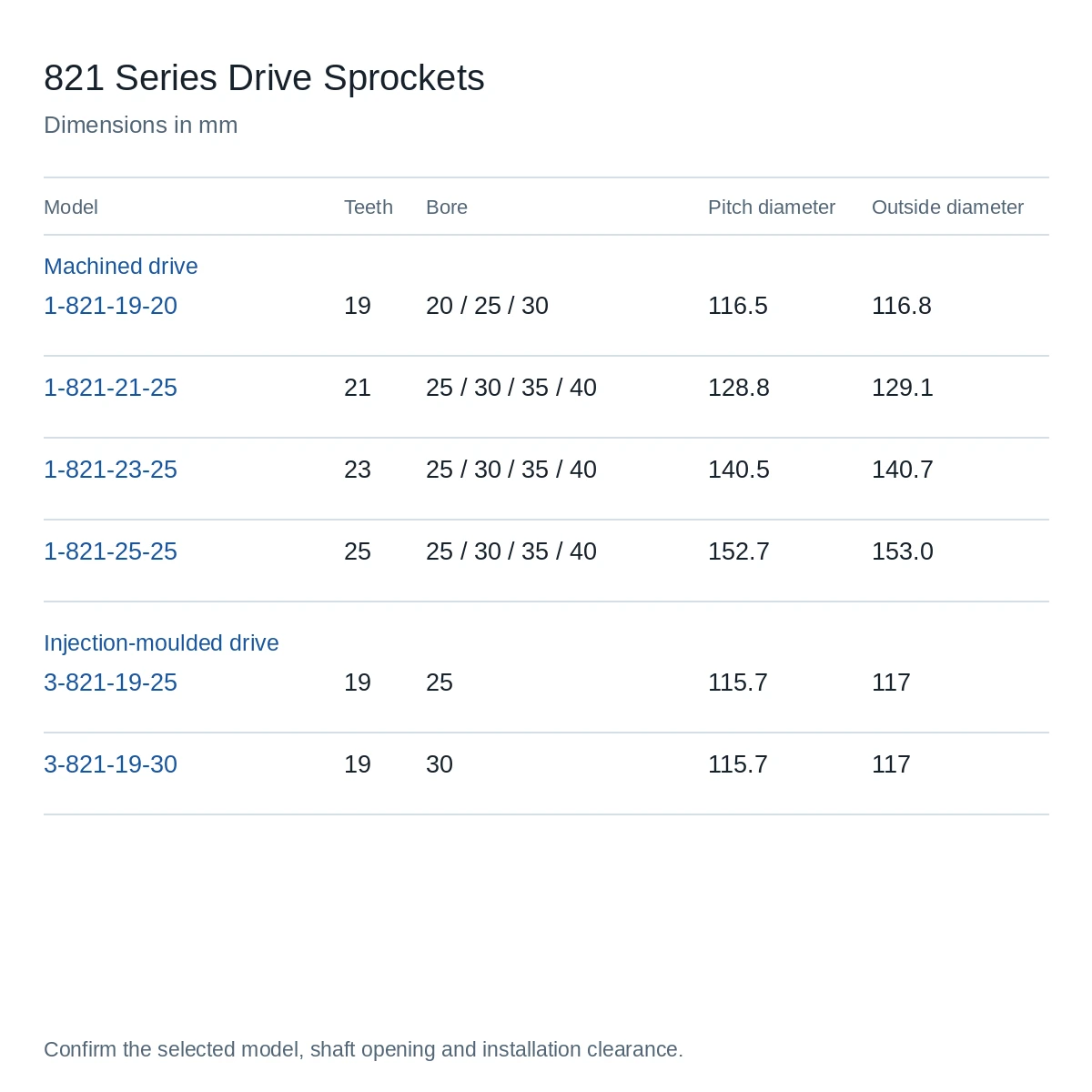

Matching Chain Sprockets
The 821 wheel range includes machined drive sprockets and idler wheels, plus 19-tooth injection-moulded drive references. Match the exact wheel reference to the actual chain and shaft arrangement.

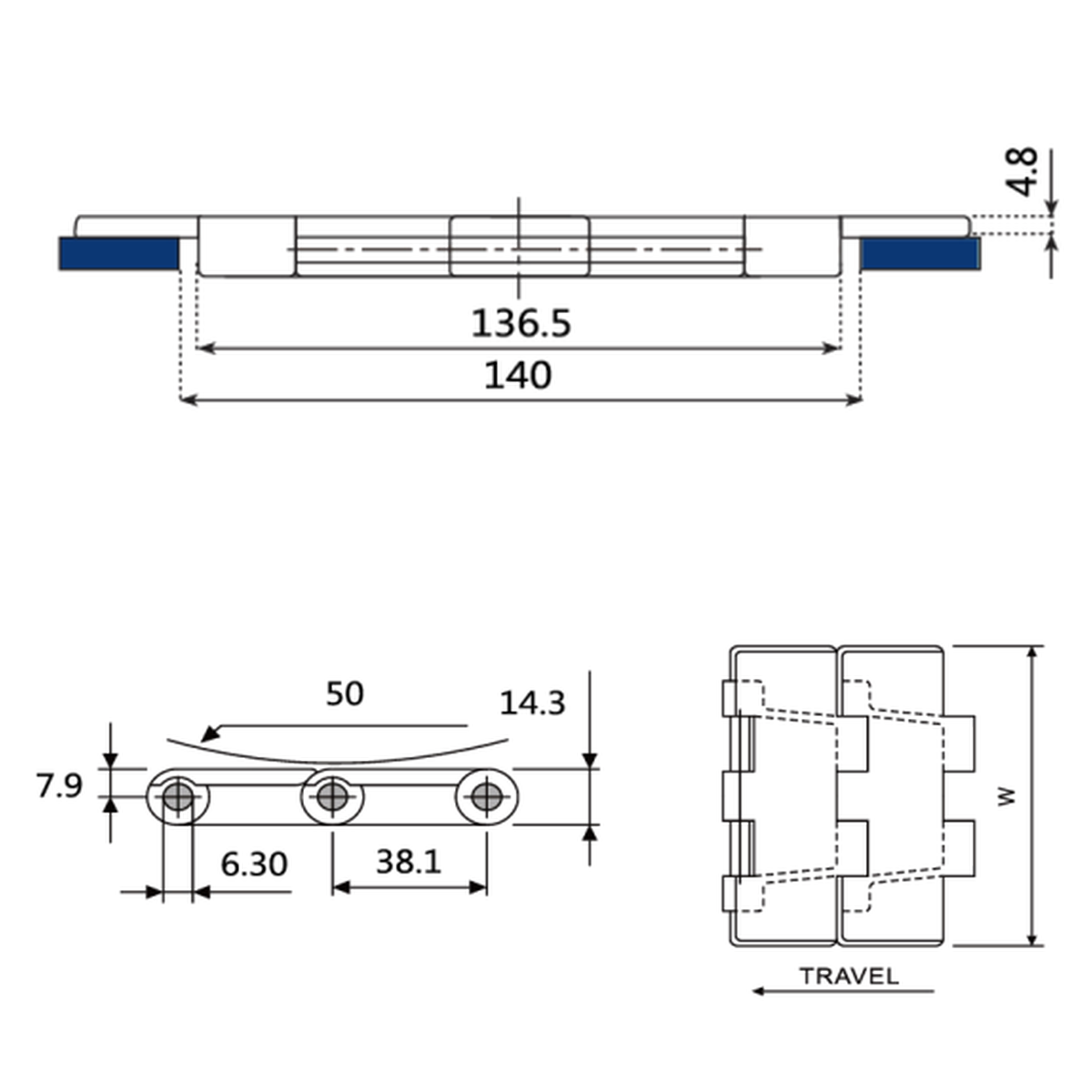

Dimensions & Fit
Choose the plate width around the pack footprint and side-guide clearance. Show wear-strip positions beneath the wide plate so support can be reviewed across the lane.
Check the 38.1 mm pitch and double-hinge geometry against the sprocket arrangement. The listed 50 mm backflex radius concerns the return path; transfer support requires its own check with the product base.
Support Wide Packs Between Machines
A broad, flat-bottomed pack needs support across more of its base than a narrow chain provides. The 821 offers a straight moving surface for that type of lane.
At a handoff, a pack may bridge both conveyors for a short distance. Align their support heights and check the gap under the leading edge. Uneven loading across a wide plate also needs attention when the product sits off the lane center.
Request an 821 Quote
Send the K750, K1000 or K1200 size, chain length and quantity. Include product footprint, support positions and the existing drive layout.
