Conveyor Chain Sprockets
CSTRANS supplies sprockets for conveyor-chain families in machined and injection-moulded constructions. Start with the exact chain reference, then select the tooth count, body construction and shaft connection.
- Chain Families
- Flat-top, flexible, case and top-plate
- Manufacturing Options
- Machined / injection moulded
- Body Options
- One-piece / split

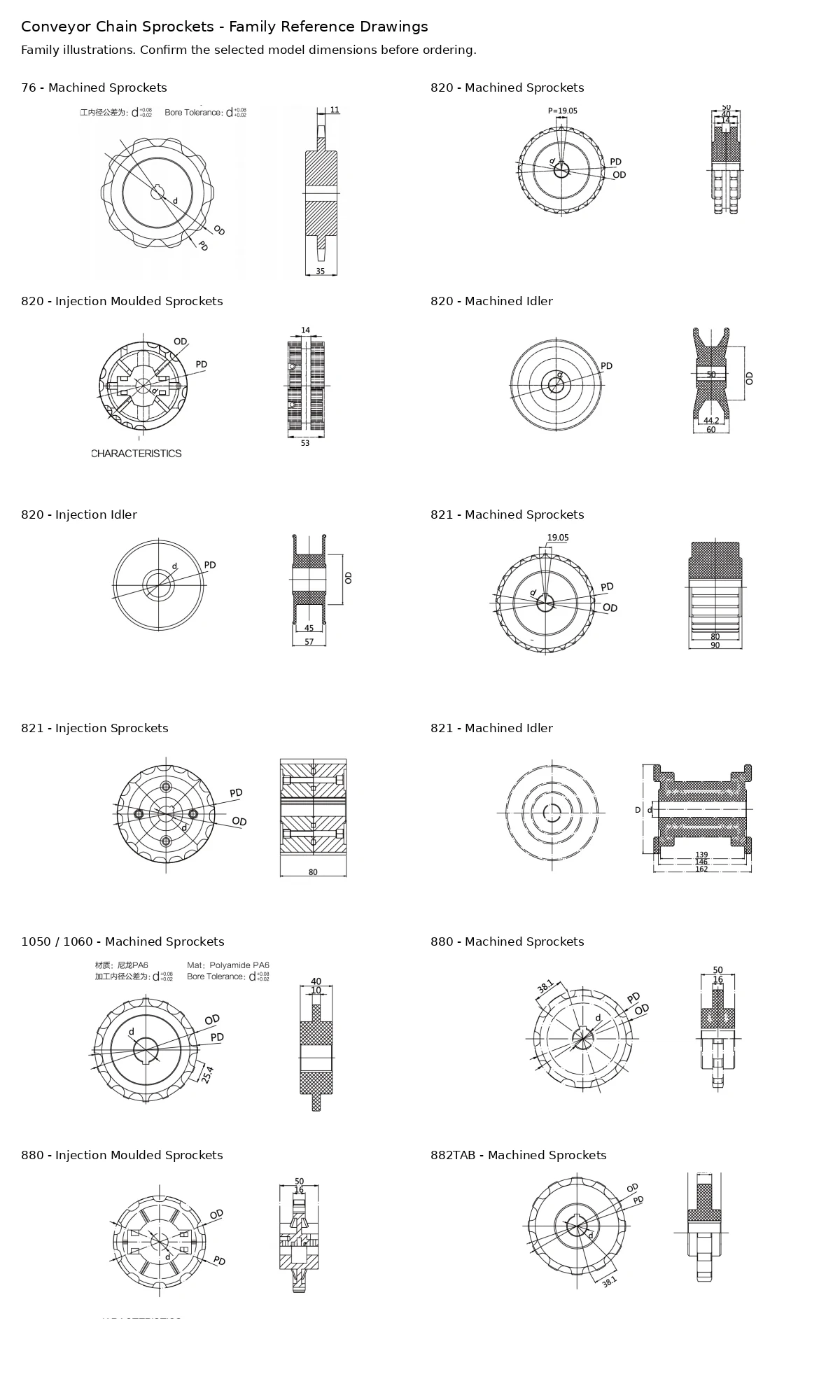

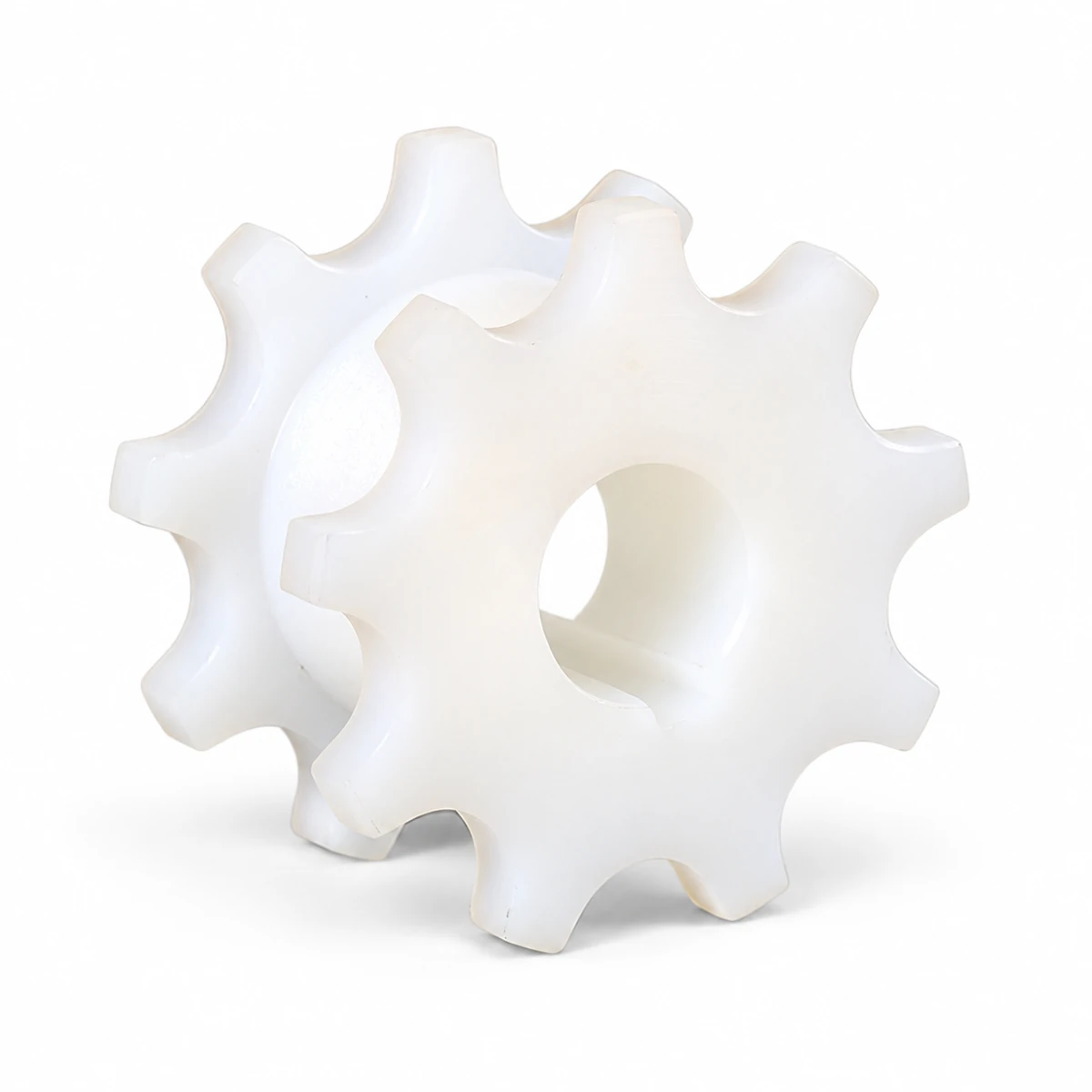

Keep Each Chain Family's Tooth Form Separate
Similar pitch or outside diameter does not establish interchangeability between different chain designs.

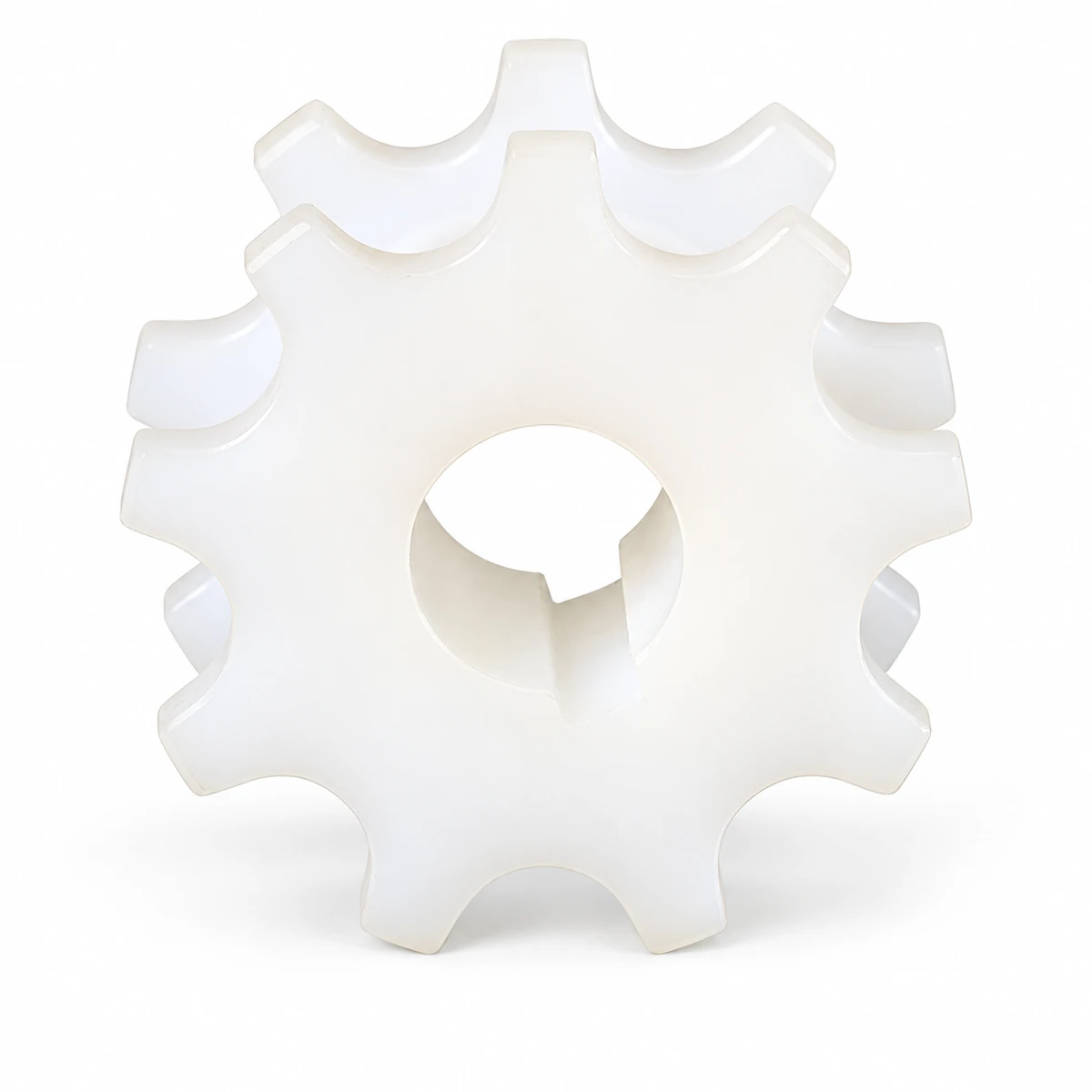

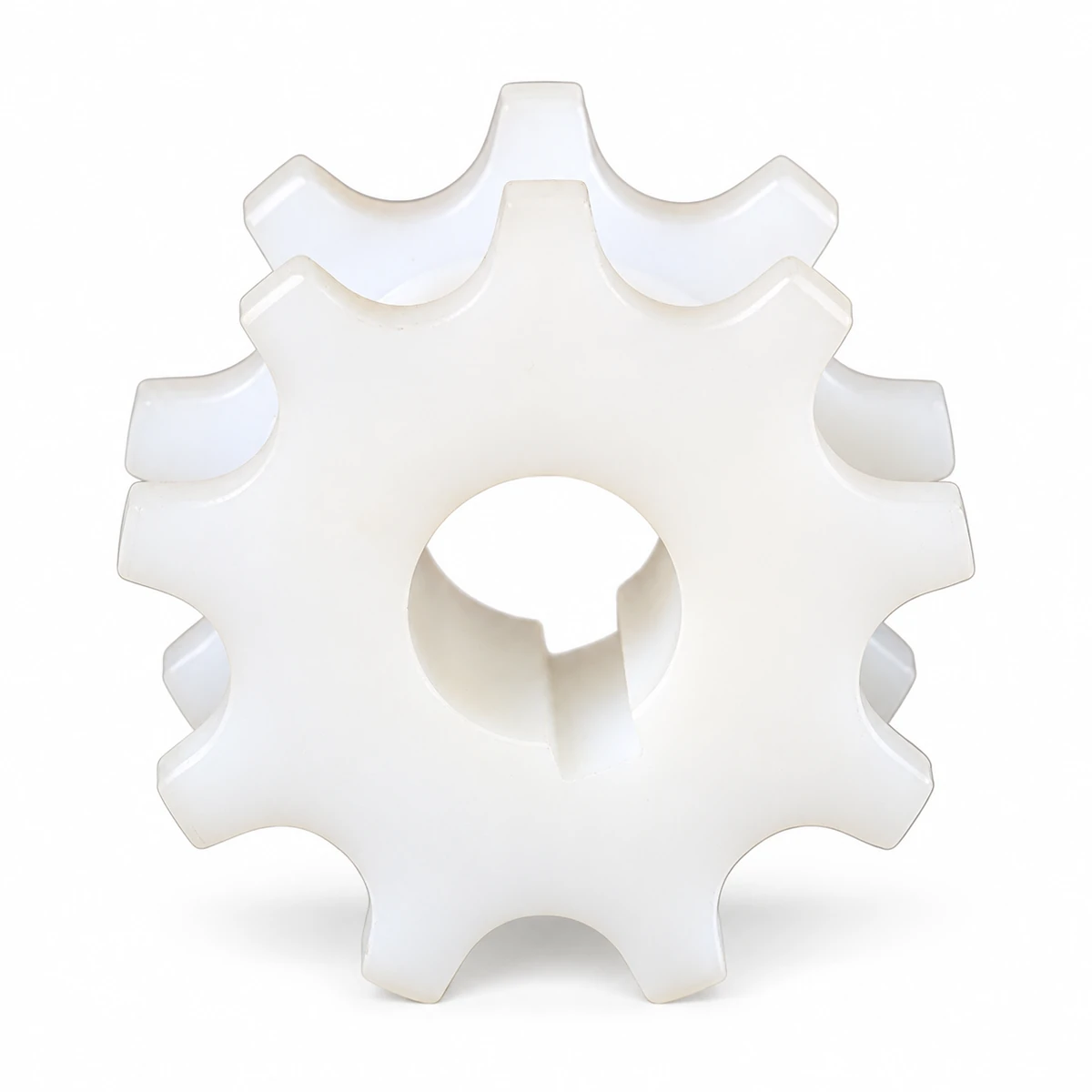

Choose the Sprocket for the Chain's Engagement Geometry
Each chain family has a particular contact geometry at the sprocket. Flat-top, flexible, case and top-plate chains should therefore be identified by their actual references when selecting a drive or idler component.
Machined and moulded options address different sprocket configurations. One-piece and split bodies also require different assembly arrangements. Confirm these choices with the shaft layout and available installation access. The CC600 data below describe a specific case-chain subset of the range.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturing options | Specification: Machining / injection moulding |
| Body options | Specification: One-piece / split |
| CC600 machined-sprocket material | Specification: PA6 |

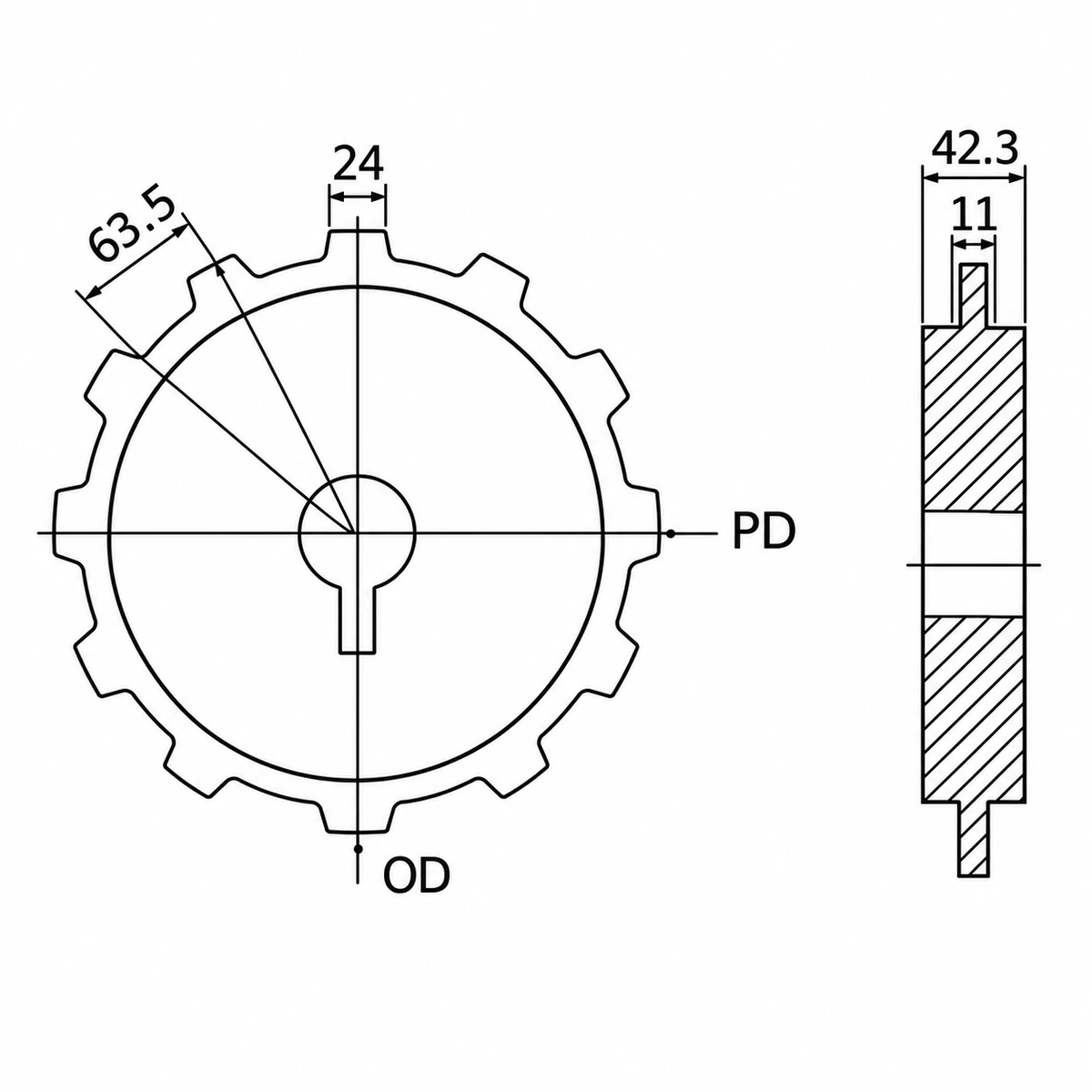

CC600 Machined Sprockets
| Model | Teeth | Pitch Diameter | Outside Diameter | Bore Options |
|---|---|---|---|---|
| 1-CC600-10-20 | Teeth: 10 | Pitch Diameter: 205.5 mm / 8.0906 in | Outside Diameter: 215.8 mm / 8.4961 in | Bore Options: 25 / 30 / 35 / 40 mm |
| 1-CC600-11-20 | Teeth: 11 | Pitch Diameter: 225.39 mm / 8.8736 in | Outside Diameter: 233.8 mm / 9.2047 in | Bore Options: 25 / 30 / 35 / 40 mm |
| 1-CC600-12-20 | Teeth: 12 | Pitch Diameter: 245.35 mm / 9.6594 in | Outside Diameter: 253.7 mm / 9.9882 in | Bore Options: 25 / 30 / 35 / 40 mm |
Bore equivalents: 25 / 30 / 35 / 40 mm = 0.9843 / 1.1811 / 1.3780 / 1.5748 in. The model suffix does not replace the selected bore specification.
76 Chain Drive Sprockets
The 76 chain drive range includes 10-, 11- and 12-tooth machined sprockets. Each reference lists 25, 30, 35 and 40 mm center-bore options.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch diameter (mm) | Outside diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-76-10-25 | Teeth: 10 | Pitch diameter (mm): 246.59 | Outside diameter (mm): 246.5 | Bore (mm): 25 30 35 40 |
| 1-76-11-25 | Teeth: 11 | Pitch diameter (mm): 270.47 | Outside diameter (mm): 270.4 | Bore (mm): 25 30 35 40 |
| 1-76-12-25 | Teeth: 12 | Pitch diameter (mm): 294.4 | Outside diameter (mm): 294.4 | Bore (mm): 25 30 35 40 |
Machined wheels use polyamide PA6. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
820 Chain Drive and Idler Wheels
The 820 wheel range separates powered drive sprockets from unpowered idler wheels. Machined and injection-moulded references have their own model codes and bore options. Specify the wheel duty together with the complete reference.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-820-15-20 | Teeth: 15 | Pitch Diameter (mm): 91.6 | Outside Diameter (mm): 92.2 | Bore (mm): 20 25 30 |
| 1-820-17-20 | Teeth: 17 | Pitch Diameter (mm): 103.7 | Outside Diameter (mm): 104.7 | Bore (mm): 20 25 30 |
| 1-820-19-20 | Teeth: 19 | Pitch Diameter (mm): 115.7 | Outside Diameter (mm): 117.1 | Bore (mm): 20 25 30 35 |
| 1-820-21-25 | Teeth: 21 | Pitch Diameter (mm): 127.8 | Outside Diameter (mm): 129.0 | Bore (mm): 25 30 35 40 |
| 1-820-23-25 | Teeth: 23 | Pitch Diameter (mm): 139.9 | Outside Diameter (mm): 140.7 | Bore (mm): 25 30 35 40 |
| 1-820-25-25 | Teeth: 25 | Pitch Diameter (mm): 152.0 | Outside Diameter (mm): 153.1 | Bore (mm): 25 30 35 40 |
Injection-Moulded Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 3-820-19-20 | Teeth: 19 | Pitch Diameter (mm): 115.7 | Outside Diameter (mm): 117.1 | Bore (mm): 20 25 30 35 |
| 3-820-21-20 | Teeth: 21 | Pitch Diameter (mm): 127.8 | Outside Diameter (mm): 129.0 | Bore (mm): 20 25 30 35 |
| 3-820-23-25 | Teeth: 23 | Pitch Diameter (mm): 139.9 | Outside Diameter (mm): 140.7 | Bore (mm): 25 30 35 40 |
| 3-820-25-25 | Teeth: 25 | Pitch Diameter (mm): 152.0 | Outside Diameter (mm): 153.1 | Bore (mm): 25 30 35 40 |
Machined Idler Wheel Sizes
| Item | Teeth | Pitch Diameter (mm) | Catalogue OD (mm) | Bore (mm) |
|---|---|---|---|---|
| 2-820-15-25 | Teeth: 15 | Pitch Diameter (mm): 93.2 | Catalogue OD (mm): 50 | Bore (mm): 25 30 35 |
| 2-820-17-25 | Teeth: 17 | Pitch Diameter (mm): 105.5 | Catalogue OD (mm): 50 | Bore (mm): 25 30 35 |
| 2-820-19-25 | Teeth: 19 | Pitch Diameter (mm): 117.3 | Catalogue OD (mm): 60 | Bore (mm): 25 30 35 40 |
| 2-820-21-25 | Teeth: 21 | Pitch Diameter (mm): 130.1 | Catalogue OD (mm): 70 | Bore (mm): 25 30 35 40 |
| 2-820-23-25 | Teeth: 23 | Pitch Diameter (mm): 141.2 | Catalogue OD (mm): 80 | Bore (mm): 25 30 35 40 |
| 2-820-25-25 | Teeth: 25 | Pitch Diameter (mm): 153.2 | Catalogue OD (mm): 90 | Bore (mm): 25 30 35 40 |
Injection-Moulded Idler Wheel Sizes
| Item | Teeth | Pitch Diameter (mm) | Catalogue OD (mm) | Bore (mm) |
|---|---|---|---|---|
| 4-820-19-25 | Teeth: 19 | Pitch Diameter (mm): 117.1 | Catalogue OD (mm): 60 | Bore (mm): 25 30 35 |
| 4-820-21-25 | Teeth: 21 | Pitch Diameter (mm): 130.1 | Catalogue OD (mm): 85 | Bore (mm): 25 30 35 |
| 4-820-23-25 | Teeth: 23 | Pitch Diameter (mm): 140.7 | Catalogue OD (mm): 85 | Bore (mm): 25 30 35 |
| 4-820-25-25 | Teeth: 25 | Pitch Diameter (mm): 153.2 | Catalogue OD (mm): 85 | Bore (mm): 25 30 35 40 |
Machined wheels use polyamide PA6. Injection-moulded wheels use reinforced PA. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
For idler assemblies, check the complete flange and axle clearances from the drawing as well as the catalogue OD.
821 Chain Drive and Idler Wheels
The 821 range includes machined drive sprockets, injection-moulded drive sprockets and machined idler wheels. The machined drive range covers 19, 21, 23 and 25 teeth; the injection-moulded drive references have 19 teeth. Select the return wheel separately from the driven wheel.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-821-19-20 | Teeth: 19 | Pitch Diameter (mm): 116.5 | Outside Diameter (mm): 116.8 | Bore (mm): 20 25 30 |
| 1-821-21-25 | Teeth: 21 | Pitch Diameter (mm): 128.8 | Outside Diameter (mm): 129.1 | Bore (mm): 25 30 35 40 |
| 1-821-23-25 | Teeth: 23 | Pitch Diameter (mm): 140.5 | Outside Diameter (mm): 140.7 | Bore (mm): 25 30 35 40 |
| 1-821-25-25 | Teeth: 25 | Pitch Diameter (mm): 152.7 | Outside Diameter (mm): 153.0 | Bore (mm): 25 30 35 40 |
Injection-Moulded Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 3-821-19-25 | Teeth: 19 | Pitch Diameter (mm): 115.7 | Outside Diameter (mm): 117 | Bore (mm): 25 |
| 3-821-19-30 | Teeth: 19 | Pitch Diameter (mm): 115.7 | Outside Diameter (mm): 117 | Bore (mm): 30 |
Machined Idler Wheel Sizes
| Item | Teeth | Pitch Diameter (mm) | Bore (mm) |
|---|---|---|---|
| 2-821-19-25 | Teeth: 19 | Pitch Diameter (mm): 117.2 | Bore (mm): 20 25 30 35 |
| 2-821-21-25 | Teeth: 21 | Pitch Diameter (mm): 131.1 | Bore (mm): 25 30 35 40 |
| 2-821-23-25 | Teeth: 23 | Pitch Diameter (mm): 140.7 | Bore (mm): 25 30 35 40 |
| 2-821-25-25 | Teeth: 25 | Pitch Diameter (mm): 155.1 | Bore (mm): 25 30 35 40 |
Machined wheels use polyamide PA6. Injection-moulded wheels use reinforced PA. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
Use the exact 821 reference with the actual chain geometry. Similar family numbers alone do not establish interchangeability.
1050/1060 Chain Drive Sprockets
The 1050/1060 family provides 11- and 16-tooth machined drive sprockets, each with 20, 25, 30 and 35 mm bore options. The different diameters suit different conveyor-end layouts.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-1050/1060-11-20 | Teeth: 11 | Pitch Diameter (mm): 90.16 | Outside Diameter (mm): 92.16 | Bore (mm): 20 25 30 35 |
| 1-1050/1060-16-20 | Teeth: 16 | Pitch Diameter (mm): 130.2 | Outside Diameter (mm): 132.2 | Bore (mm): 20 25 30 35 |
Machined wheels use polyamide PA6. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
880 Chain Drive Sprockets
The 880 family provides 10-, 11- and 12-tooth drive sprockets in machined and injection-moulded versions. The model prefix distinguishes the process. The matching tooth-count options share the dimensions below.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-880-10-20 | Teeth: 10 | Pitch Diameter (mm): 123.3 | Outside Diameter (mm): 122.4 | Bore (mm): 20 25 30 35 40 |
| 1-880-11-20 | Teeth: 11 | Pitch Diameter (mm): 135.2 | Outside Diameter (mm): 134.9 | Bore (mm): 20 25 30 35 40 |
| 1-880-12-20 | Teeth: 12 | Pitch Diameter (mm): 147.2 | Outside Diameter (mm): 147.3 | Bore (mm): 20 25 30 35 40 |
Injection-Moulded Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 3-880-10-20 | Teeth: 10 | Pitch Diameter (mm): 123.3 | Outside Diameter (mm): 122.4 | Bore (mm): 20 25 30 35 40 |
| 3-880-11-20 | Teeth: 11 | Pitch Diameter (mm): 135.2 | Outside Diameter (mm): 134.9 | Bore (mm): 20 25 30 35 40 |
| 3-880-12-20 | Teeth: 12 | Pitch Diameter (mm): 147.2 | Outside Diameter (mm): 147.3 | Bore (mm): 20 25 30 35 40 |
Machined wheels use polyamide PA6. Injection-moulded wheels use reinforced PA. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
882TAB Chain Drive Sprockets
The 882TAB drive range has 10-, 11- and 12-tooth machined sprockets. The 10-tooth reference includes a 20 mm bore option; the 11- and 12-tooth references start at 25 mm. Select the wheel with the shaft and end clearance together.
Machined Drive Sprocket Sizes
| Item | Teeth | Pitch Diameter (mm) | Outside Diameter (mm) | Bore (mm) |
|---|---|---|---|---|
| 1-882TAB-10-20 | Teeth: 10 | Pitch Diameter (mm): 123.5 | Outside Diameter (mm): 126.1 | Bore (mm): 20 25 30 35 40 |
| 1-882TAB-11-20 | Teeth: 11 | Pitch Diameter (mm): 135.3 | Outside Diameter (mm): 137.4 | Bore (mm): 25 30 35 40 |
| 1-882TAB-12-20 | Teeth: 12 | Pitch Diameter (mm): 147.3 | Outside Diameter (mm): 149.9 | Bore (mm): 25 30 35 40 |
Machined wheels use polyamide PA6. The bore tolerance is +0.02 to +0.08 mm. Specify the finished shaft, keyway and retention details with the enquiry.
Resolve Drive and Idler Requirements
Provide the chain reference and tooth count, then show the sprocket bore, keyway or bearing seat required by the mounting arrangement. Identify whether the component transmits torque or turns as an idler.
Check axial space and the body construction against the installation sequence. For several sprockets on one shaft, establish their positions relative to the chain paths and the shaft-retention details.
Match the Drive Component During Chain Replacement
A change of chain family can require a different tooth form even when the conveyor frame and shaft remain. Check the sprocket contact geometry during that change rather than treating the existing outside diameter as a universal reference.
In a case-chain conveyor, the selected sprocket guides the chain around the end shaft. Its diameter affects the end envelope, while the hub and bore determine its position on the shaft. Review both when renewing the drive or return assembly.
Specify Your Chain Sprocket
Send the exact chain reference, tooth count, bore and quantity. Include drive or idler duty, shaft details and the preferred machined or moulded, split or one-piece construction.
