76 Sushi Chain

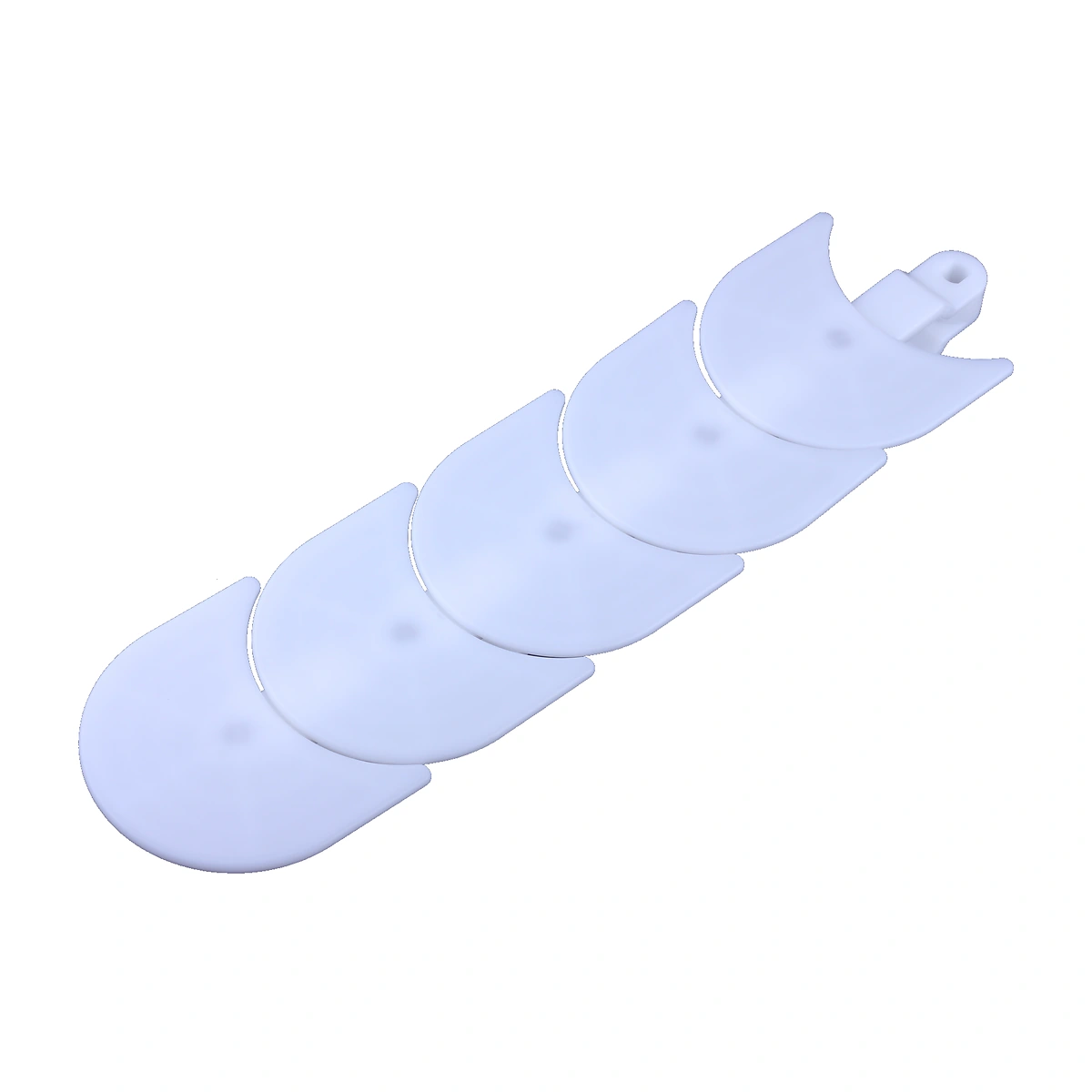

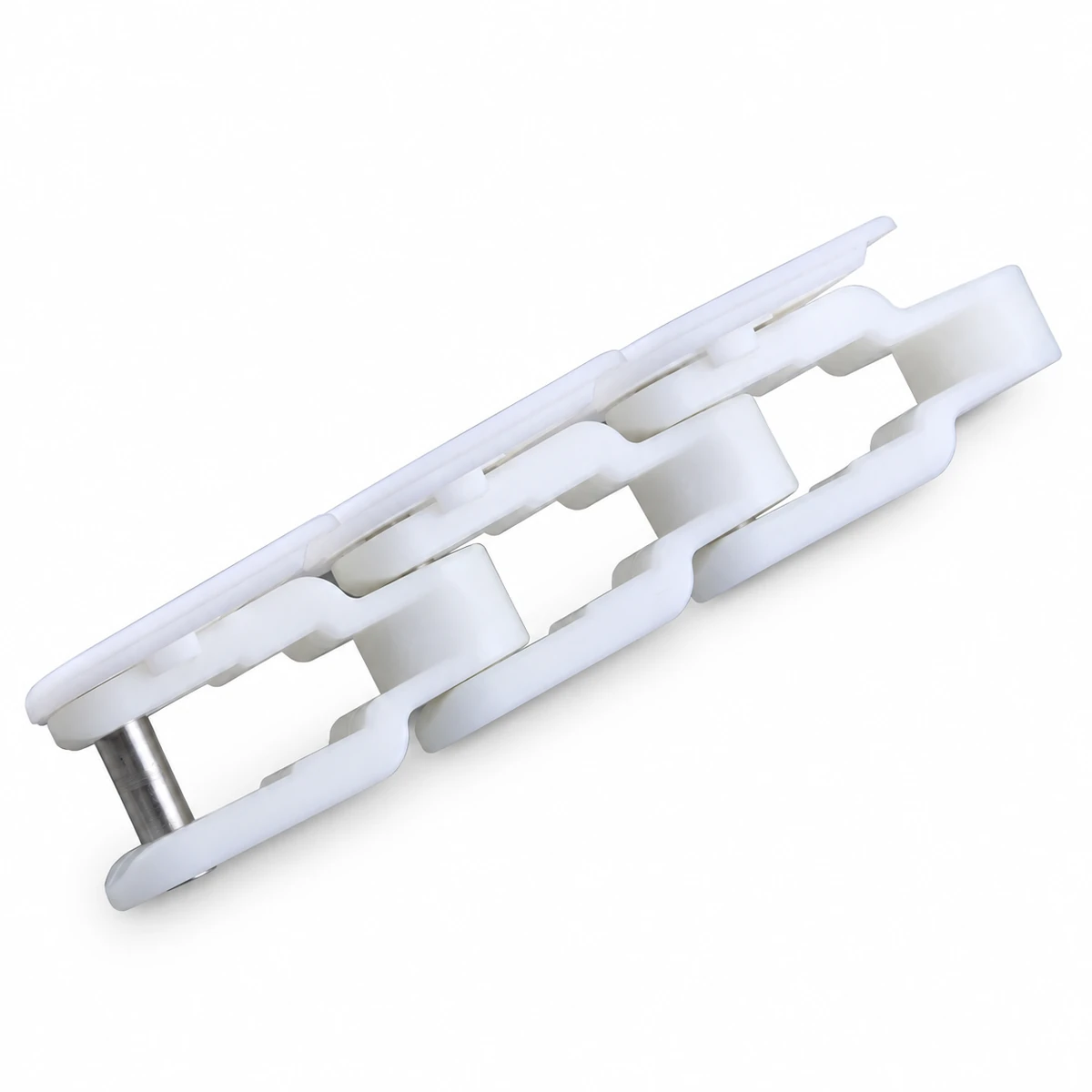

The 76 sushi chain uses overlapping curved POM plates to form a moving support for dishes and serving plates. Stainless steel pins connect the links along the conveyor route.
- Plate Width
- 114.3 mm / 4.5 in
- Pitch
- 76.2 mm / 3 in
- Minimum Radius
- 250 mm / 9.84 in
Check the serving plate's full diameter through the turn. The carried dish can extend beyond the chain's 114.3 mm support width.
Matching Sprocket
For 76-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 76-series chains. Confirm the tooth count and shaft opening.
Overlapping Plates for a Circulating Display

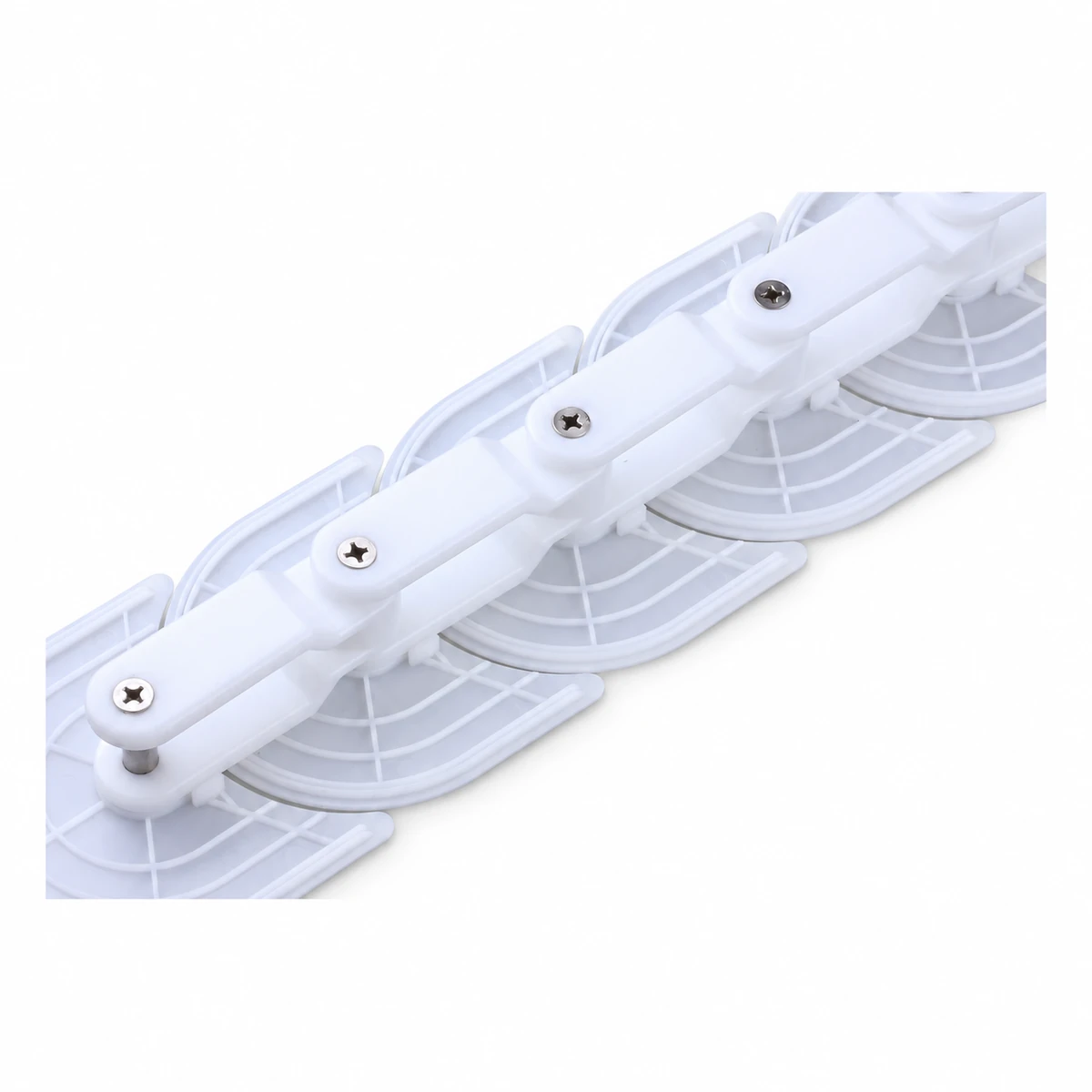

The curved edges overlap as successive links change direction. This gives dishes a moving support through the bend while keeping the articulated connection below the top plates. The supplied geometry suits a circulating serving route.
Dish size determines the required clearance around that route. The support width is 114.3 mm, but the dish rim can occupy a much larger envelope. Check both the inner and outer sides of a turn when arranging barriers or adjacent equipment.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Plate Material | Value: POM | |
| Pin Material | Value: Stainless steel | |
| Operating Temperature | Value: -35 to 90 °C | Converted Value: -31 to 194 °F |
| Maximum Speed | Value: 50 m/min | Converted Value: 164.042 ft/min |
| Maximum Conveying Distance | Value: 15 m | Converted Value: 49.2126 ft |
| Pitch | Value: 76.2 mm | Converted Value: 3 in |
| Plate Width | Value: 114.3 mm | Converted Value: 4.5 in |
| Minimum Radius | Value: 250 mm | Converted Value: 9.8425 in |
| Backflex Radius | Value: 150 mm | Converted Value: 5.9055 in |
| Weight | Value: 1.76 kg/m | Converted Value: 1.1827 lb/ft |
Matching Chain Sprockets

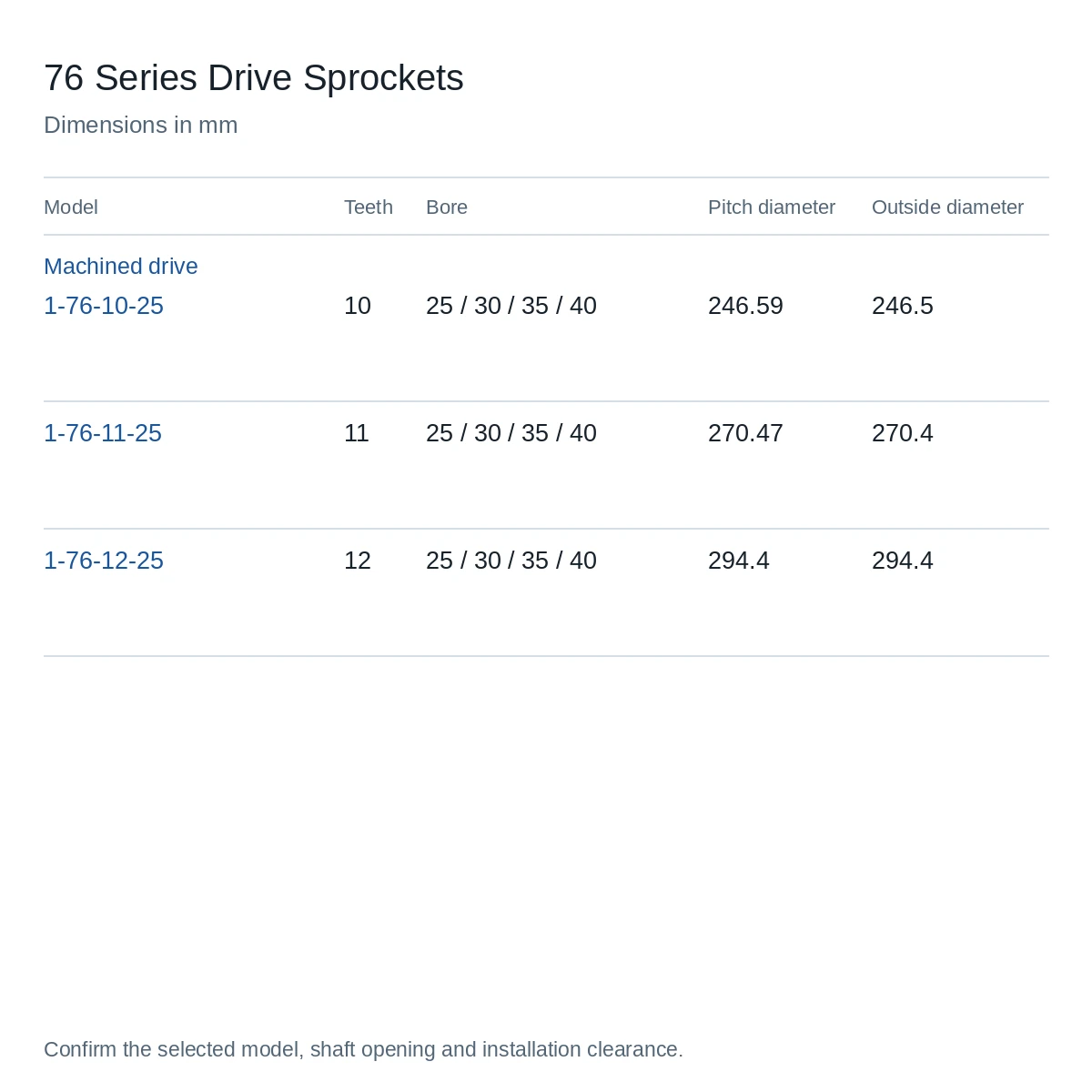

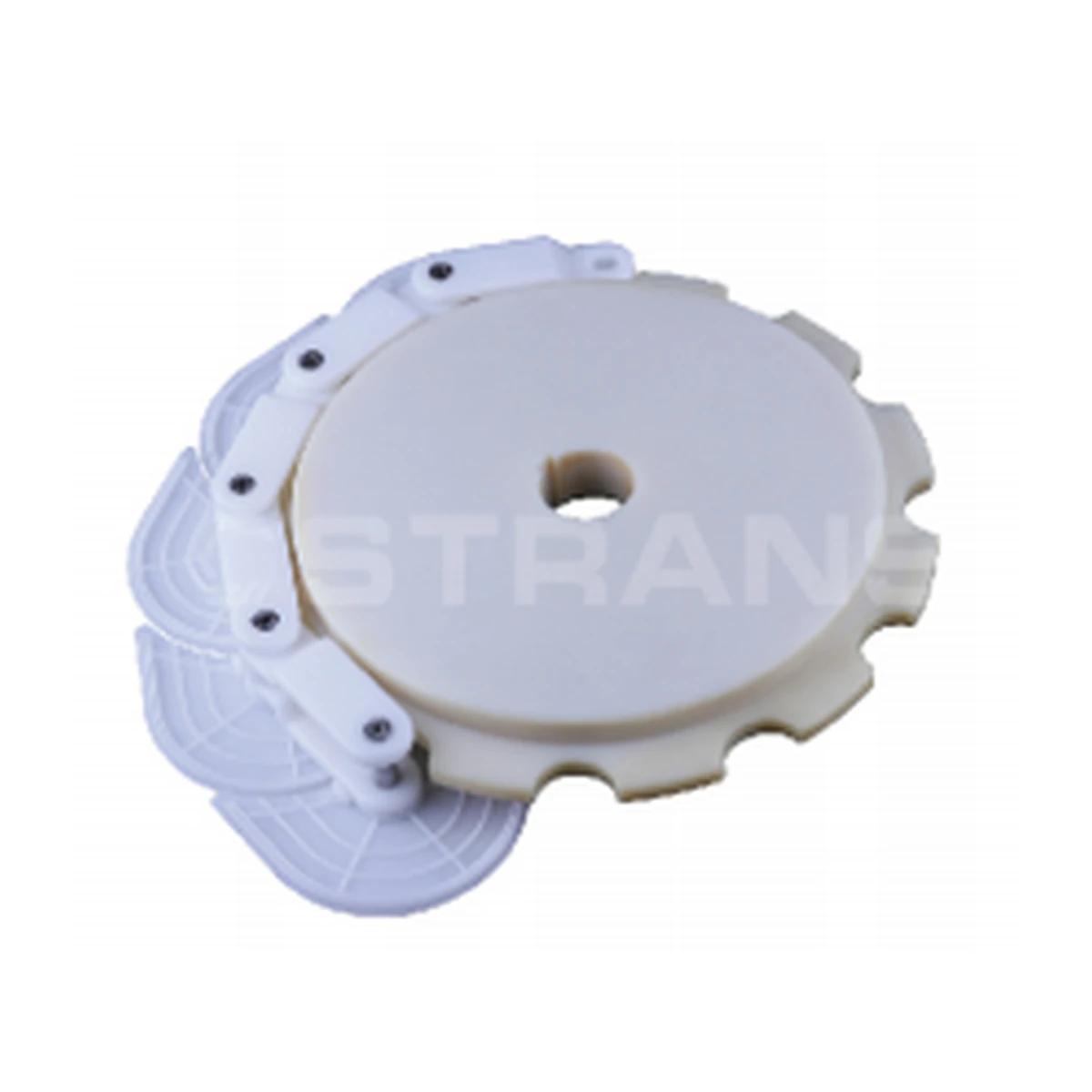

The matching 76 drive-sprocket range includes 10-, 11- and 12-tooth machined references. Review their diameters and shaft options with the chain layout.
Dimensions & Fit

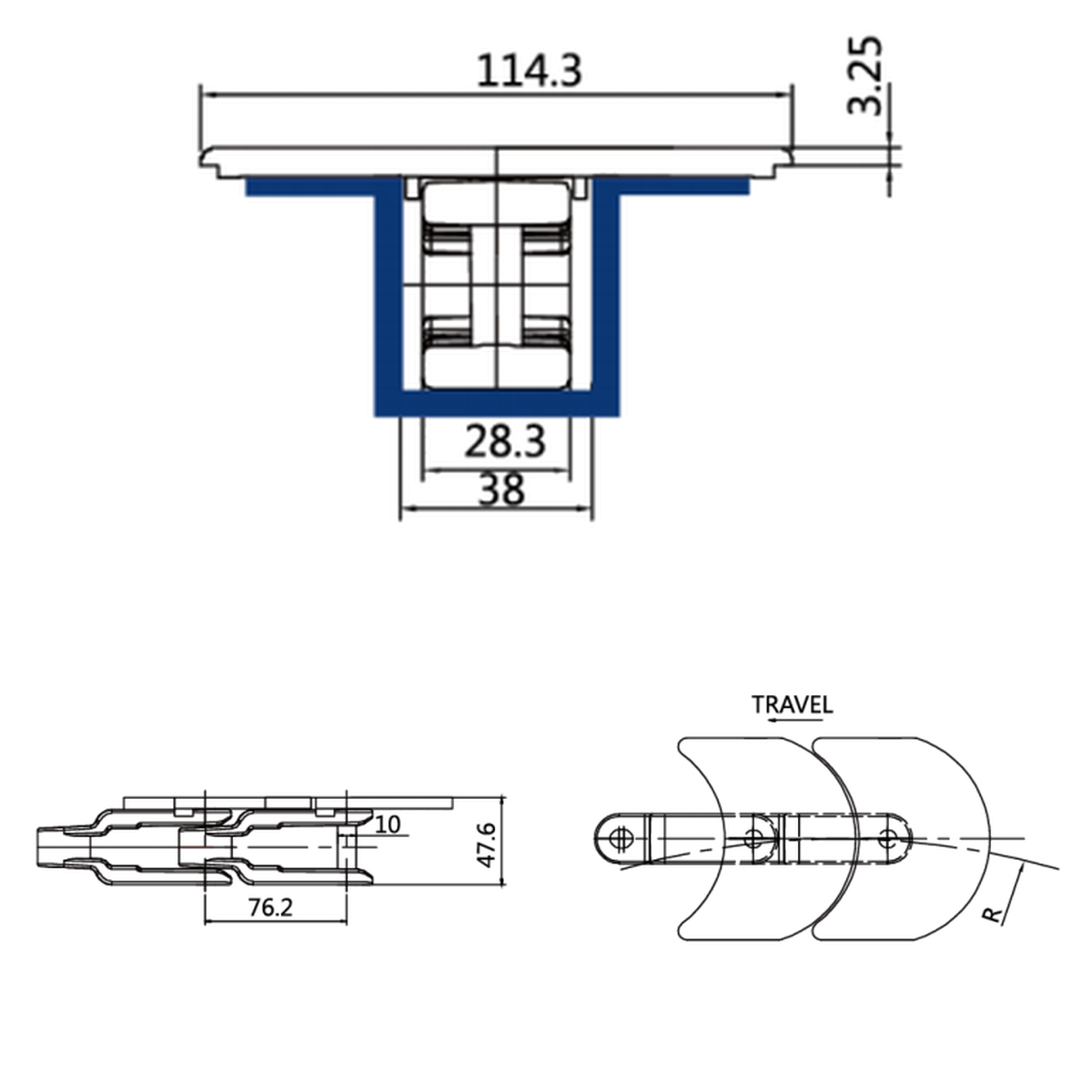

Review the 250 mm minimum radius in plan view and the 150 mm backflex radius in the return arrangement. Confirm the measurement reference used for each bend.
At loading and removal points, check access around the moving plates. Inspect plate overlap with the actual chain sample and allow room for the largest dish as it passes a corner.
Move Serving Plates Around a Counter
A circulating restaurant or buffet route carries dishes past a series of pickup positions. The curved plates follow changes in counter direction while supporting the dish base.
The dish must remain stable when placed on or lifted from the moving surface. Product weight distribution and available support area matter more than rim diameter alone. Suitability for cleaning conditions and any required food-contact documentation need order-specific review.
Request a 76 Sushi Chain Quote
Send route length, quantity and the counter layout with the largest dish dimensions. Include bend geometry and the existing chain or sprocket reference if replacing a running installation.
