140 Flexible Chain
The 140A carries products on intermeshing fingered plates. The POM top face moves through a bend above the central joint, giving this version a different carrying pattern from the flat 140FL plate.
- Link Version
- 140A fingered
- Body Material
- POM
- Chain Mass
- 1.60 kg/m / 1.08 lb/ft
Identify the 140A underside and link spacing before ordering. The neighboring flat-plate version should be checked separately.
Matching Sprocket
For 140-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 140-series chains. Confirm the tooth count and shaft opening.

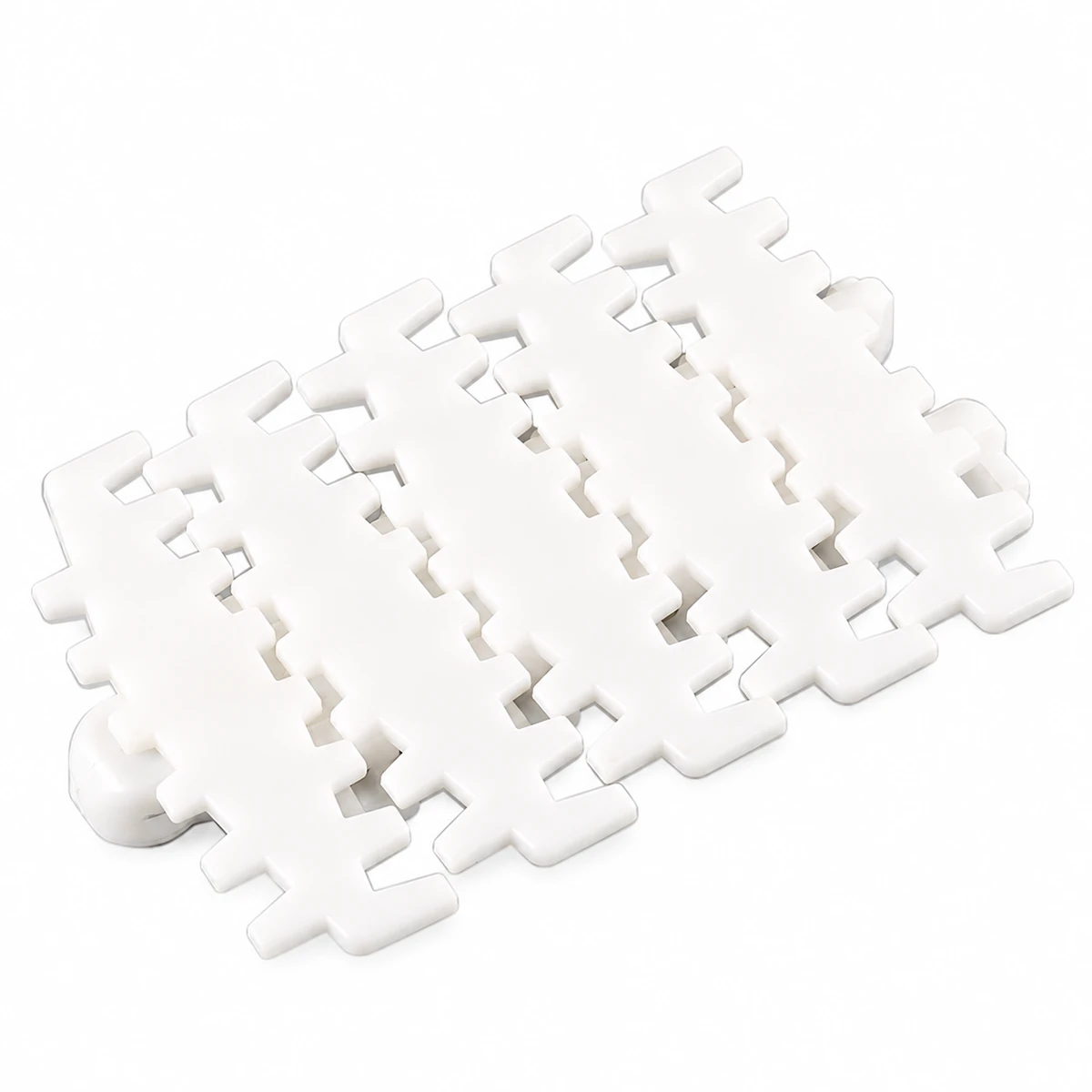

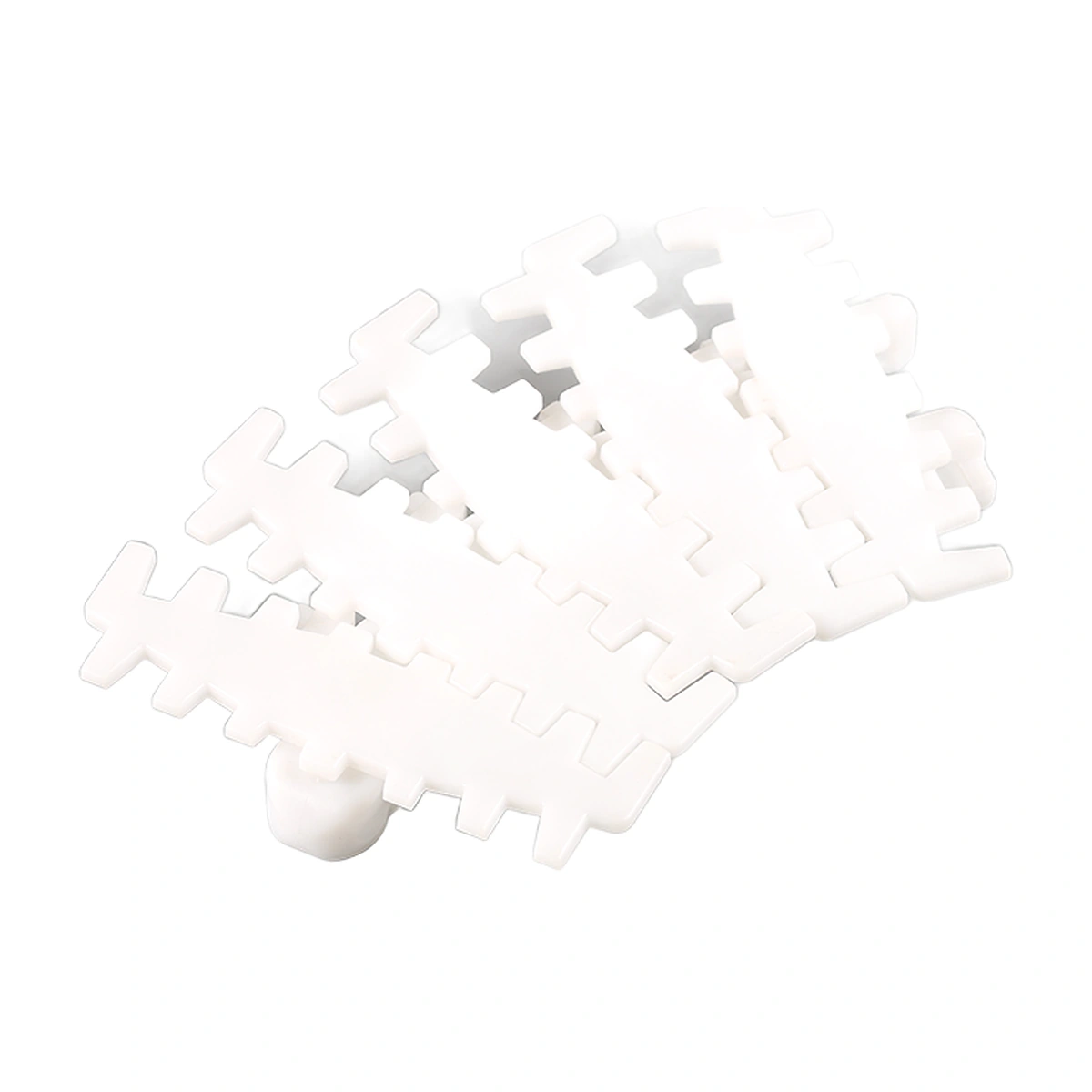

Articulate Through the Fingered Plate Edges
The fingers interleave between adjacent 140A links. They allow a changing angle between plates while retaining areas of support beneath the product. The contact footprint should span enough of that pattern throughout the turn.

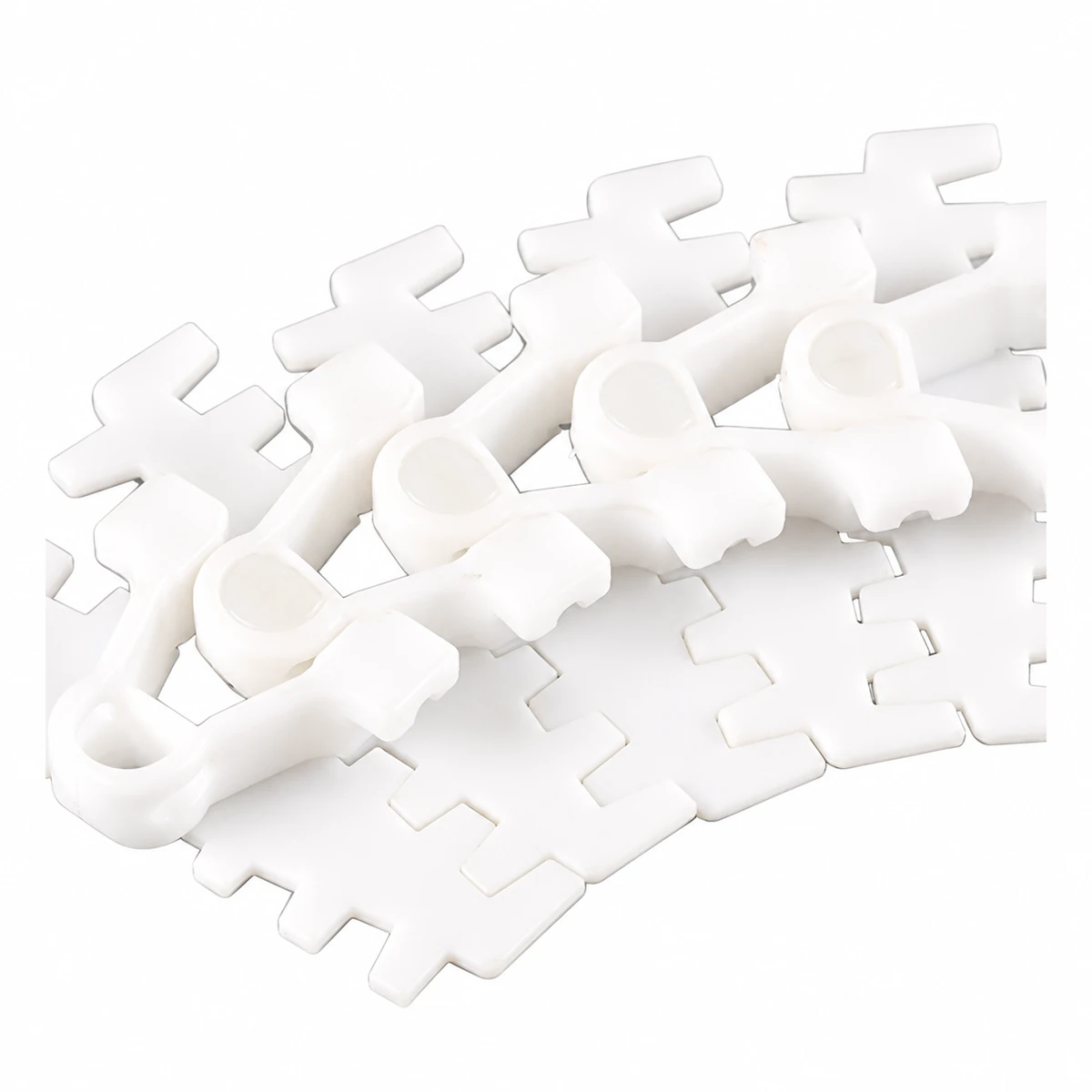

Below the plate, the pivot and pin arrangement determines the link's path in the track. A PA6 joint component and SUS201 pins connect the links. Check this underside directly when matching an existing chain.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 140A | |
| Weight | Value: 1.60 kg/m | Converted Value: 1.0752 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |

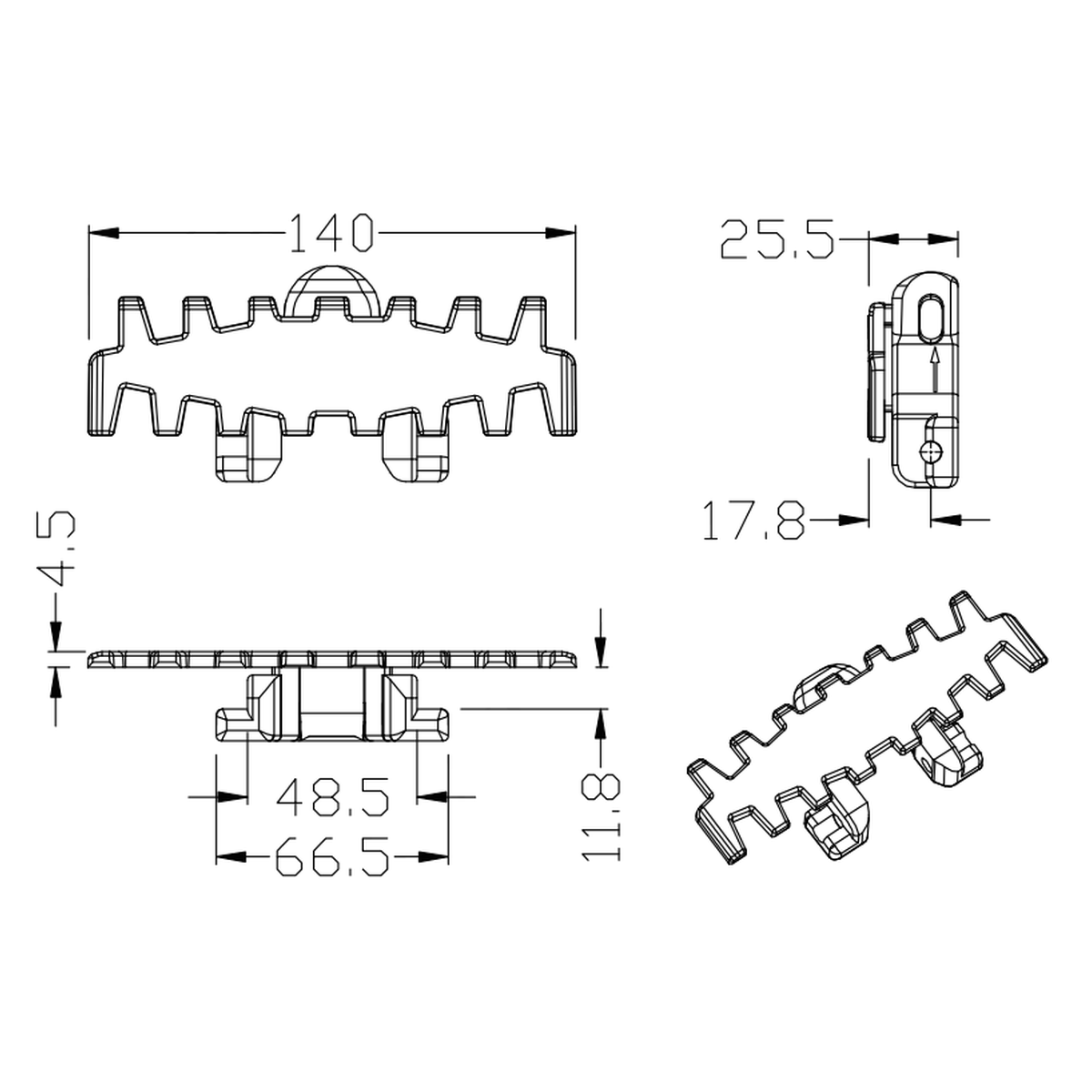

Dimensions & Fit
Provide the measured link spacing and a sprocket reference. The 140A and 140FL need separate tooth-engagement checks before a replacement wheel is selected.
Compare the plate fingers with the smallest product base through the curve. Show the beam cross section and guide clearance. At a handoff, support beneath the leading edge matters as the chain turns away onto its return.
Carry Containers Along a Changing Route
A fingered flexible chain can connect container-handling stations around a turn. The base travels on the interleaving top pattern while fixed guides determine the product path.
Small feet or a narrow base can approach gaps as neighboring plates change angle. Check that interaction through the bend, then check the same product at the discharge gap. A broad outer profile does not guarantee continuous contact beneath every base.
Request a 140A Quote
Send the 140A reference, required length and quantity with a link sample or underside photographs. Include product base geometry, measured link spacing and the conveyor bends.
