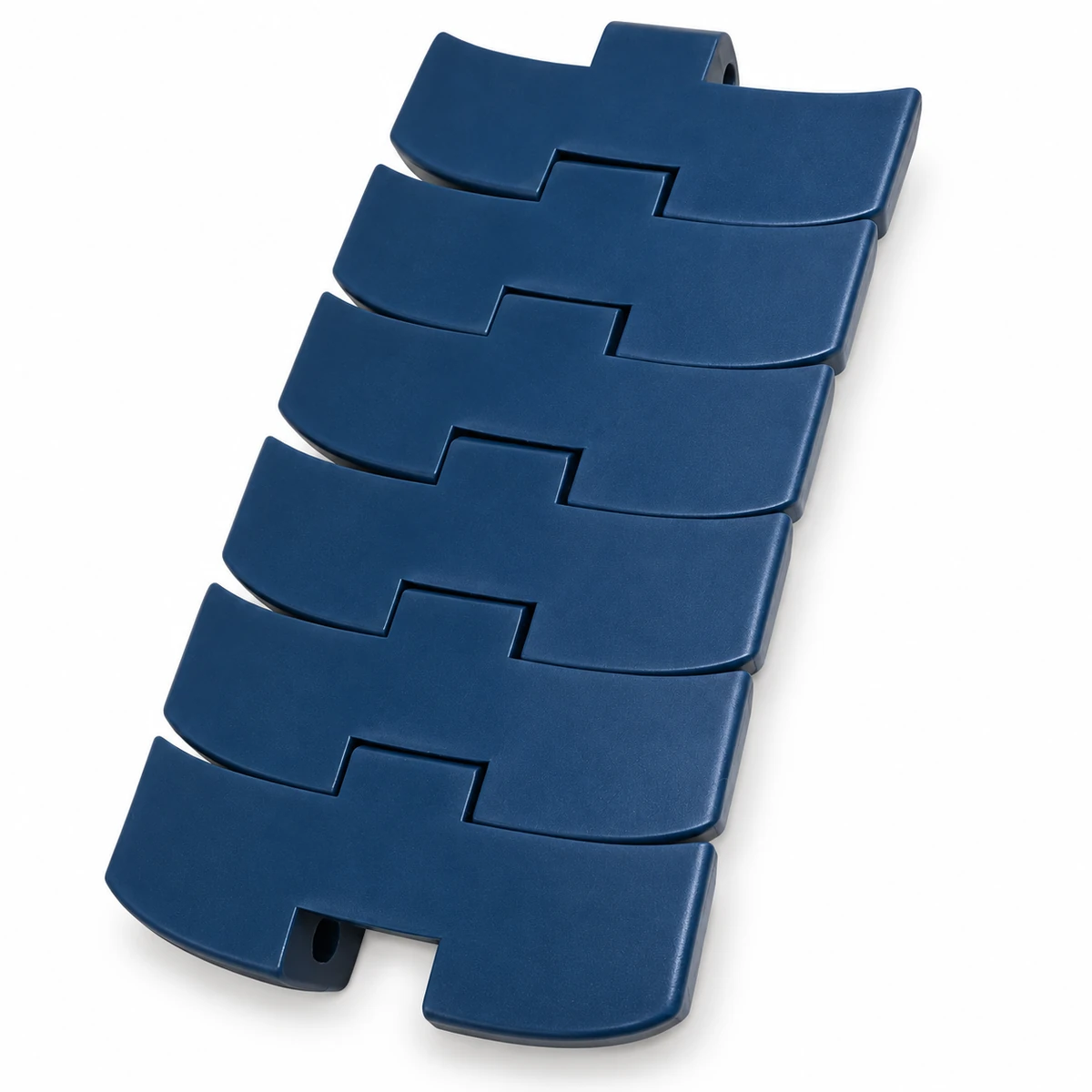

1060TAB Heavy Duty Side Flexing Chain

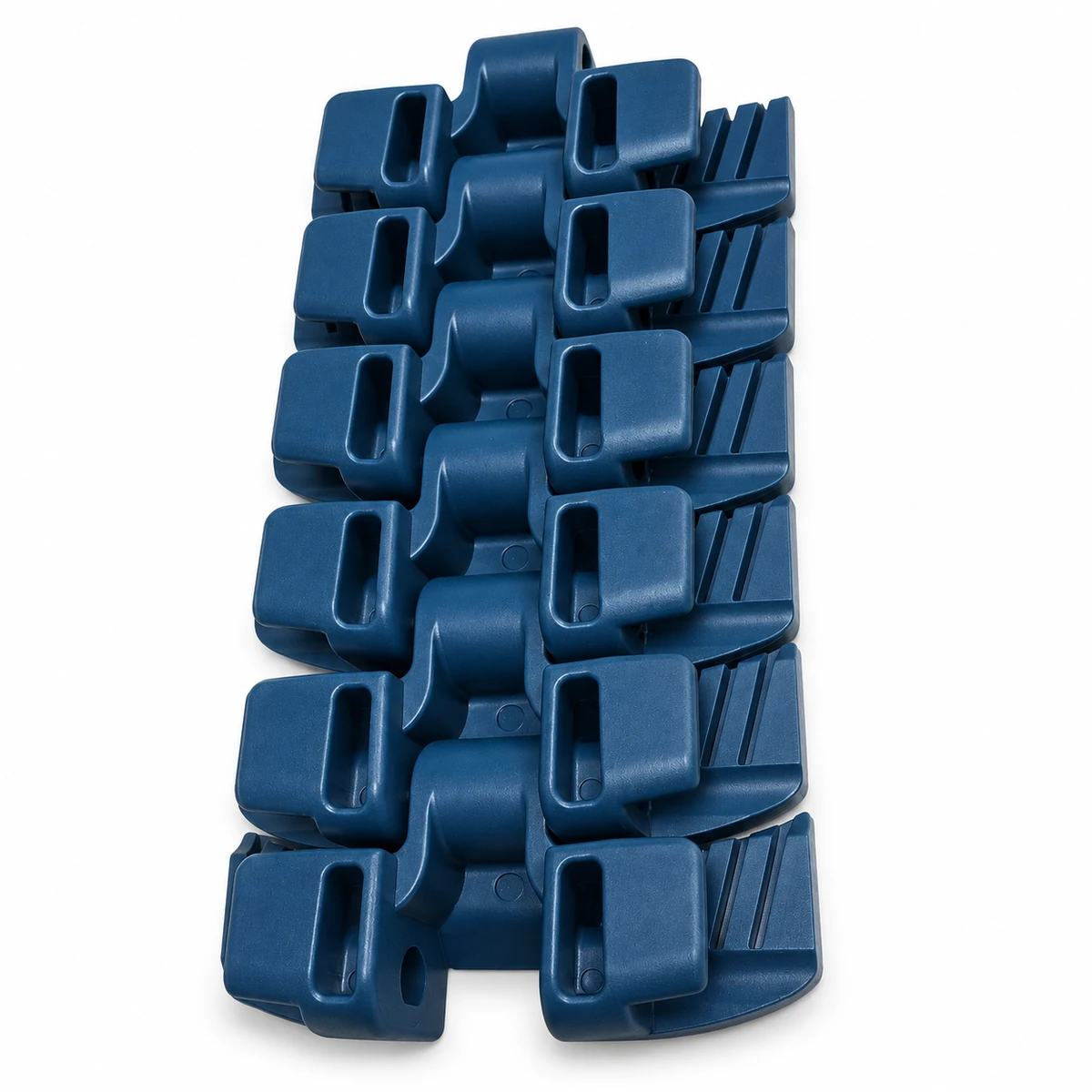

The 1060TAB combines an 83.8 mm POM carrying plate with projecting underside tabs. The tabs engage a matching guide profile as the chain follows a horizontal curve.
- Plate Width
- 83.8 mm / 3.30 in
- Pitch
- 25.4 mm / 1 in
- Minimum Side-Flex Radius
- 500 mm / 19.69 in
Check clearance around the tabs beneath the plate. The guide must retain the chain while allowing the links to articulate through the bend.
Matching Sprocket
For 1050 / 1060-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 1050 / 1060-series chains. Confirm the tooth count and shaft opening.
Retain the Chain Beneath the Plate

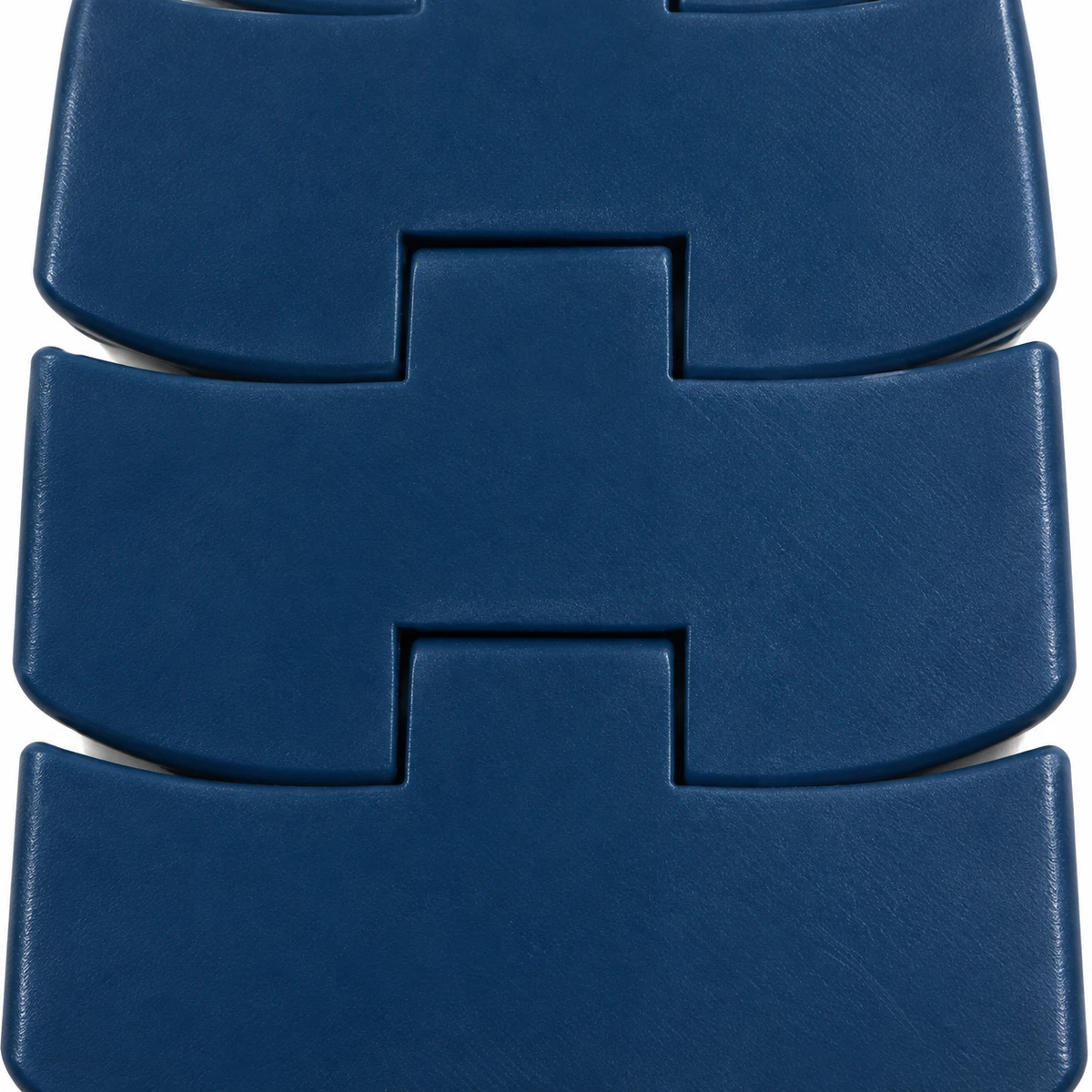

The carrying face and underside tabs perform different jobs. The top plate supports the container; the lower tabs engage the track. Replacing this chain therefore requires a cross-sectional comparison as well as a width check.
Stainless steel pins join the POM links at a 25.4 mm pitch. A listed 500 mm side-flex radius describes the horizontal bend, while the 130 mm reverse radius concerns the return path. Treat them as separate layout checks.
Specifications
| Parameter | Specification | Imperial Equivalent |
|---|---|---|
| Plate material | Specification: POM | Imperial Equivalent: — |
| Pin material | Specification: Stainless steel | Imperial Equivalent: — |
| Plate width | Specification: 83.8 mm | Imperial Equivalent: 3.30 in |
| Pitch | Specification: 25.4 mm | Imperial Equivalent: 1 in |
| Working load at 21 °C | Specification: 1,890 N | Imperial Equivalent: 424.89 lbf |
| Minimum side-flex radius | Specification: 500 mm | Imperial Equivalent: 19.69 in |
| Reverse radius | Specification: 130 mm | Imperial Equivalent: 5.12 in |
| Chain mass | Specification: 2.13 kg/m | Imperial Equivalent: 1.43 lb/ft |
| Maximum conveying distance | Specification: 12 m | Imperial Equivalent: 39.37 ft |
Working load is a chain force at the stated temperature. Assess route resistance separately from product weight.
Matching Chain Sprockets
The 1050/1060 machined drive-sprocket family is also listed with the 1060TAB chain. Compare the 11- and 16-tooth references with the chain engagement and end assembly.

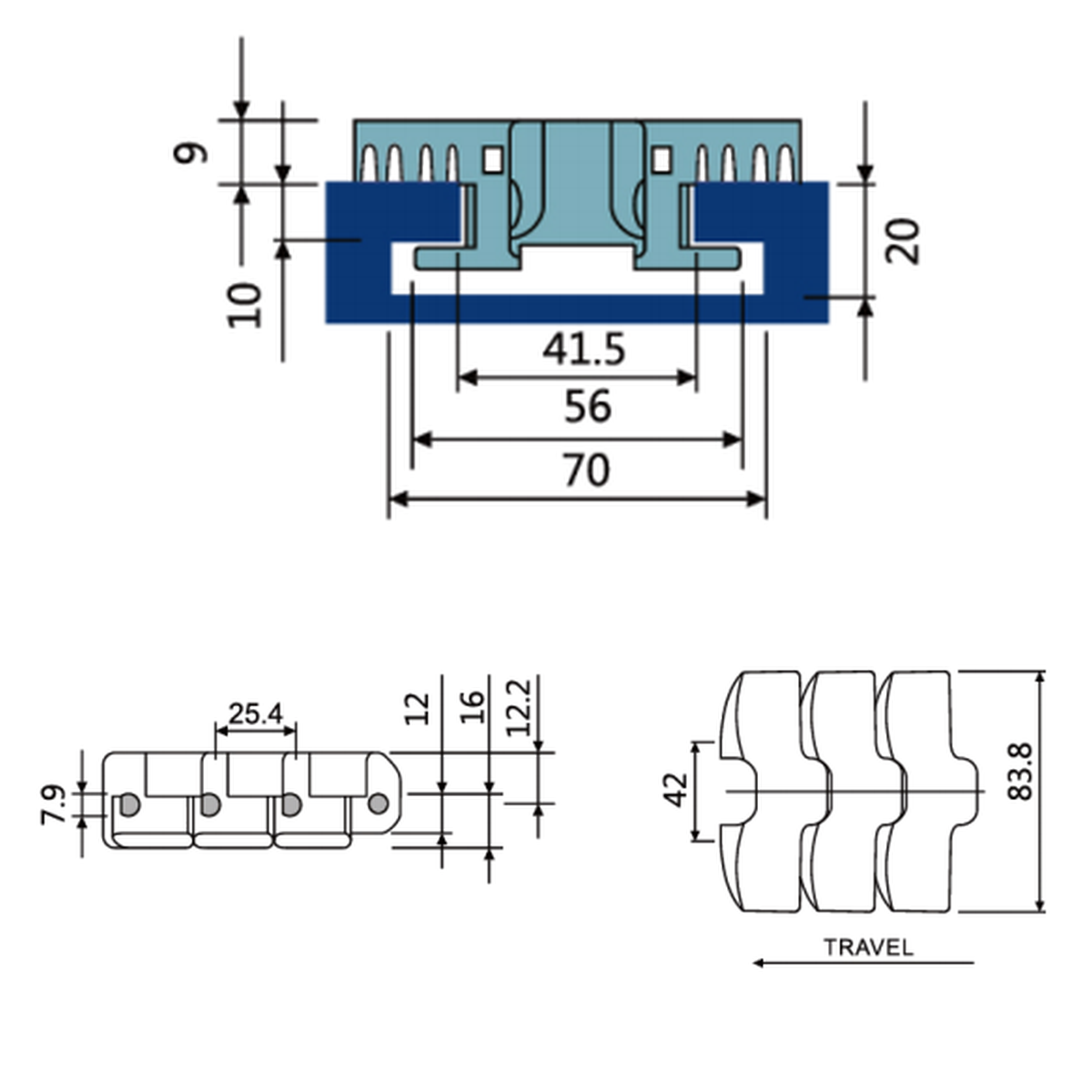

Dimensions & Fit
Compare the tab profile with the retaining groove at straight sections, curve entries and exits. Check insertion and removal access when planning a chain replacement.
The 83.8 mm plate sets the carrying envelope. Position the side guides for the actual container, then review the handoff to the next conveyor. The tabs beneath the plate must remain clear of adjoining support hardware.
Carry Containers Through a Retained Curve
The tabbed arrangement suits a container lane whose guide track retains the chain beneath the carrying surface. Bottles and cans ride on the solid plates as the conveyor changes direction.
At the curve exit, the product transitions from turning motion into the next straight lane. Guide alignment and transfer height influence support at that handoff. Check the smallest base where product spacing changes near packaging equipment.
Request a 1060TAB Quote
Send required length and quantity with a chain reference and track cross section. Include the curve layout and photographs of the tabs to support a retaining-profile comparison.
