1060 Heavy Duty Side Flexing Chain
The 1060 carries containers on solid POM top plates through a curved conveyor lane. Stainless steel pins connect the links at a 25.4 mm pitch.
- Pitch
- 25.4 mm / 1 in
- Minimum Side-Flex Radius
- 500 mm / 19.69 in
- Plate Material
- POM
The horizontal curve and reverse bend have separate radius requirements. Check both against the carrying track and return arrangement.
Matching Sprocket
For 1050 / 1060-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 1050 / 1060-series chains. Confirm the tooth count and shaft opening.

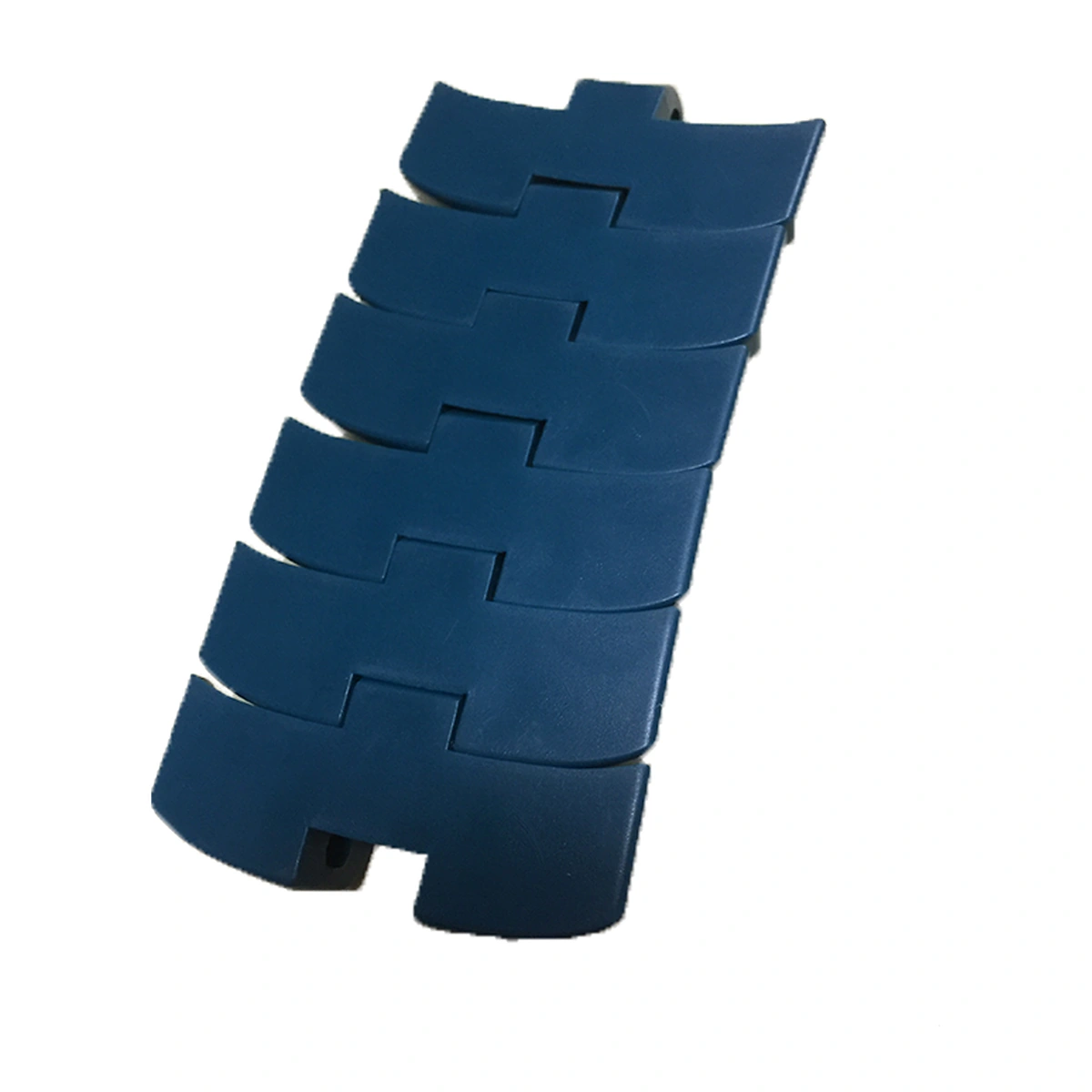

A Solid Carrying Face Through the Bend

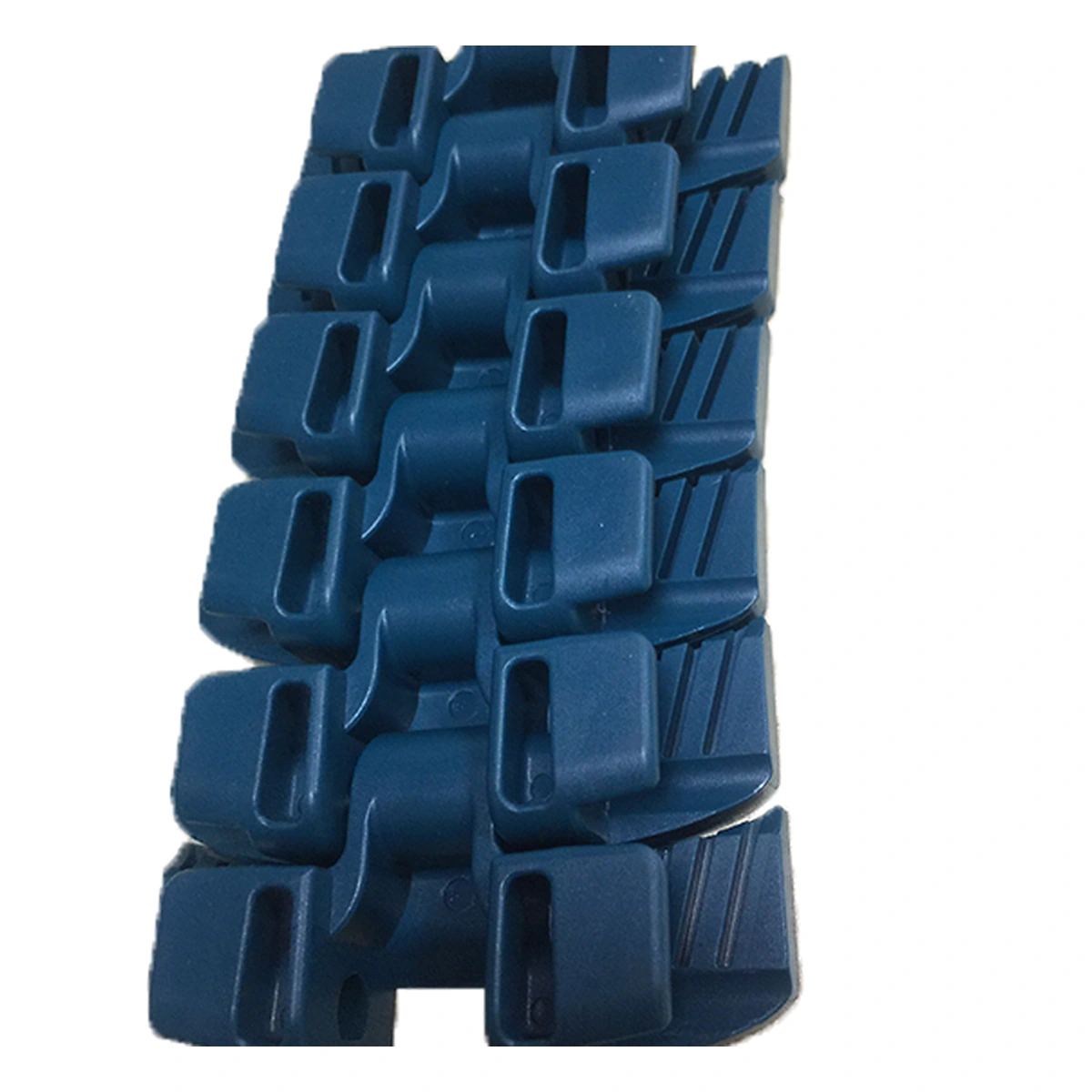

The 1060 provides a closed plate face with joints between successive links. The broad contact surface supports the container while the joints allow side flexing. Underneath, the link profile determines how the chain sits on the supporting track.
Its listed working load is 1,890 N at 21 °C. This is chain force, rather than a payload in kilograms. The conveyed load and resistance through the curve require a separate chain-pull assessment.
Specifications
| Parameter | Specification | Imperial Equivalent |
|---|---|---|
| Plate material | Specification: POM | Imperial Equivalent: — |
| Pin material | Specification: Stainless steel | Imperial Equivalent: — |
| Pitch | Specification: 25.4 mm | Imperial Equivalent: 1 in |
| Working load at 21 °C | Specification: 1,890 N | Imperial Equivalent: 424.89 lbf |
| Minimum side-flex radius | Specification: 500 mm | Imperial Equivalent: 19.69 in |
| Reverse radius | Specification: 130 mm | Imperial Equivalent: 5.12 in |
| Chain mass | Specification: 1.91 kg/m | Imperial Equivalent: 1.28 lb/ft |
| Maximum conveying distance | Specification: 12 m | Imperial Equivalent: 39.37 ft |
Confirm the plate width against the order and track drawing. The load value retains its stated temperature condition.

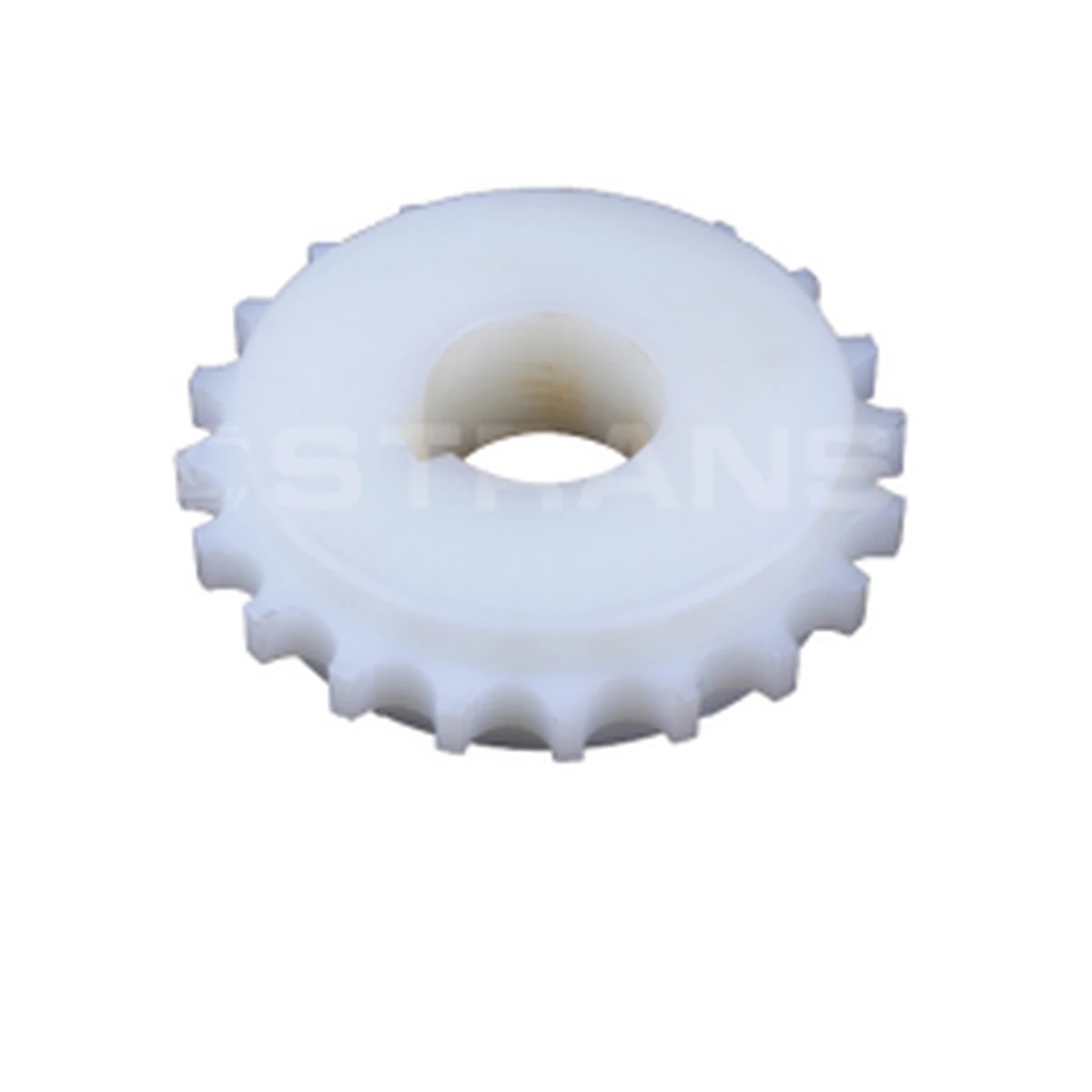

Matching Chain Sprockets

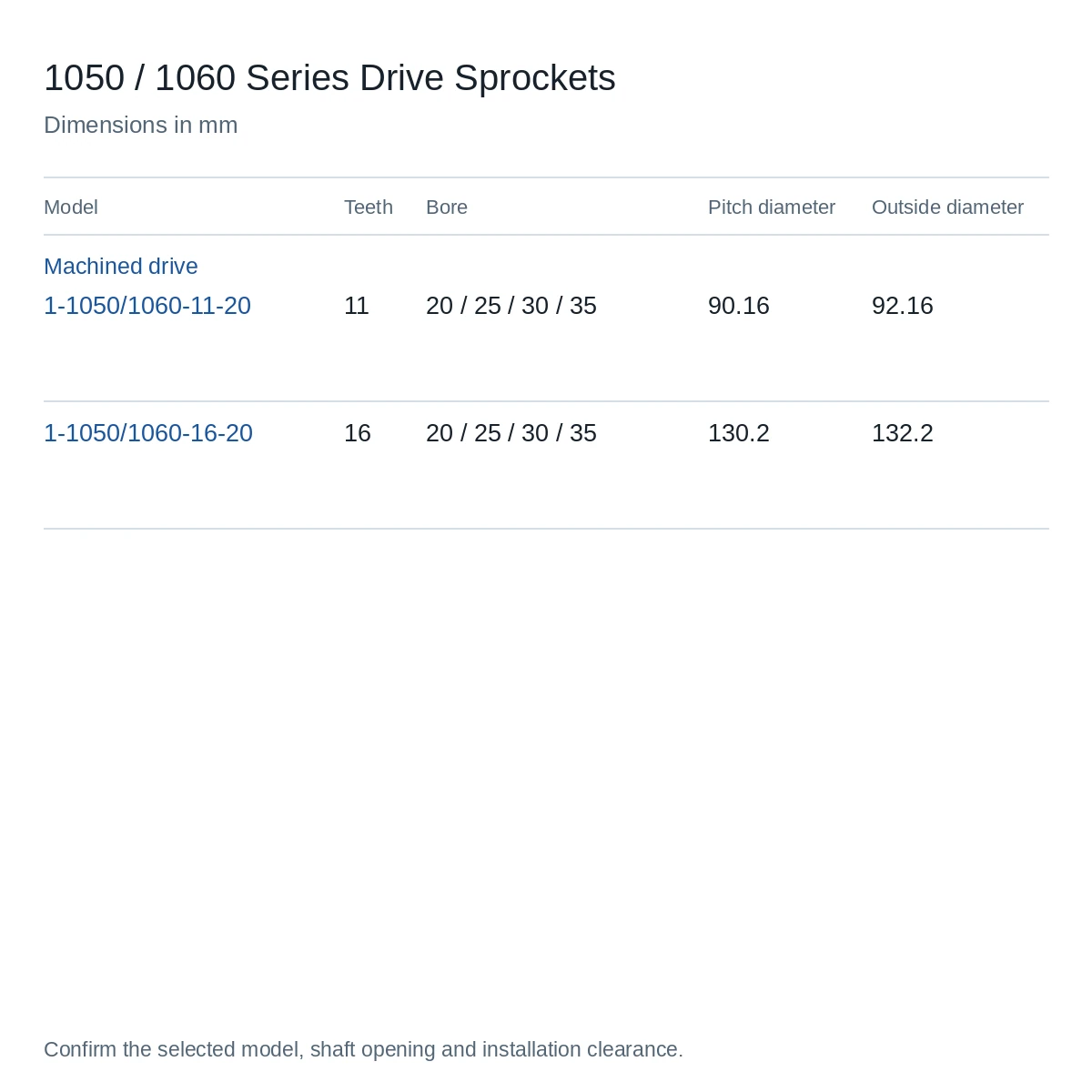

Machined drive sprockets for the 1050/1060 family are listed in 11- and 16-tooth versions. Their dimensions and bore options are presented together for comparison.

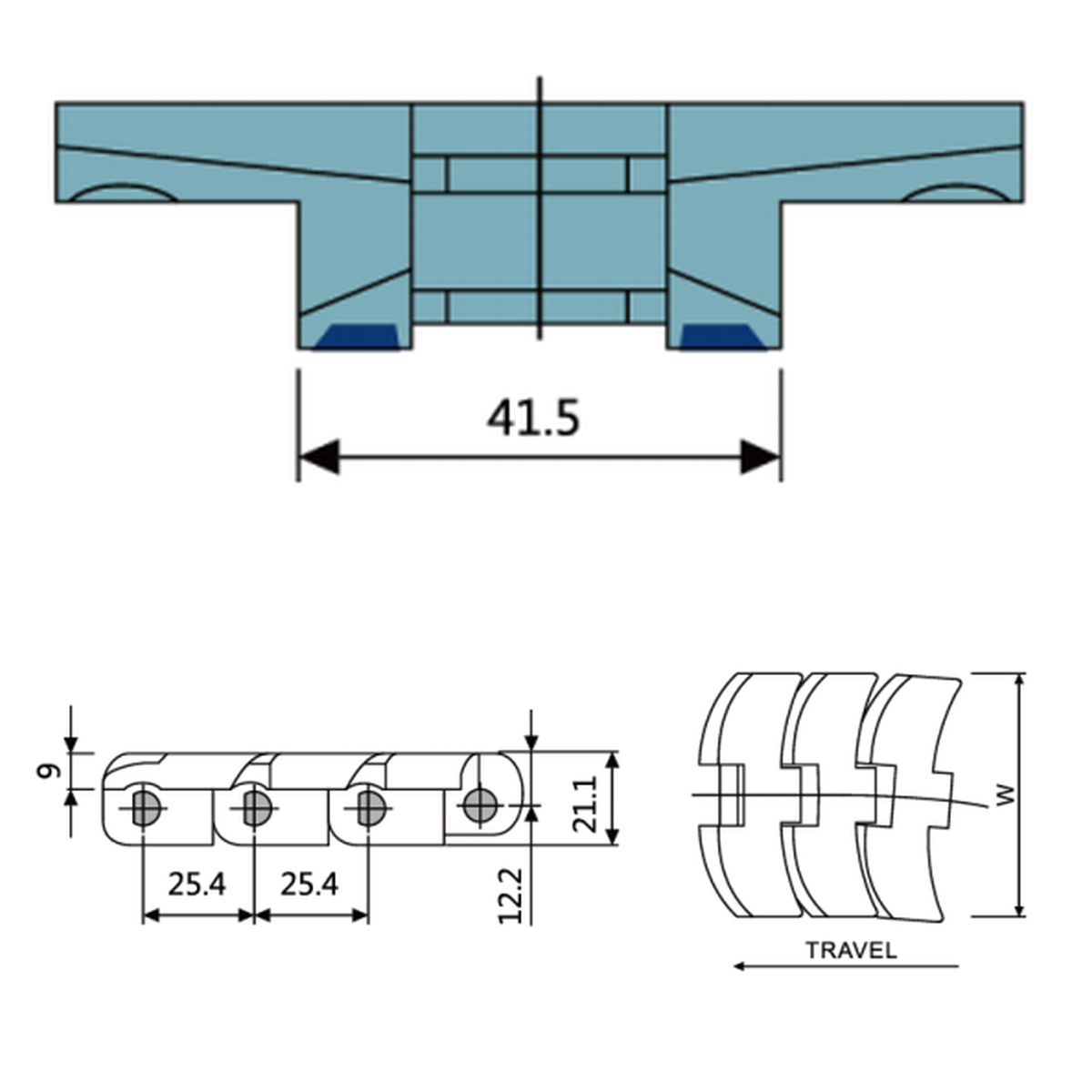

Dimensions & Fit
Measure the top plate and compare the underside seating surfaces with the installed support. A similar carrying width does not establish identical track fit.
Check the 500 mm side-flex radius in plan view and the 130 mm reverse radius in the return path. Identify the radius reference on the drawing. Review the discharge gap using the smallest container base.

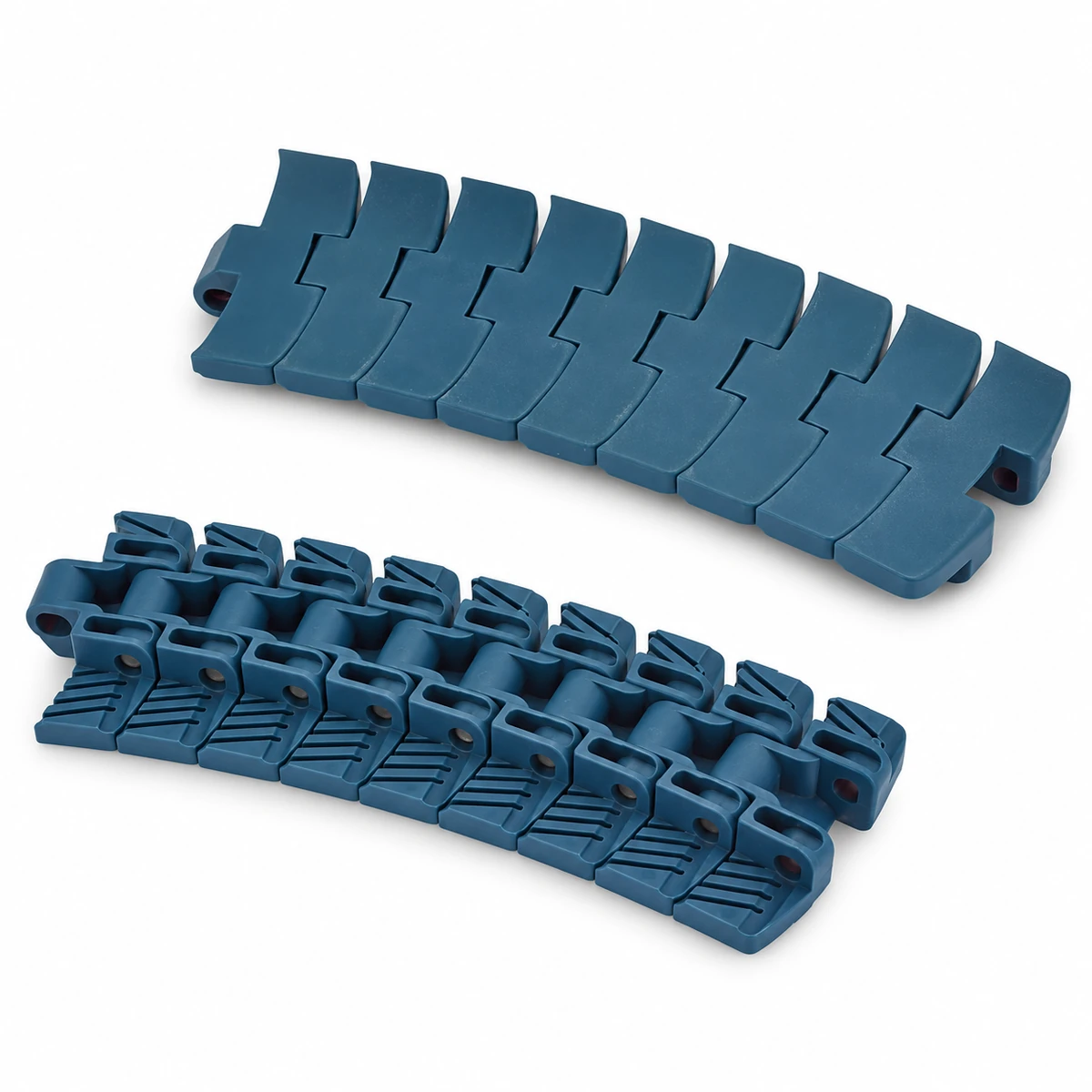

Keep Base Support Around a Conveyor Corner
Bottle and can lanes often turn to connect equipment placed on different axes. The solid 1060 plates carry the container base through that change in direction. Guides set the lane width and the height of contact with the container body.
Where containers pause at downstream equipment, accumulation changes resistance at the chain surface. Review the stopping pattern with speed and load when assessing the chain for a curved section.
Request a 1060 Quote
Provide required length, quantity and measured plate width with an existing chain reference. Add the curve drawing, conveyed load and operating temperature for a fit and chain-pull review.
