Type B Double Conveyor Guide Rail Clamp 504

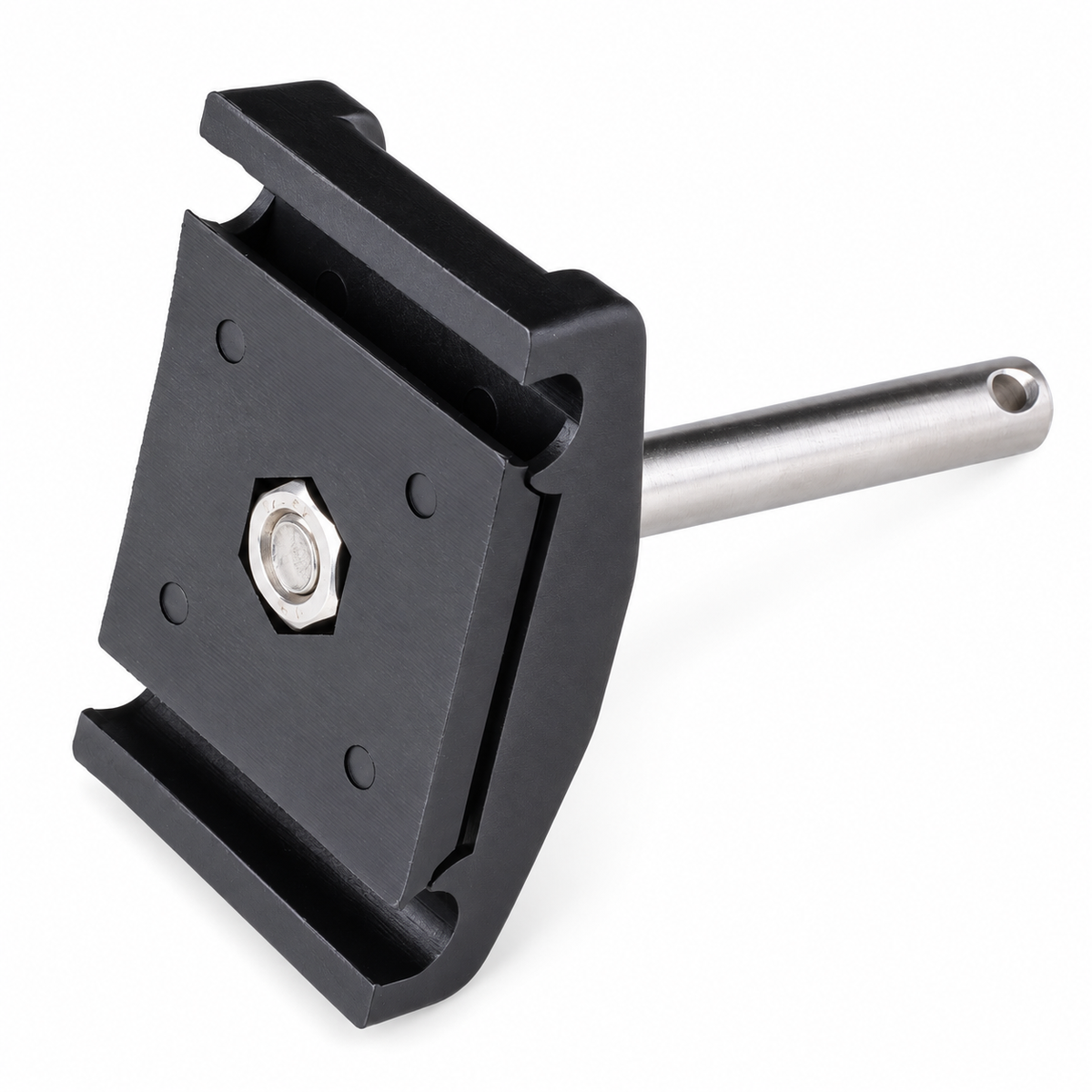

The 504 Type B double conveyor guide rail clamp uses an extended head with two separated round-rail seats. Its mounting pin is 12 mm in diameter.
- Code
- 504
- Arrangement
- Two separated round seats
- Pin
- 12 mm / 0.472 in

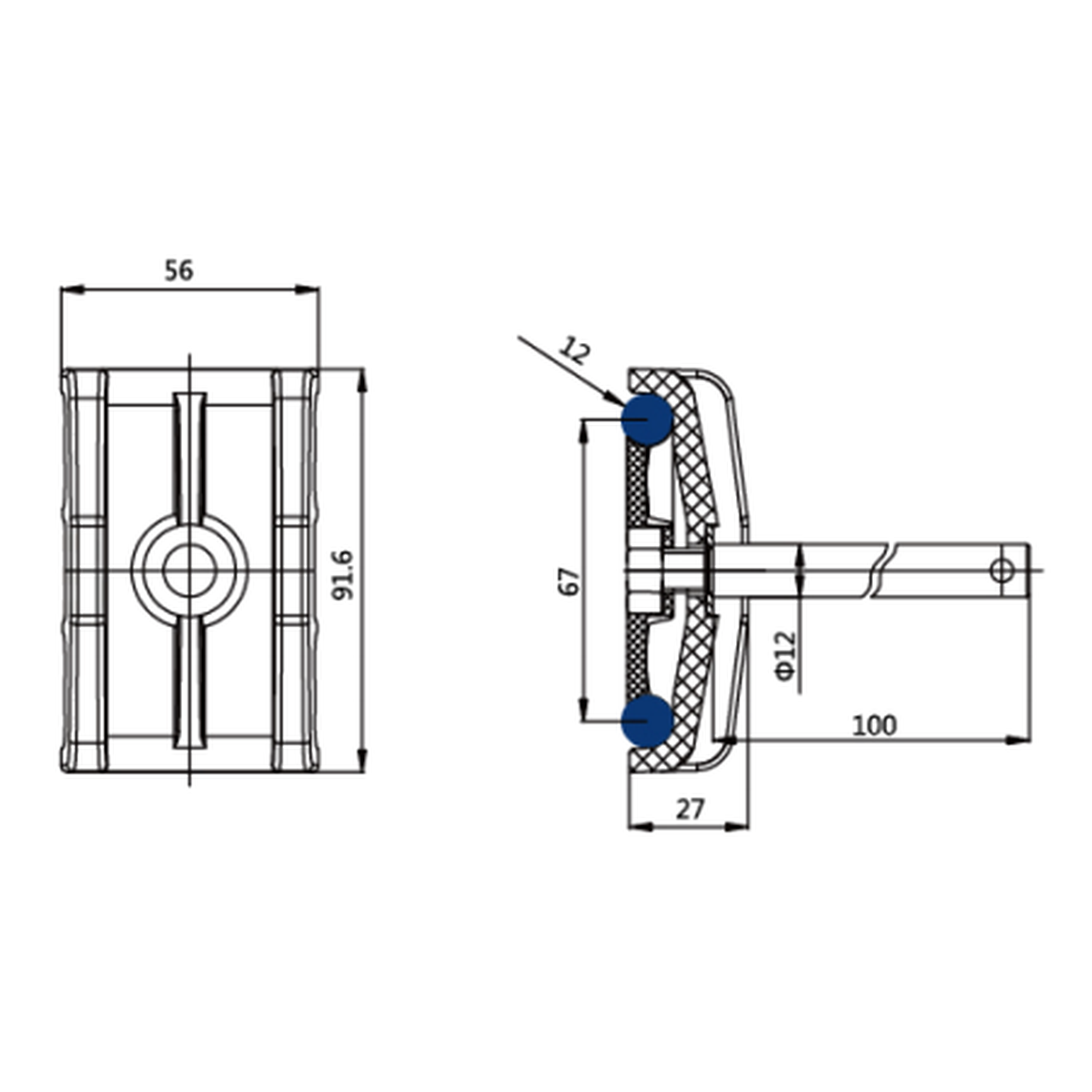

Use the rail spacing to distinguish this extended head from a compact double clamp. Check the complete section against the drawing.
Separate Two Rail Contact Levels

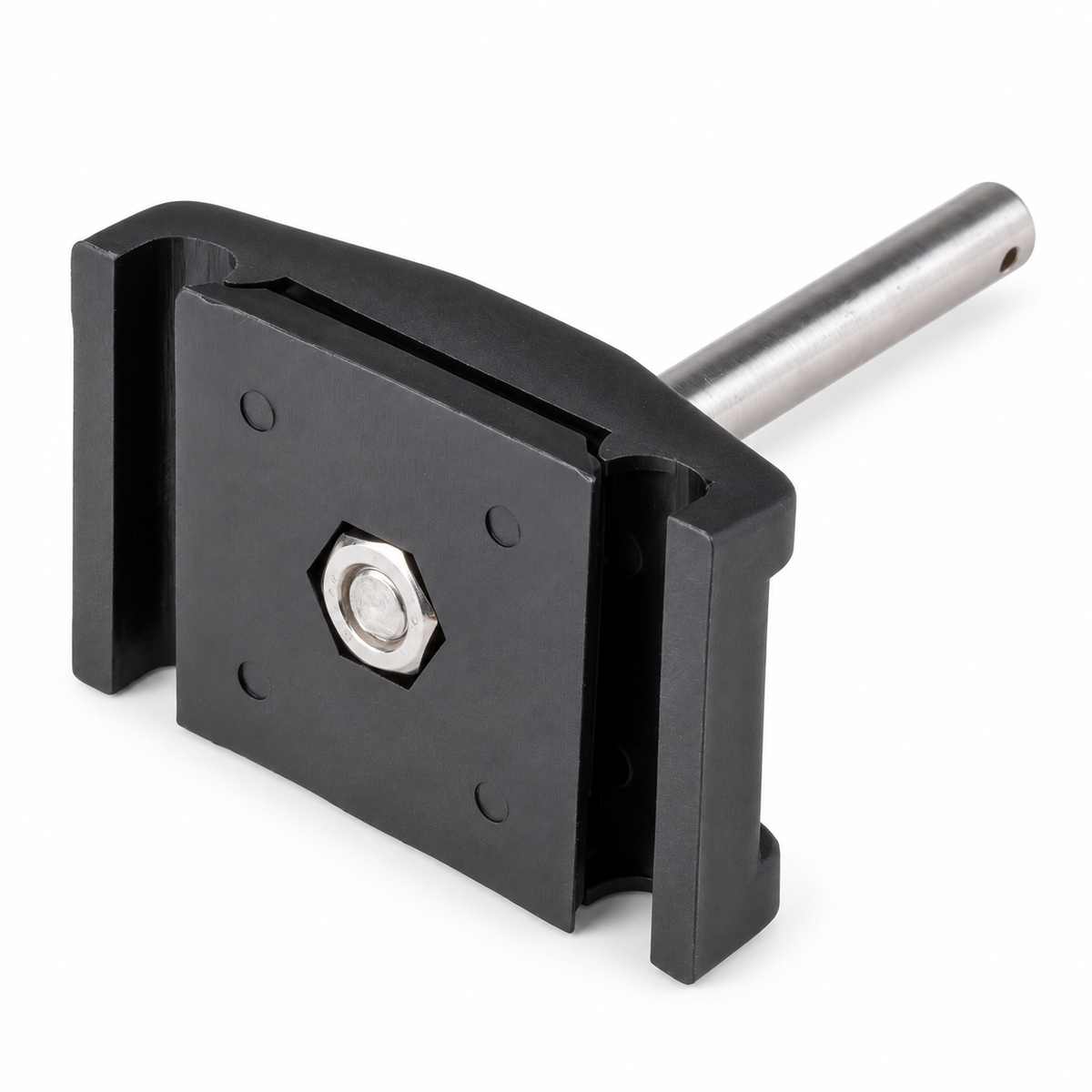

The 504 places its two rail seats farther apart along the head than the compact Type A arrangement. This gives the rail pair a different vertical contact pattern on the product wall.

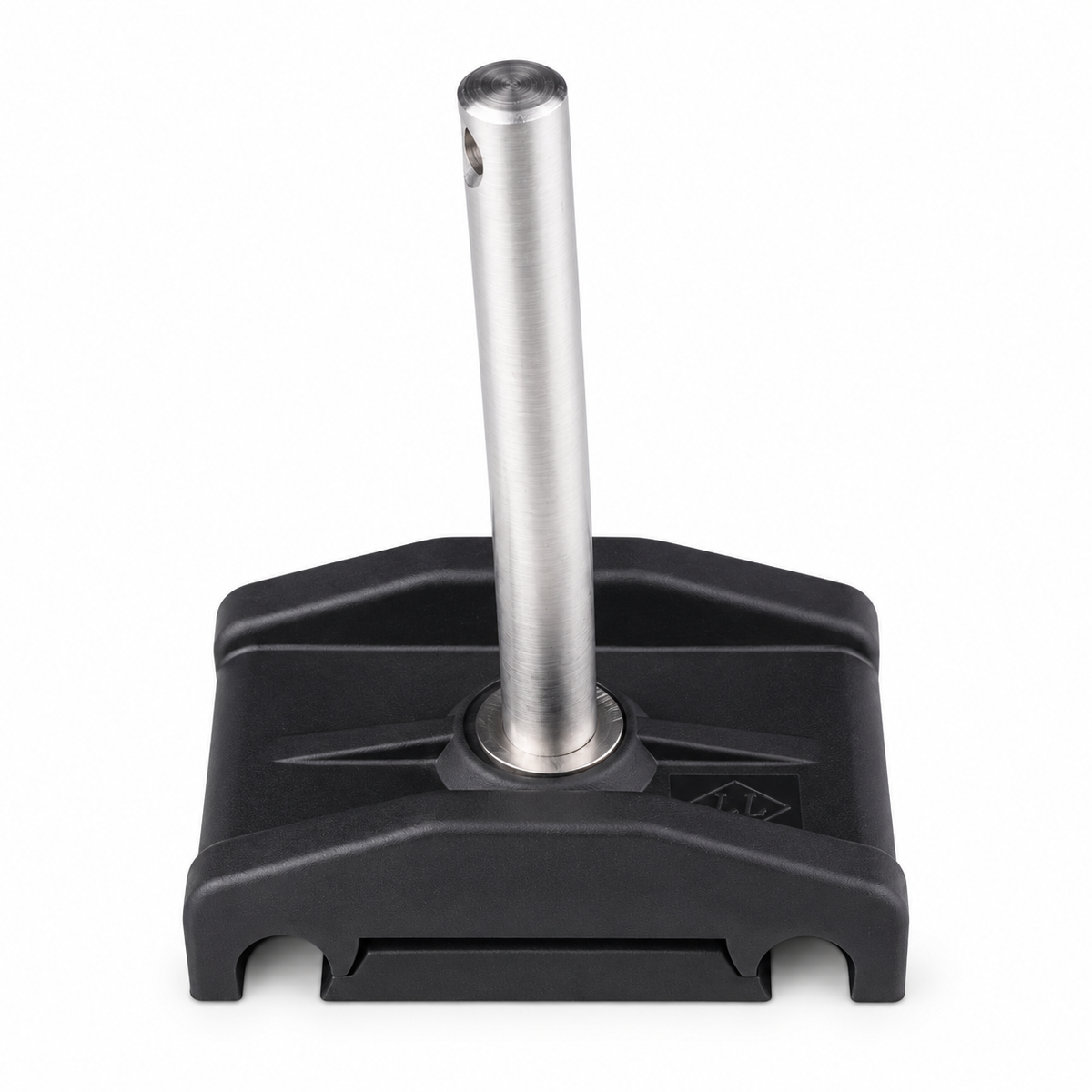

The head and pin form one support connection for the two rails. Set the pin position after checking which part of the pack each rail will meet. The broad gap between rails should remain clear of features that can catch on the frame.
Specifications
| Parameter | Specification |
|---|---|
| Code | Specification: 504 |
| Head | Specification: Type B double round-rail clamp |
| Materials | Specification: Reinforced polyamide + stainless steel |
| Pin diameter | Specification: 12 mm / 0.472 in |
Dimensions & Fit
Measure the existing rail centre spacing and compare it with the two-seat layout. Include the rail diameter and the orientation of the head.
Check the required stand-off from the frame and clearance for the longer head. Tightening access needs to remain available when the guides move inward for the narrowest product.
Guide Products at Separated Heights
Separated rails can guide a pack at two useful wall regions while leaving the space between them open. The extended head fixes that relationship at each support.
Check tall containers for contact near shoulders and lower walls. A rail resting against a sloping surface can change the direction of the side force, so rail height deserves the same attention as lane width.
Request a 504 Clamp Quote
Share the rail diameter, centre spacing and required stand-off. Send an installed side view and quantity for a 504 clamp review.
