F54 Case Conveyor Chain

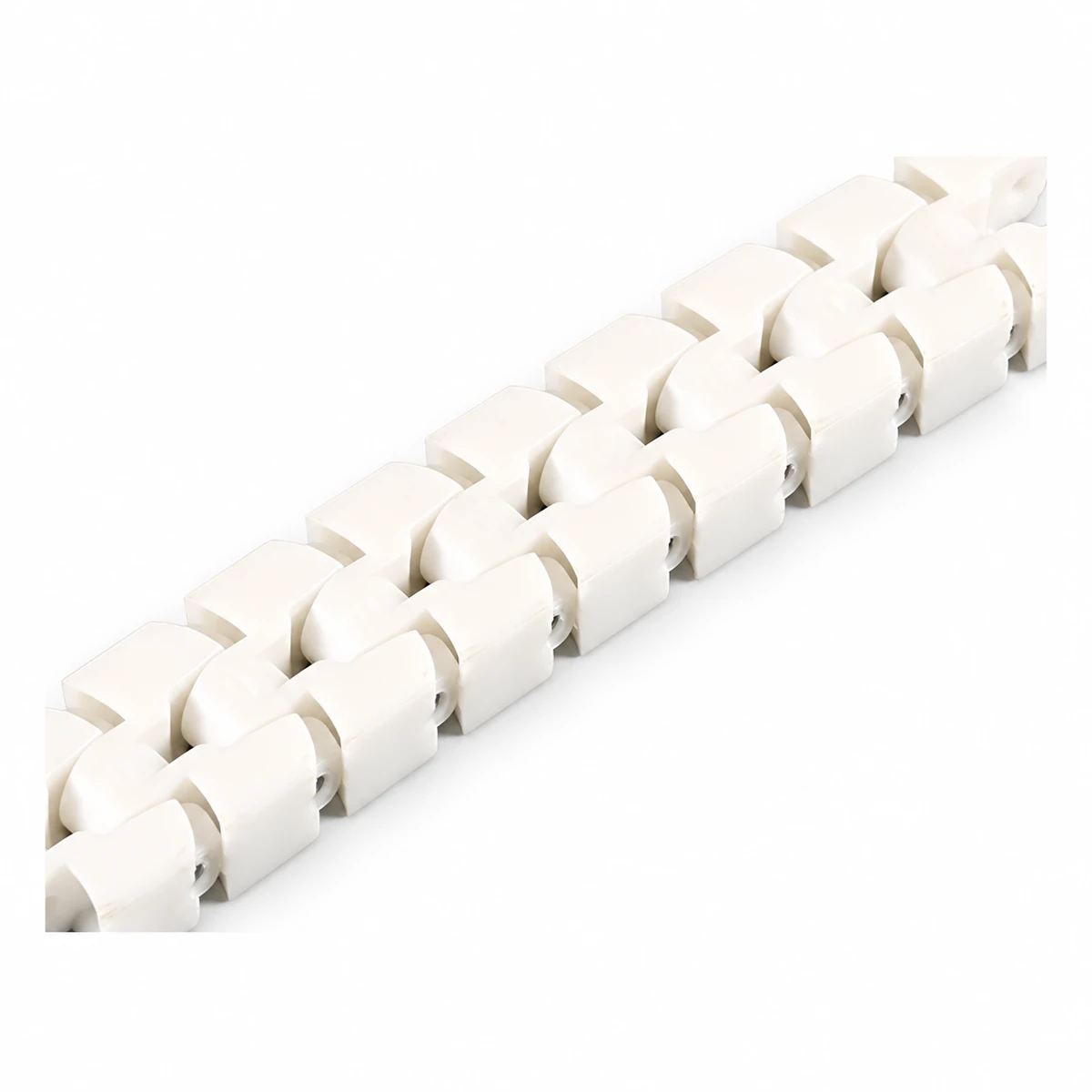

F54 provides a 54 mm carrying surface on compact articulated links. Its shaped plate edges support the product across successive links while the chain follows a curved lane.
- Model
- F54
- Plate Width
- 54 mm
- Minimum Curve Radius
- 200 mm
Check Small Base Features Across the Joints
Narrow feet and carton seams must cross the link pattern without losing support.
Compact Links Beneath the Product Base

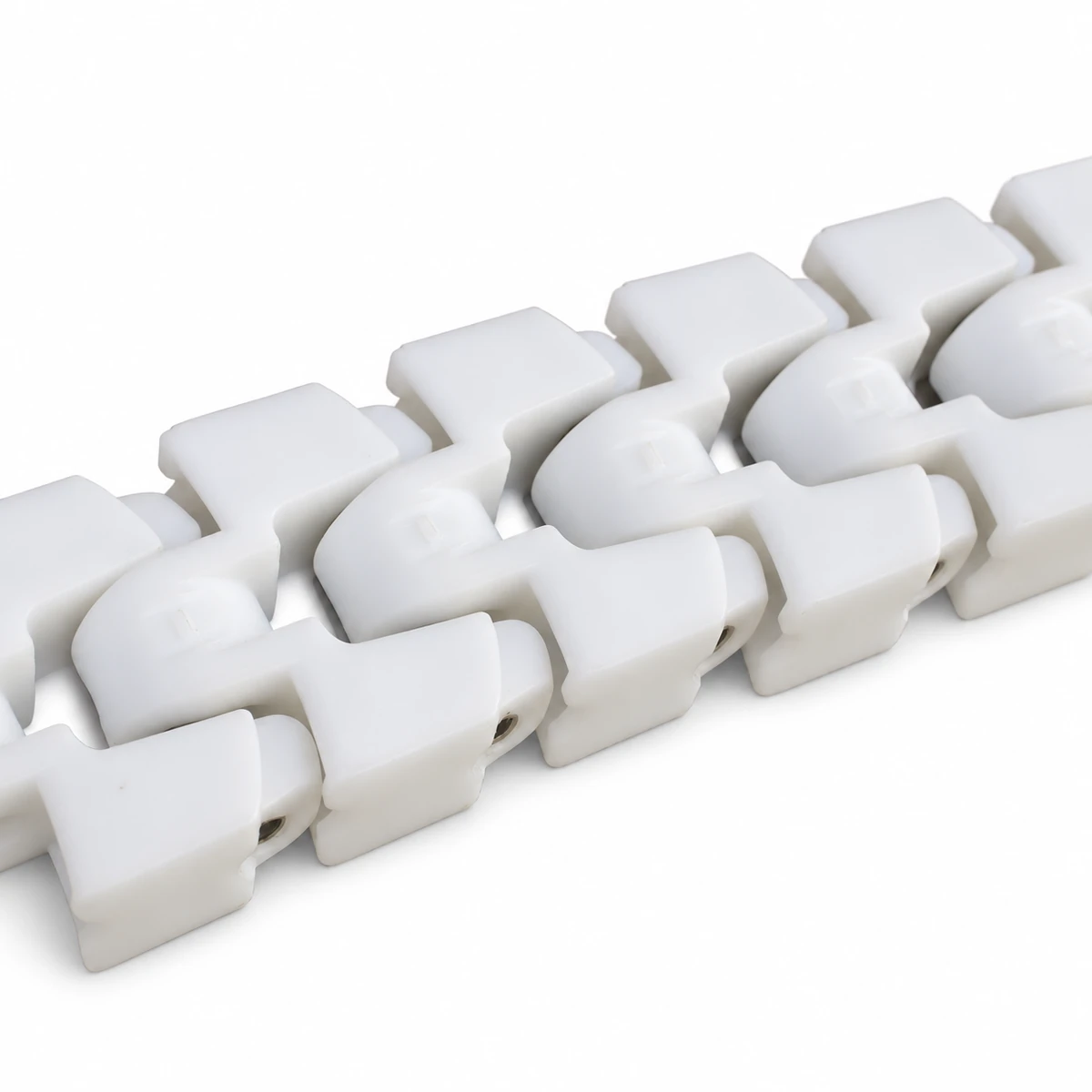

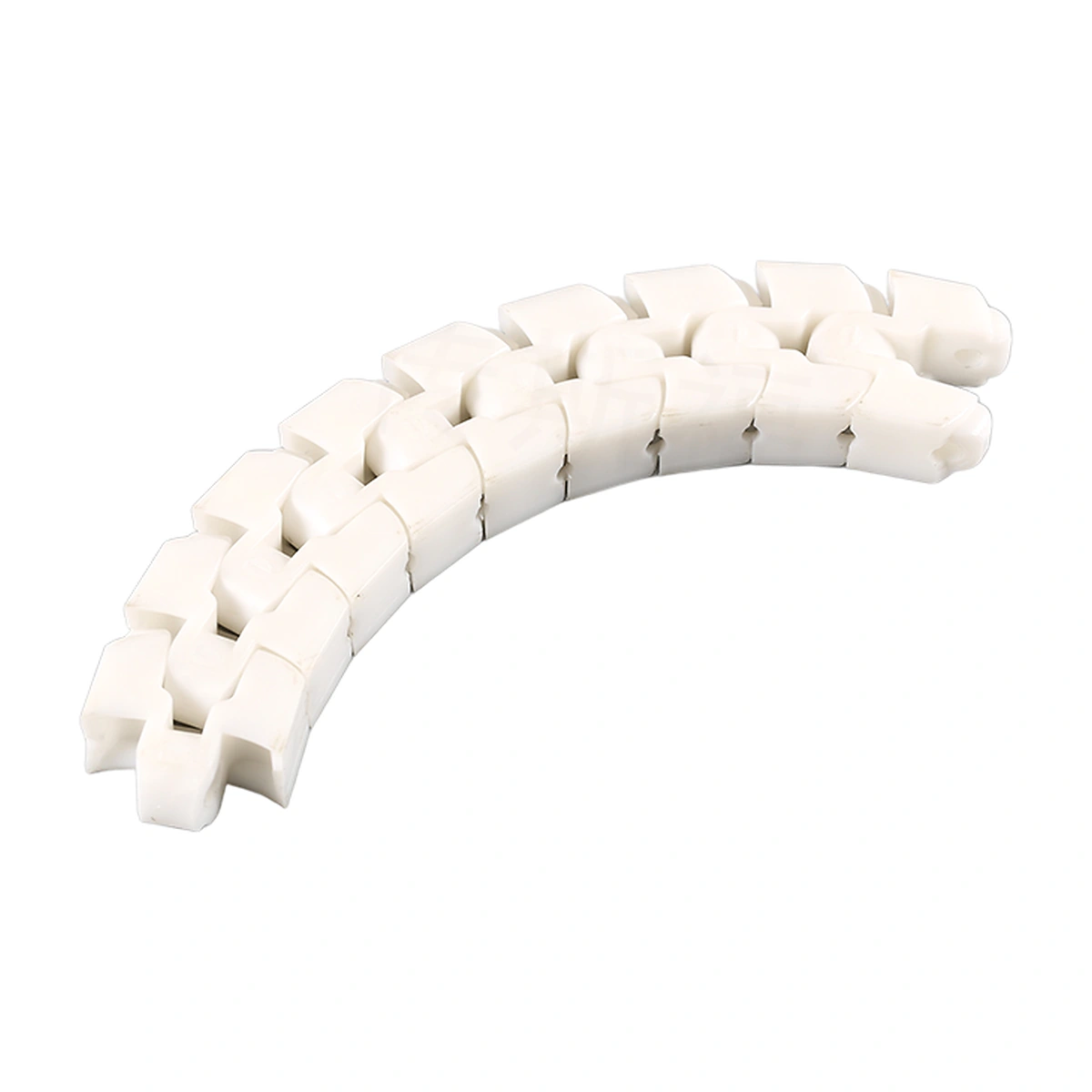

The F54 plate edges fit around neighboring links as the chain changes direction. Product support passes from one plate to the next along the narrow carrying lane.
A small carton or carrier needs enough base contact across that pattern. Check the smallest contact feature through the turn, where the relative angle of adjacent links changes the opening beneath it.

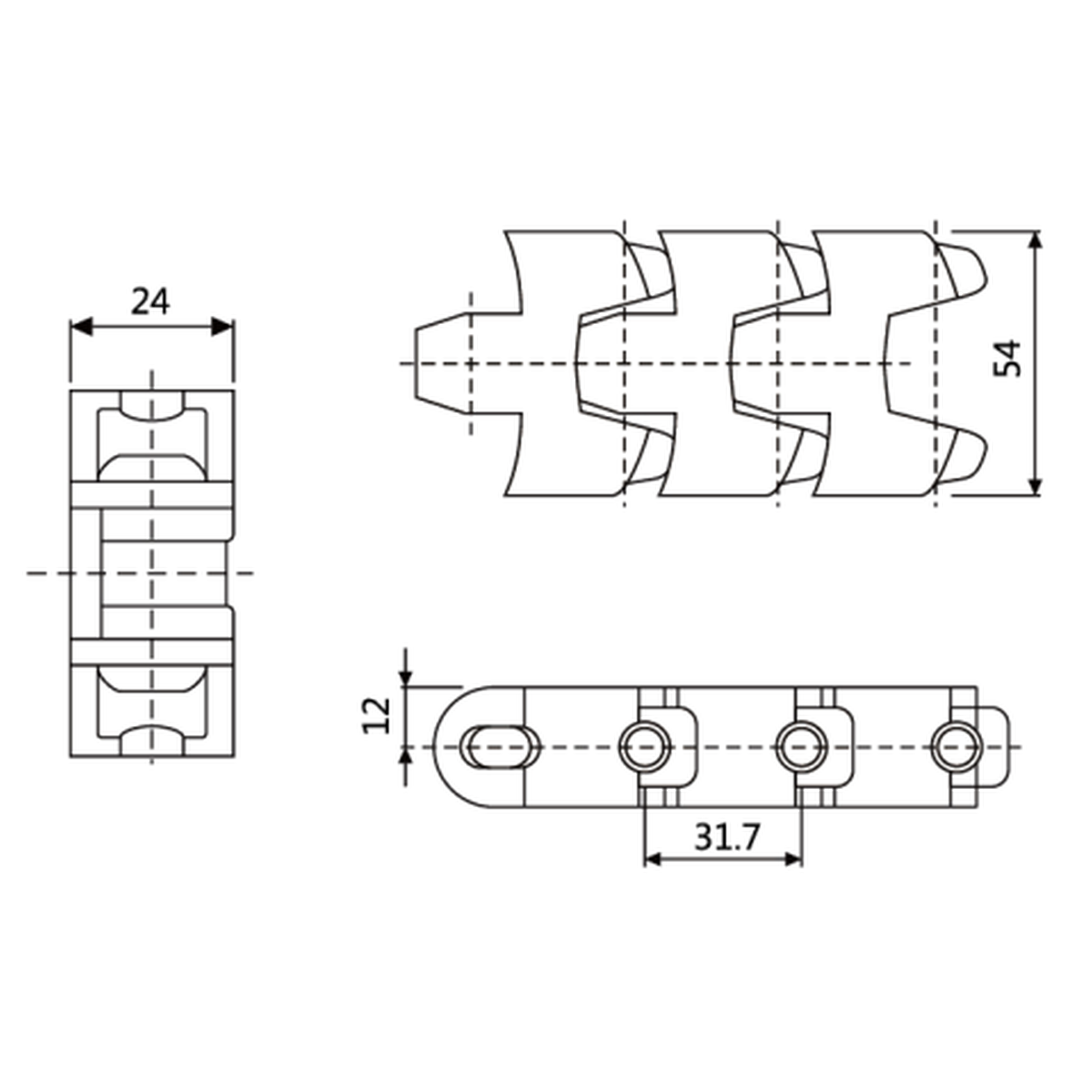

Specifications
| Parameter | Specification |
|---|---|
| Model | Specification: F54 |
| Plate width | Specification: 54 mm / 2.126 in |
| Minimum side-flex radius | Specification: 200 mm / 7.874 in |
| Reverse radius | Specification: 50 mm / 1.969 in |
| Reference mass | Specification: 1.6 kg/m / 1.075 lb/ft |
| Listed working load at 21 °C | Specification: 2,000 N / 450 lbf |
The force rating applies at its stated temperature and does not specify the weight that can be carried on the conveyor.
Review the Turn and the End Return
Compare the actual link with the installed support and drive. Use the curve plan to confirm the radius reference and leave clearance for link articulation.
At discharge, check the product-base length against the transfer gap. The reverse radius describes chain bending; it does not establish a permissible product-transfer gap.
Routing Small Cartons Between Machines
A narrow F54 lane can support a carton along its base while guides maintain the intended route. The carton needs a sufficiently rigid contact area to bridge the link joints.
At a curved infeed, guide position and product spacing affect whether the carton enters squarely. Review the transition onto the receiving conveyor so the same base remains supported as it leaves the turn.
Request an F54 Chain Quote
Send the required length and quantity with the product-base dimensions and conveyor drawing. Include the installed drive reference for CSTRANS to compare the chain fit.
