63V V-Shaped Flexible Chain

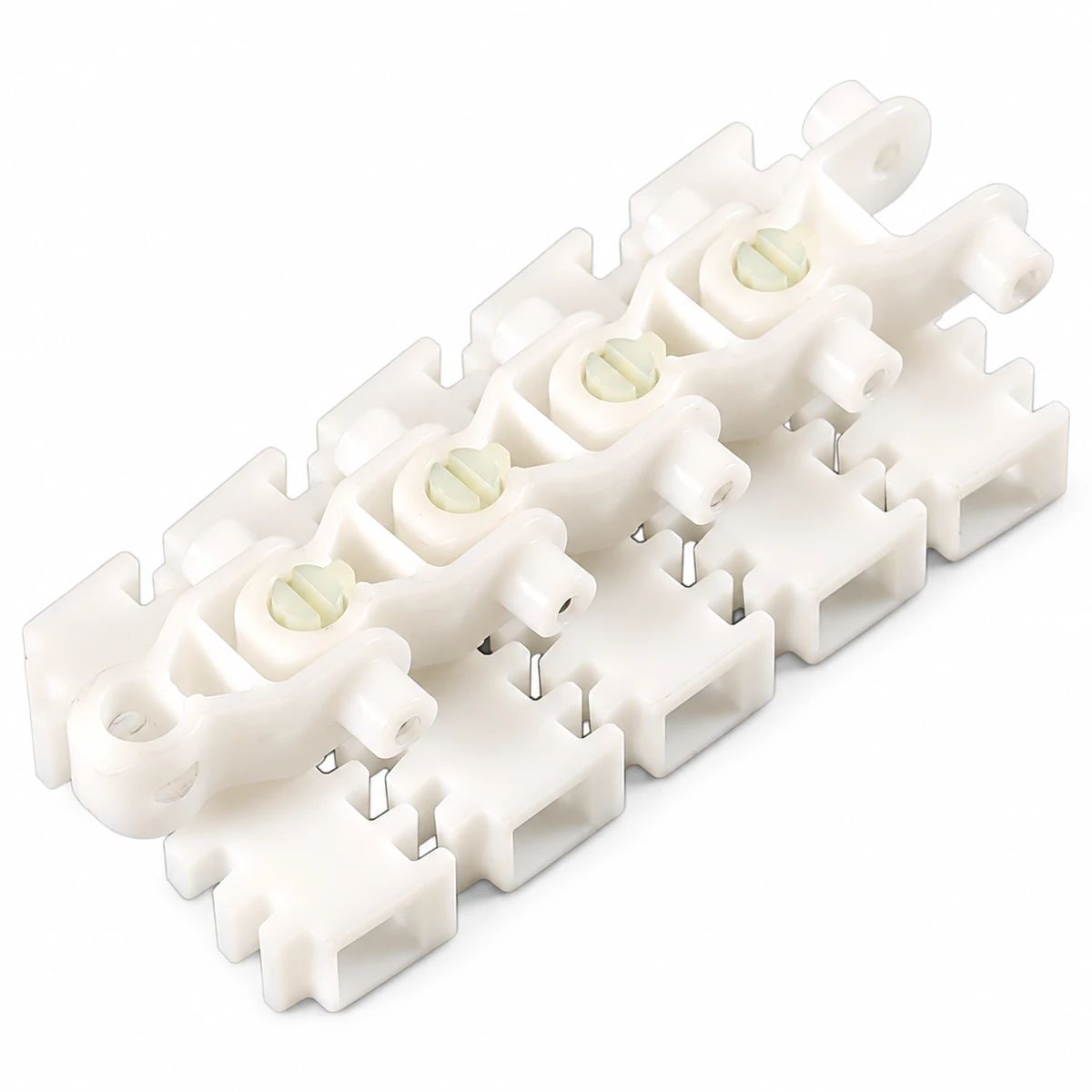

The 63V has a V-shaped recess across the carrying face. Its sloping POM surfaces can support a shaped or round product above the articulated flexible-chain joint.
- Carrying Width
- 63 mm / 2.48 in
- Profile
- Recessed V
- Body Material
- POM
Use the product's cross section to check where it contacts the V. Product position changes with diameter and base geometry.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Locate Contact Along the V Faces
The recessed top offers two sloping faces rather than a flat carrying plate. A round product can sit between them, with its seating height determined by the product section. The actual contact must be checked to avoid placing a narrow base on an unsuitable edge.

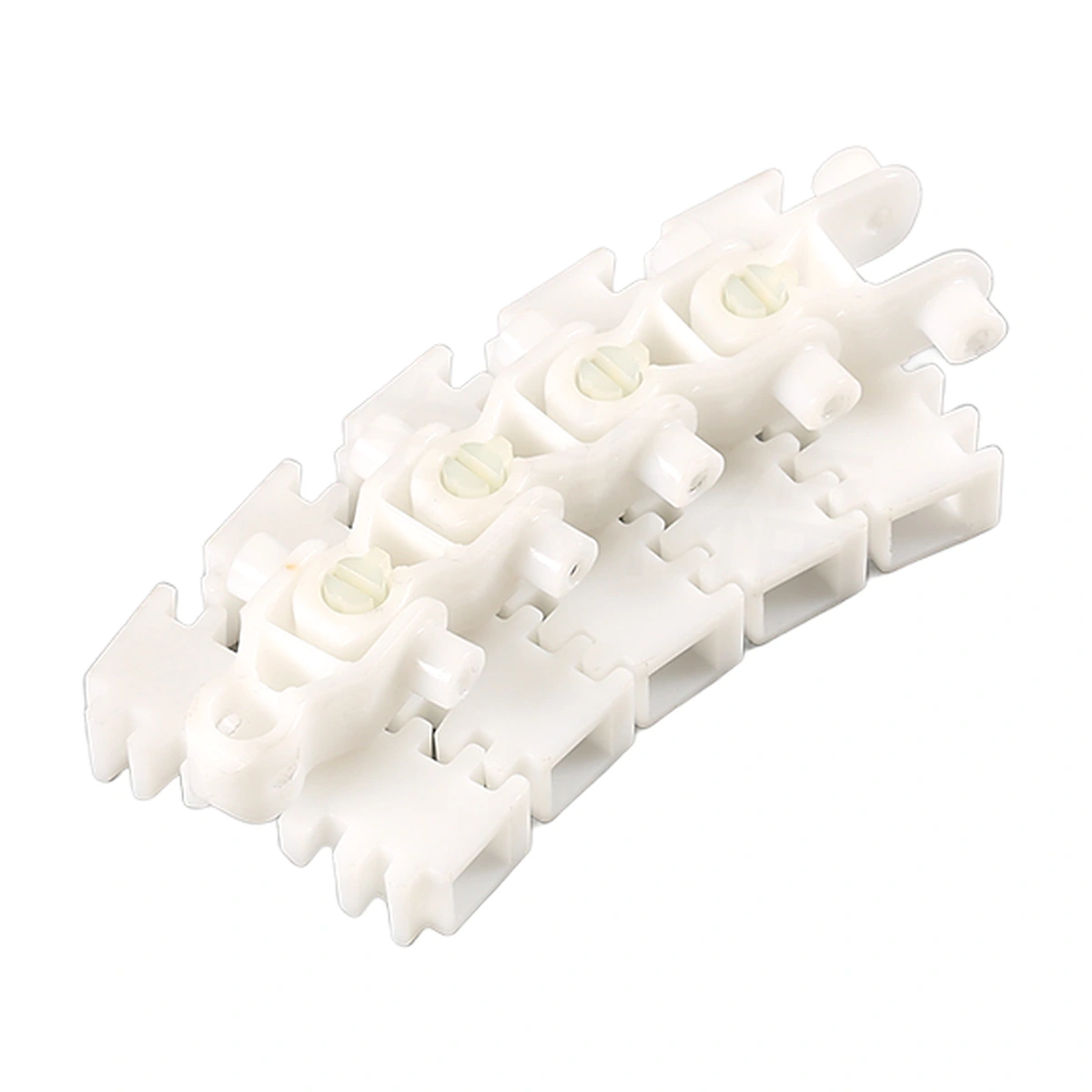

The V top follows the linked chain around the route. Lateral guidance still depends on the product and motion; the recess does not establish a clamping force. Check stability at curve entries as well as on the straight.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 63V | |
| Weight | Value: 0.90 kg/m | Converted Value: 0.6048 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Dimension | Value |
|---|---|
| Carrying width | Value: 63 mm / 2.48 in |
Dimensions & Fit

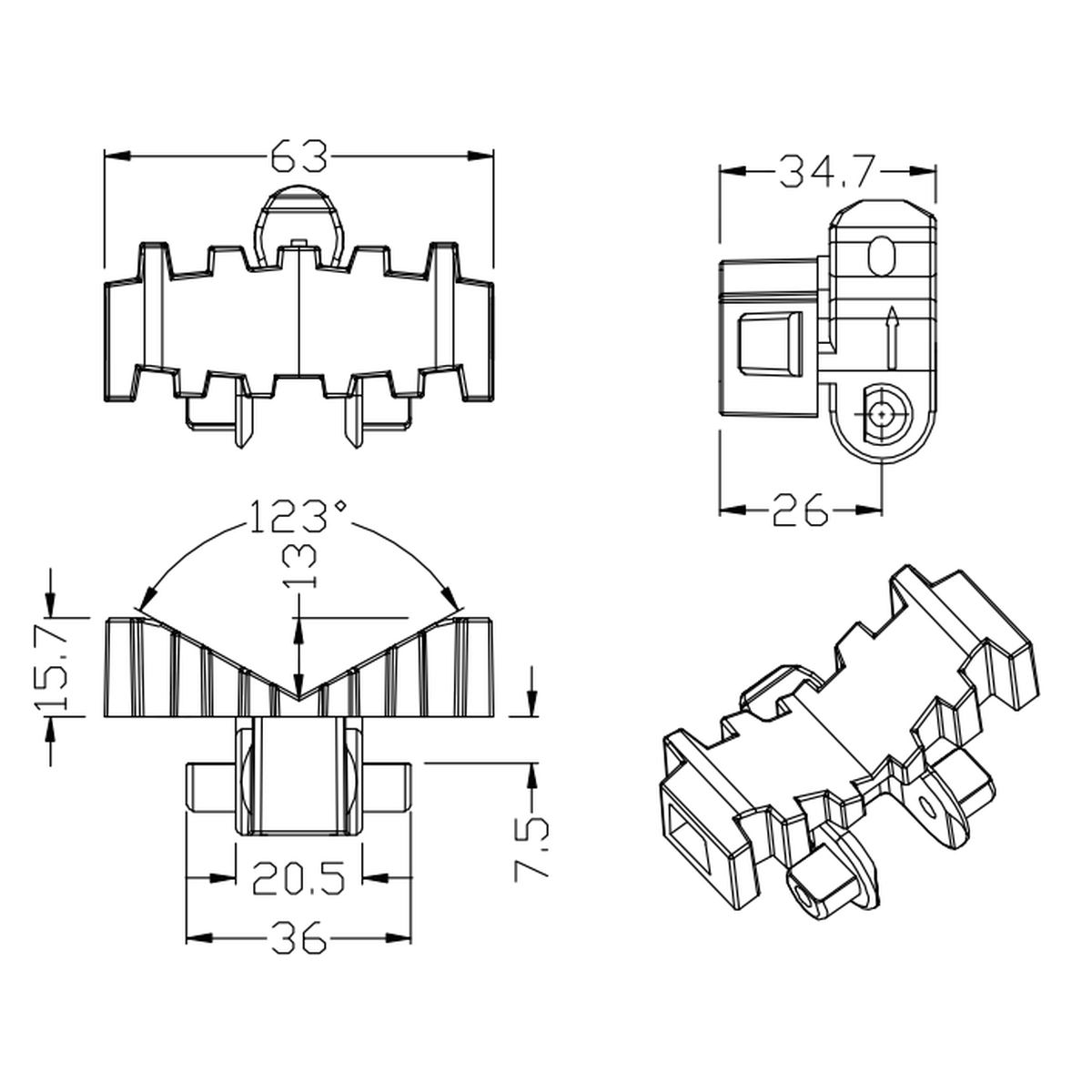

Compare the product section with the drawn V profile. Show required seating height and any side guides that contact the product.
Match the underside joint and actual link spacing to the track and drive. At the transfer, align the receiving support with the product's contact height in the V, rather than with the lowest point of the recess.
Carry a Product That Needs Shaped Support
The 63V can be considered for cylindrical or profiled parts whose underside benefits from contact on two sloping faces. The chain moves that support along the route between operations.
Loading and unloading can change the part's tendency to roll. Review the handoff with the actual part section and center of gravity. A flat receiving plate may require a different height from a matching V support.
Request a 63V Quote
Send the 63V reference, length and quantity with the product section and intended seating position. Include the transfer arrangement and existing chain-drive details.
