63B Steel Top Chain

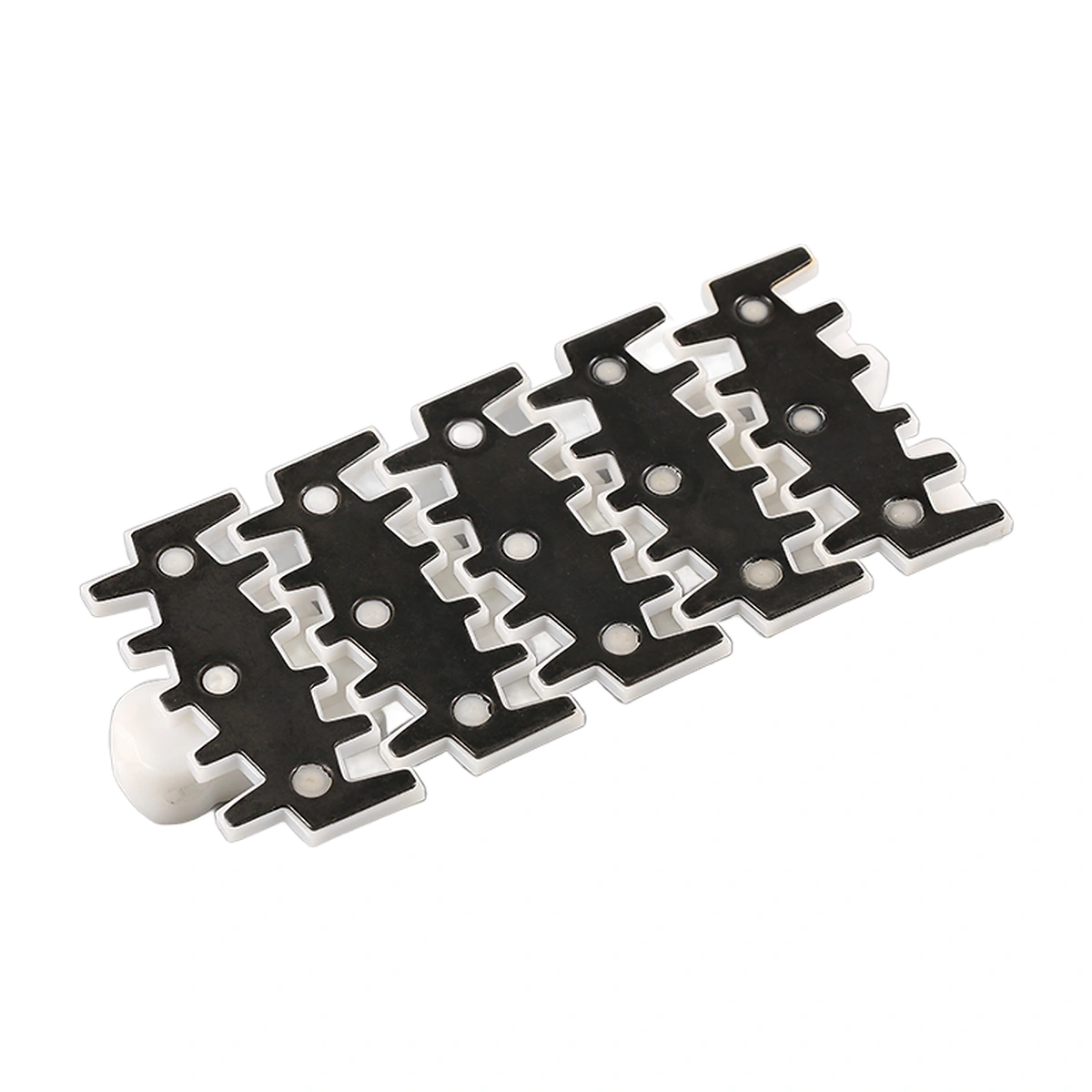

The 63B combines a SUS304 steel top covering with a POM flexible-chain body. The covering meets the product while the articulated plastic link runs on the support track beneath it.
- Carrying Width
- 63 mm / 2.48 in
- Pitch
- 25.4 mm / 1 in
- Top Covering
- SUS304 steel
Review the product-contact surface and underside joint separately. A steel covering does not change the need to match the chain to its track and drive.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Put a Steel Contact Face Above the Flexible Body

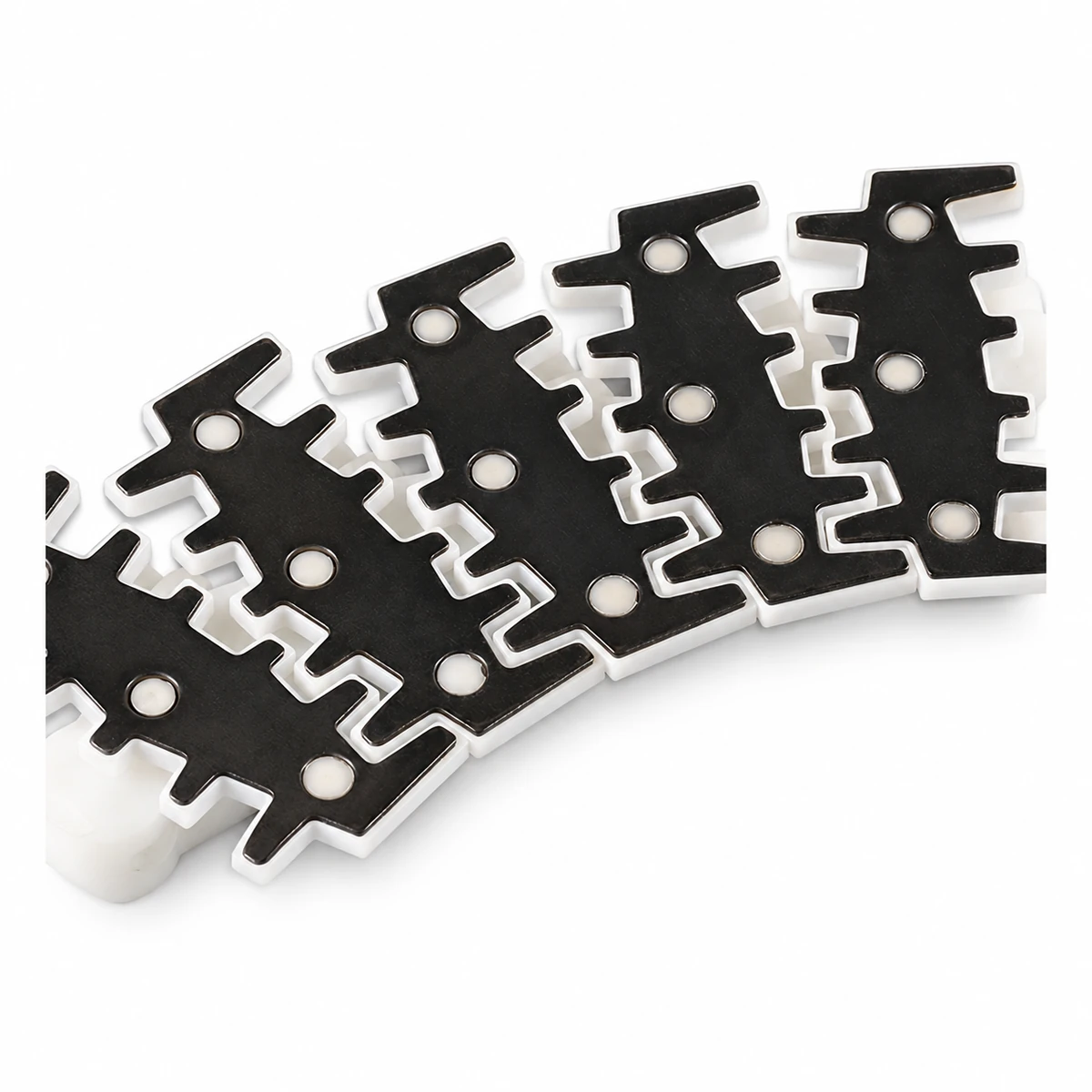

The 63B changes the contact material at the top of the chain while retaining an articulated POM body. The steel cover follows the individual link outline. Pins and pivots still provide the motion beneath the carrying face.
This construction is relevant when the conveyed part's contact with a plastic plate needs closer review. Check the part's edges and underside finish against the steel face. The covering alone does not establish impact resistance, temperature capacity or wear life.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 63B | |
| Weight | Value: 1.10 kg/m | Converted Value: 0.7392 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS304 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Component / Dimension | Specification |
|---|---|
| Steel top covering | Specification: SUS304 |
| Carrying width | Specification: 63 mm / 2.48 in |
| Pitch | Specification: 25.4 mm / 1 in |
Dimensions & Fit
Use the 63 mm carrying width and 25.4 mm pitch with the exact link drawing. Compare the underside against the beam and wear-strip support.
Check clearance above the carrying face at guides and transfers. Through the curve, inspect the changing gap between cover plates with the smallest product base. Keep the product-contact requirement separate from drive-tooth matching.
Carry Parts on a Metal Contact Surface
The steel-covered top is a candidate where a manufactured part would contact the chain directly and its edges need to be assessed against the carrying face. The flexible joints can route that part between assembly or inspection stations.
At loading points, the way a part is placed on the chain matters. Review edge contact and impact rather than assuming a steel cover accepts unrestricted loading. At discharge, the base must bridge the plate joints and receiving gap.
Request a 63B Quote
Send the 63B reference, chain length and quantity with the part's base drawing or contact photographs. Include the route, loading method and existing track or drive reference.
