63 Pointed Tooth Flexible Chain

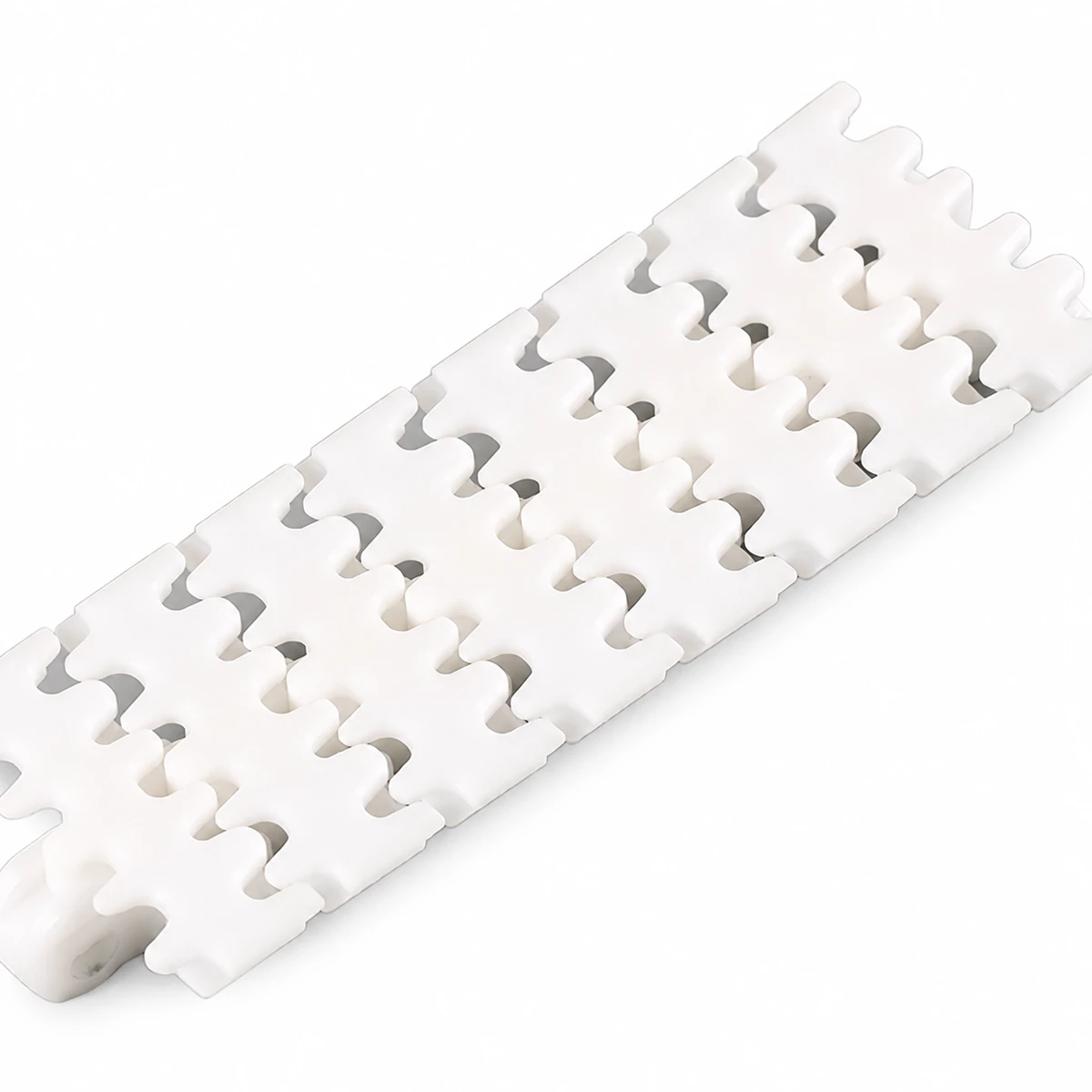

This 63 flexible-chain version uses fingered POM carrying plates connected by stainless steel pins. The intermeshing edge pattern lets adjacent links change angle along a curved lane.
- Plate Width
- 63 mm / 2.48 in
- Pitch
- 25.4 mm / 1 in
- Chain Mass
- 0.80 kg/m / 0.54 lb/ft
Match the actual finger and underside geometry to a sample. Similar family names can cover different link versions.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.

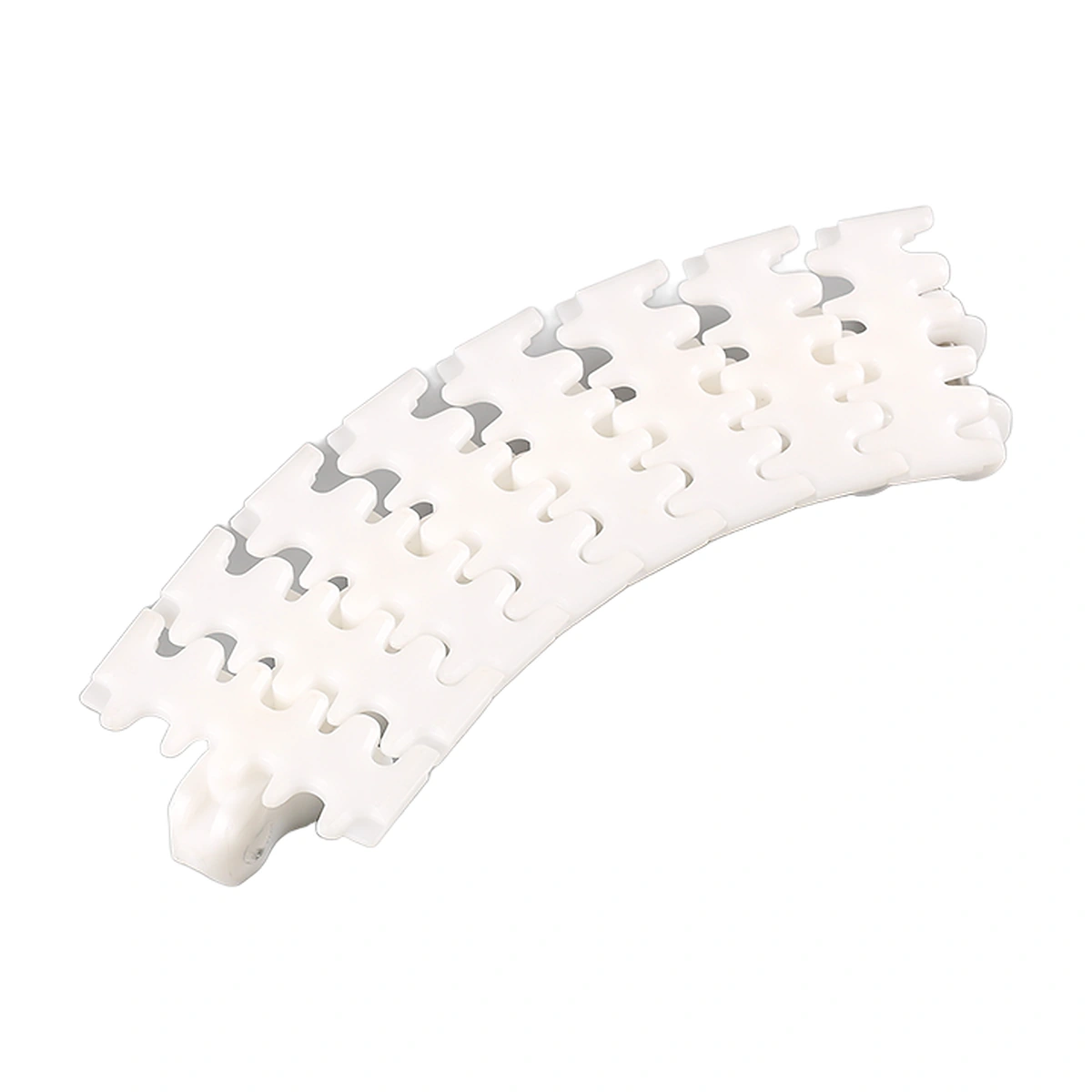

Follow the Turn With Intermeshing Plates
The fingers overlap the neighboring plate pattern as the links articulate. The product rests on the available POM contact area above those joints. Its smallest base must remain supported as gaps change through the bend.
The stated mass for this version is 0.80 kg/m. Keep its sample reference with the order so it remains distinct from other 63-family plate drawings. A common nominal width and pitch do not establish identical underside geometry.
Specifications
| Parameter | Value | US Equivalent |
|---|---|---|
| Plate Width | Value: 63 mm | US Equivalent: 2.4803 in |
| Pitch | Value: 25.4 mm | US Equivalent: 1 in |
| Chain Material | Value: POM | |
| Pin Material | Value: Stainless steel | |
| Weight | Value: 0.8 kg/m | US Equivalent: 0.5376 lb/ft |

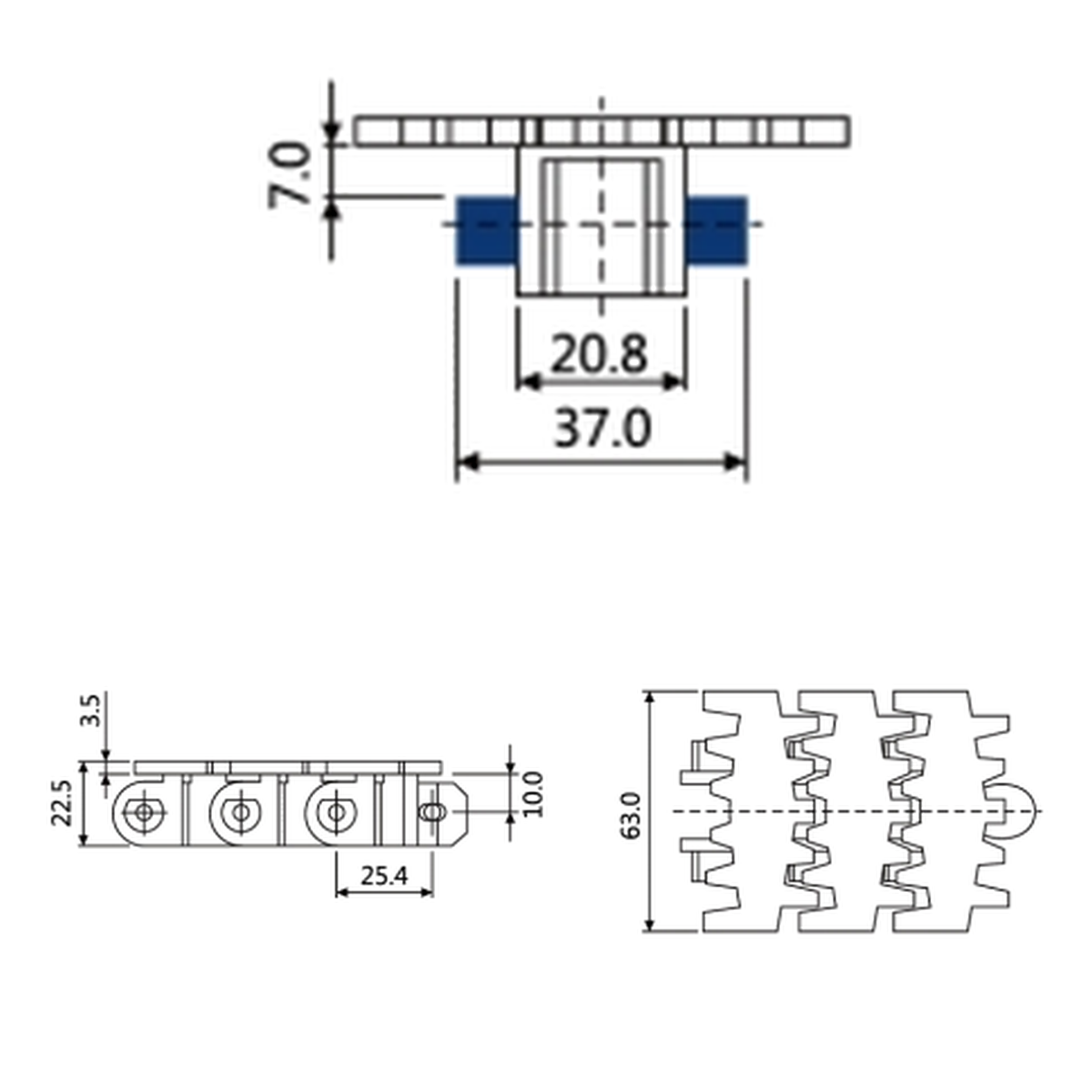

Dimensions & Fit
Compare the 63 mm plate width, 25.4 mm pitch and finger pattern with the existing chain. Use a clear underside view to check the supporting track and drive-wheel engagement.
Provide a dimensioned route for bend review. At transfer, check the base over the changing plate edges and the gap to the next surface. Avoid selecting a curve solely from a similar family code.
Carry Small Containers Along a Curved Path
The fingered surface can carry bottles or small packs between stations along a changing route. The plate pattern supplies support underneath while guides control the product above it.
When a product waits at downstream equipment, the moving chain slides beneath its base. Review accumulation and guide contact together. A small or irregular base also needs a support check at the exit transfer, where the chain leaves the carrying path.
Request a 63 Fingered Chain Quote
Send the chain sample reference, required length and quantity with plate and underside photographs. Include product base dimensions, route geometry and the existing sprocket reference.
