63 Flexible Chain With V-Shaped Cleats

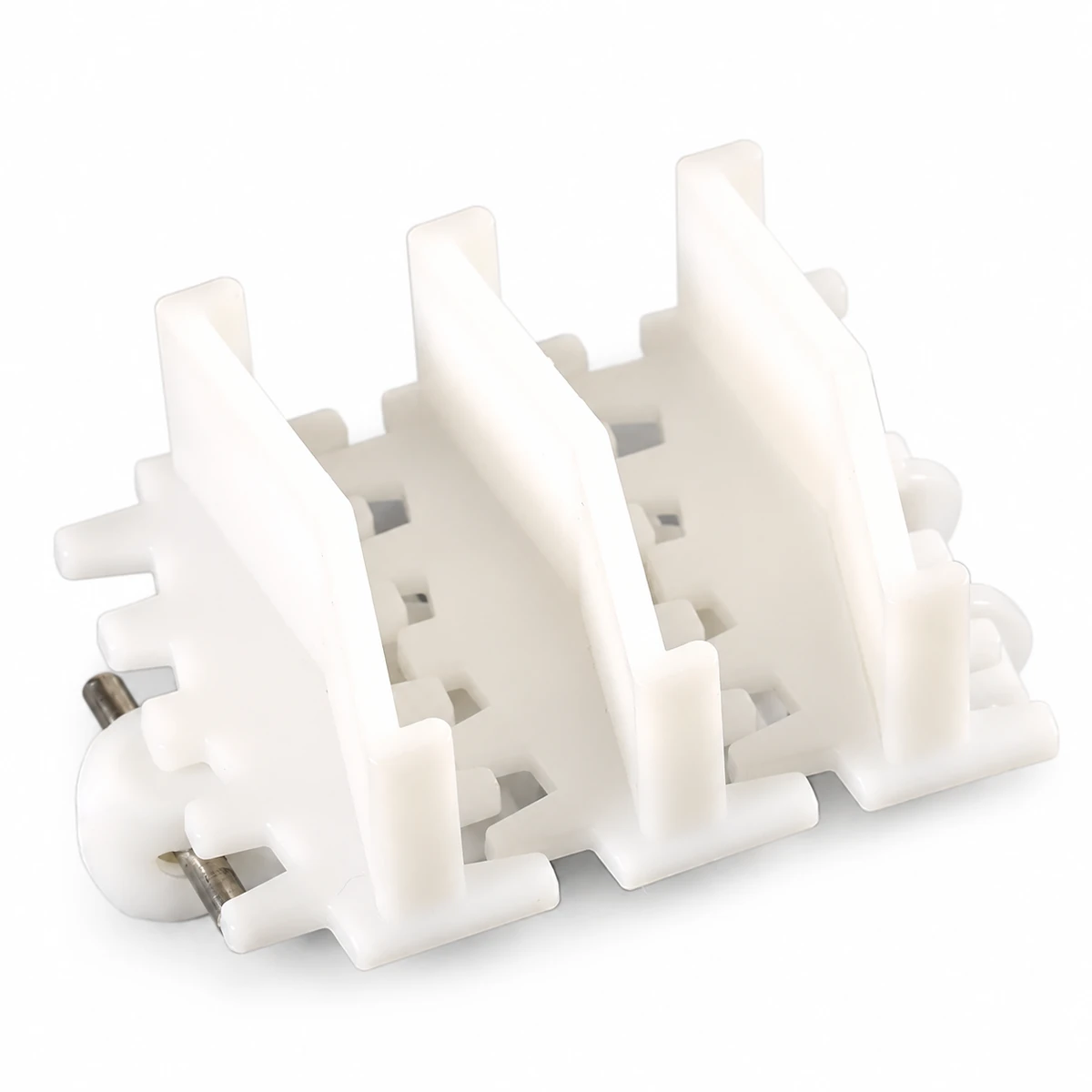

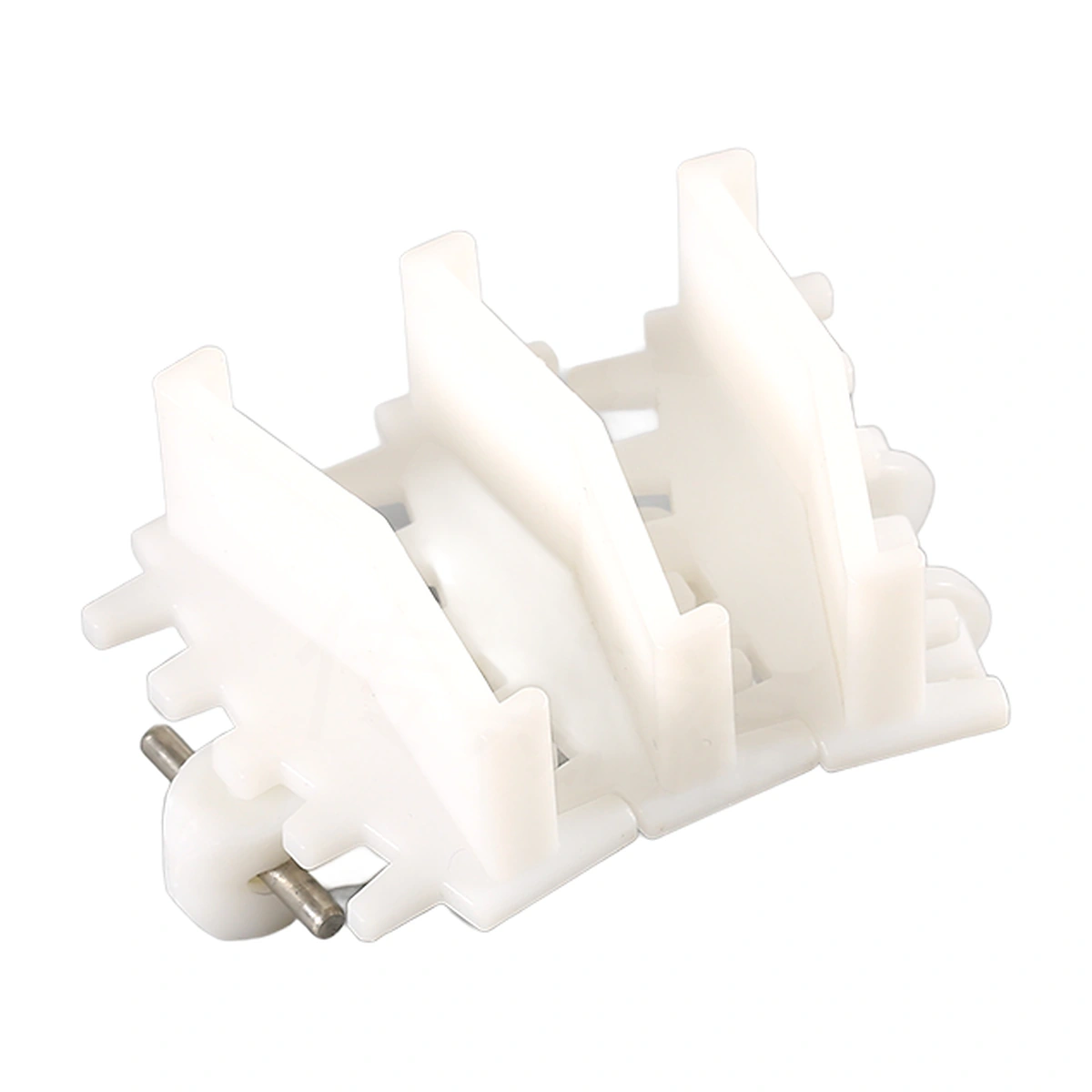

This 63 flexible chain carries raised V-shaped cleats above the plate face. The cleats create a shaped contact feature for positioning or pushing a product as the linked chain moves.
- Top Feature
- Raised V-shaped cleats
- Body Material
- POM
- Listed Speed
- Up to 40 m/min / 131.23 ft/min
This is a raised-cleat version. Check the product's fit between the projecting features and its release at discharge.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 63-series chains. Confirm the tooth count and shaft opening.
Position a Product With Raised Angled Features

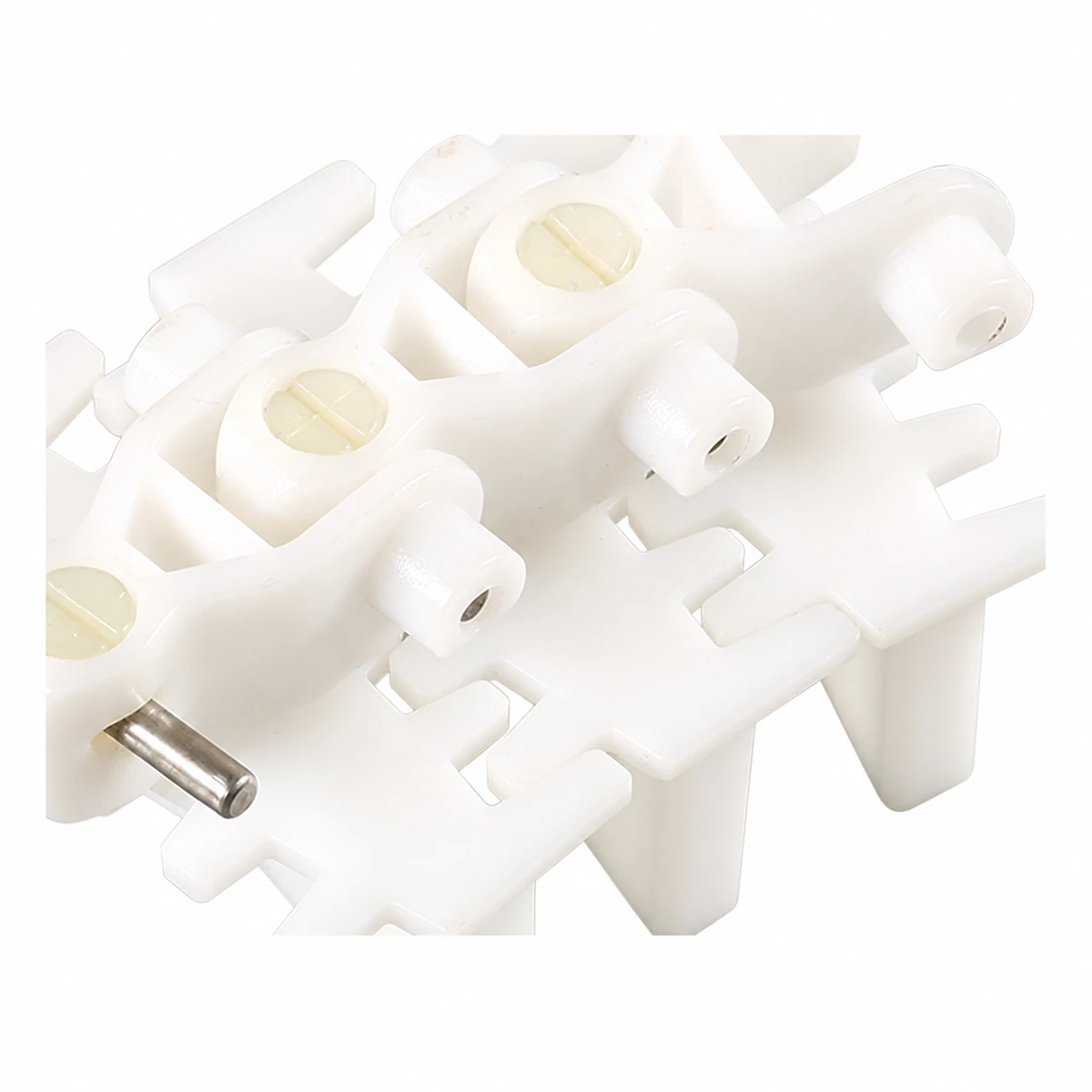

The V-shaped cleats project from the POM plate and contact the product above the carrying surface. Their angled arrangement defines a shaped space along the moving chain. The product geometry determines the useful contact points.
The listed speed is up to 40 m/min. Feed timing and product spacing must work with the chosen cleat arrangement. A product needs room to enter the intended position before the following cleat reaches the loading point.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 63 | |
| Weight | Value: 0.87 kg/m | Converted Value: 0.5846 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤40 m/min | Converted Value: ≤131.2336 ft/min |
Dimensions & Fit

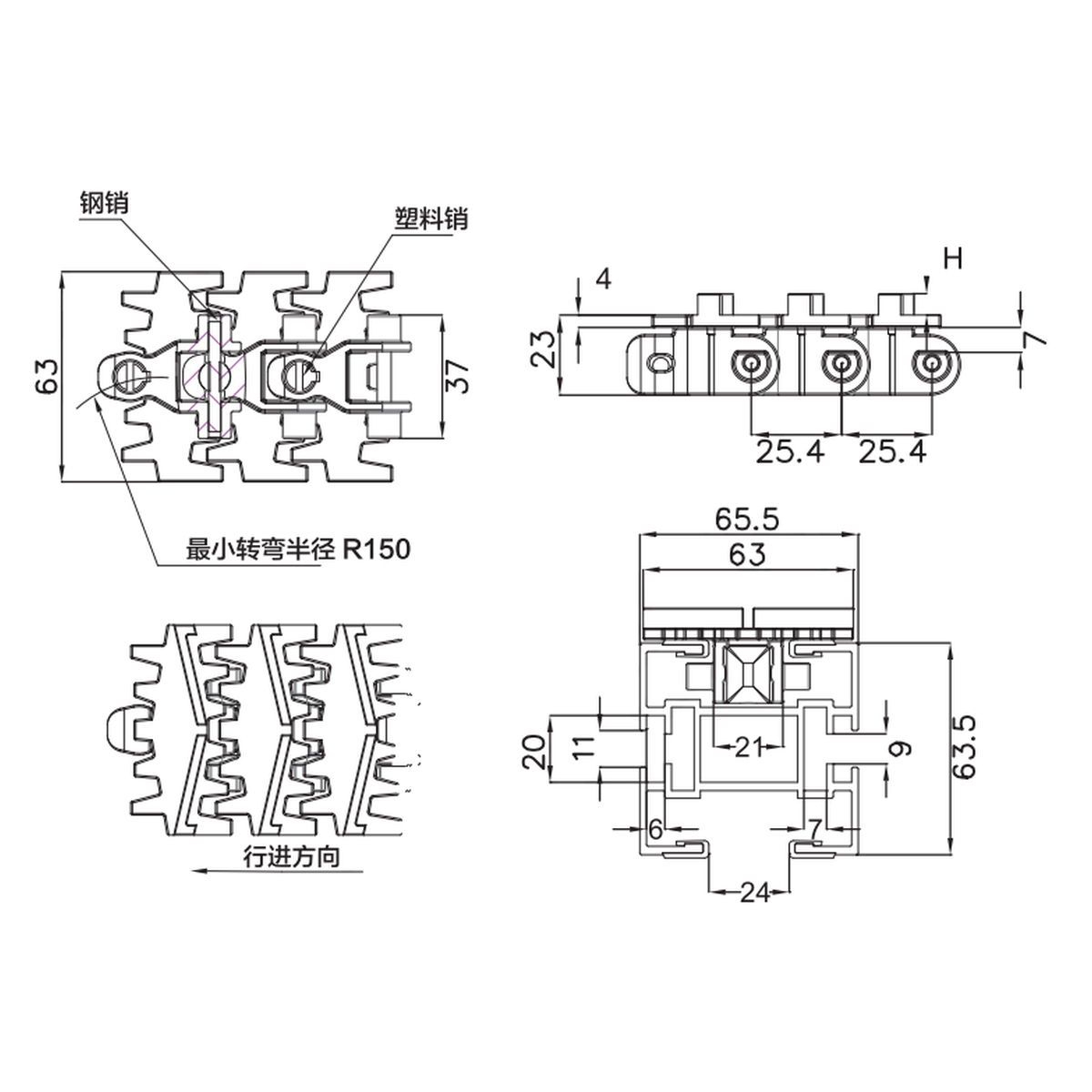

Specify the required cleat height and spacing against a product drawing. Show the intended contact and any clearance needed around projecting product features.
Check the cleats through curves and around the return end. At unloading, the product must clear the raised features without meeting a fixed obstruction. Compare the central link with the actual beam and wheel references.
Carry Products in Shaped Positions Along the Lane
Raised angled cleats are relevant where a product needs a repeatable contact position along the moving chain. The form can guide contact toward a selected region, subject to the product shape and clearances.
A loading device must place the product within the available space. Downstream equipment must then release it from the cleats. Review those transitions with the feed cycle; steady chain speed alone does not establish a suitable product rate.
Request a 63 V-Cleat Chain Quote
Provide chain length and quantity with the product drawing, cleat arrangement and required spacing. Include the loading cycle, discharge direction and existing chain reference.
