5713 Injection-Moulded Modular Belt Sprocket

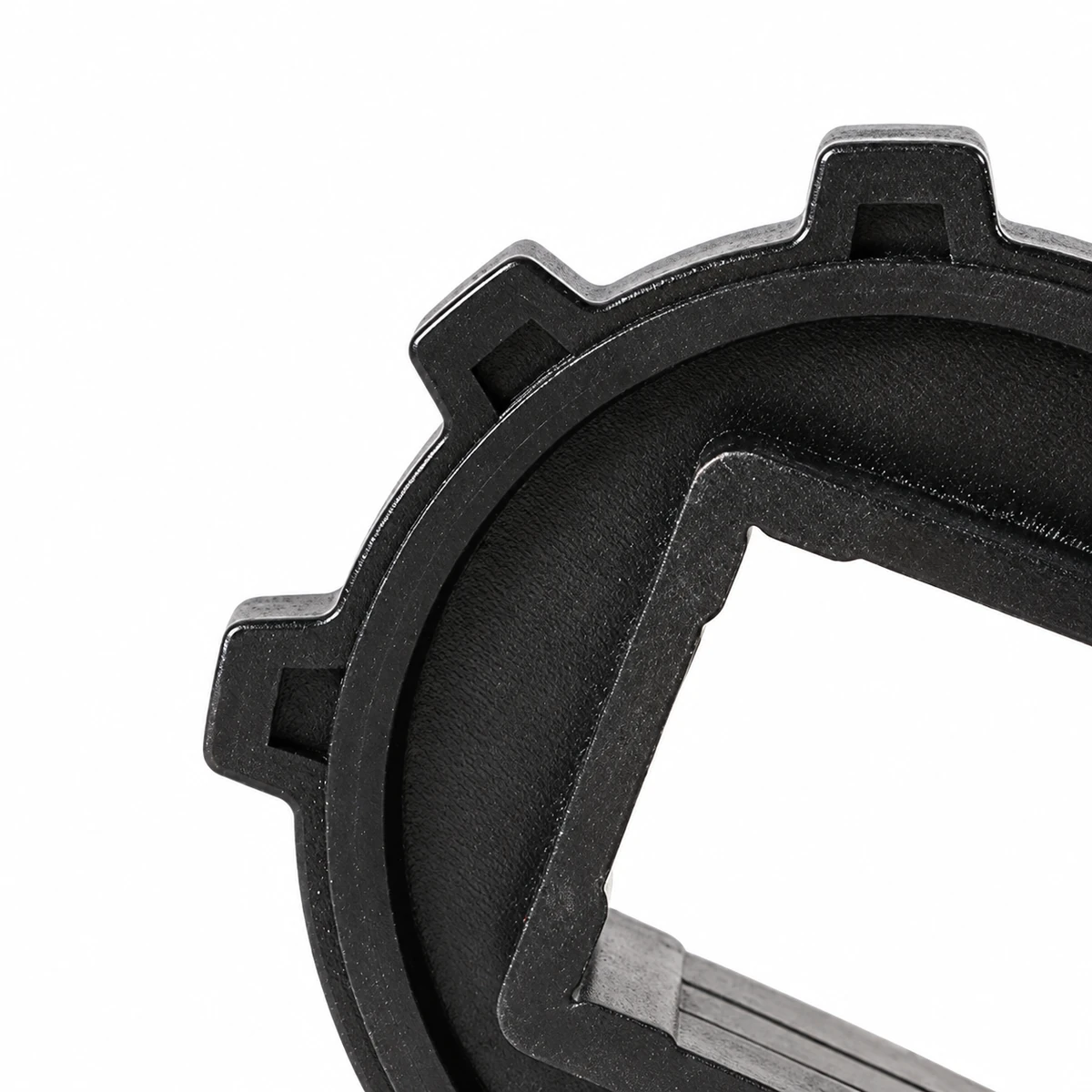

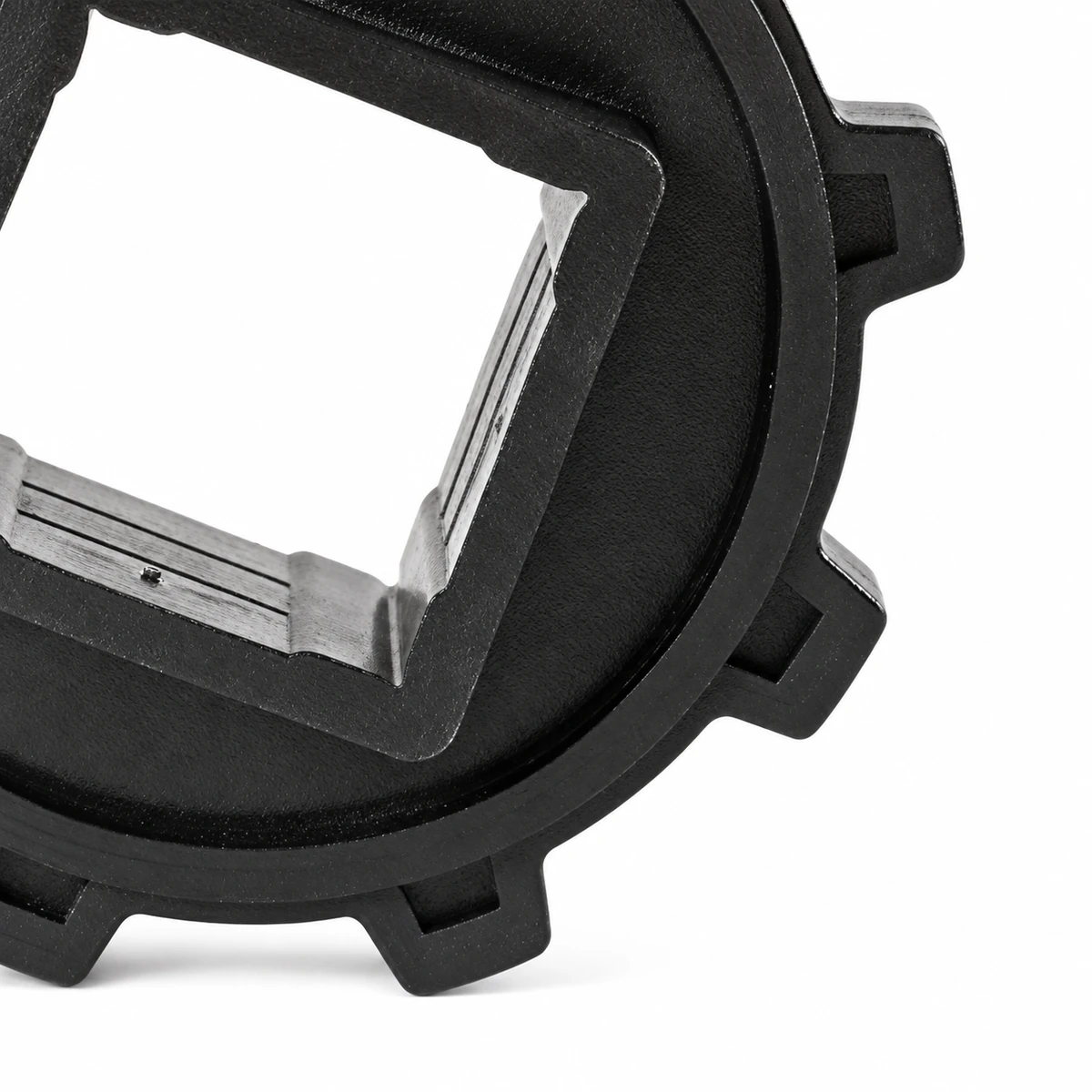

The 5713 is a reinforced-PA injection-moulded sprocket. Its shared 5711/5712/5713 range lists 7, 9, 12 and 14 teeth with different diameters and shaft openings.
- Model
- 5713
- Manufacturing Method
- Injection moulding
- Material
- Reinforced PA
Preserve the Tooth Count When Comparing a Replacement
Check the installed running diameter and end geometry before changing from one listed tooth count to another.
Select a Moulded Variant for the Required End Geometry
The 5713 range offers distinct tooth-count options. Each option changes the diameter around which the belt travels at the shaft. That diameter must suit the available space and the position of the nearby transfer surface.
The full model and shaft-opening specification identify the requested part more precisely than the 5713 series name alone. Confirm the belt engagement and shaft mounting together when selecting from the shared family range.
Specifications
Material: reinforced PA. Manufacturing method: injection moulding.
Shared 5711 / 5712 / 5713 Moulded Range
| Model | Teeth | Pitch Diameter | Outside Diameter | Shaft Opening Options |
|---|---|---|---|---|
| 3-5711/5712/5713-7-30 | Teeth: 7 | Pitch Diameter: 133.58 mm / 5.2591 in | Outside Diameter: 131.6 mm / 5.1811 in | Shaft Opening Options: Round: 30, 35 mm |
| 3-5711/5712/5713-9-30 | Teeth: 9 | Pitch Diameter: 167.1 mm / 6.5787 in | Outside Diameter: 163 mm / 6.4173 in | Shaft Opening Options: Round: 30, 35, 40 mm; square: 50 × 50 mm |
| 3-5711/5712/5713-12-30 | Teeth: 12 | Pitch Diameter: 221 mm / 8.7008 in | Outside Diameter: 221 mm / 8.7008 in | Shaft Opening Options: Round: 30 mm; square: 40 × 40 mm |
| 3-5711/5712/5713-14-30 | Teeth: 14 | Pitch Diameter: 256.8 mm / 10.1102 in | Outside Diameter: 257 mm / 10.1181 in | Shaft Opening Options: Round: 40, 50, 60 mm; square: 80 × 80 mm |
Compare the Running Circle and the Shaft Section
Use pitch diameter when reviewing the belt path and outside diameter for the physical clearance around the sprocket. Check the selected model against the end-frame drawing and the adjacent handoff.
Specify a round bore or square opening explicitly. Include axial space, hub clearance and the locating method on the shaft. Confirm all sprockets in a replacement set have the required tooth alignment and belt-contact positions.
Renew the Sprockets at a Conveyor End
When a moulded sprocket is replaced, matching the tooth count preserves the nominal running diameter. The bore and hub must also suit the installed shaft and surrounding components.
A change to a larger or smaller variant alters the belt's end path. Review the transfer height, frame clearance and contact with the sprocket set before making that change.
Select Your 5713 Variant
Send the full model reference or tooth count, shaft opening and quantity. Include the belt reference and conveyor-end drawing if the replacement changes the installed geometry.
