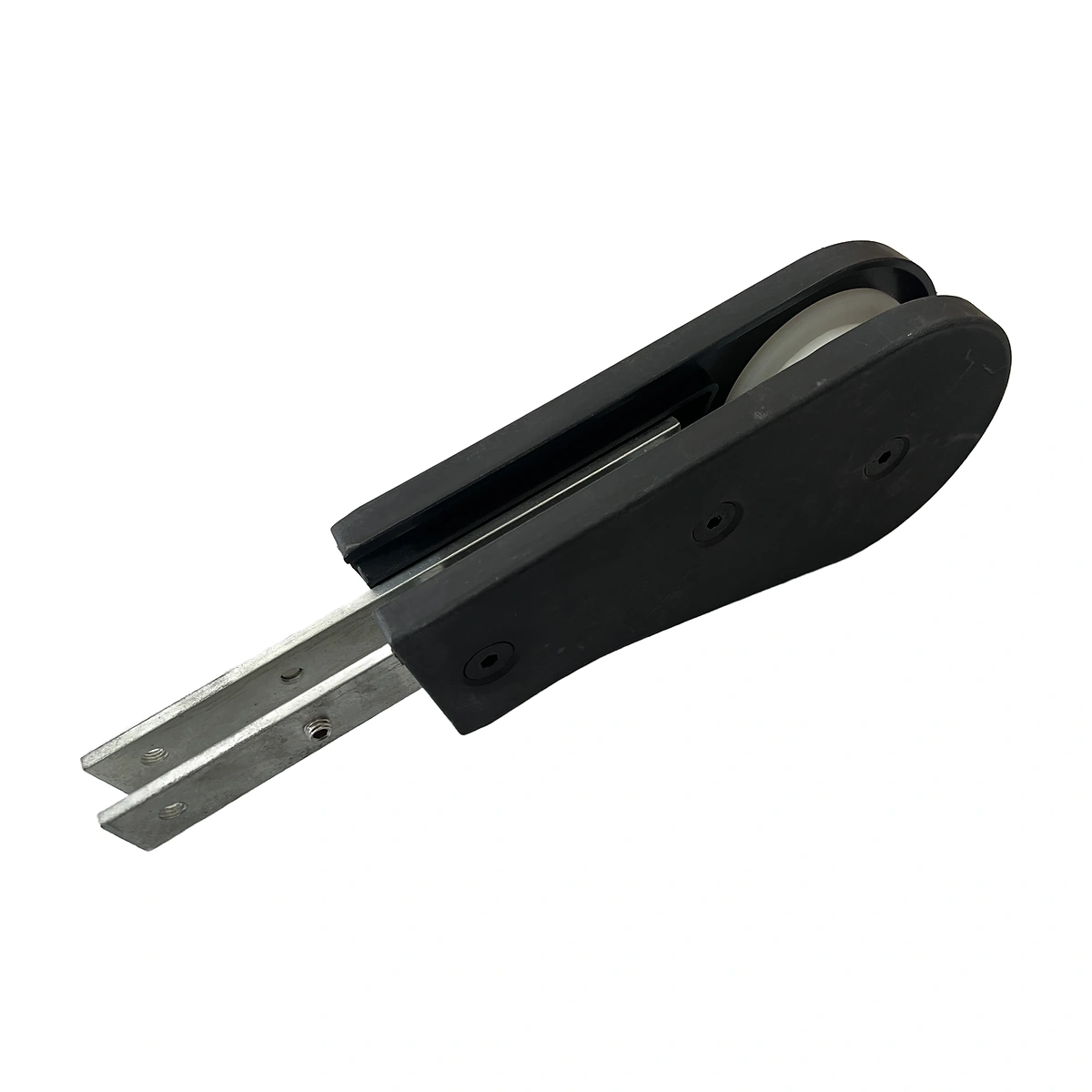

44 Chain Conveyor Idler End Unit
The 44 chain conveyor idler end unit redirects the chain at the non-driven end of its circuit. Match the existing end assembly from its beam connection and turnaround geometry.
- Series
- 44
- Position
- Non-driven end
- Function
- Chain turnaround
Confirm the exact idler assembly. The 44 drive-head material and reducer details do not establish this tail unit's specification.
Match the Non-Driven End as an Assembly

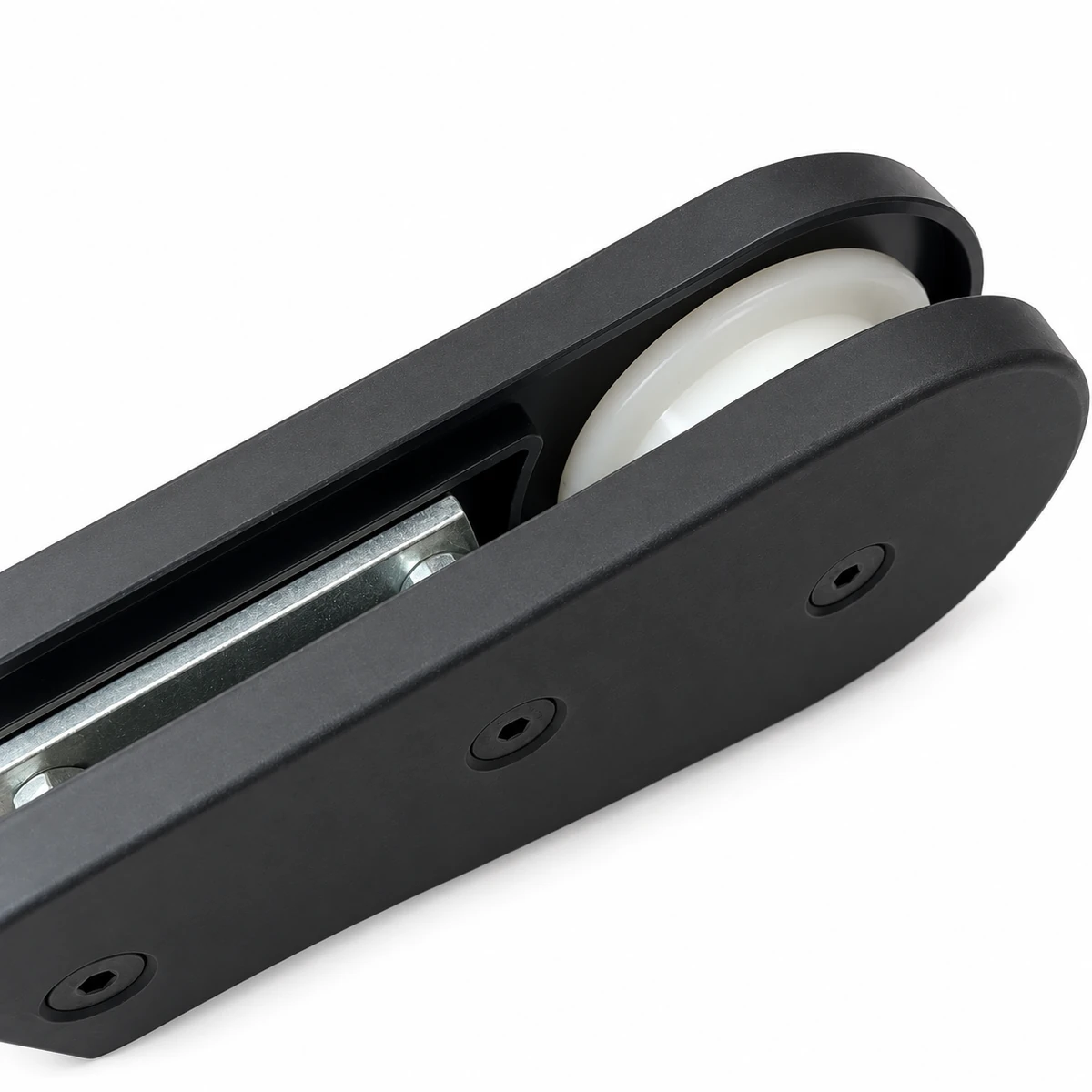

The idler locates the rotating turnaround parts relative to the conveyor beam. Its shaft support and side plates allow the chain to move between the return and carrying runs at the end of the circuit.

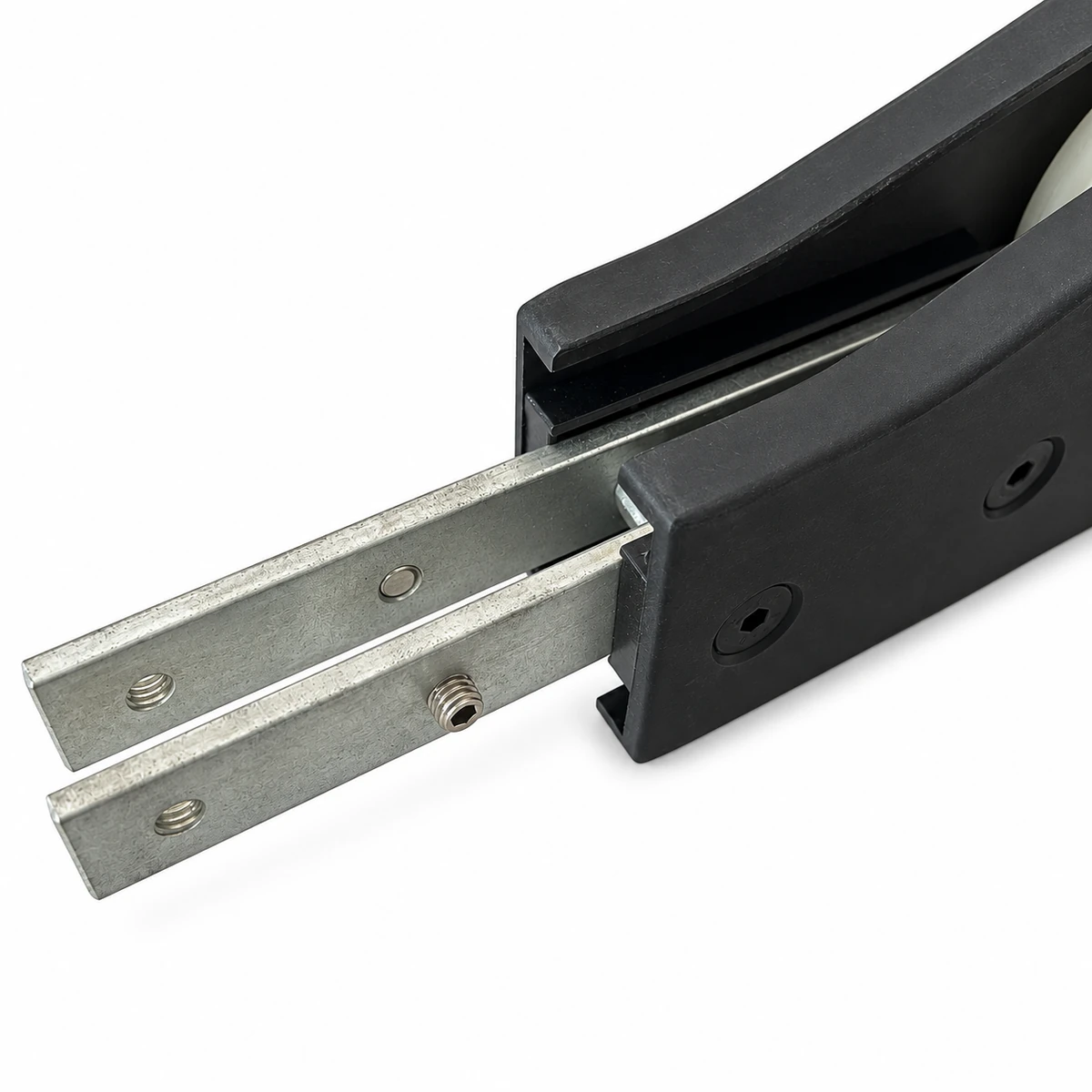

For a replacement, compare the entire beam connection and shaft position. Individual parts can look similar to those at the driven end while serving a different connection. Identify the actual tail unit before selecting its components.
Specifications
| Parameter | Specification |
|---|---|
| Series | Specification: 44 |
| Component | Specification: Chain conveyor idler end |
| Role | Specification: Non-driven turnaround |
| Matching basis | Specification: Actual beam, shaft support and chain reference |
Dimensions & Fit
Provide views of both sides and the beam connection. Mark the shaft position relative to the carrying level and show the available return clearance.
If only one component is needed, identify it on the assembly photograph. Confirm the mating features from a dimensioned drawing rather than applying drive-head dimensions to the idler.
Re-Enter the Carrying Run at the Tail
The chain turns at the tail before travelling along the loaded run. Its support needs to meet the straight beam at the correct position on both the carrying and return levels.
The product enters above this turnaround. Check its base support and the gap from the preceding conveyor separately, particularly where a small item could tip before reaching the chain.
Discuss a 44 Idler End
Send the 44 assembly and chain references, beam-end photographs and quantity. Include an existing drawing or shaft-position measurements for comparison.
