295 Flexible Chain

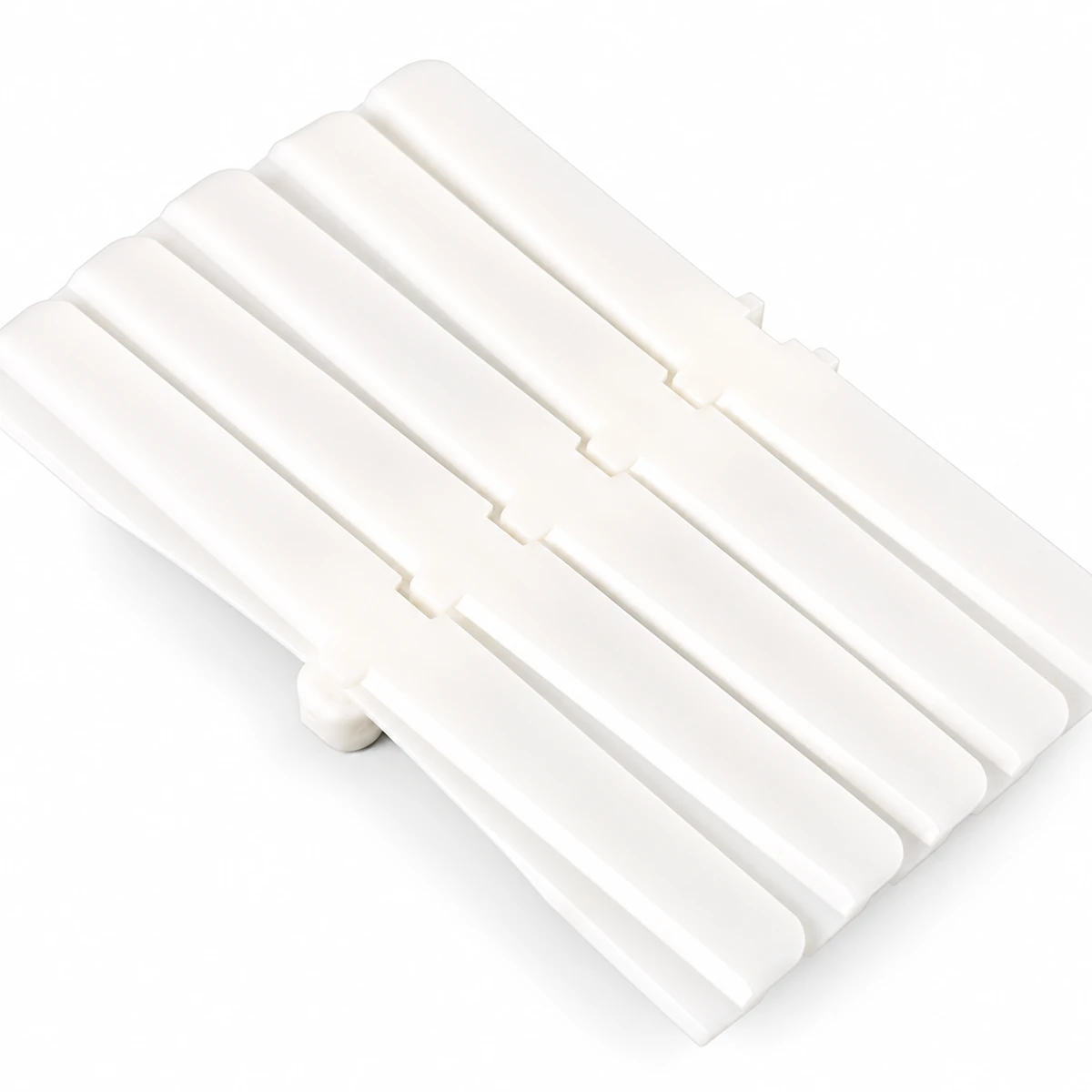

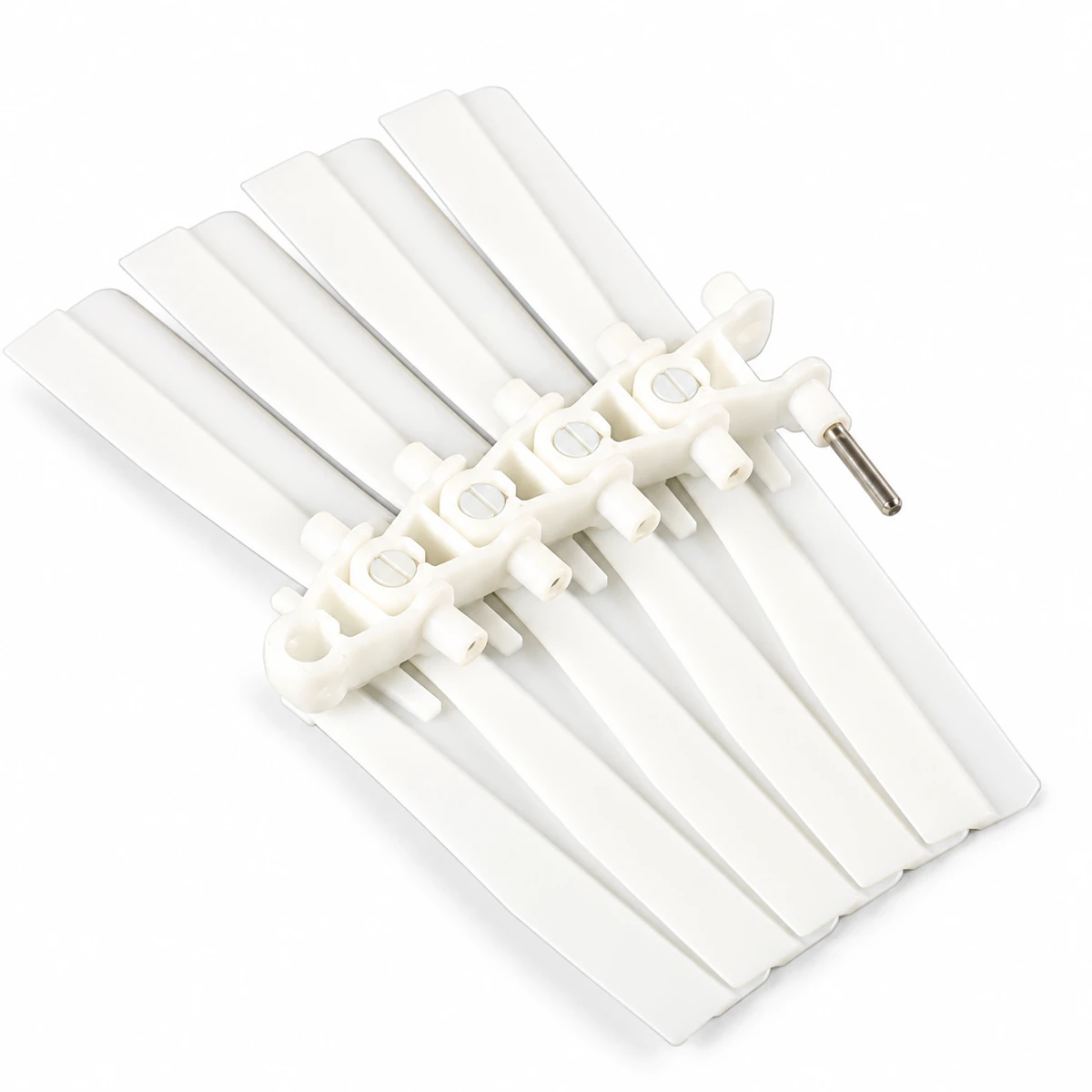

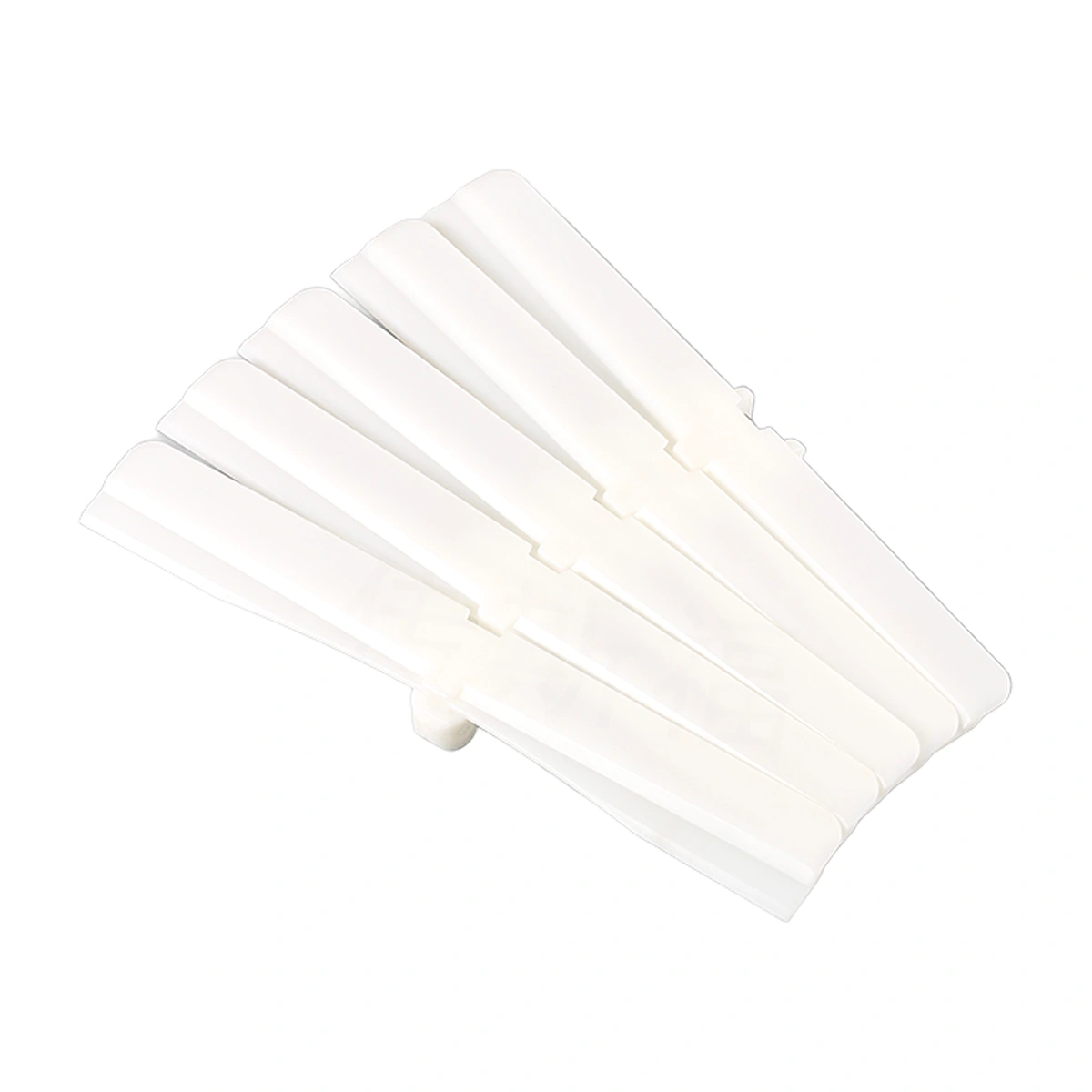

The 295FL provides a 295 mm flat carrying surface above a central flexible-chain link. Broad POM plates support the pack while the underside joints follow the conveyor route.
- Carrying Width
- 295 mm / 11.61 in
- Pitch
- 33.5 mm / 1.32 in
- Chain Mass
- 3.00 kg/m / 2.02 lb/ft
Review support beneath the full carrying width. The broad plate and the central joint occupy different envelopes.
Spread Product Support Across the Lane
The 295FL gives a broad pack more carrying contact than a narrow flexible chain. The plate reaches out from the central running joint, so the beam and wear strips must support the selected loading position.
The chain mass is 3.00 kg/m. That moving mass contributes to drive demand along with the product and route resistance. A broad plate increases available support area; it does not by itself establish a heavier allowable payload.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 295FL | |
| Weight | Value: 3.00 kg/m | Converted Value: 2.0159 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Dimension | Value |
|---|---|
| Carrying width | Value: 295 mm / 11.61 in |
| Pitch | Value: 33.5 mm / 1.32 in |

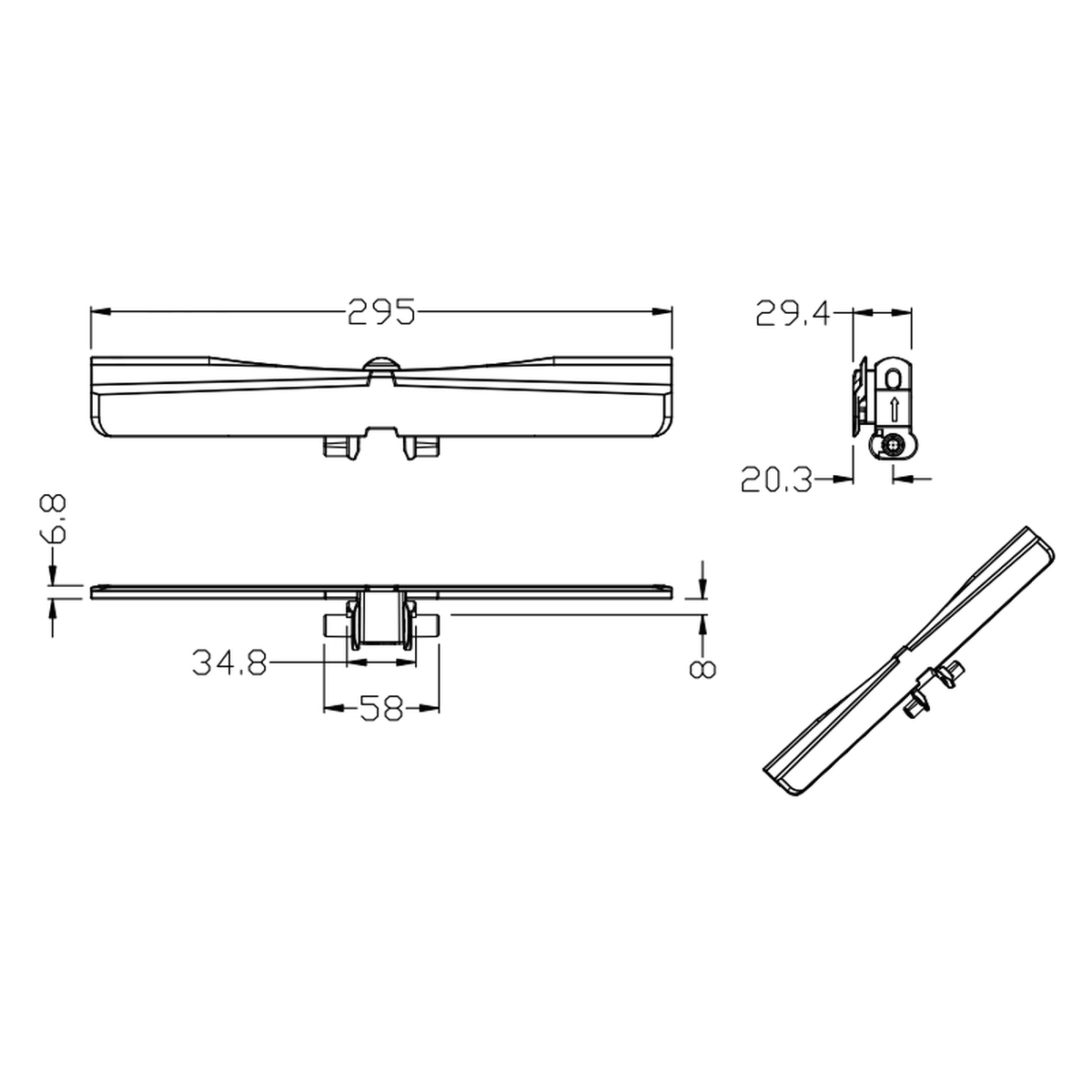

Dimensions & Fit
Use the 295 mm carrying width and 33.5 mm pitch when comparing the chain, then check the actual underside drawing. Show the wear-strip positions beneath the plate.
Review the pack's swept envelope through the bend using the dimensioned route. At discharge, check the full leading edge of the pack over the transfer gap. The product corners can reach beyond the central running path.
Move Broad Packs Along a Flexible Route
The 295FL is a candidate for wide cartons or packs that need support across their base between packaging stations. The carrying face moves with the pack while the central articulated chain follows the route.
A broad base can conceal an unsupported edge. Check the bottom construction and off-center loading, especially at curves or side transfers. Match the receiving height to the carrying face so the pack does not tip onto its leading corner.
Request a 295FL Quote
Provide the 295FL reference, required length and quantity with pack dimensions and loading position. Include the route drawing, support layout and existing drive reference.
