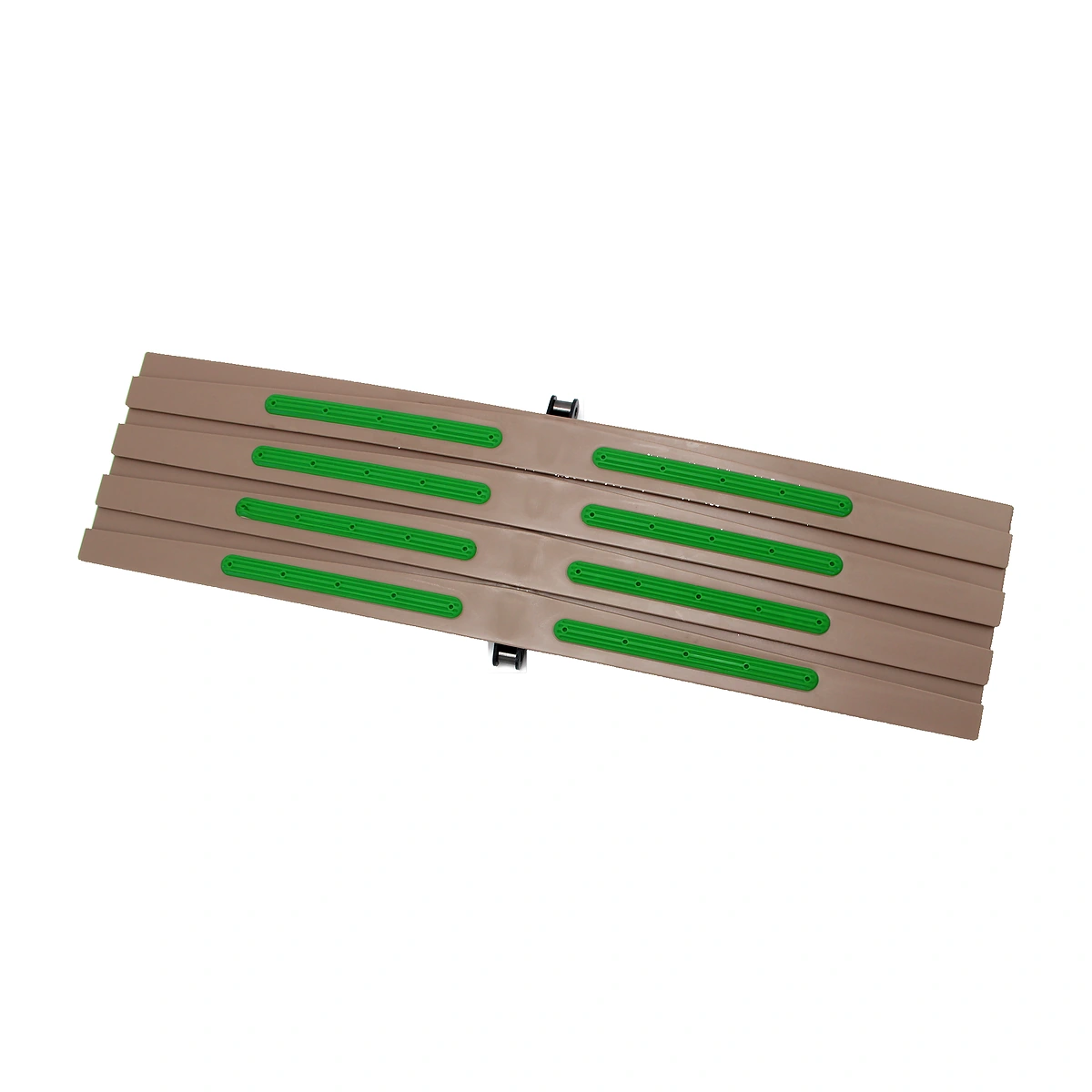

1873/1874T Plate Top Chain with Bearing Roller
This bearing-roller plate chain adds a rolling element beneath the carrying plate. The underside roller must meet the intended guide surface while the plate supports the product above.
- Product Family
- 1873 / 1874T
- Component Feature
- Underside bearing roller
- Fit Focus
- Roller-to-guide contact
Identify Which Surface the Roller Runs Against
The bearing position and supporting rail must be reviewed as one arrangement.

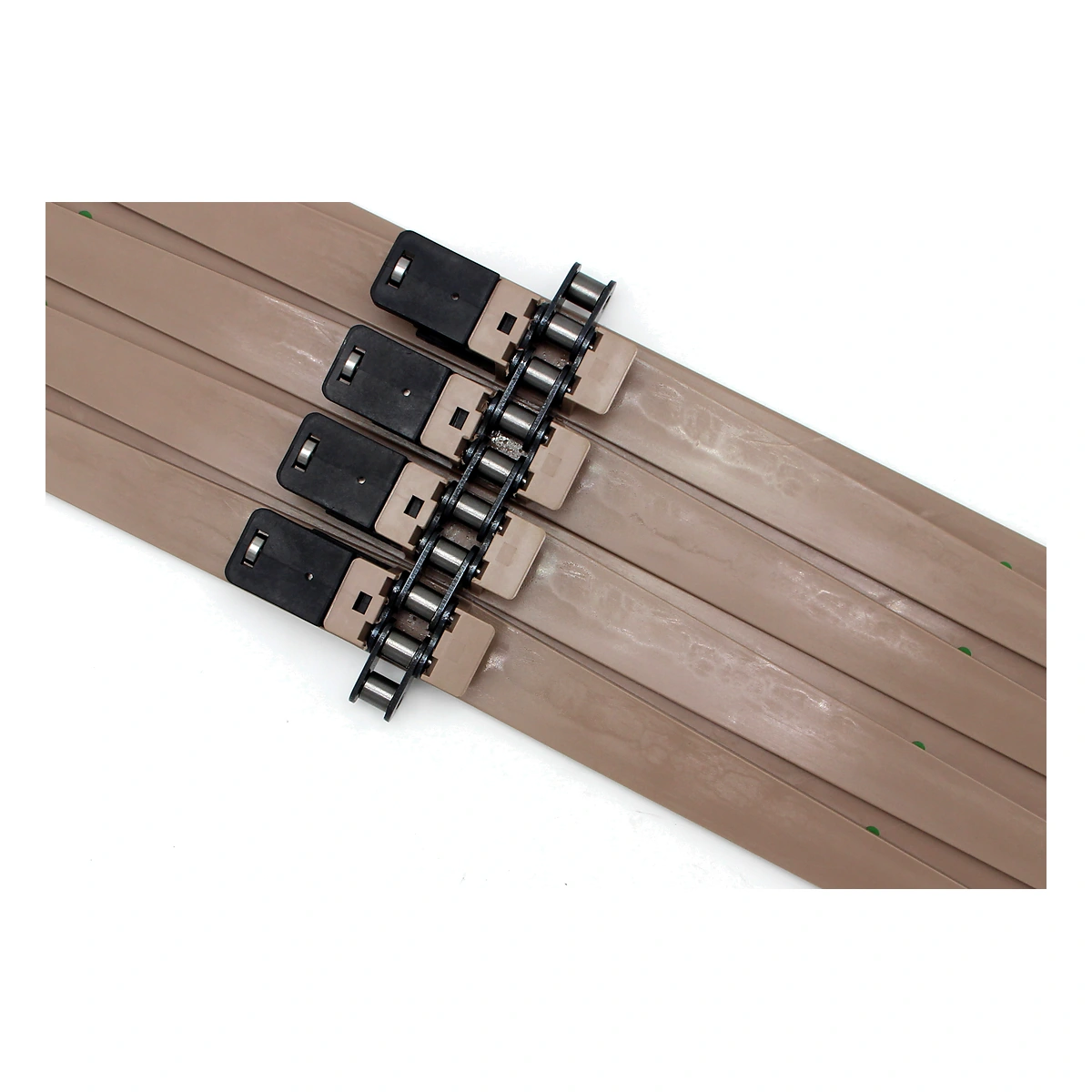

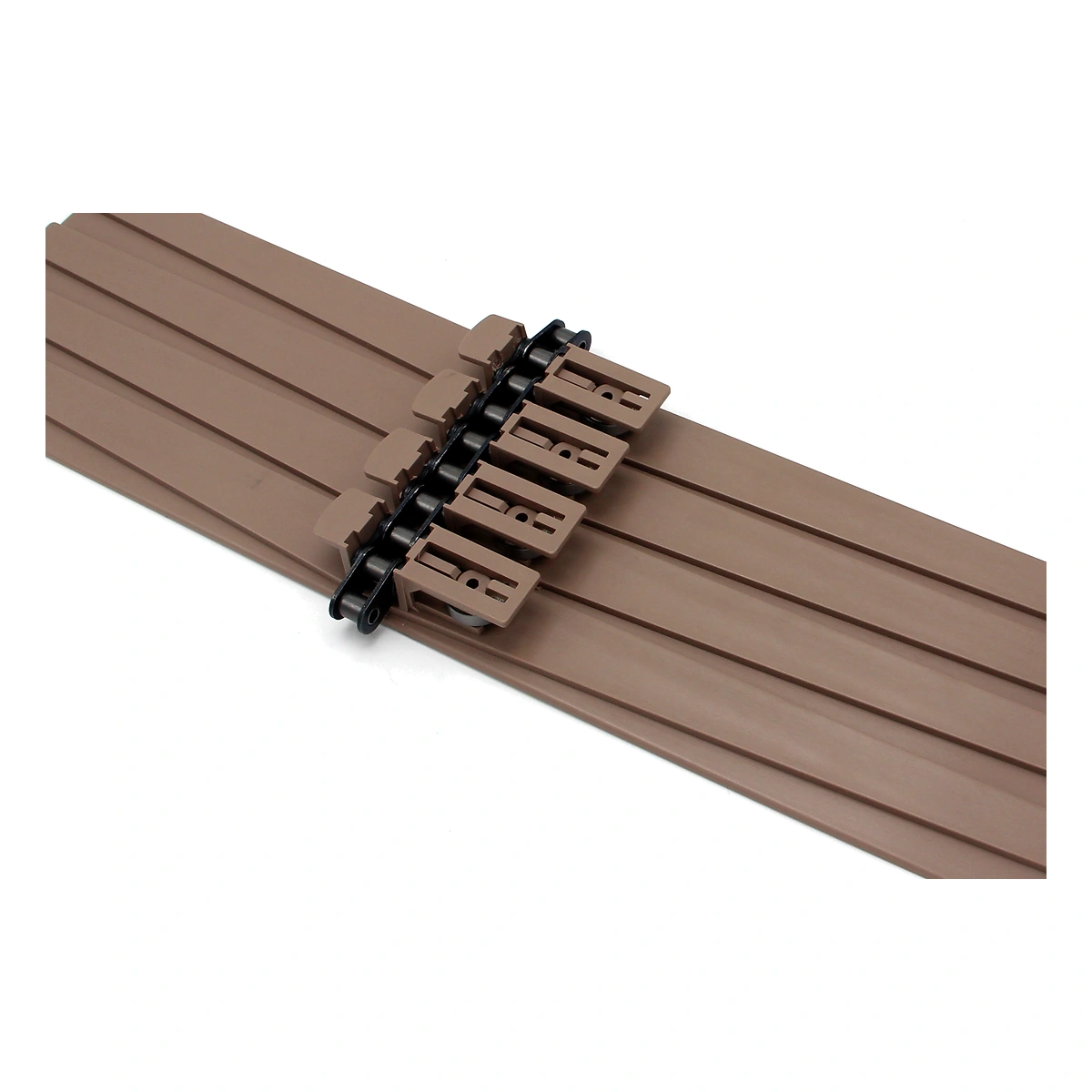

Rolling Guidance Below the Carrying Plate
The bearing roller changes the contact beneath the top plate. Where it meets a guide, that contact can roll as the chain moves through the route. Its orientation matters because only the intended running face should load the roller.
The family description covers more than one plate-chain assembly. Establish the actual plate, base chain and bearing arrangement from the installed unit before specifying a replacement. A bearing reference alone does not define the complete chain.
Specifications
| Selection Item | Detail |
|---|---|
| Product family | Detail: 1873 / 1874T bearing-roller plate chain |
| Roller position | Detail: Beneath the carrying plate |
| 1873 base-chain family | Detail: 12A roller chain |
| Assembly comparison | Detail: Plate, bearing location and guide section |

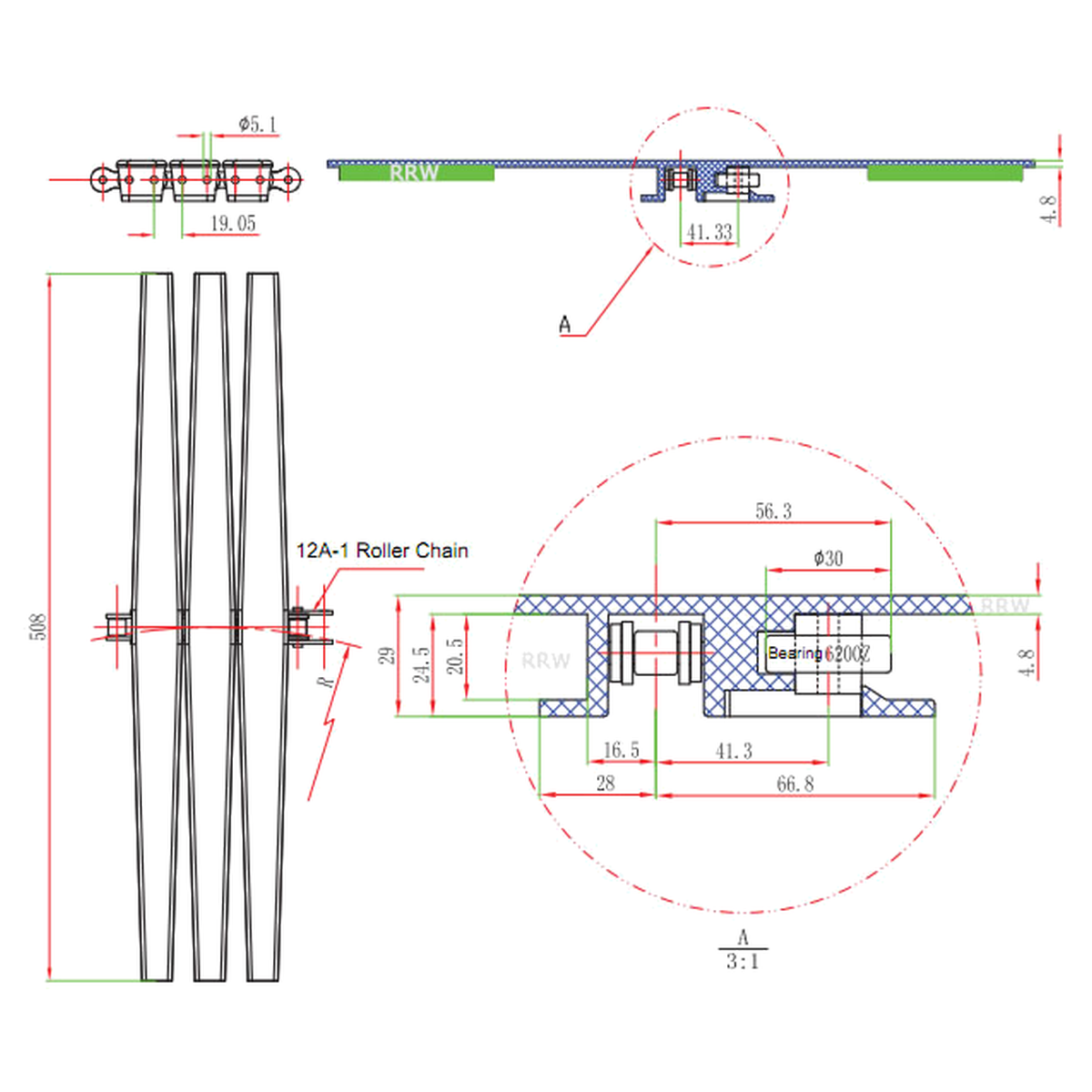

Compare the Bearing Centre with the Guide
Show the roller position relative to the plate and base-chain centreline. Include roller clearance, rail contact height and the support beneath the carrying surface.
For a curved route, check the roller's side and orientation through entry and exit. Confirm drive and return clearance using the complete assembly rather than the plate outline alone.
Guiding a Broad Plate Through a Curve
A plate-chain conveyor may need guided contact beneath its carrying surface. An underside bearing provides a rolling contact point where the arrangement is designed for it.
The guide should bring that contact into position gradually at the curve entry. Product support and bearing guidance need separate checks: a correctly guided chain can still leave a narrow product base poorly supported at discharge.
Compare Your Bearing-Roller Chain
Send photographs of the top and underside, a dimensioned bearing location and the required length and quantity. Identify the installed 1873 or 1874T assembly and guide section for CSTRANS to review.
