175 Semi-Enclosed Chain Conveyor Idler End Unit

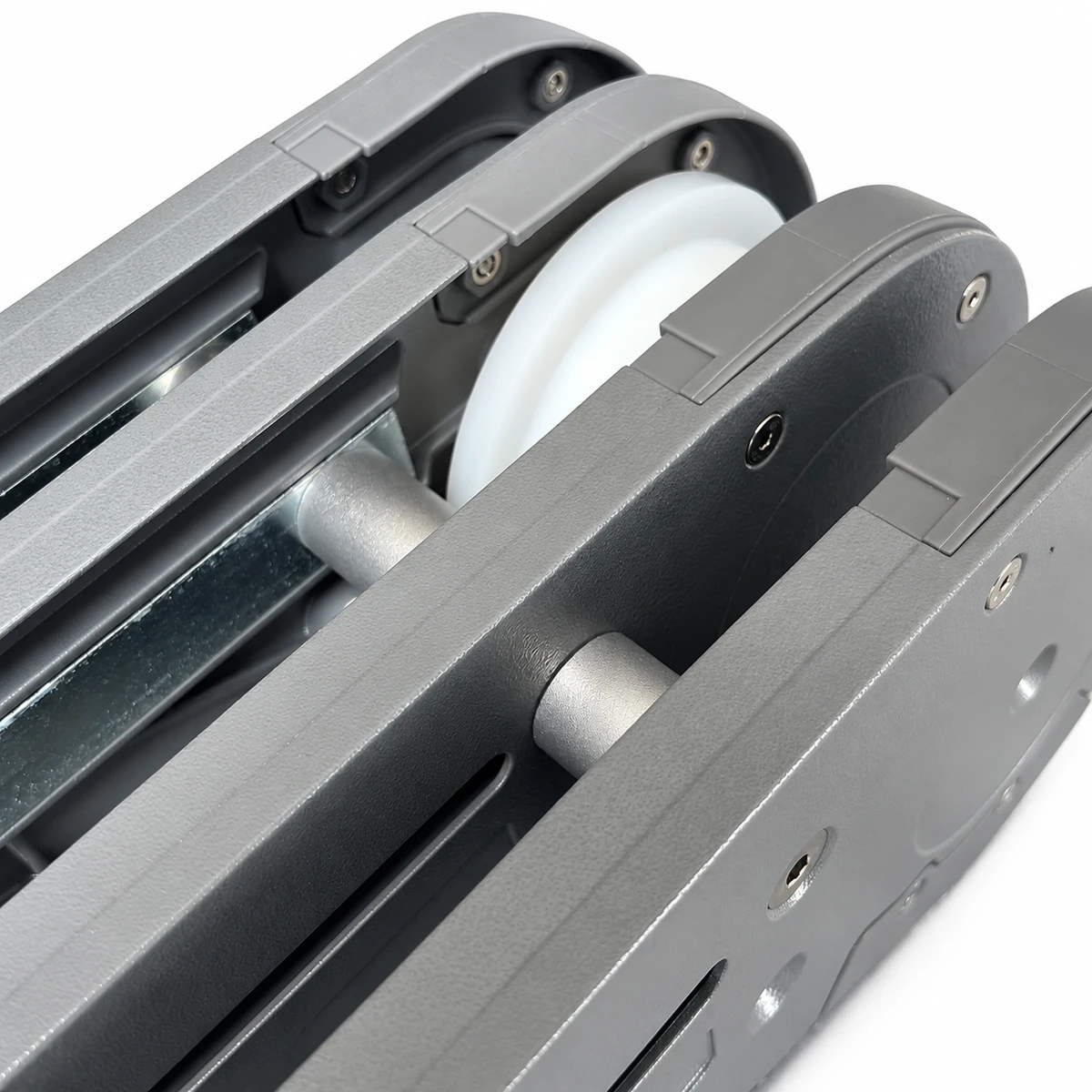

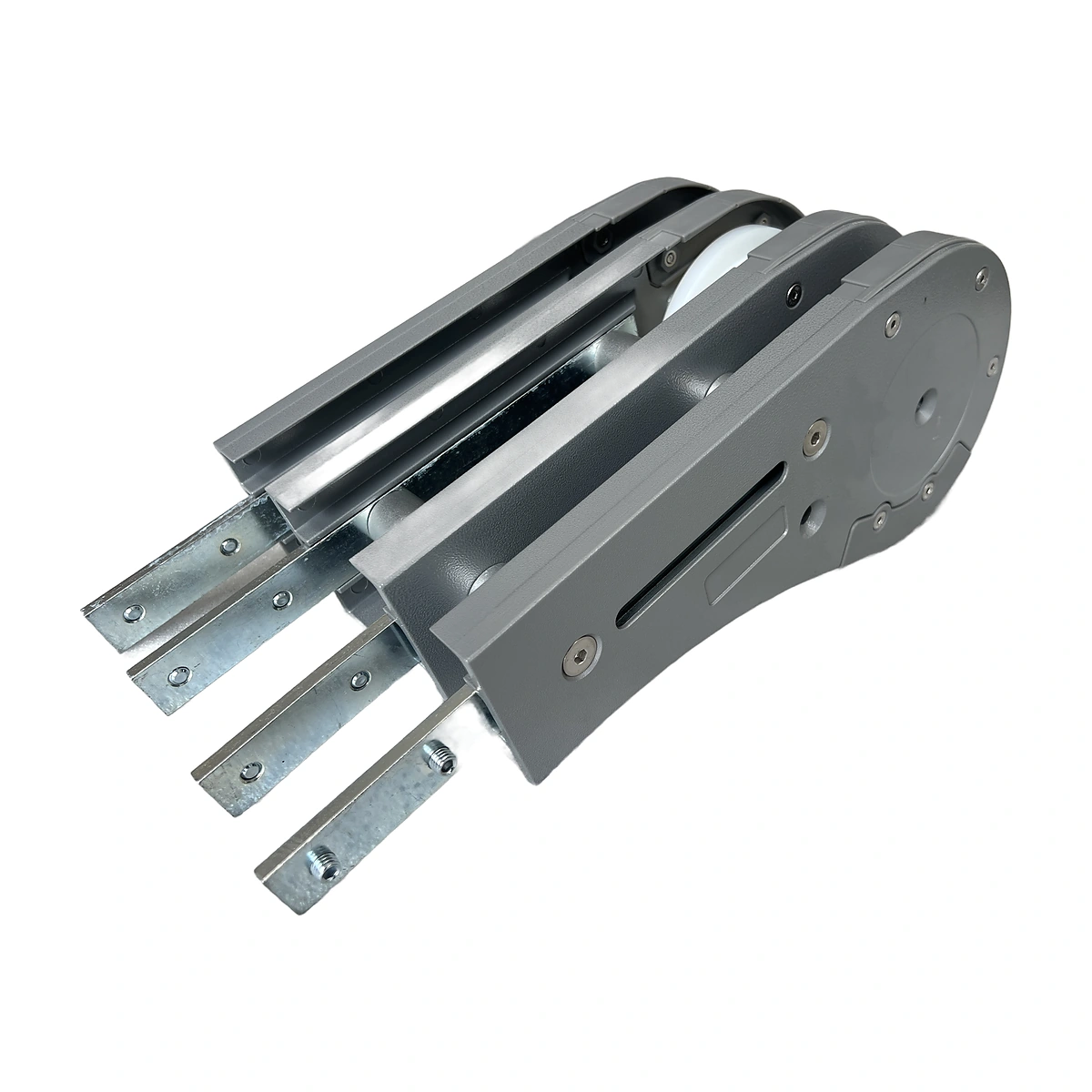

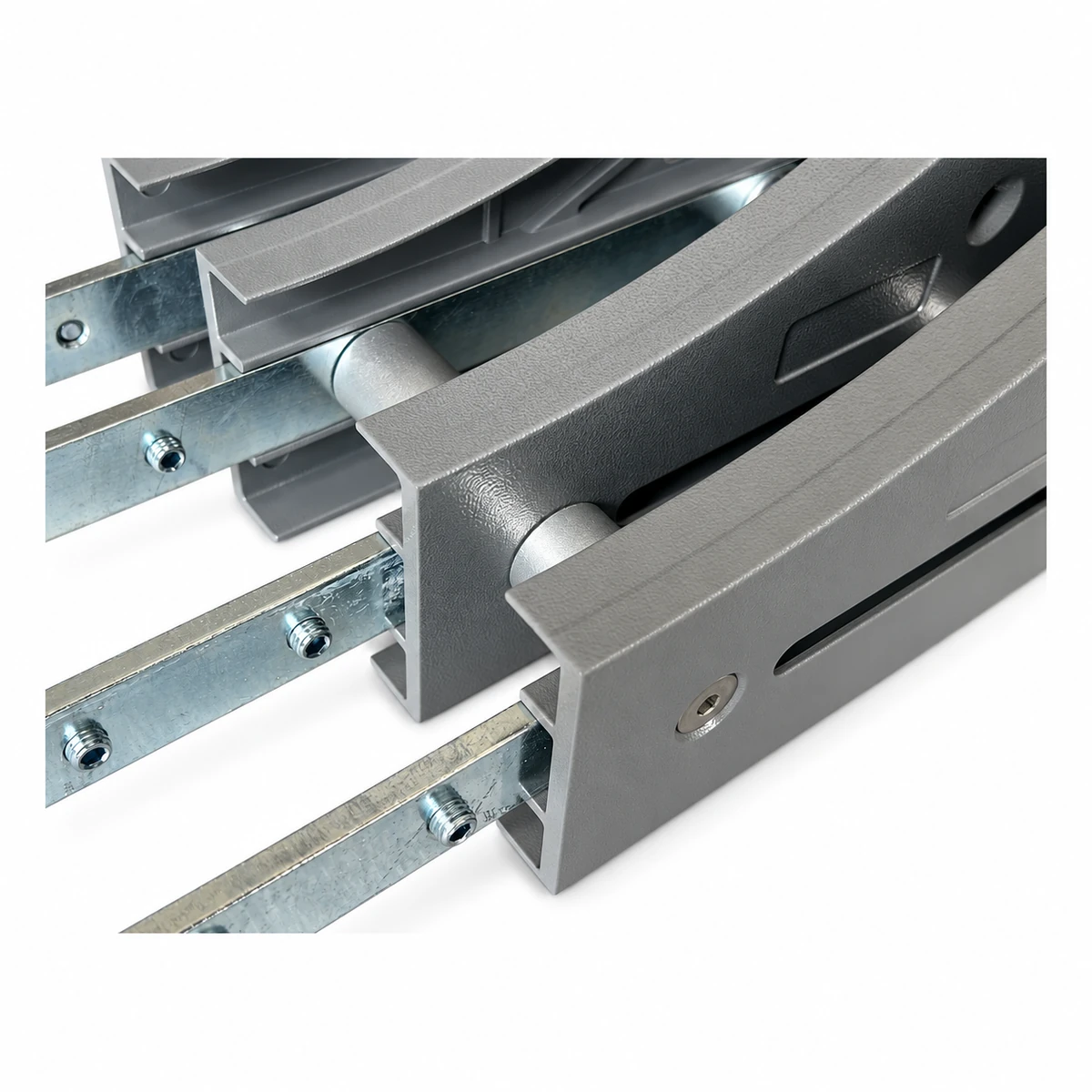

The 175 semi-enclosed chain conveyor idler end unit uses two 85-series modules side by side. It forms the non-driven turnaround for the 175 chain circuit.
- Chain family
- 175
- Construction
- Semi-enclosed
- Arrangement
- Paired 85-series modules
Check module spacing across the complete idler assembly. A wide chain needs the two supporting paths positioned consistently.
Align the Paired Non-Driven End
The paired arrangement forms the wider idler end for the 175 family. The shaft and supporting modules redirect the chain without the motor connection required at the driven end.
The transverse relationship between the modules needs to match the chain and beam. Compare the complete idler arrangement with the existing conveyor before selecting individual plates, shafts or connecting parts.
Specifications
| Parameter | Specification |
|---|---|
| Chain series | Specification: 175 |
| Construction | Specification: Semi-enclosed |
| Module arrangement | Specification: Two 85-series modules side by side |
| Role | Specification: Non-driven end turnaround |
Dimensions & Fit
Provide the 175 chain and beam references with the spacing across the idler supports. Check the shaft arrangement and beam connectors on both sides.
Show the carrying level and return clearance. Confirm the product-entry support above the turn independently from the lower chain-path dimensions.
Return a Broad Chain to Its Loaded Path
A broad chain needs its turnaround supported across the selected assembly. Misalignment between the paired modules can change how the chain enters the straight beam.
At the product entry, check that the base reaches a supported carrying surface. The idler redirects the chain; the adjoining transfer arrangement determines how the product crosses onto it.
Discuss a 175 Idler End
Send the 175 chain reference, paired-support spacing and idler photographs. Include the required assembly version and quantity.
