175 Semi-Enclosed Chain Conveyor End Drive Unit

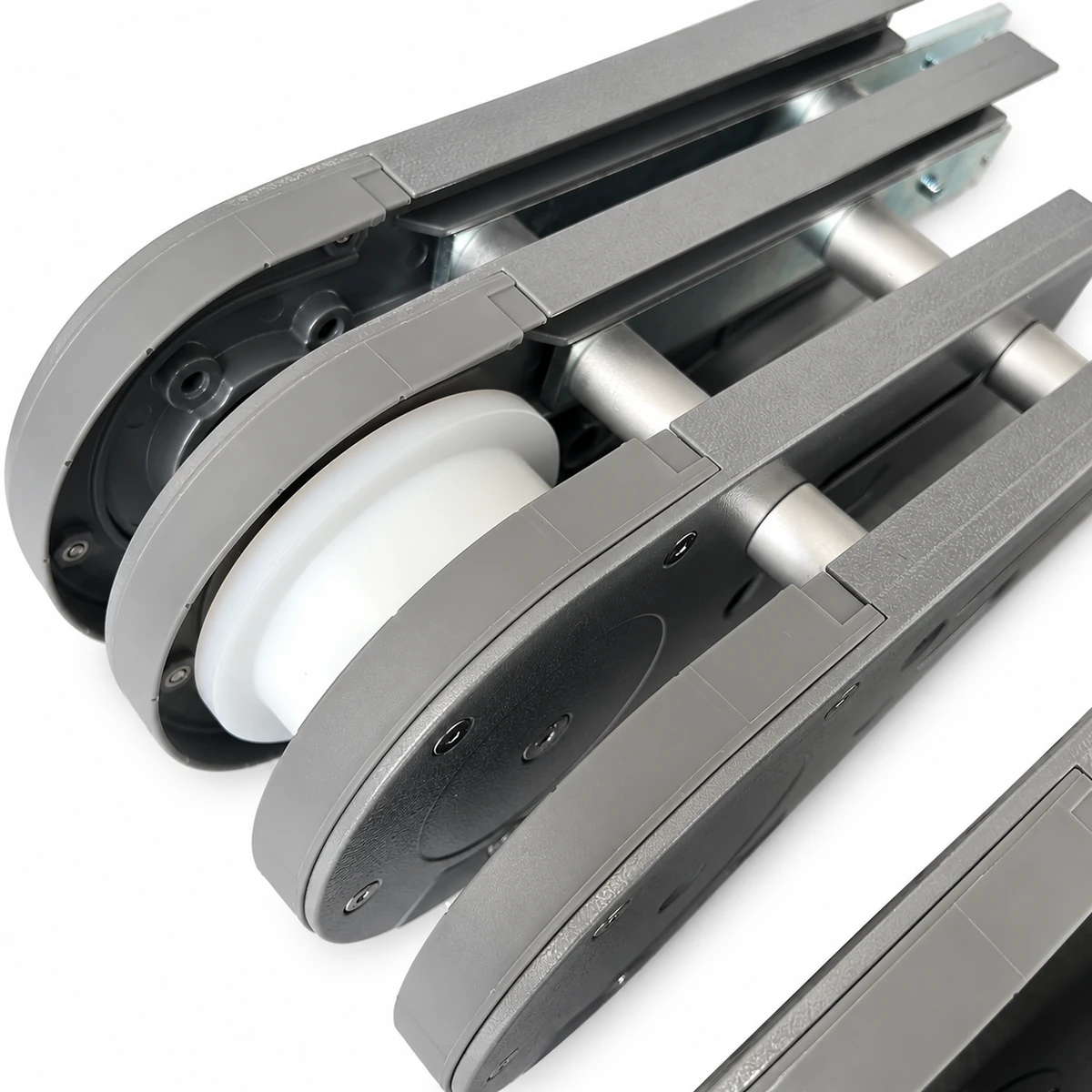

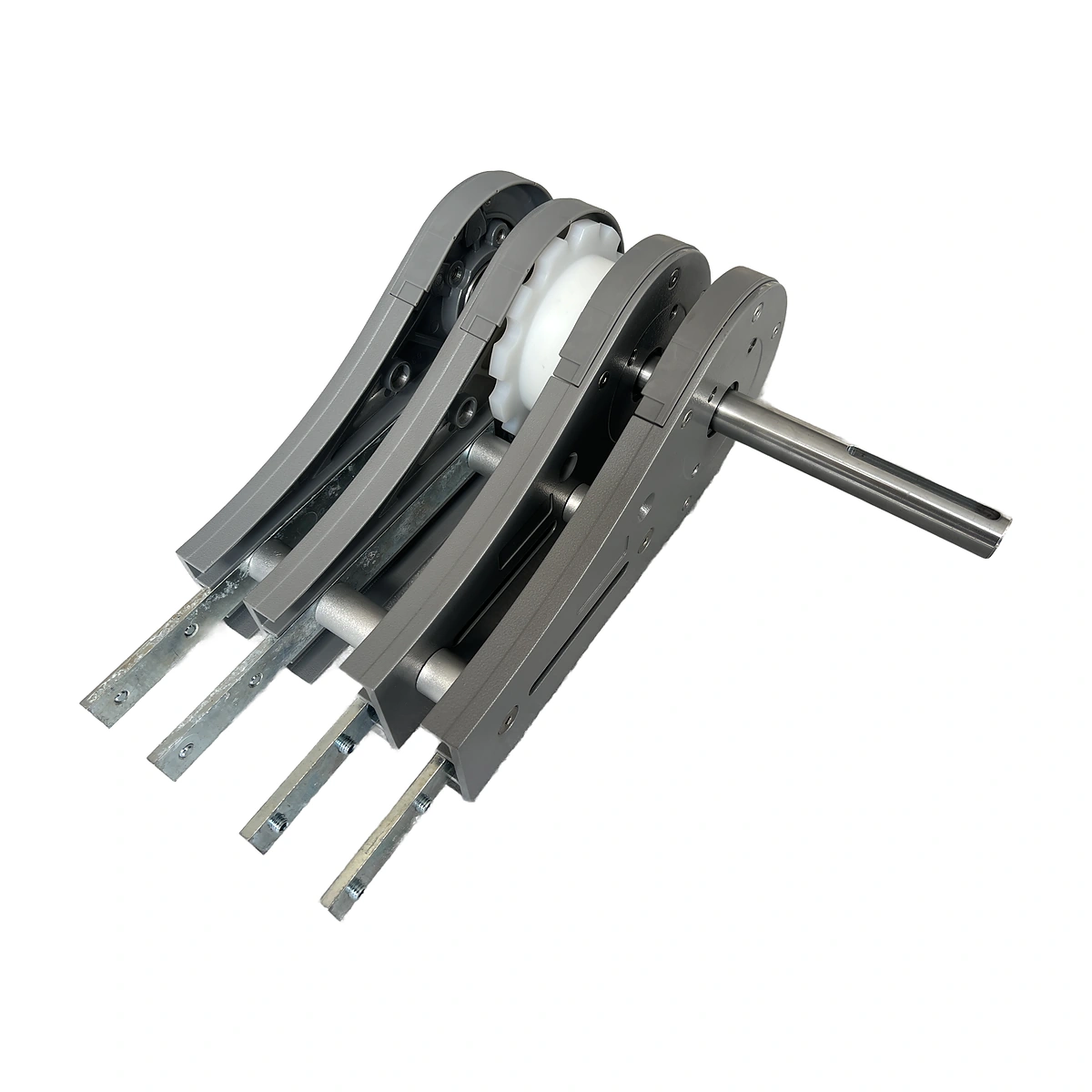

The 175 semi-enclosed chain conveyor end drive unit uses two 85-series modules side by side. The paired arrangement supports the end-drive configuration for the 175 chain family.
- Chain series
- 175
- Construction
- Semi-enclosed
- Module arrangement
- Two 85-series modules
Check the transverse spacing and shaft arrangement across both modules. The 175 series reference is not an overall-width dimension.
Drive the 175 Route With a Paired Arrangement

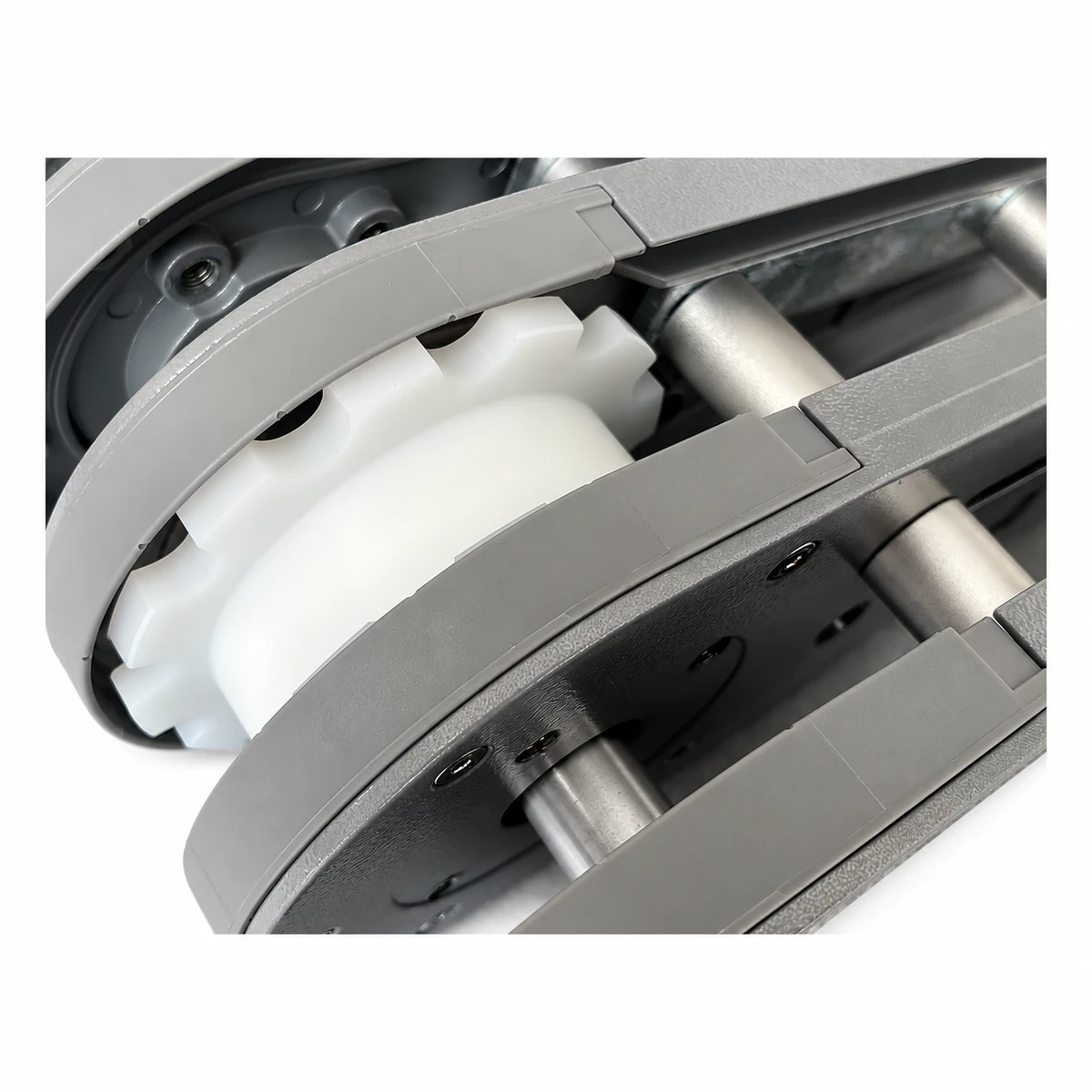

The two modules form the wider end assembly around the drive shaft and sprocket arrangement. Their relative positions need to match the 175 chain path and the adjoining beam structure.
The semi-enclosed construction leaves an identifiable side-plate layout for fit comparison. Check the drive-side shaft projection and the connection spacing together. Replacing the unit requires the whole paired arrangement to align with the existing route.
Specifications
| Parameter | Specification |
|---|---|
| Chain family | Specification: 175 |
| Construction | Specification: Semi-enclosed |
| Module basis | Specification: Two 85-series modules side by side |
| Function | Specification: End drive |
Dimensions & Fit
Provide the chain reference, beam-end layout and dimensions across the paired supports. Mark the drive side and the available space for the motor connection.
Check discharge support across the product base. Confirm the return-path clearance and the alignment of both modules before defining the final shaft arrangement.
Turn a Wide Chain Circuit at Discharge
The end drive changes the chain direction while products continue toward the receiving conveyor. A broad product base needs support across its handoff, not only at the centre of the drive assembly.
Review the sprocket engagement and transverse alignment with the chosen chain. The paired-module construction does not by itself establish an allowable product load.
Discuss a 175 End Drive
Send the 175 chain and beam references, paired-support spacing and drive-side sketch. Include product load, speed and required quantity.
