175 Horizontal Plain Bend
The 175 horizontal plain bend guides a 175-series chain through a horizontal curve. Its support arrangement needs to carry the wider chain path consistently from the straight beam into the bend.
- Series
- 175
- Route
- Horizontal curve
- Support
- Plain curved track
Compare the complete beam and chain arrangement. A wide chain can require several supporting members across its carrying surface.
Support the Wider Carrying Path Through the Turn

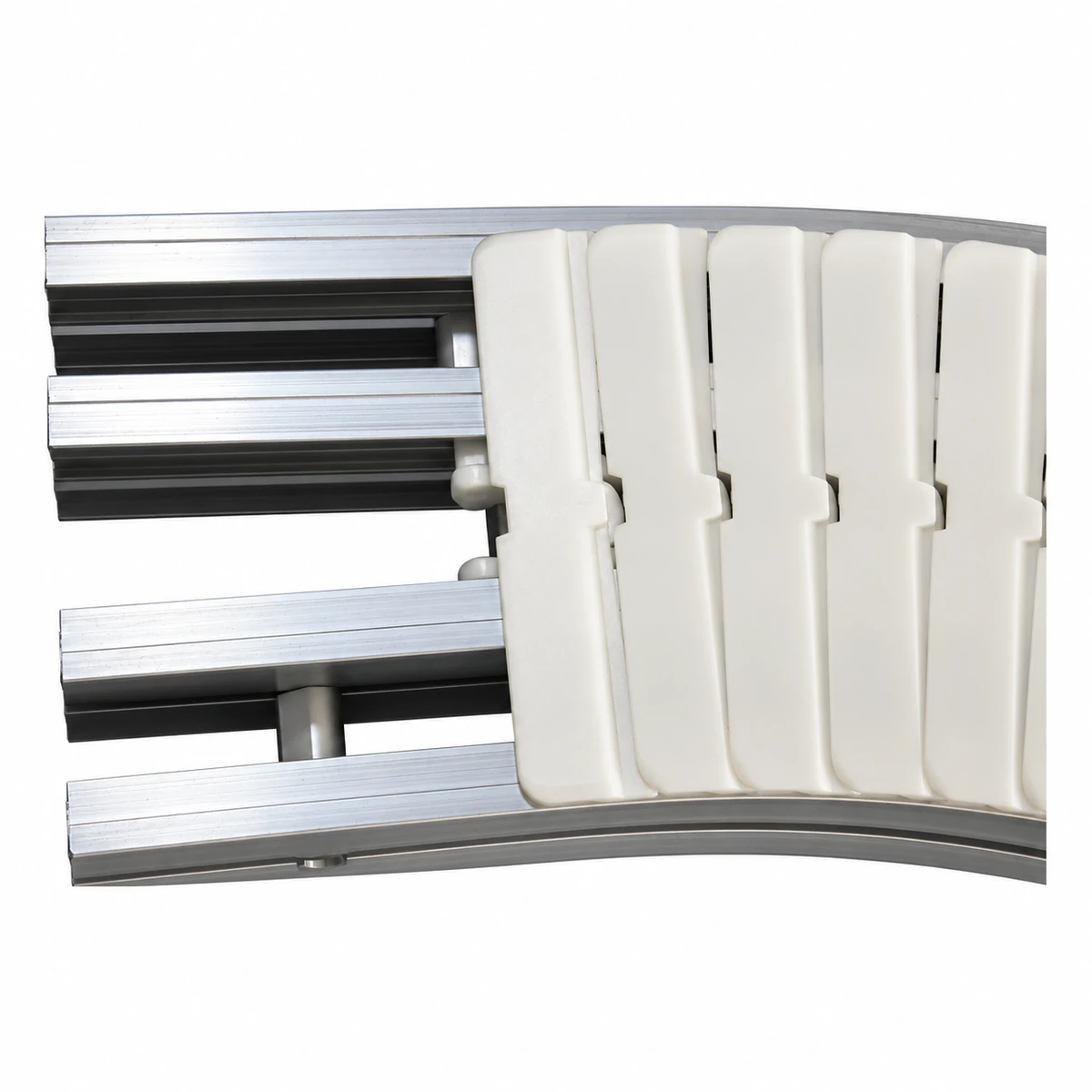

The 175 bend continues the chain support across a curved route. The photographed assembly shows chain plates spanning the underlying members. Those members need to remain aligned so the chain follows one consistent path.
The wider carrying surface changes how a product sits through the turn. Review its base footprint against the available support and guide route, especially when a long pack bridges several chain plates.
Specifications
| Parameter | Specification |
|---|---|
| Chain family | Specification: 175 |
| Component type | Specification: Horizontal plain bend |
| Layout checks | Specification: Radius, turn angle and adjoining beam sections |
Dimensions & Fit
Show the required curve and all beam-end connections. Confirm the transverse arrangement as well as the direction of the inner and outer members.
Check the wear-strip paths at entry and exit. Use the product's full base footprint when assessing overhang and the swept clearance beside the bend.
Turn a Broad Product Path
A wider chain can support a broader pack base, but turning that pack also moves its corners outside the straight-run footprint. The plain bend and side guides need to allow this swept path.
At the exit, keep the support level consistent with the receiving straight section. A correctly aligned curve should lead the chain and product into the next run without a lateral step.
Discuss a 175 Plain Bend
Send the 175 chain reference, full curve plan and adjoining beam details. Include product footprint, operating conditions and quantity.
