145/175/295 Semi-Enclosed Chain Conveyor Idler End Unit
The 145/175/295 semi-enclosed idler end family redirects the chain at the non-driven end of the conveyor. The connecting shaft is one part of the assembly and requires its own fit check.
- Families
- 145 /175 /295
- Construction
- Semi-enclosed
- Role
- Non-driven chain turnaround
The available shaft drawing covers a subcomponent. It does not specify the overall idler width, mounting pattern or complete assembly length.
Return the Chain at the Non-Driven End
The idler assembly guides the chain between the return and carrying paths without supplying the driving torque. Its rotating and supporting parts must match the beam and chain arrangement at that end of the circuit.

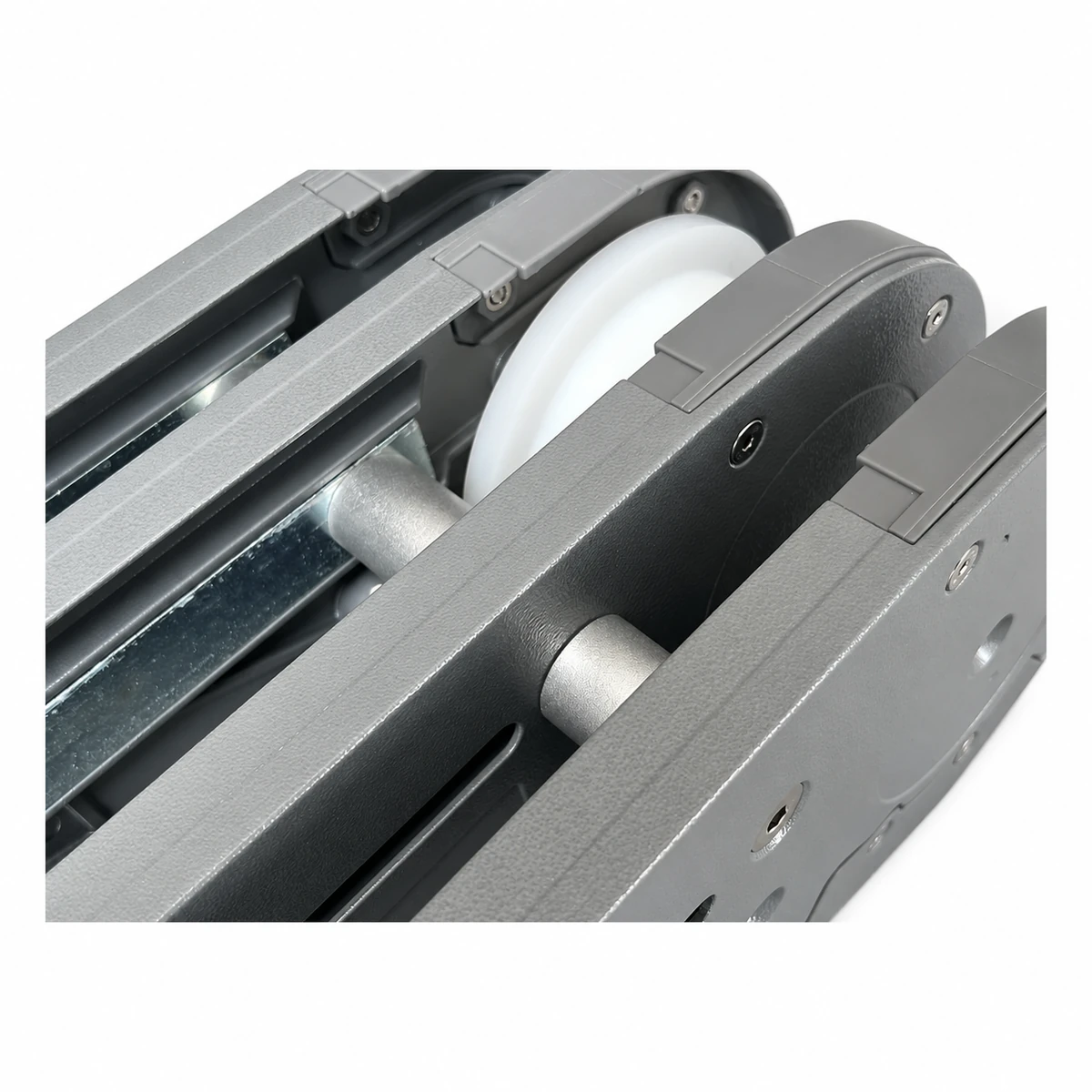

The connecting-shaft drawing identifies a local interface within the unit. Review it separately from the full idler assembly. The surrounding side plates, running components and beam connections still require configuration-specific matching.
Specifications
| Parameter | Specification |
|---|---|
| Families | Specification: 145 /175 /295 |
| Construction | Specification: Semi-enclosed |
| Function | Specification: Non-driven end turnaround |
| Drawing scope | Specification: Connecting shaft subcomponent |
Dimensions & Fit

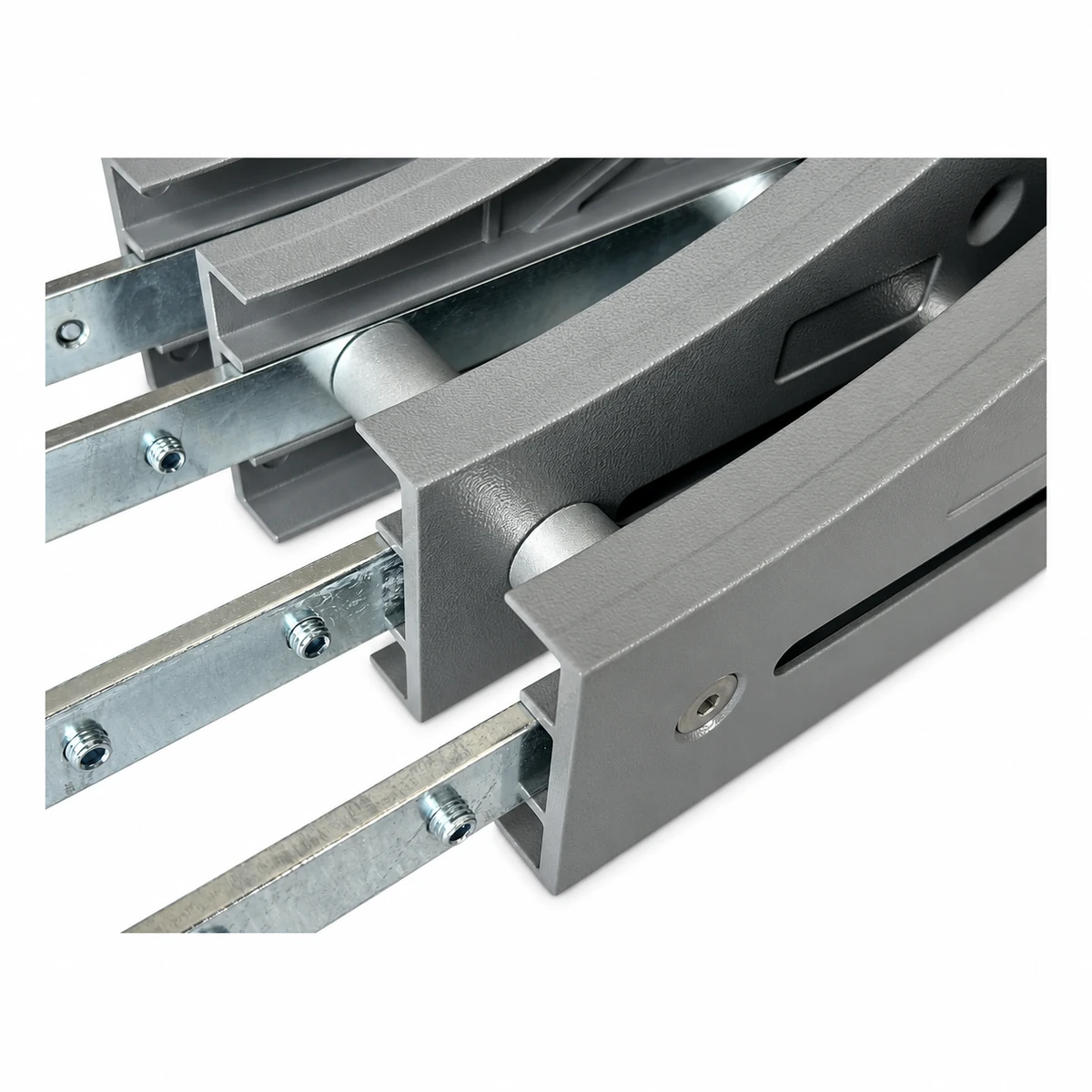

Provide the complete beam-end and idler layout. Compare the shaft seats, end connections and retaining arrangement using a dimensioned drawing of the selected assembly.
When replacing only the connecting shaft, include its mating components. Confirm units and tolerances on the accepted shaft drawing before manufacture or ordering.
Lead the Returning Chain Back to the Carrying Run
At the idler end, the chain reverses direction to re-enter the carrying path. Alignment with the adjoining beam keeps that transition consistent on both levels.
A wide assembly needs its transverse supports aligned as well. Product entry above the idler should be assessed separately from the lower chain return and shaft connection.
Discuss a Semi-Enclosed Idler
Send the assembly family, chain/beam references and complete idler photographs. Identify whether a full unit or connecting shaft is required and give quantity.
