140FL Flat Top Flexible Chain

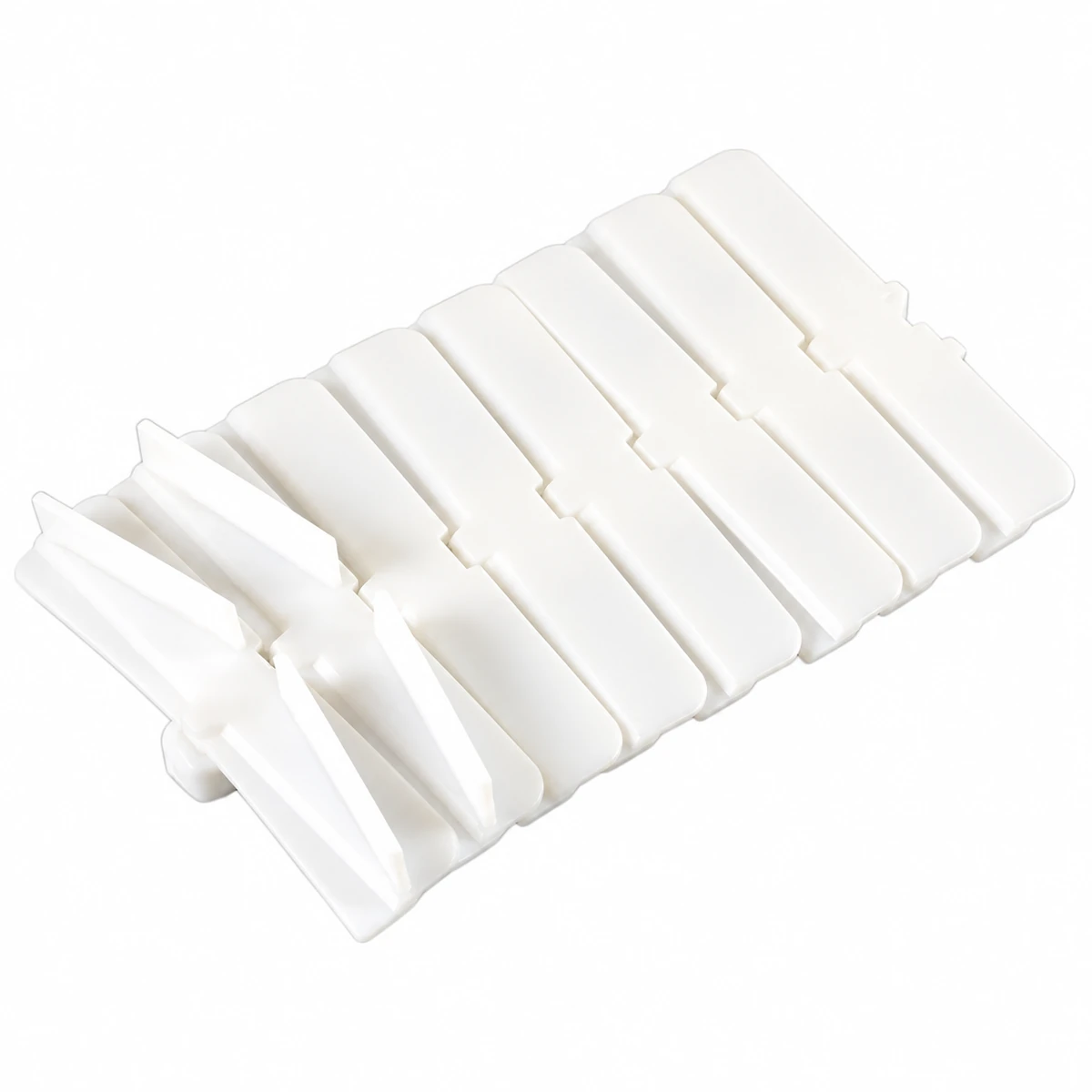

The 140FL uses broad flat plates above an articulated flexible-chain joint. Its POM carrying face supports the product across the lane, with the hinge structure running beneath it.
- Model
- 140FL
- Carrying Width
- 140 mm / 5.51 in
- Pitch
- 33.5 mm / 1.32 in

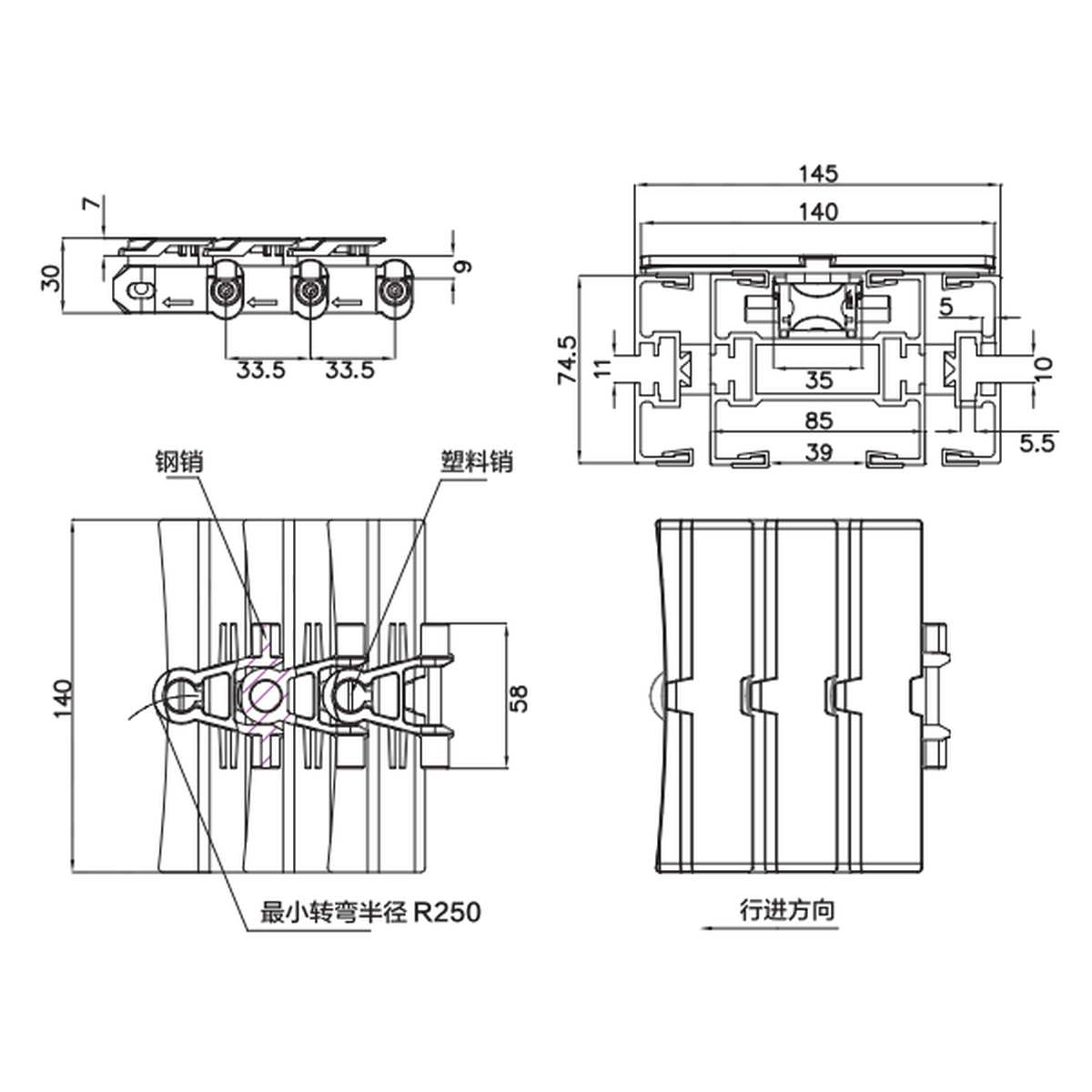

Use the 140FL link drawing for drive selection. Check the 140A fingered version separately before choosing a replacement wheel.

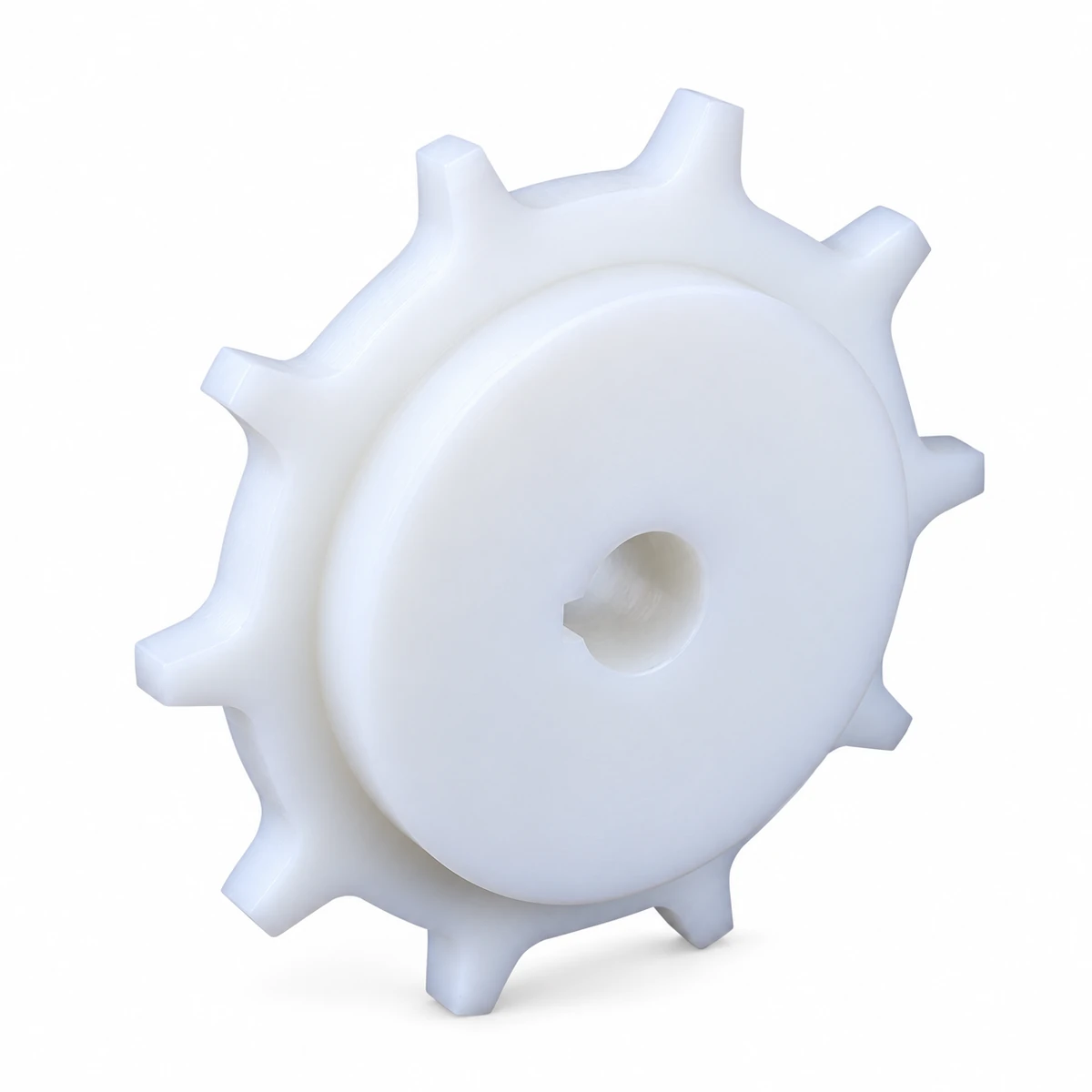

Matching Sprocket
For 140-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 140-series chains. Confirm the tooth count and shaft opening.

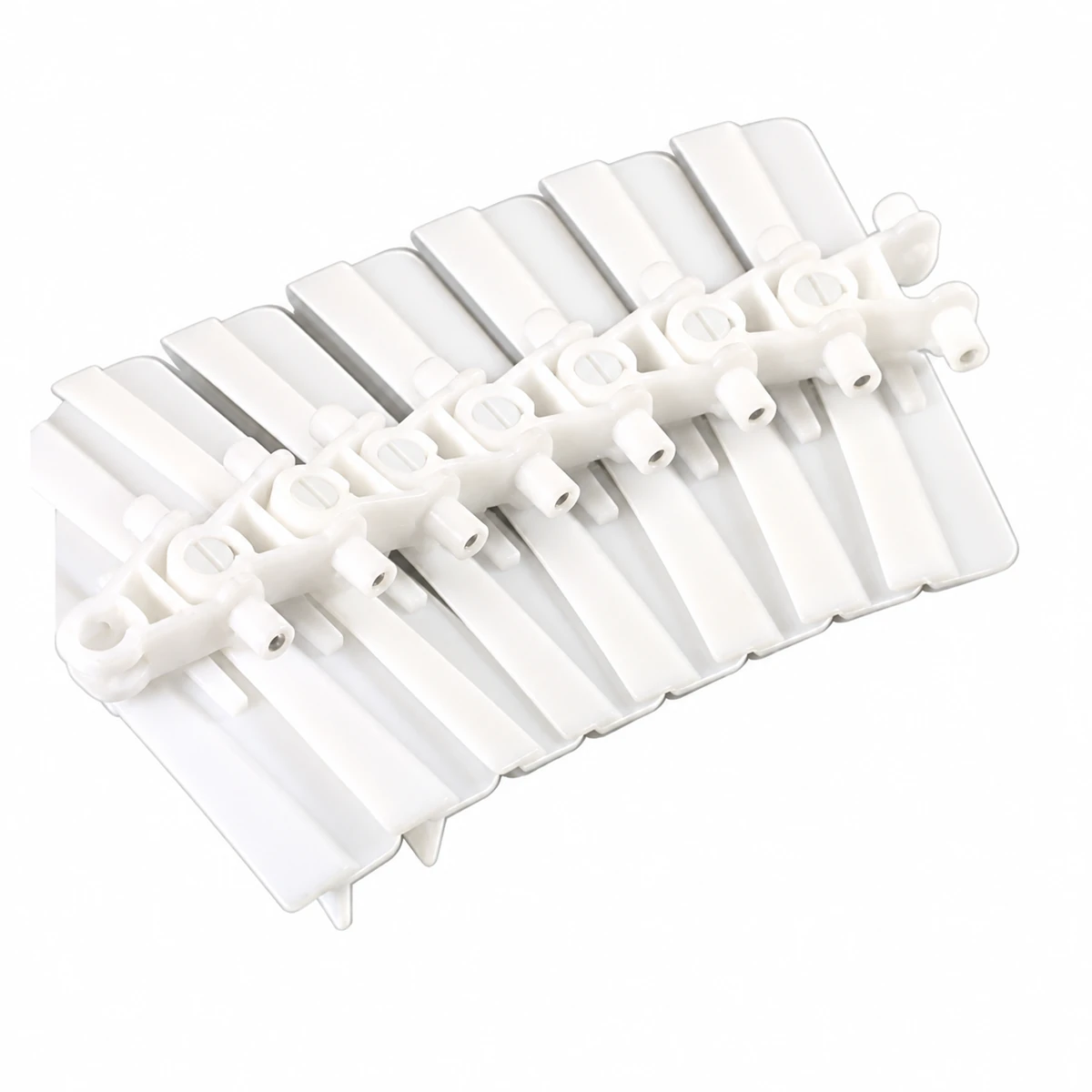

A Broad Plate Above the Flexible Joint

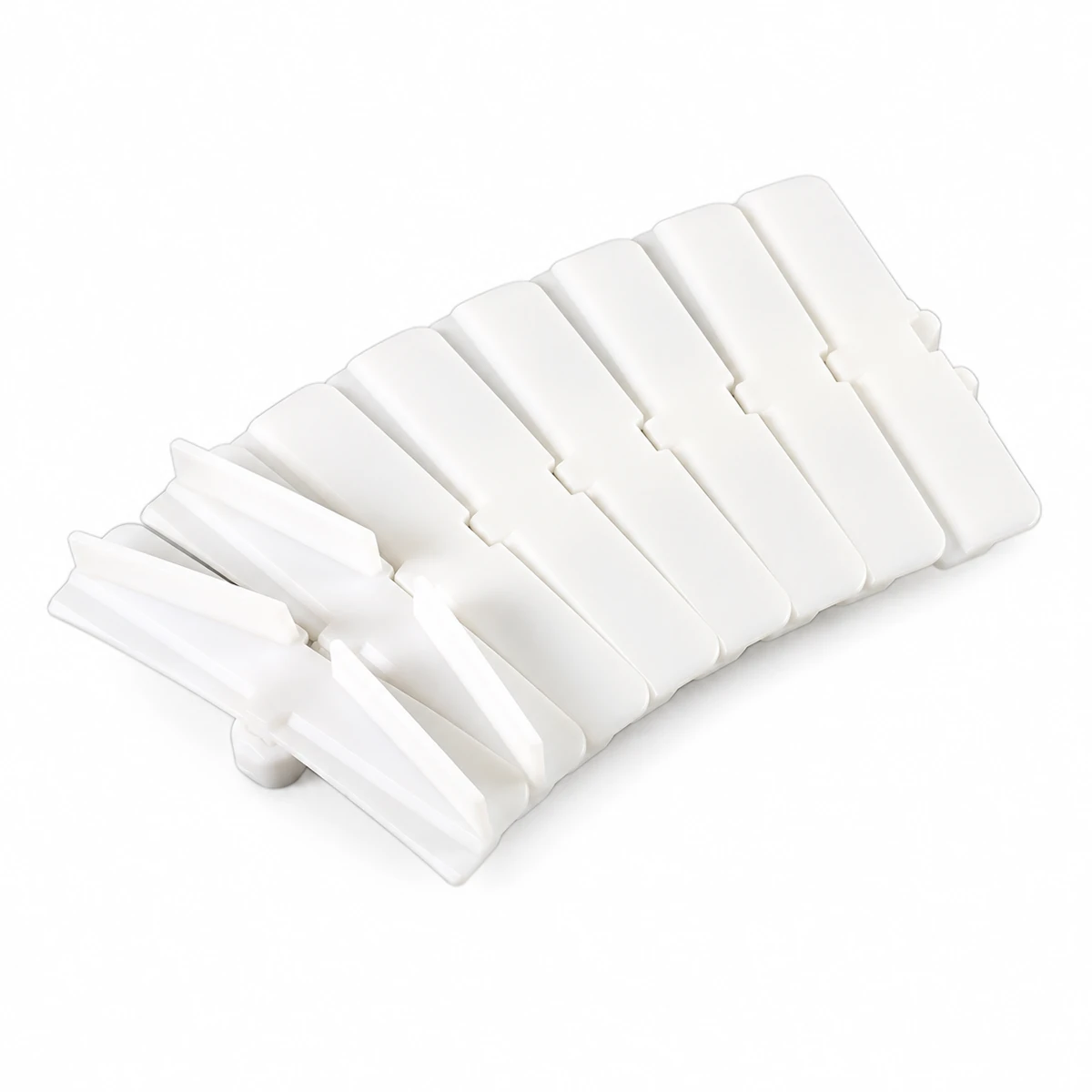

The flat 140FL plate provides a carrying face across the lane. Its central underside joint supplies the articulation, so carrying width and track fit describe different parts of the assembly.
The 140FL has a 140 mm carrying width and 33.5 mm pitch. Its curve needs a separate dimensional review. Use the actual bend drawing to check the space available for the links and the product above them.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 140FL | |
| Weight | Value: 1.63 kg/m | Converted Value: 1.0953 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Dimension | Value |
|---|---|
| Carrying width | Value: 140 mm / 5.51 in |
| Pitch | Value: 33.5 mm / 1.32 in |
Dimensions & Fit

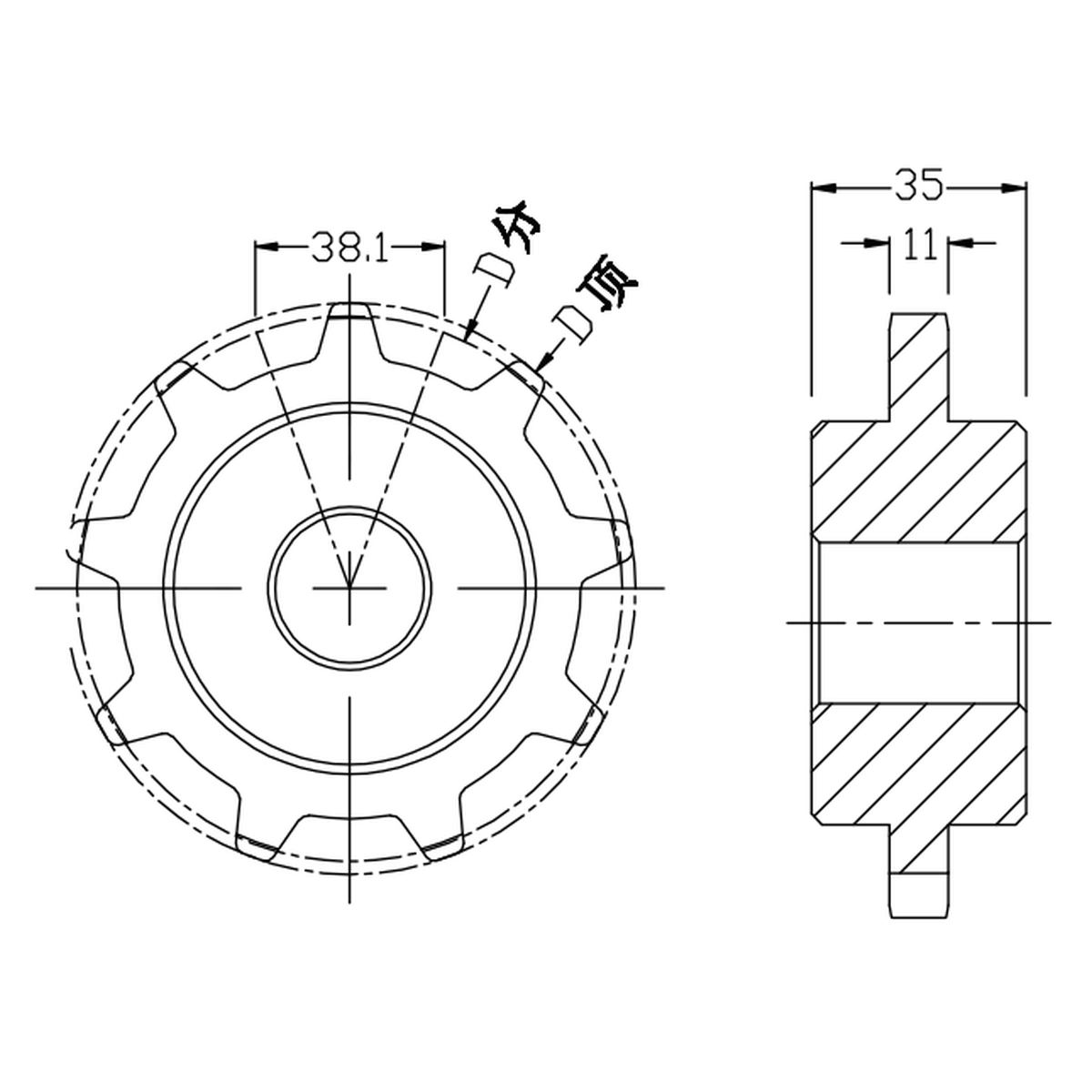

Compare the plate-support positions and central link with the beam cross section. Check the 33.5 mm link spacing against the actual sprocket profile.
Provide the bend layout for radius review and show how the product base sits across the plate. At transitions, inspect support under the outer edges and the gap to the receiving conveyor.
Support Packs Across a Flexible Lane
The broad flat top is relevant to cartons or containers whose base needs support across the carrying width. The joints underneath let the lane follow the conveyor route while the pack rides above them.
A pack positioned off center can extend toward the outer guide through a bend. Check that swept path and the support near each plate edge. At discharge, match the receiving height to the moving carrying face.
Request a 140FL Quote
Send the 140FL reference, chain length and quantity with product footprint and bend drawings. Include the beam section and existing sprocket reference.
