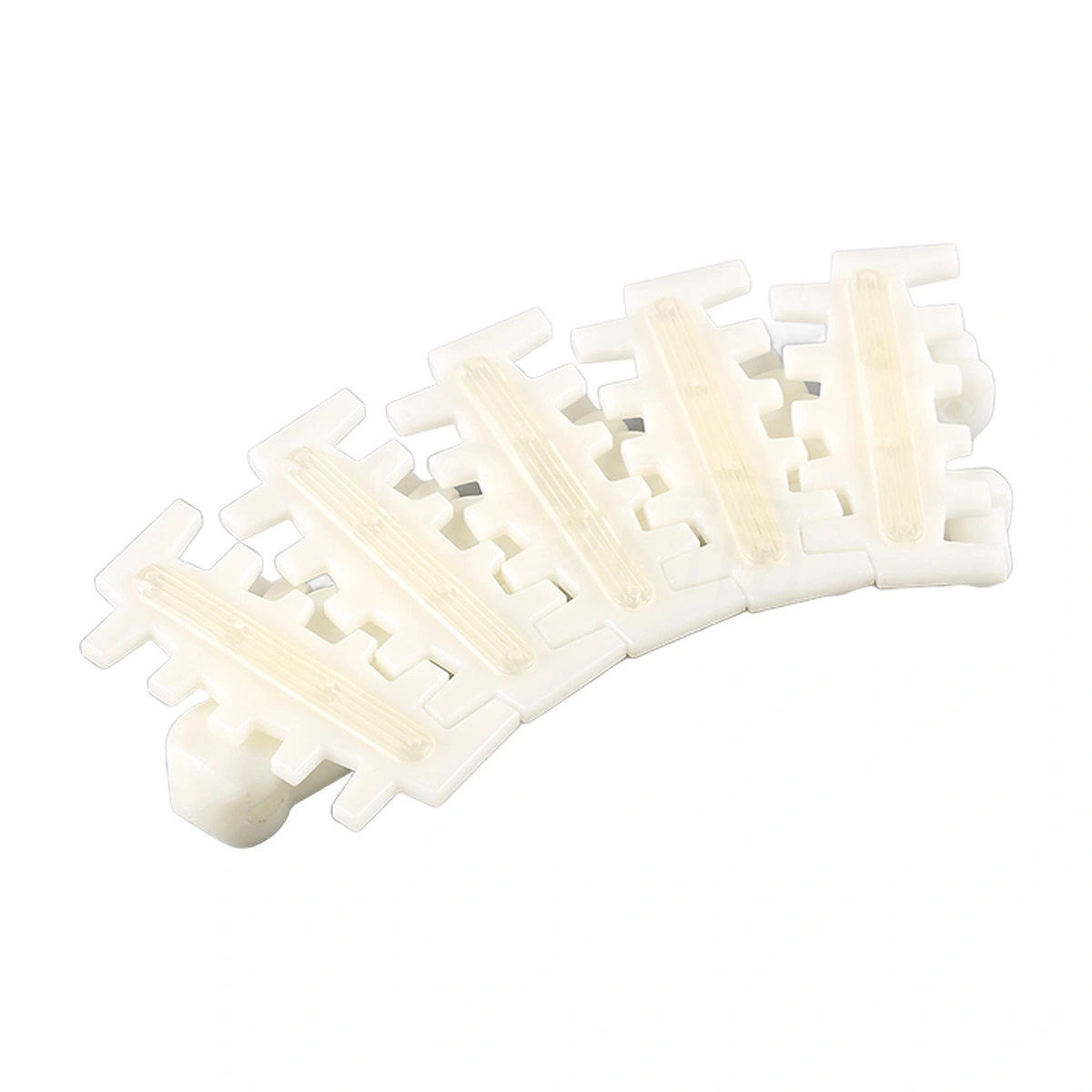

103T Flexible Chain With Rubber Strips

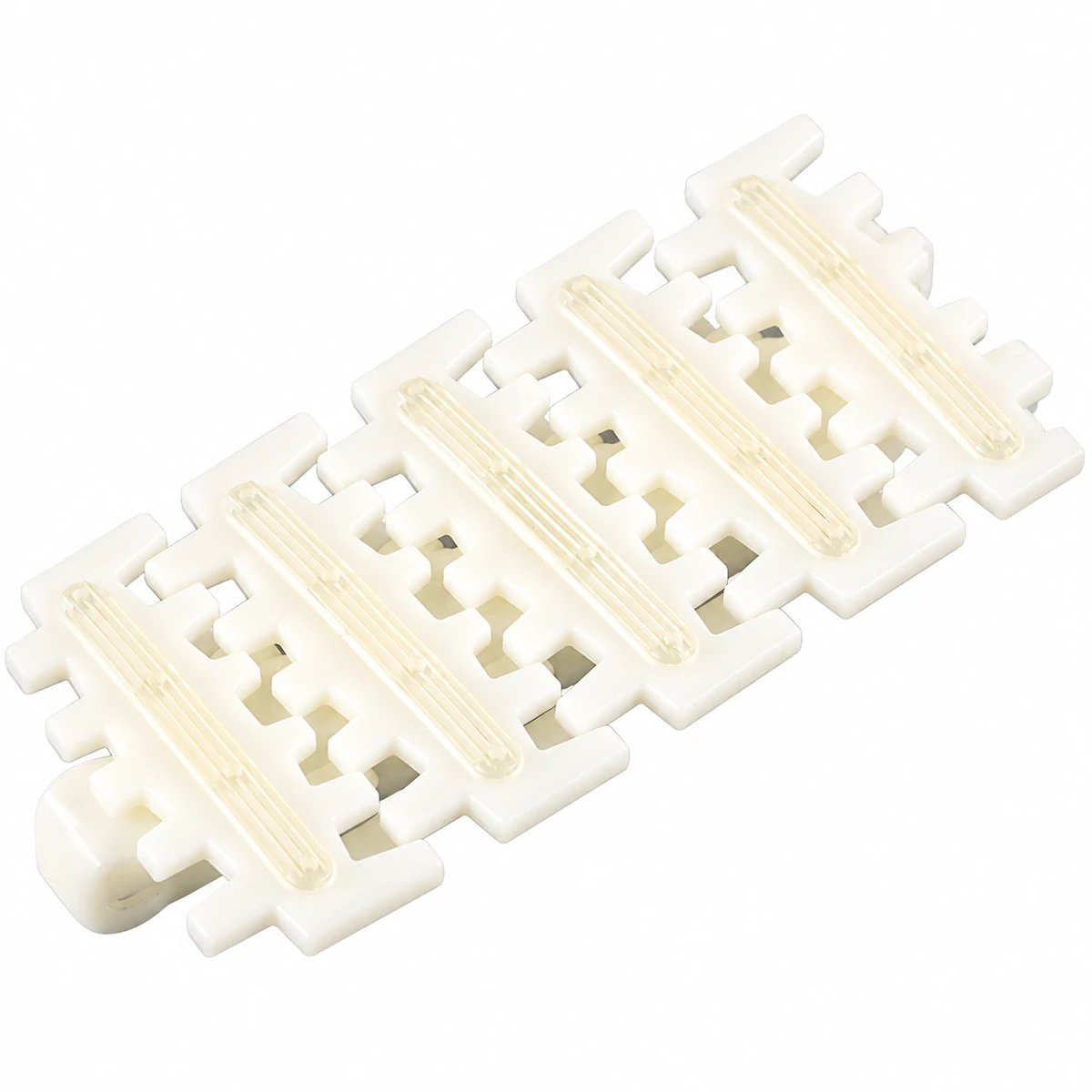

The 103T adds transverse TPU strips to the fingered POM carrying plates. These raised contact strips are intended for duties where product grip needs closer attention than on a plain plate.
- Model
- 103T
- Body Material
- POM
- Strip Material
- TPU
Review the product's contact with the strips under the actual dry or wet condition. Grip depends on the product base and cannot be selected from chain width alone.
Matching Sprocket
For 103-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 103-series chains. Confirm the tooth count and shaft opening.
Add Grip at the Product Contact Line

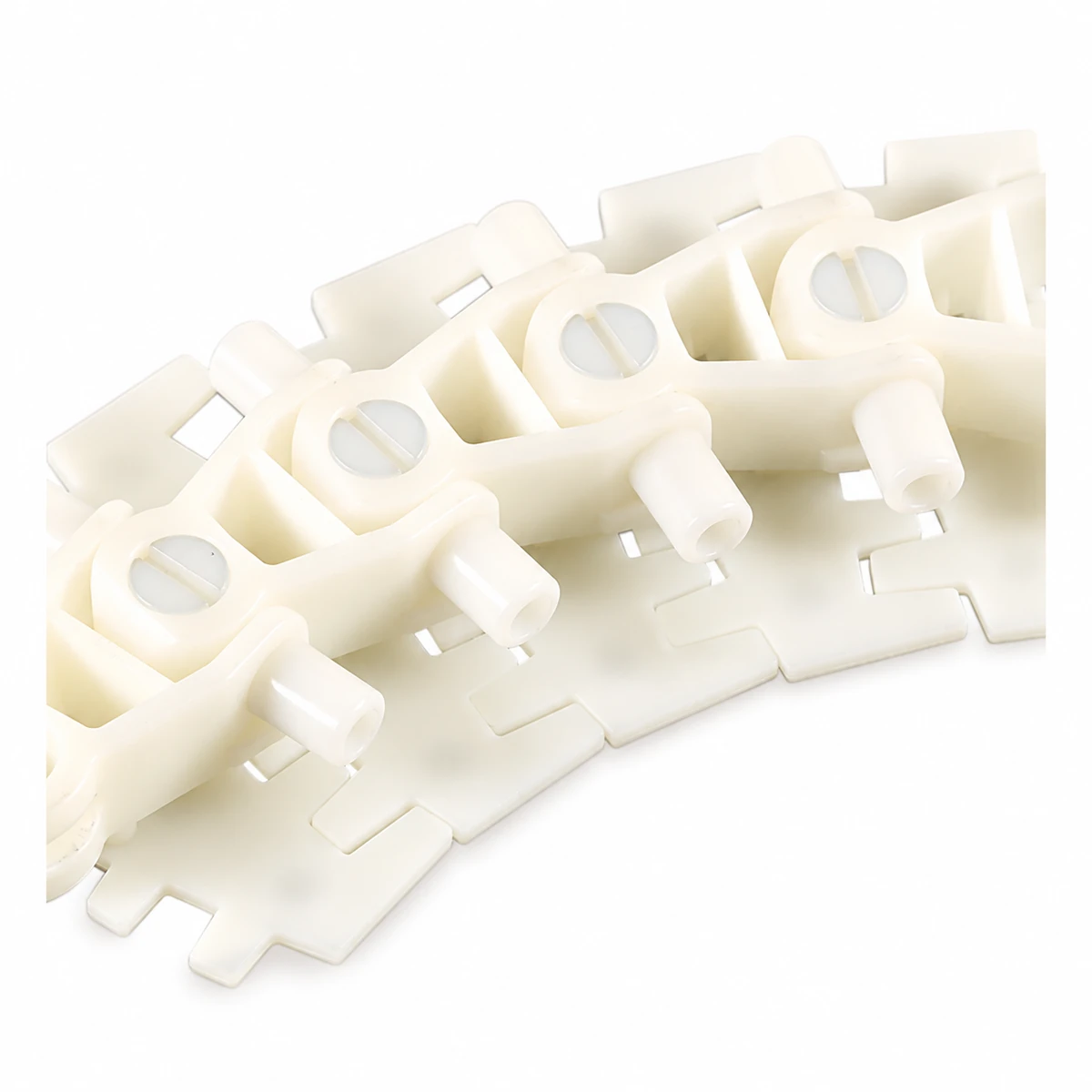

The TPU strip sits across each carrying plate. Its raised position changes where the product meets the chain and can influence sliding at acceleration or an incline. The supporting link remains a fingered POM structure.
Strip contact needs to suit the product base. A rigid base and a compliant pack can react differently to the same raised line of contact. Review the product under operating conditions before assigning an incline angle or friction requirement.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 103T | |
| Weight | Value: 1.53 kg/m | Converted Value: 1.0281 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Attachment Material | Value: TPU |

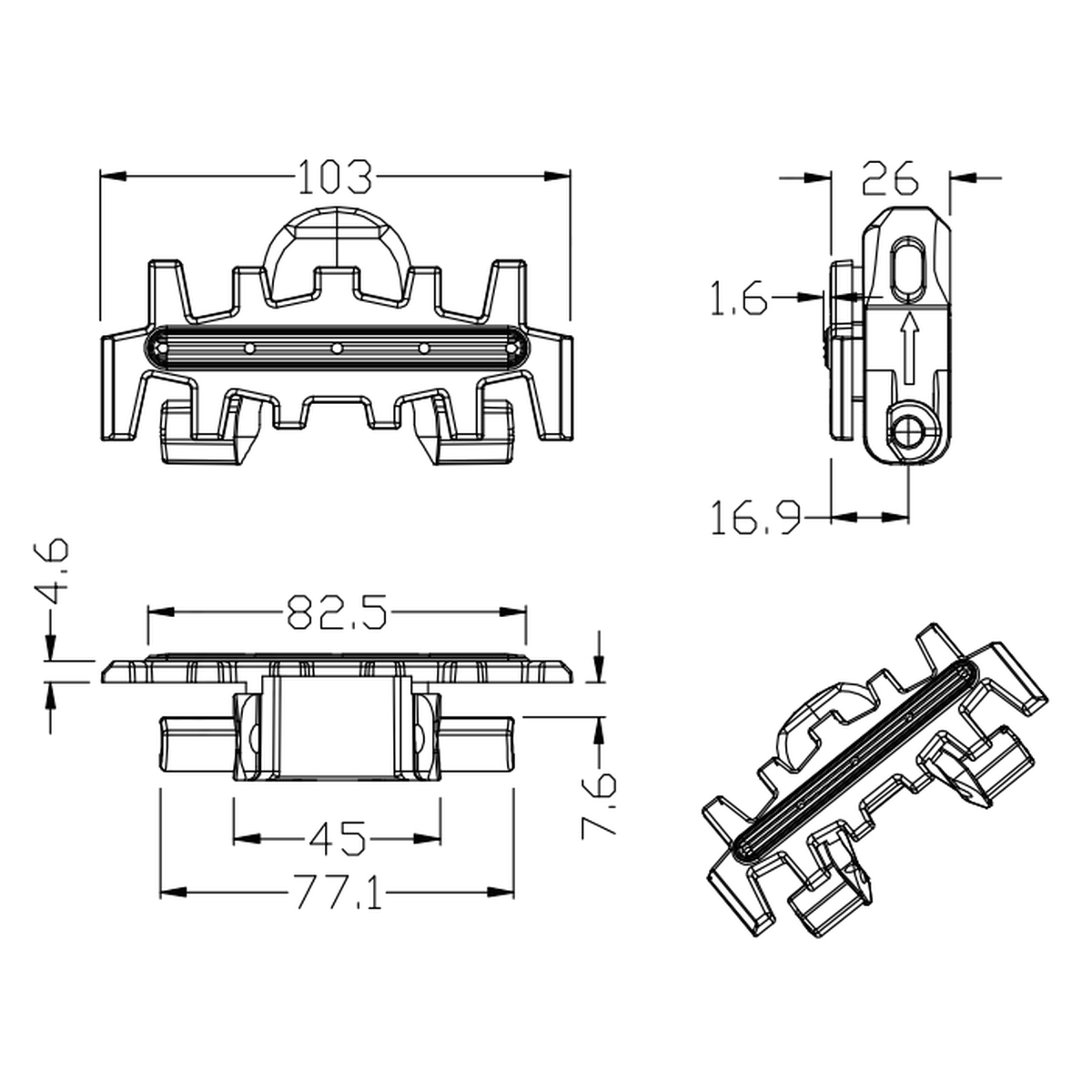

Dimensions & Fit
Compare the 103T underside with the installed 103-family track. Show the chain reference and strip arrangement so a plain-chain replacement is not supplied in its place.
Check overhead clearance and the transfer height with the raised strips included. At the return end, allow the attachments to pass surrounding structure without rubbing. Bend geometry and strip clearance must be checked together.
Control Sliding During Acceleration or Inclined Travel
A strip-top chain is relevant when a product tends to slide against a plain carrying surface. TPU contact changes that interaction at the base. The required grip depends on the product, speed changes and surface condition.
At discharge, the product must leave the raised strips and enter the receiving surface. Check that transition as well as steady conveying. No incline capacity or friction coefficient is implied by the strip material.
Request a 103T Quote
Provide the 103T reference, length and quantity with product-base material and dimensions. Include incline or acceleration details, surface condition and photographs of the existing strips.
