103 Wheel Bend

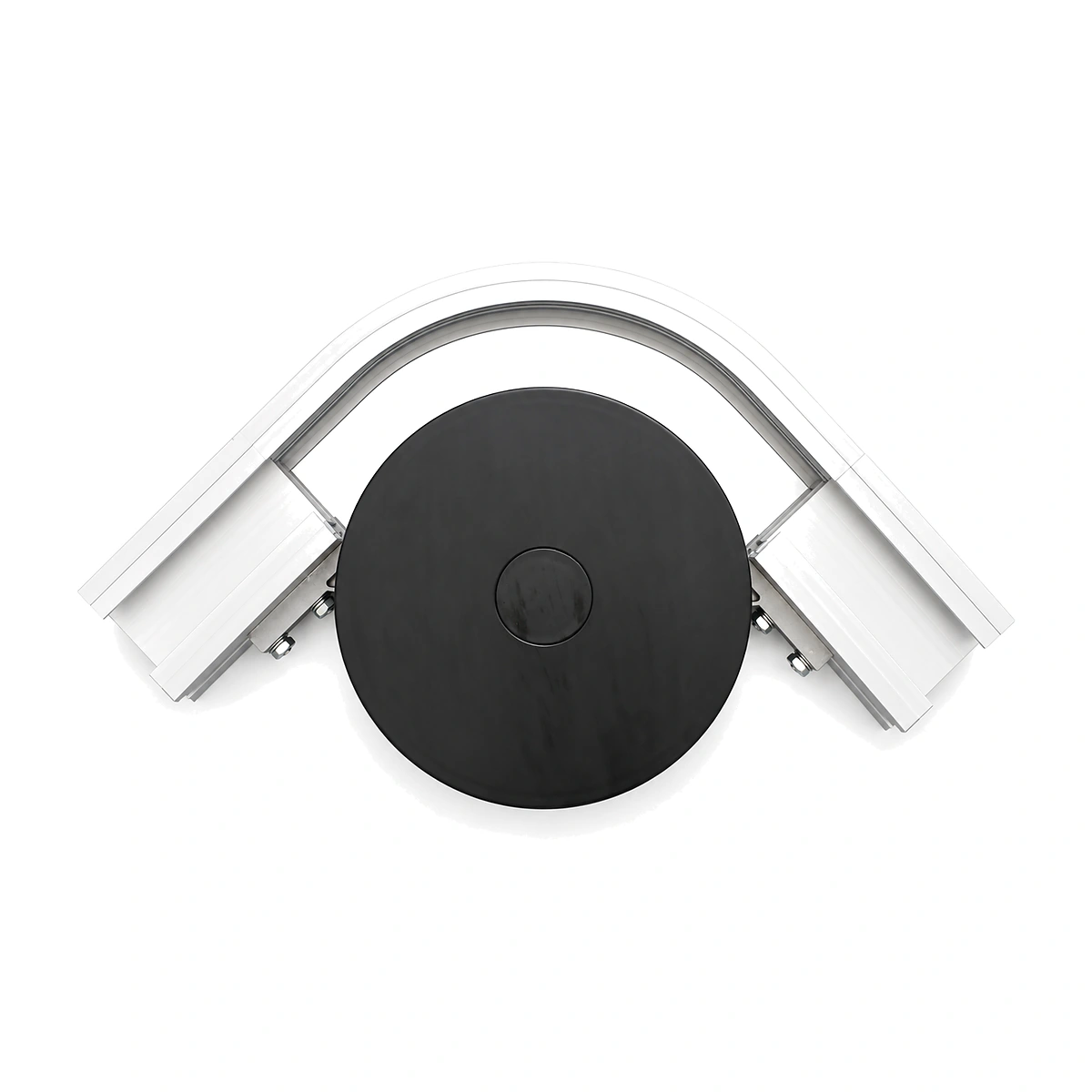

The 103 wheel bend turns a flexible-chain route around a plastic wheel assembly. It belongs to the 103 chain family and needs to be matched to the adjoining conveyor beam.
- Series
- 103
- Bend type
- Wheel-guided
- Route
- Horizontal turn
Specify the radius reference and turn angle on the layout. The wheel diameter and chain-path radius describe different features.
Turn the Chain Around a Wheel Assembly

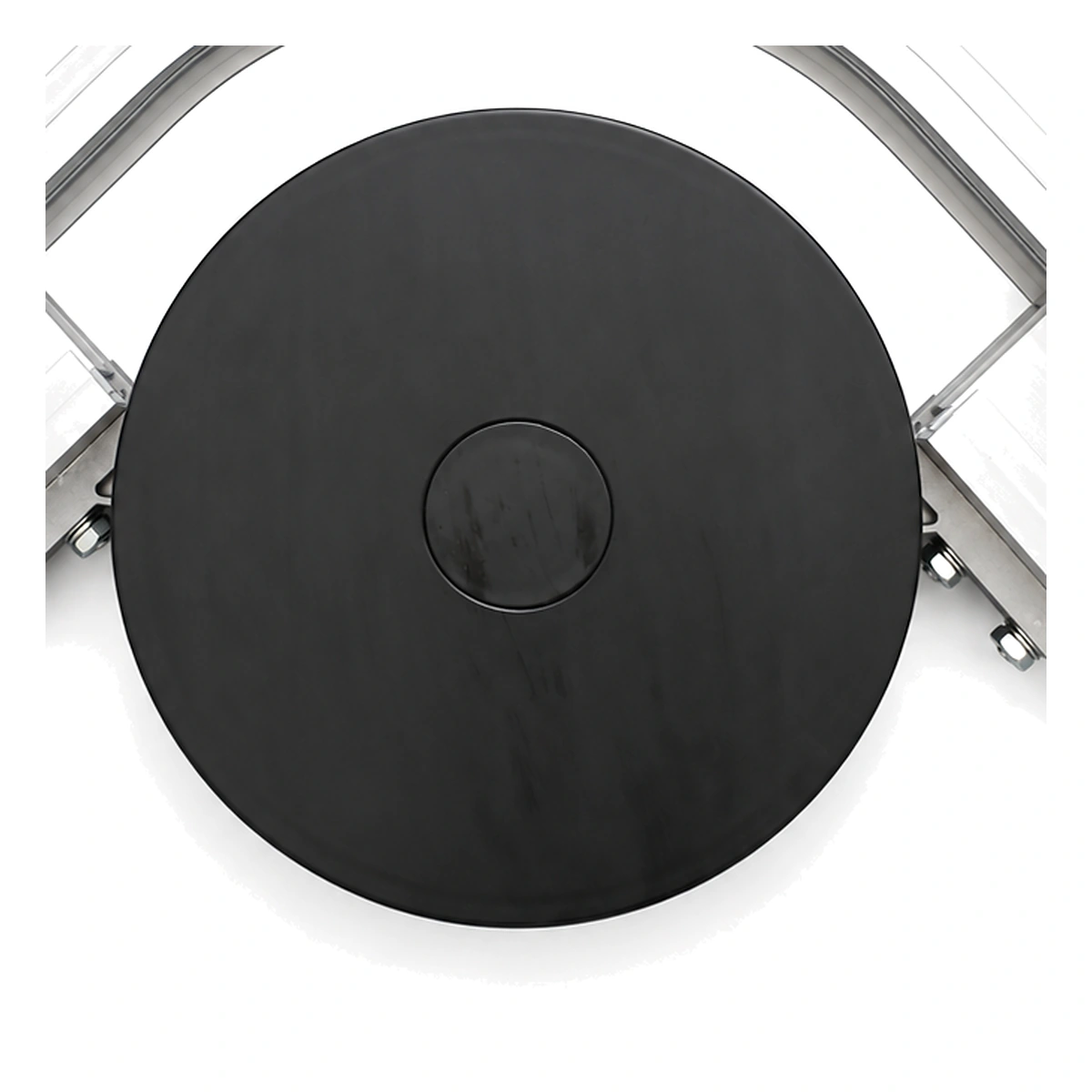

A wheel bend uses a rotating disk at the inside of the chain path. The disk, supporting bracket and adjoining curved beam establish the route through the turn. The wheel's shaft position is therefore part of the layout, not simply a mounting detail.

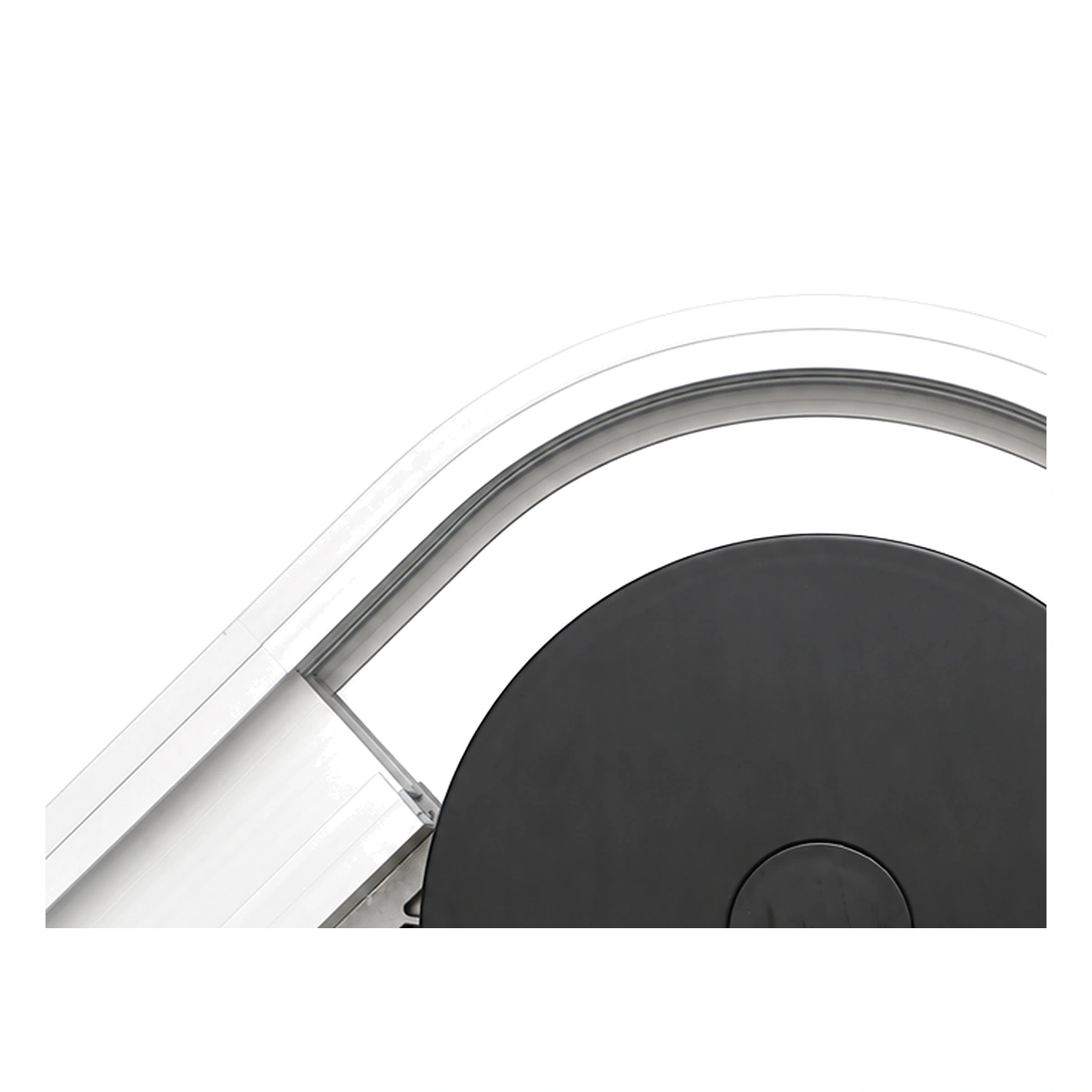

For the 103 family, compare the chain engagement and beam ends as an assembly. A replacement disk that resembles the original may still place the chain path differently if its running geometry or shaft position changes.
Specifications
| Parameter | Specification |
|---|---|
| Chain family | Specification: 103 |
| Component type | Specification: Horizontal wheel bend |
| Assembly elements | Specification: Plastic disk, cast bracket, half beam and shaft |
Dimensions & Fit

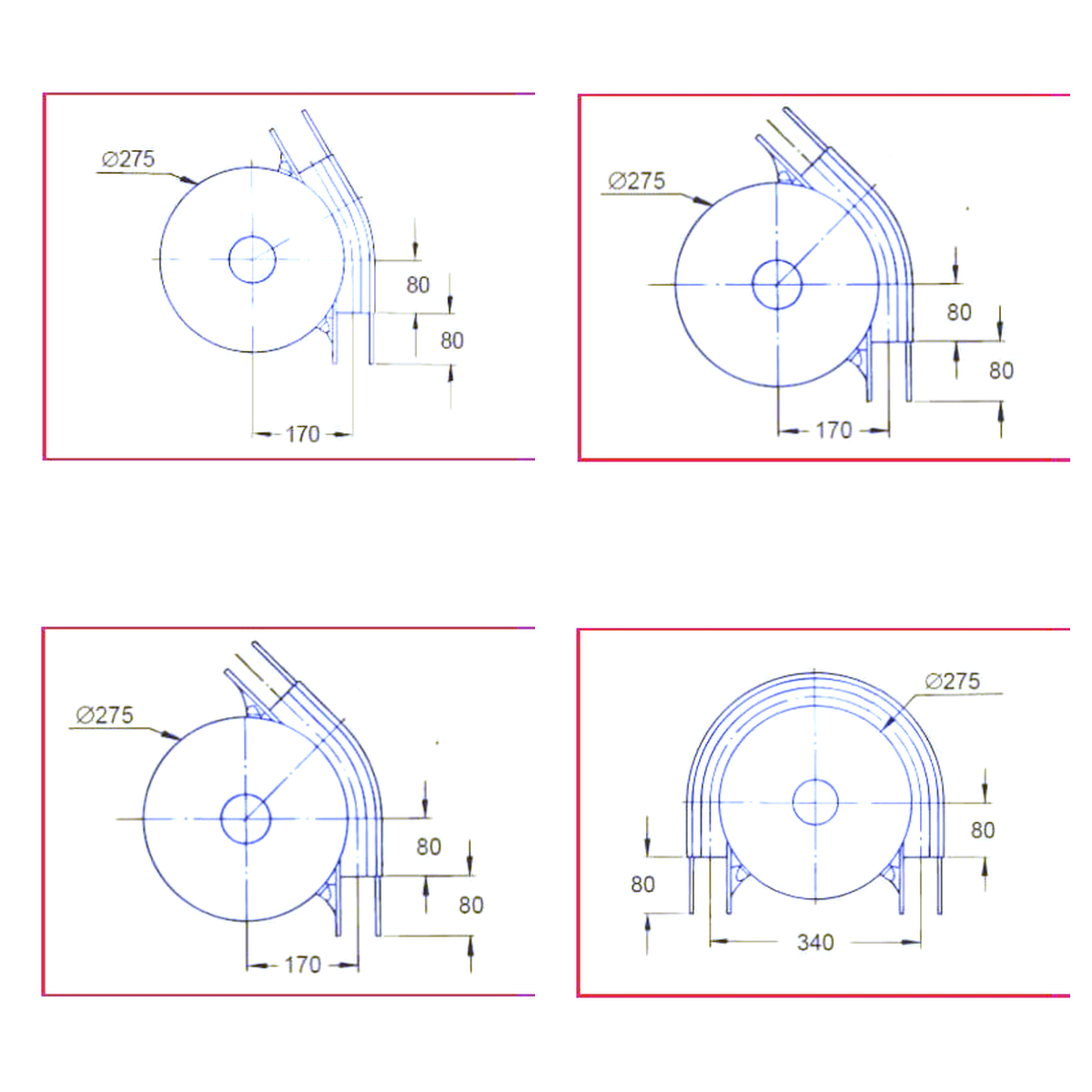

Show the turn angle, chain path and tangent positions where the straight beams meet the bend. Mark whether a radius refers to the wheel, chain centreline or product path.
Check shaft support and clearance around the wheel. Keep the product-guide route distinct from the chain route so the product envelope remains clear through the turn.
Route a Conveyor Around Equipment
A wheel bend redirects the chain while products remain supported on the conveying surface. The product can project beyond the chain edge, so the available floor-space envelope must include the pack corners and side guides.
At the exit, align the straight beam with the tangent of the bend. A mismatch at this point changes how the chain enters the next supported section.
Discuss a 103 Wheel Bend
Send the 103 chain reference, bend angle and dimensioned plan. Include wheel and shaft photographs, adjoining beam details and quantity.
