103 Flexible Chain

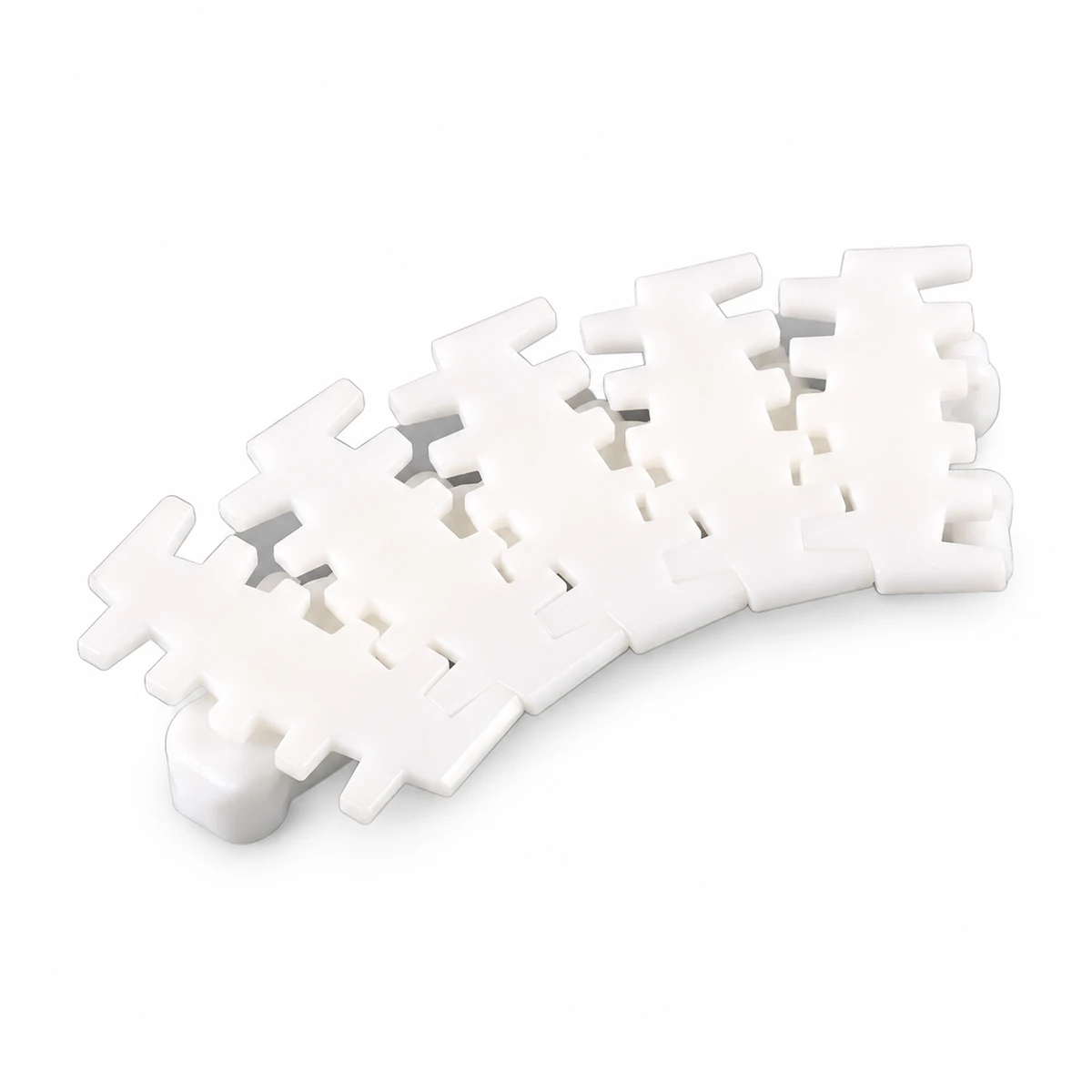

The 103A flexible chain has intermeshing fingered plates on an articulated underside. Its POM carrying face follows the conveyor bend while the joints move beneath the product.
- Model
- 103A
- Carrying Material
- POM
- Pin Material
- SUS201
Check the fingers against the smallest product base through the bend. Gaps between neighboring plates change as the chain articulates.

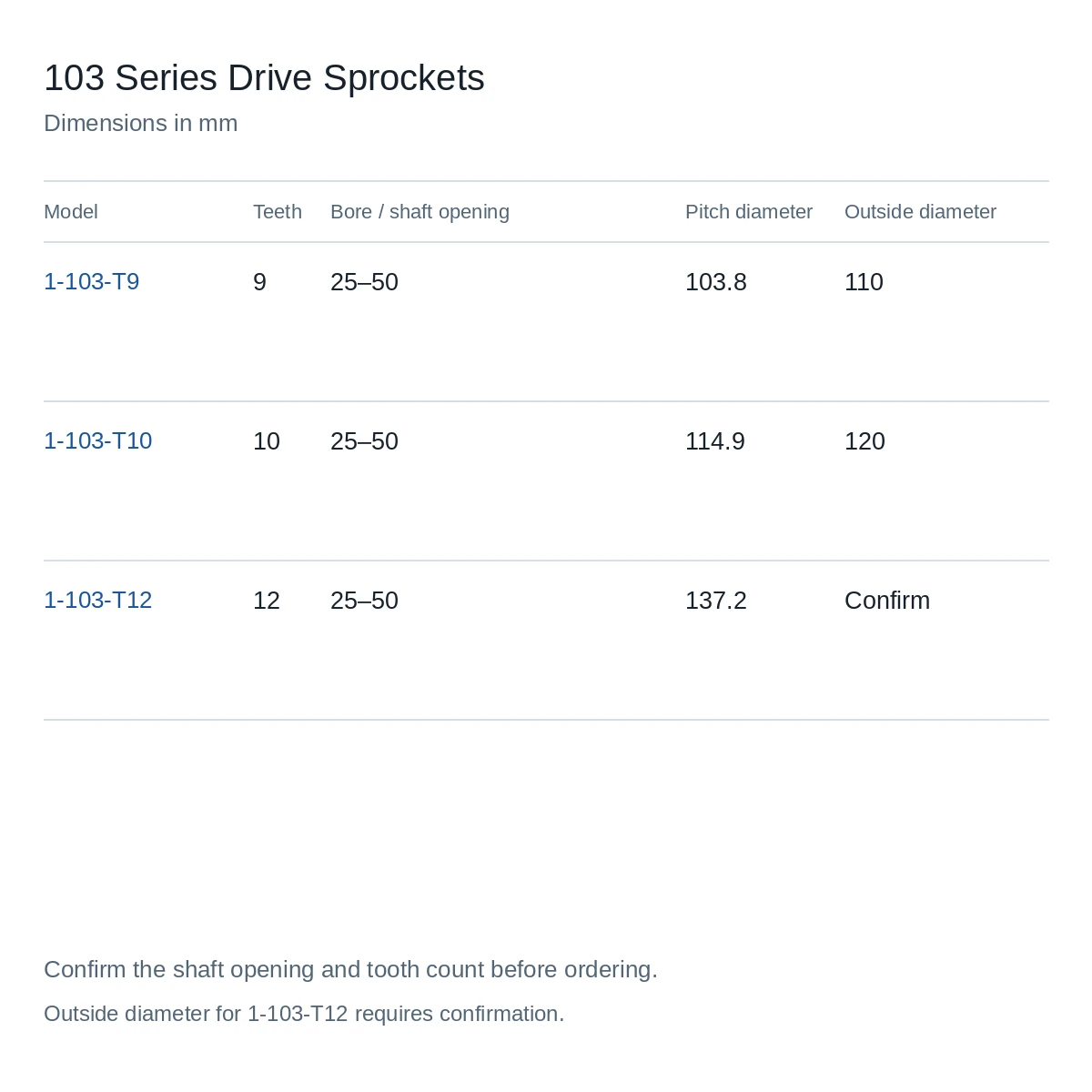

Matching Sprocket
For 103-series chains. Confirm the tooth count and shaft opening.
Matching Sprocket
For 103-series chains. Confirm the tooth count and shaft opening.

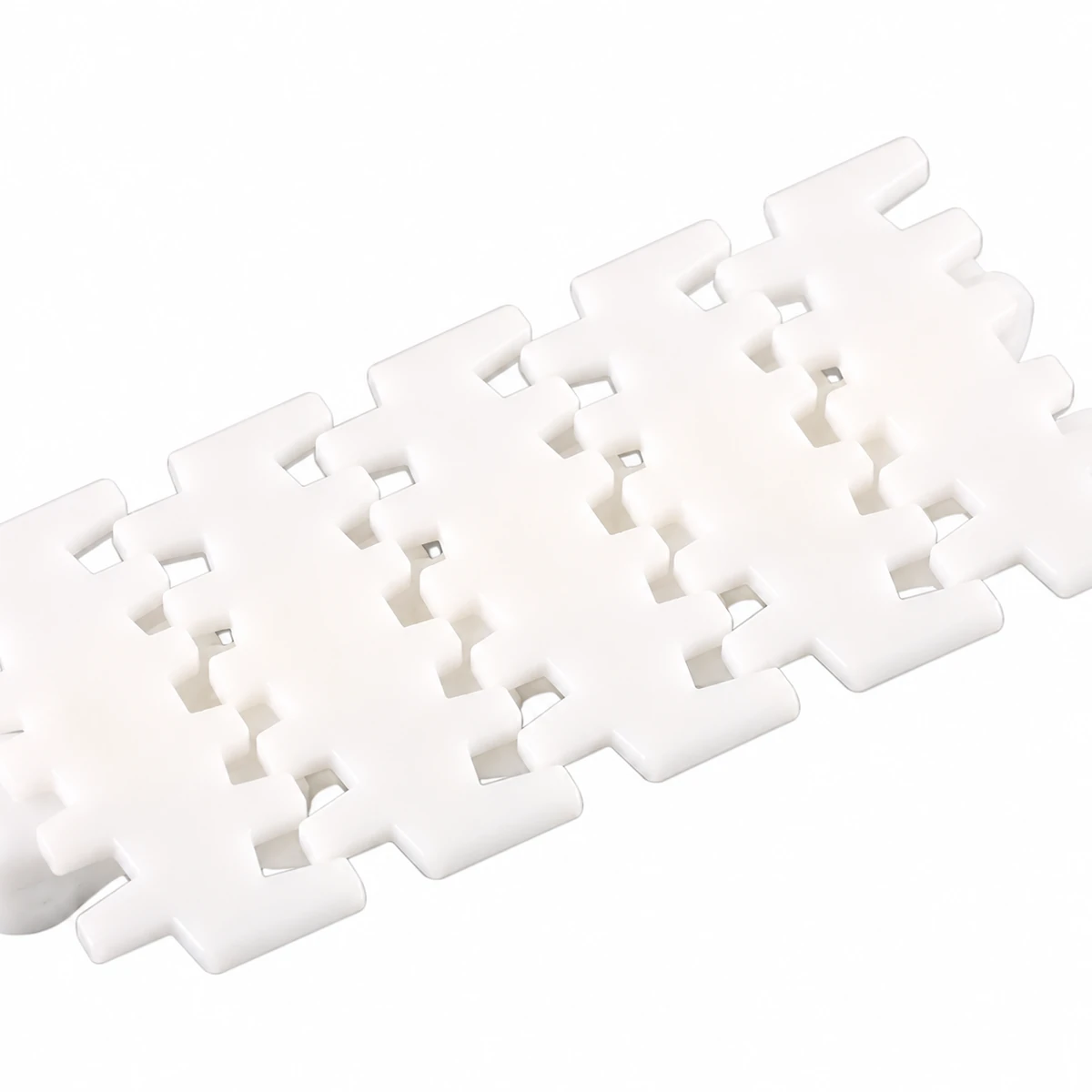

Intermeshing Fingers Along the Carrying Path
The fingered edges let neighboring plates change angle while maintaining an overlapping carrying pattern. Product support depends on where the base contacts those fingers, especially through a turn.

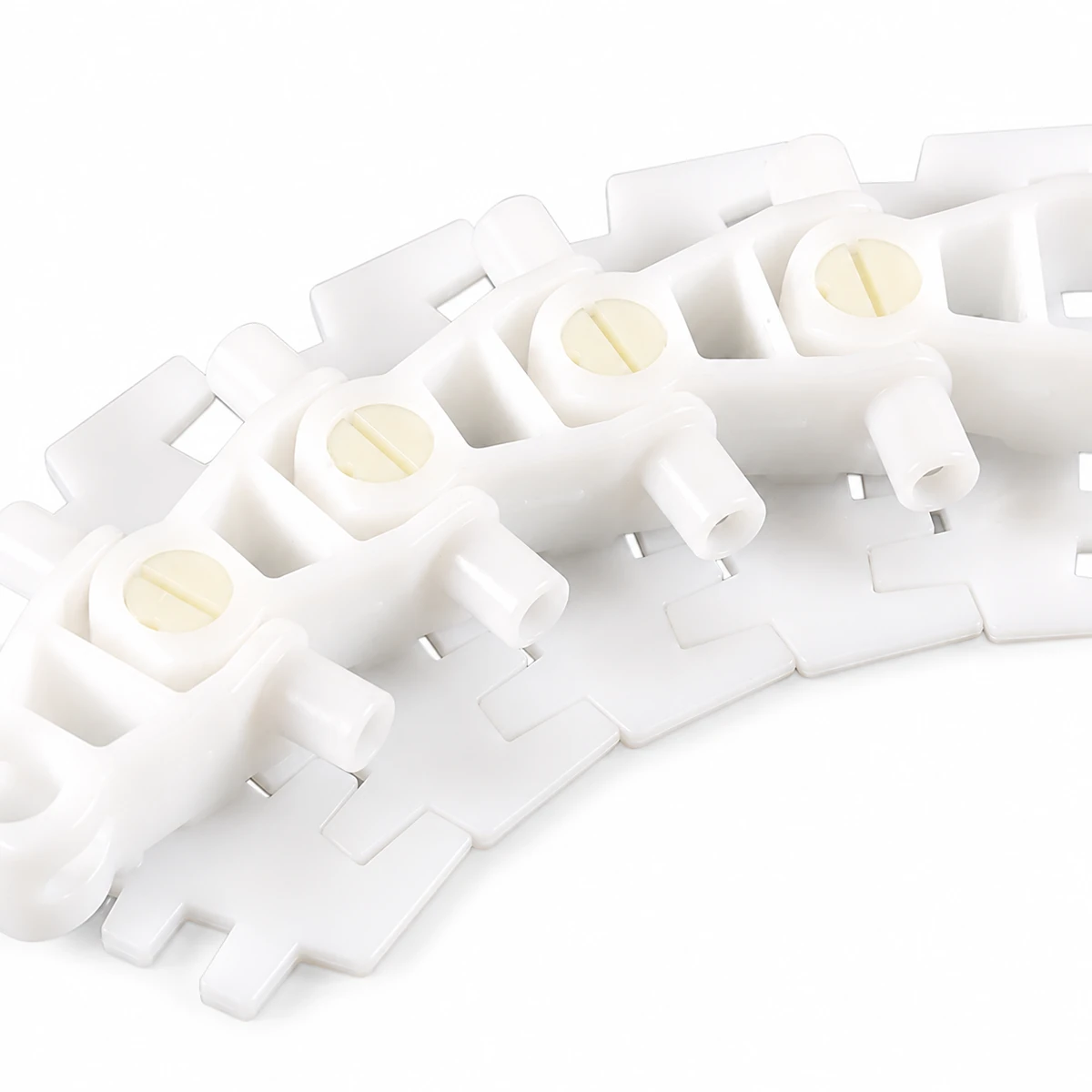

The chain combines a POM body, PA6 pivot component and SUS201 pins. Compare the underside joint and seating geometry with the existing beam. The 103 family name helps identify the chain, but the exact link and drive references settle the replacement fit.
Specifications
Technical Specifications
| Parameter | Value | Converted Value |
|---|---|---|
| Model | Value: 103A | |
| Weight | Value: 1.50 kg/m | Converted Value: 1.008 lb/ft |
| Colour | Value: White | |
| Body Material | Value: POM | |
| Joint Component Material | Value: PA6 | |
| Pin Material | Value: SUS201 | |
| Conveyor Length | Value: ≤12 m | Converted Value: ≤39.3701 ft |
| Speed | Value: ≤50 m/min | Converted Value: ≤164.042 ft/min |
| Dimension | Value |
|---|---|
| Carrying width | Value: 103 mm / 4.06 in |
| Pitch | Value: 35.5 mm / 1.40 in |

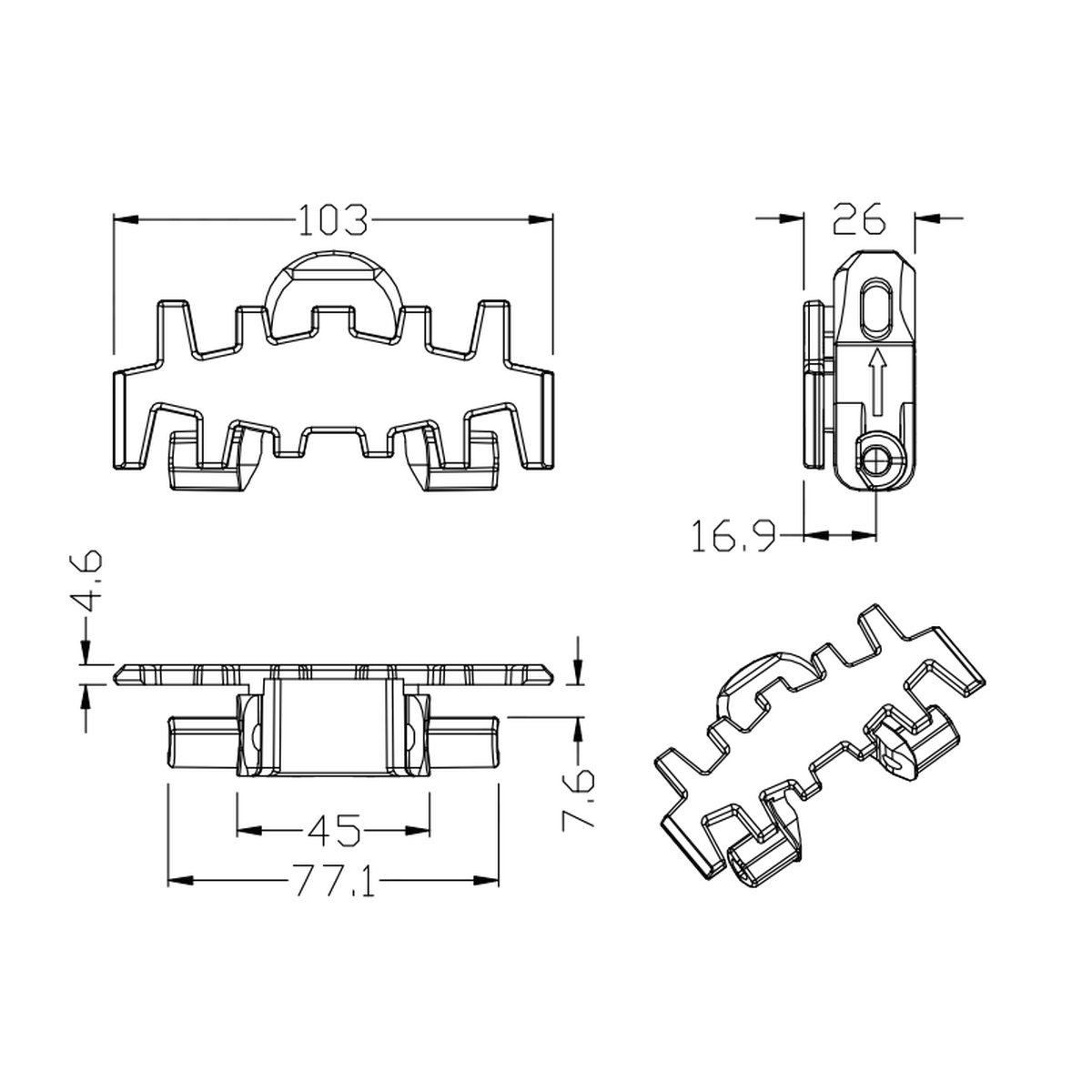

Dimensions & Fit
Use the 103 mm carrying width and 35.5 mm pitch with an actual link reference when comparing an existing chain. The beam and wear strips need to support the link without restricting its side movement.
Provide a plan and side view of the bends. Confirm the direction of travel and the transfer gap beneath the smallest container; the finger pattern alone does not establish product support at discharge.
Link Processing Stations Through a Bend
The 103A can carry bottles or small packs where a conveyor lane changes direction between stations. The product rests directly on the fingered face while the underside follows the supporting track.
If products queue, contact at the moving plate face adds resistance. Frequent starts and stops also change the operating duty. Include those conditions when reviewing chain pull and the drive rather than treating a tensile figure as the allowable payload.
Request a 103A Quote
Send the 103A reference, assembled length and quantity with the beam section or a clear underside photograph. Include product base size, bend layout and the stopping pattern.
