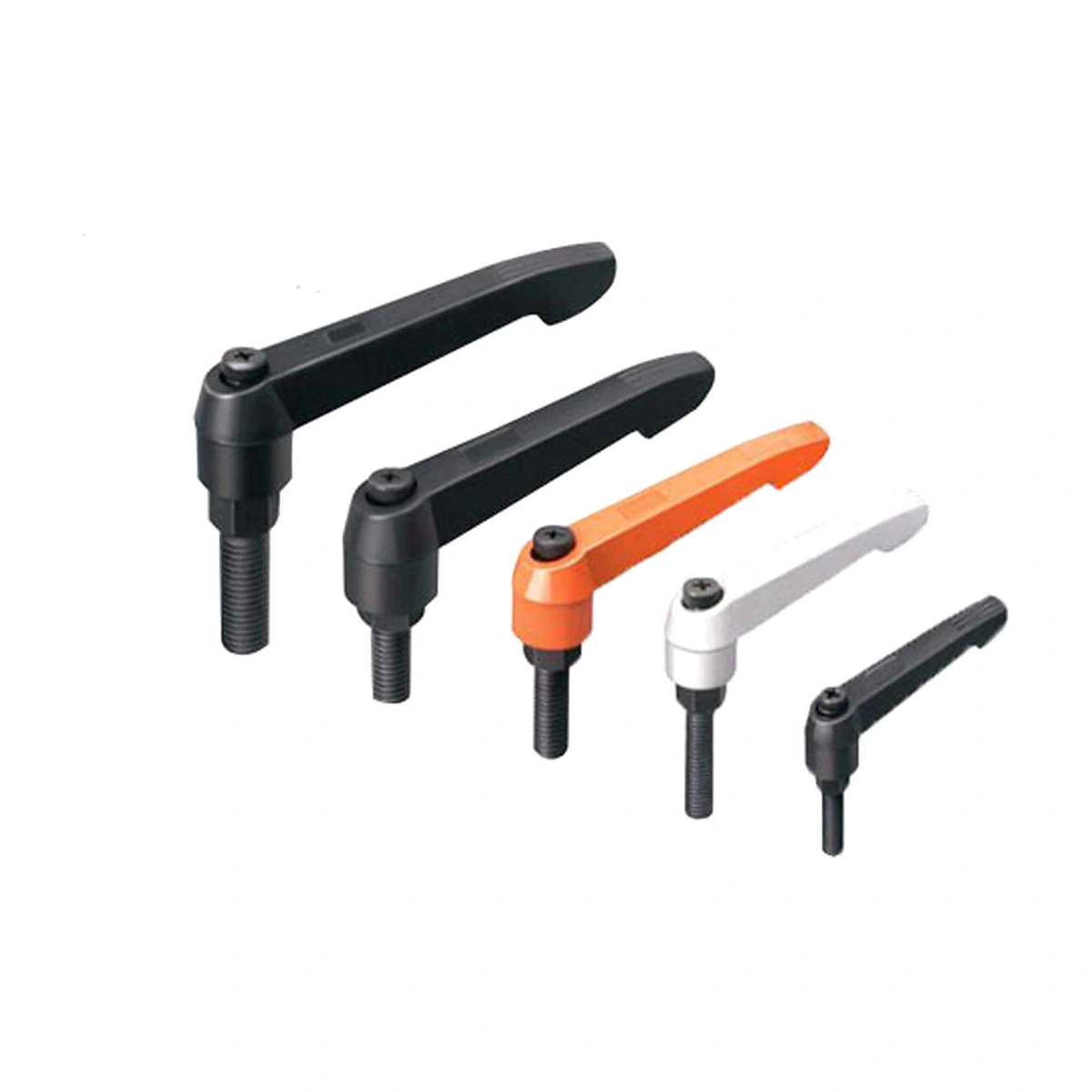

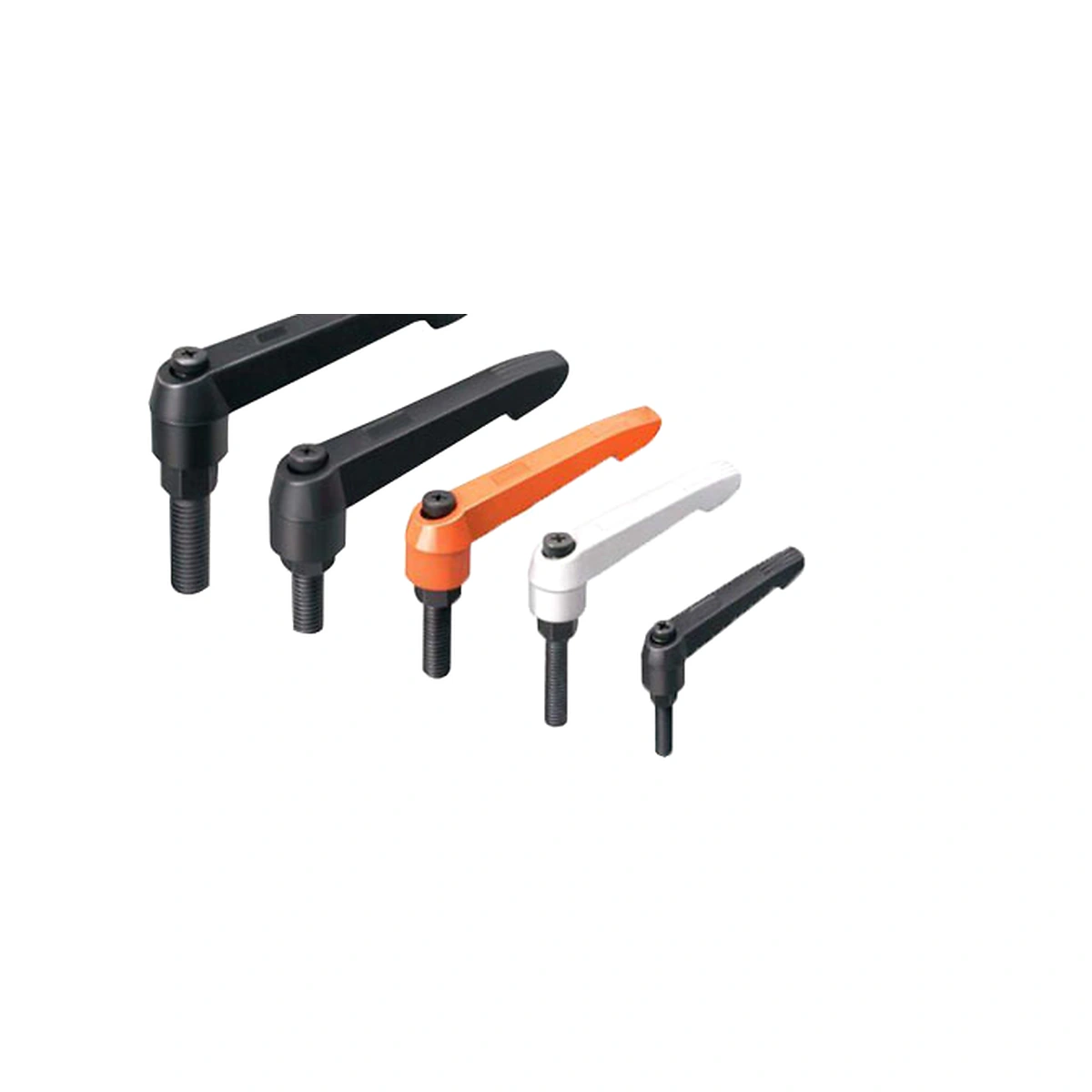

013A / 013B Adjustable Handles with Threaded Studs

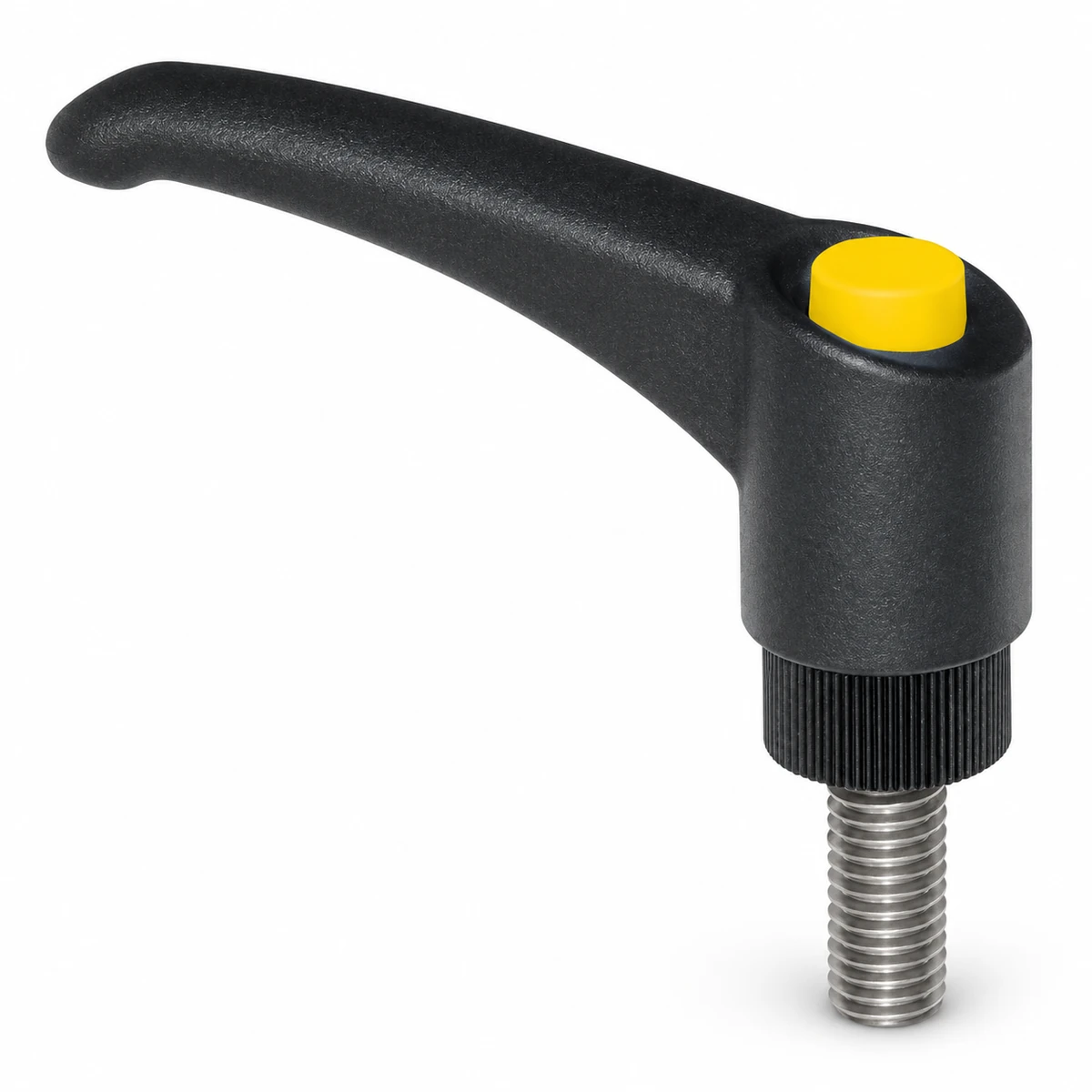

These adjustable handles carry a threaded stud for fastening into a tapped component or mating nut. The 013A covers M4–M6 threads; the larger 013B covers M8 and M10.
- Small Handle
- 013A: M4 / M5 / M6
- Large Handle
- 013B: M8 / M10
- Lever Angle
- 30° shown
Match Stud Reach to the Clamped Stack
Allow for the bracket, washer and required thread engagement when selecting the projecting stud.
Tighten Through a Slot or into a Tapped Part
The stud passes through the clamped part and engages the receiving thread. Turning the lever draws the faces together. The lever can be repositioned where a nearby frame member limits the turning arc.
The 013A and 013B use different lever envelopes as well as different thread sizes. Choose the thread for the mating part, then check stud reach and hand clearance. Handle size alone does not establish a permissible tightening torque.
Specifications
| Code | Handle Reference | Thread Options |
|---|---|---|
| 013A | Handle Reference: Small adjustable handle | Thread Options: M4, M5, M6 |
| 013B | Handle Reference: Large adjustable handle | Thread Options: M8, M10 |
| Parameter | Specification |
|---|---|
| Thread type | Specification: External thread on stud |
| Lever angle shown | Specification: 30° |

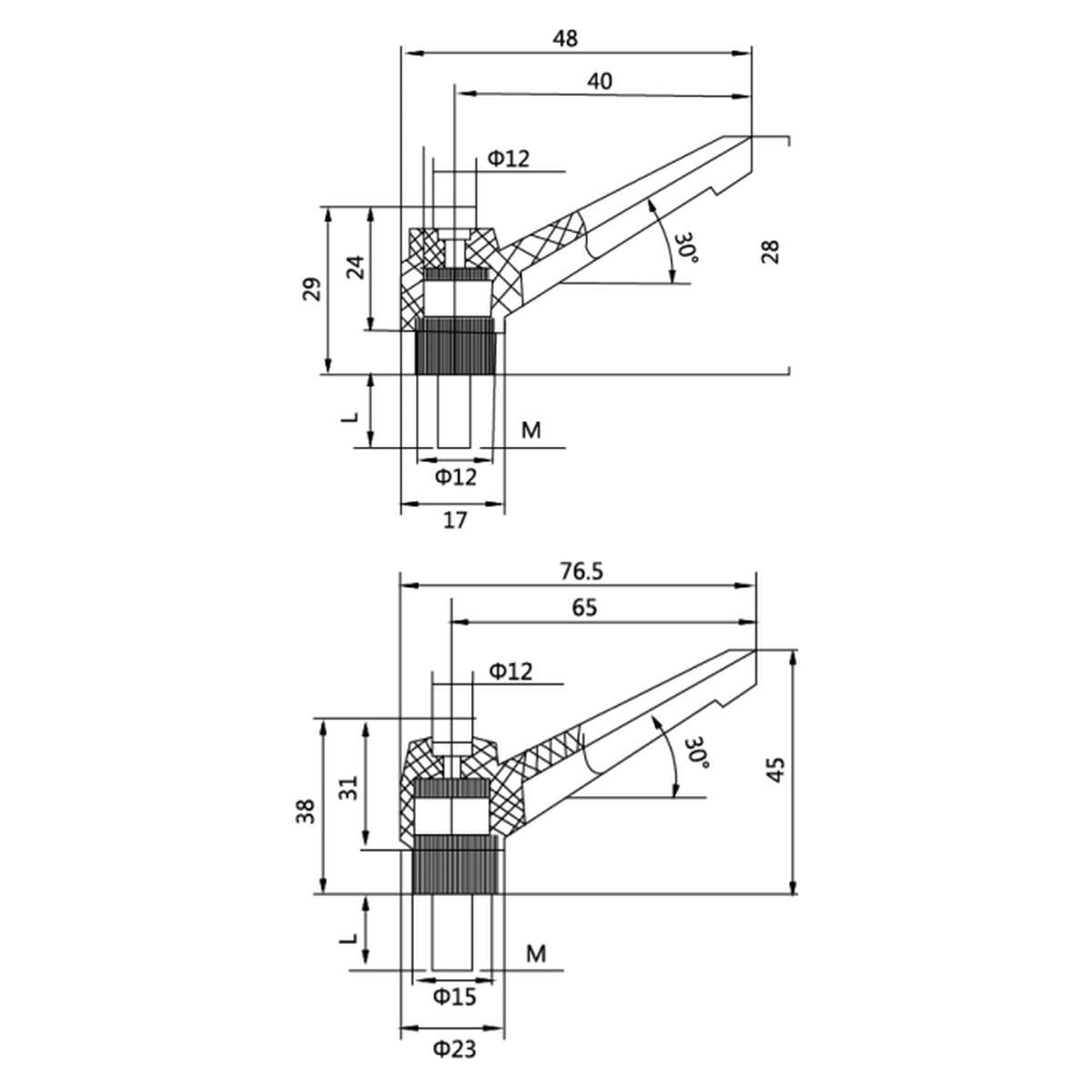

Select the stud length against the assembly section and the corresponding drawing.
Avoid Bottoming the Stud
Measure the thickness between the handle's seating face and the receiving thread. Establish the required engagement and available tapped depth. The stud must clamp the assembly before it reaches the bottom of a blind hole.
Check access across the bracket's complete travel. Leave room to reposition the lever without contacting the conveyed product or a neighbouring adjustment.
Repeated Manual Setting of Conveyor Hardware
A studded handle can secure a slotted guide bracket or another manually positioned component. The external thread reaches through the slot, so the selected stud must accommodate the clamped stack at every adjustment position.
Where adjustments sit close together, the final lever orientation affects operator access. Plan the handle locations so one setting can be released without disturbing the adjacent bracket.
Specify the Thread and Stud Reach
Send the 013A or 013B reference, thread size, required stud length and quantity. Include the clamped thickness and receiving-thread details for a fitting review.
